Toyota RAV4 制动总泵 — Figure 4702
Toyota RAV4 EPC diagram 4702, 制动总泵, with 3 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

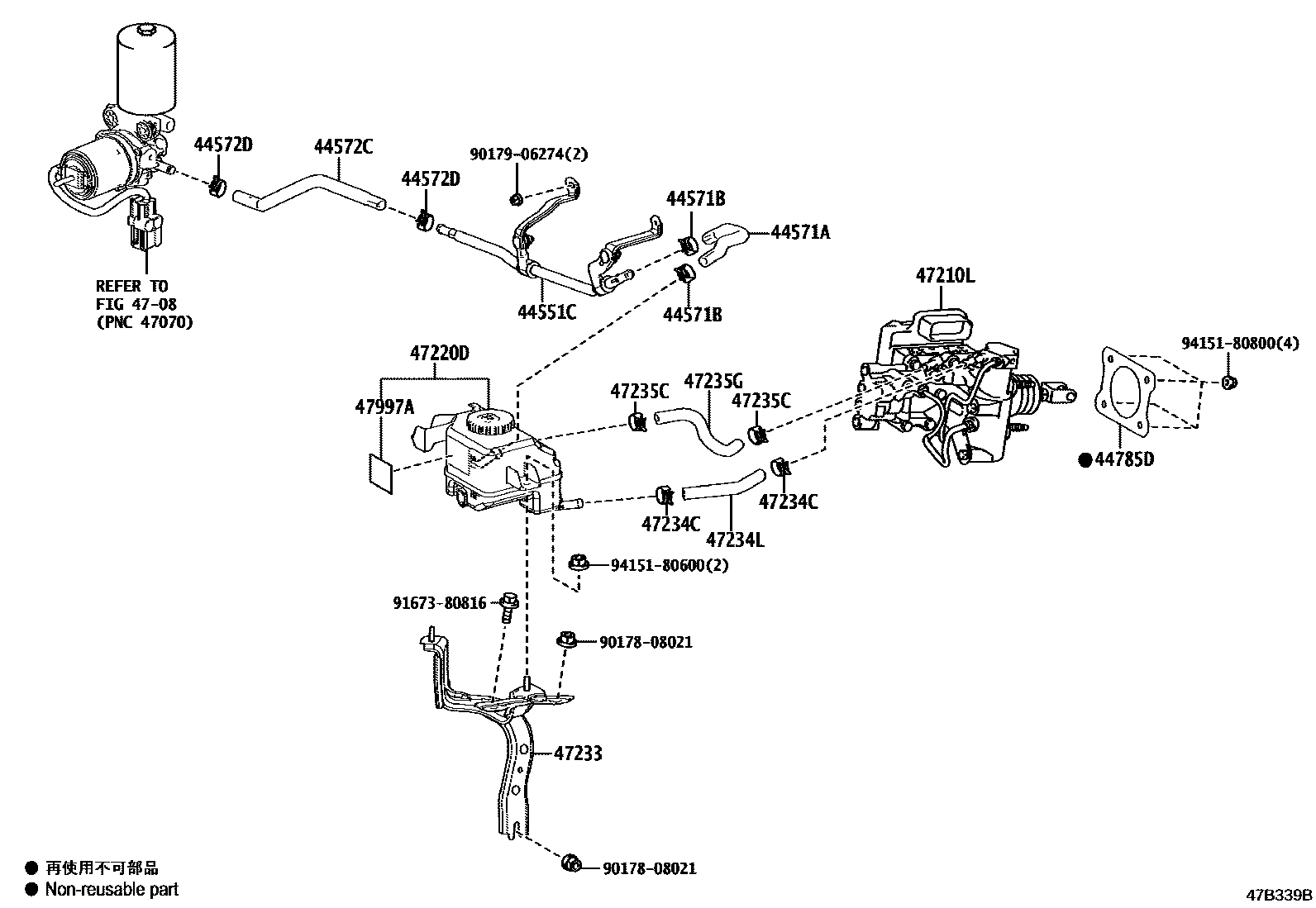

| 44551C | No. 1 brake actuator pipe | 44551-42030 |
| 44571A | No. 1 brake actuator hose | 44571-42030 |
| 44571B | ATTACHE, DURITE(POUR DURITE DE RECEPTEUR DE FREINAGE NO.1) | 96137-41501 |
| 44572C | No. 2 brake actuator hose | 44572-42010 |
| 44572D | ATTACHE, DURITE(POUR DURITE DE RECEPTEUR DE FREINAGE NO.2) | 96137-41501 |
| 44785D | brake master cylinder gasket | 44785-12040 |

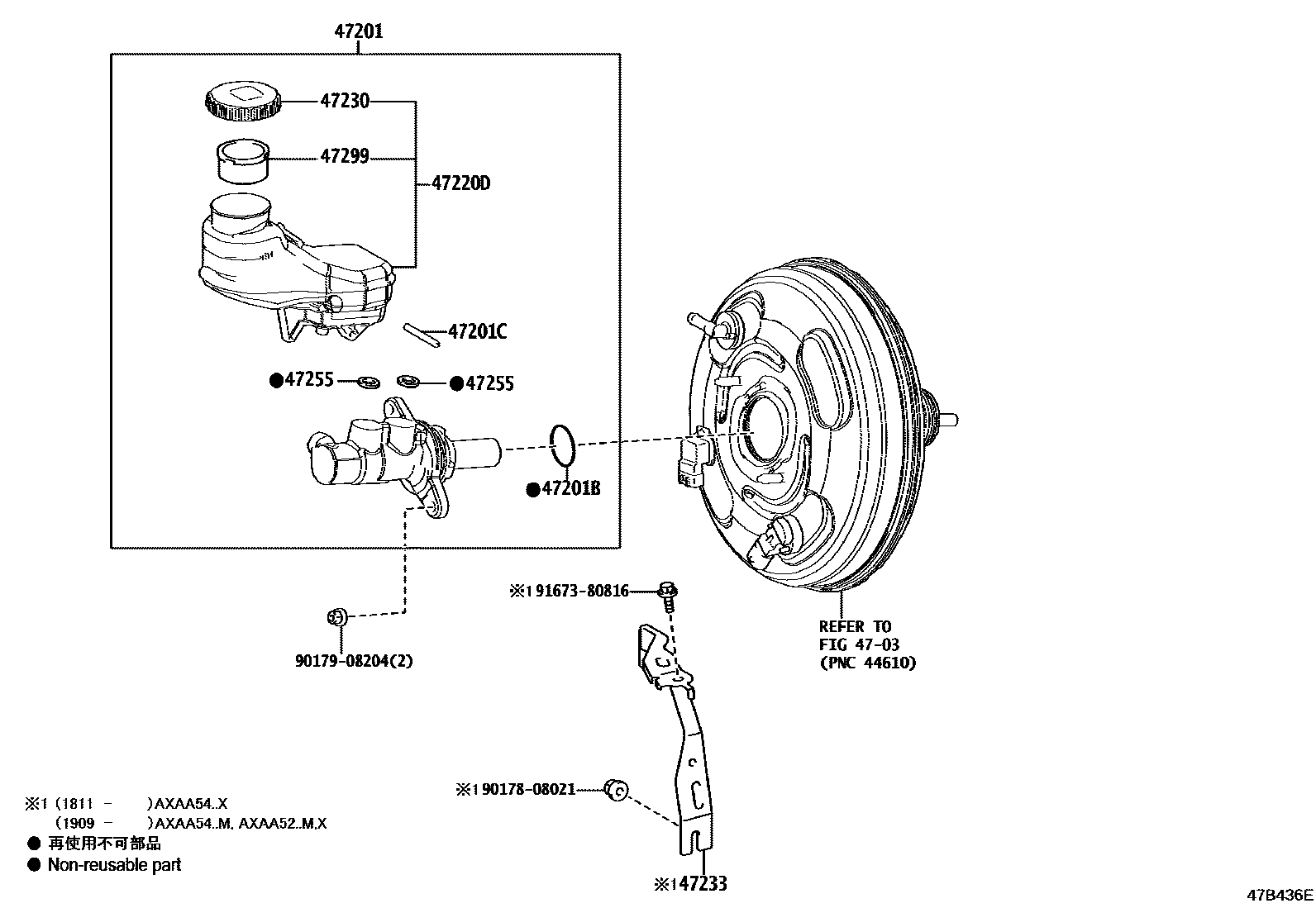

| 47201 | Brake master cylinder sub-assembly | 47201-42440 |
| 47201B | O-ring (for brake master cylinder) | 90015-AH002 |
| 47201C | Brake master cylinder ring pin | 90029-15803 |

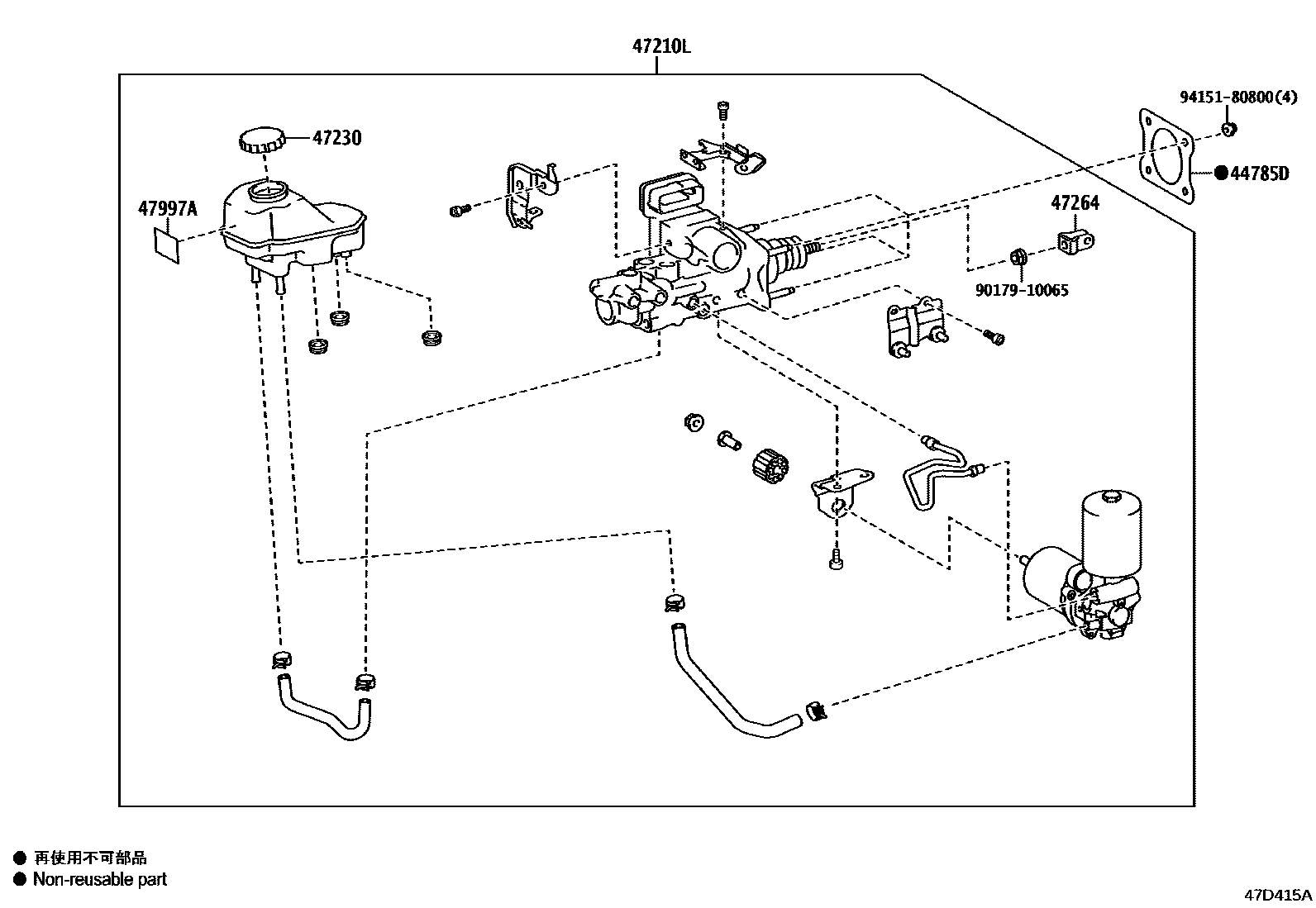

| 47210L | Brake booster assembly with master cylinder | 47050-42170 · 47050-42171 · 47050-42190 · 47050-42191 · 47050-42320 · 47050-42450 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-42140 · 47220-42170 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-47090 |
| 47233 | Reservoir tank bracket | 47233-42040 · 47233-42050 |
| 47234C | Clamp (for No. 1 tube of liquid storage tank) | 96137-41501 |
| 47234L | Reservoir Tank No. 1 Hose | 47234-42030 |
| 47235C | Clamp (for brake master cylinder reservoir tank No. 2 pipe) | 96137-41501 |
| 47235G | Reservoir tank No. 2 hose | 47235-42030 |
| 47255 | Master pump reservoir seal | 90029-48001 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-12060 |
| 47299 | Brake master cylinder reservoir filter | 47299-20060 |
| 47997A | Accumulator No. 1 Warning Label | 47997-76010 |
