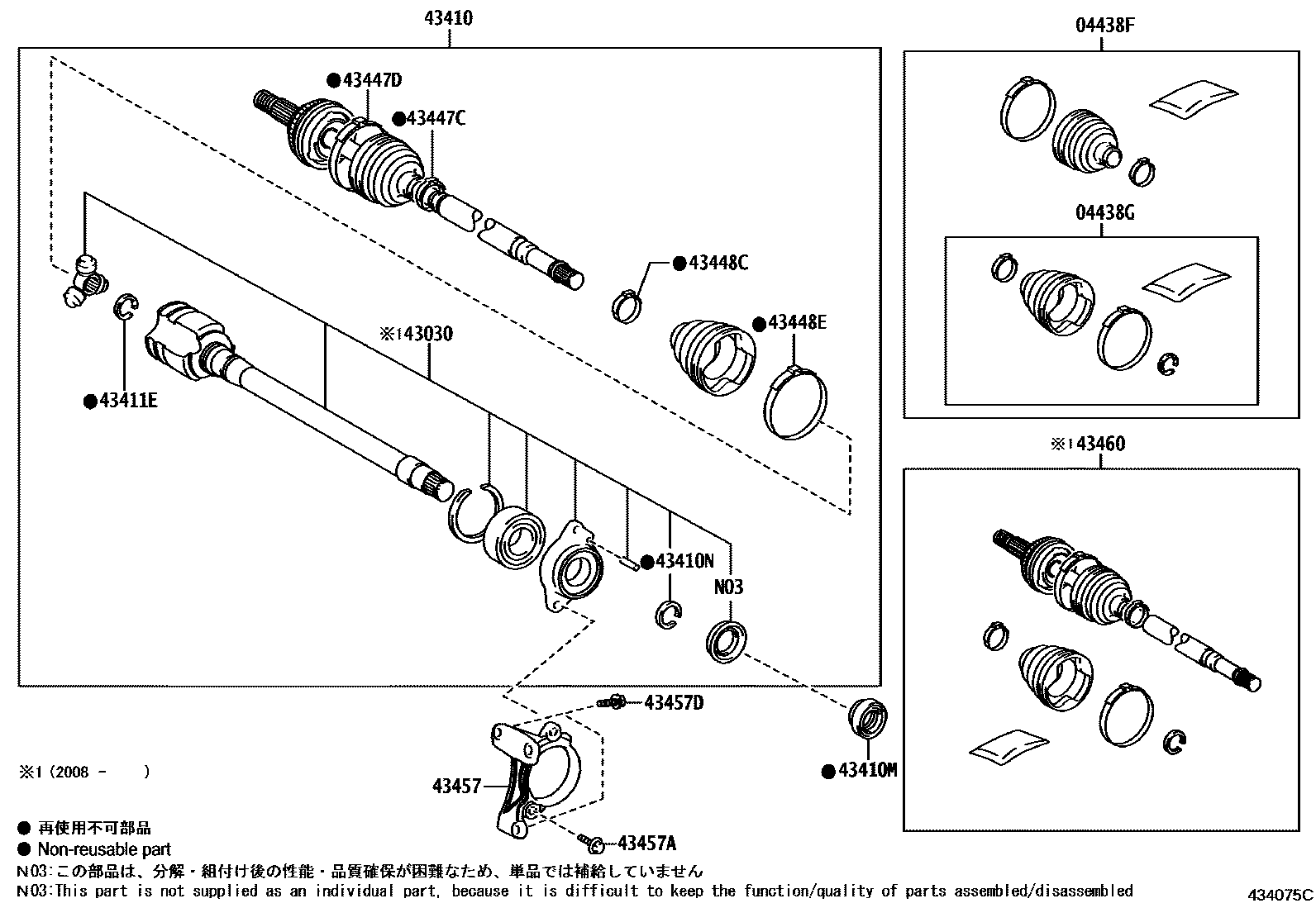

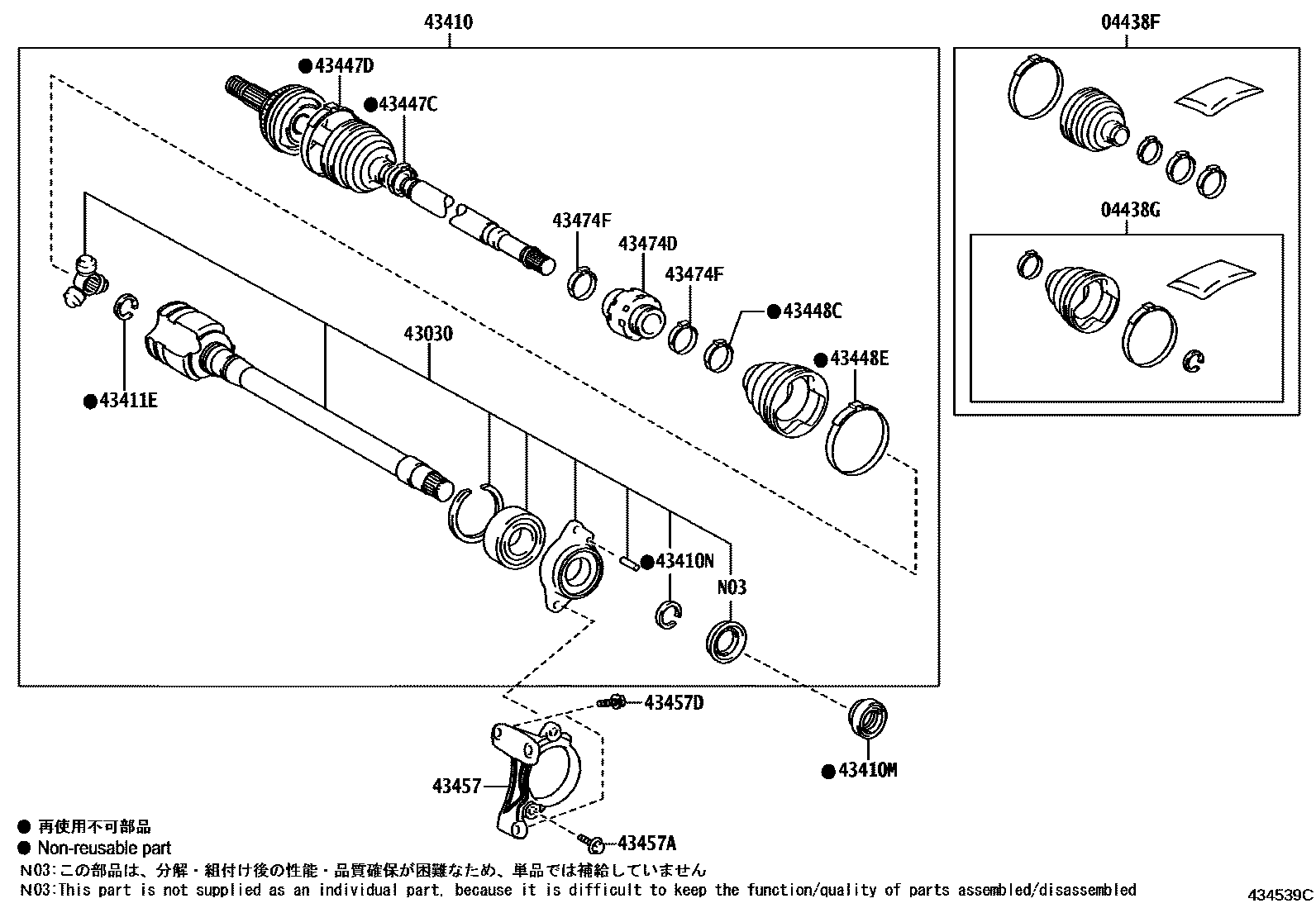

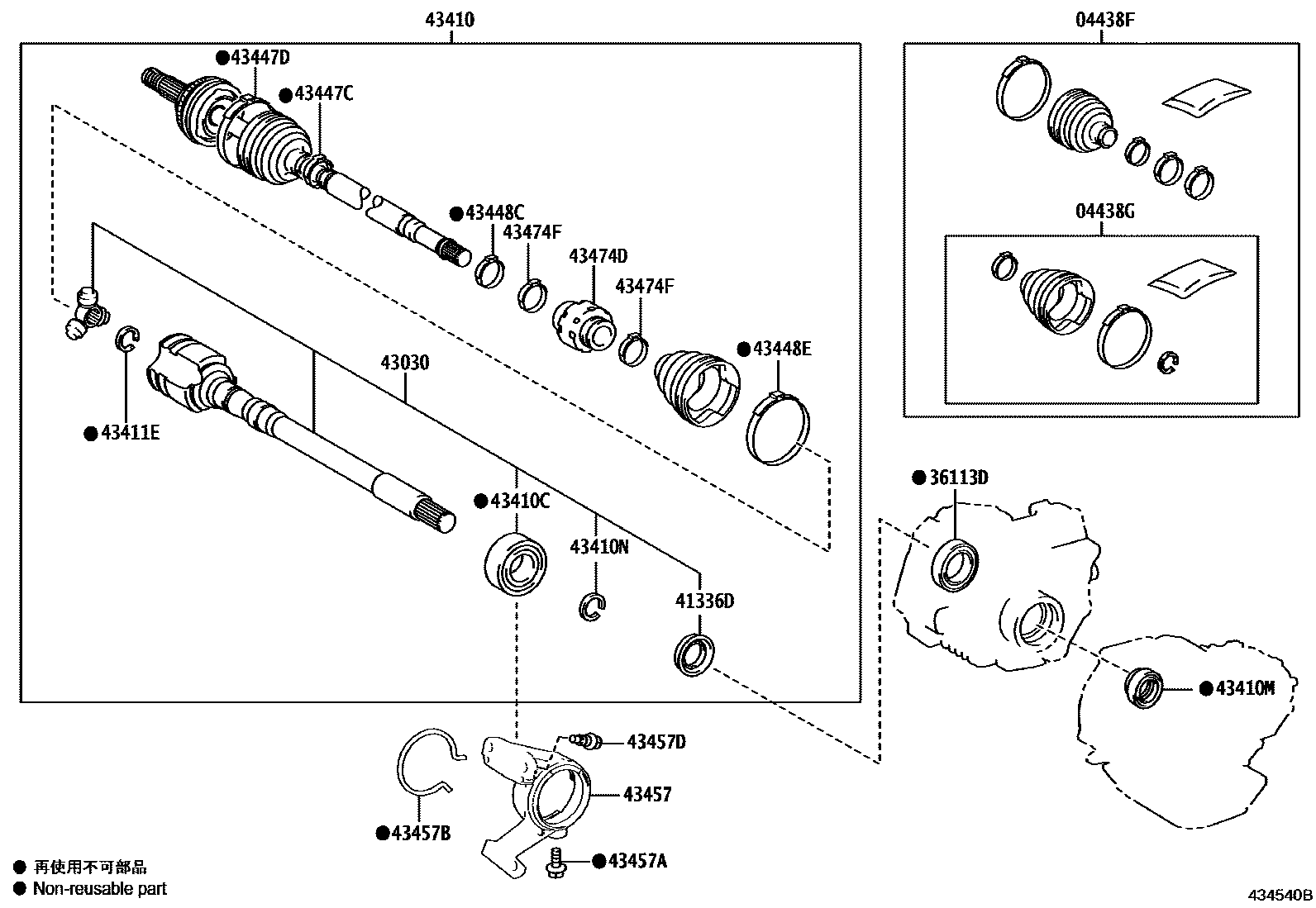

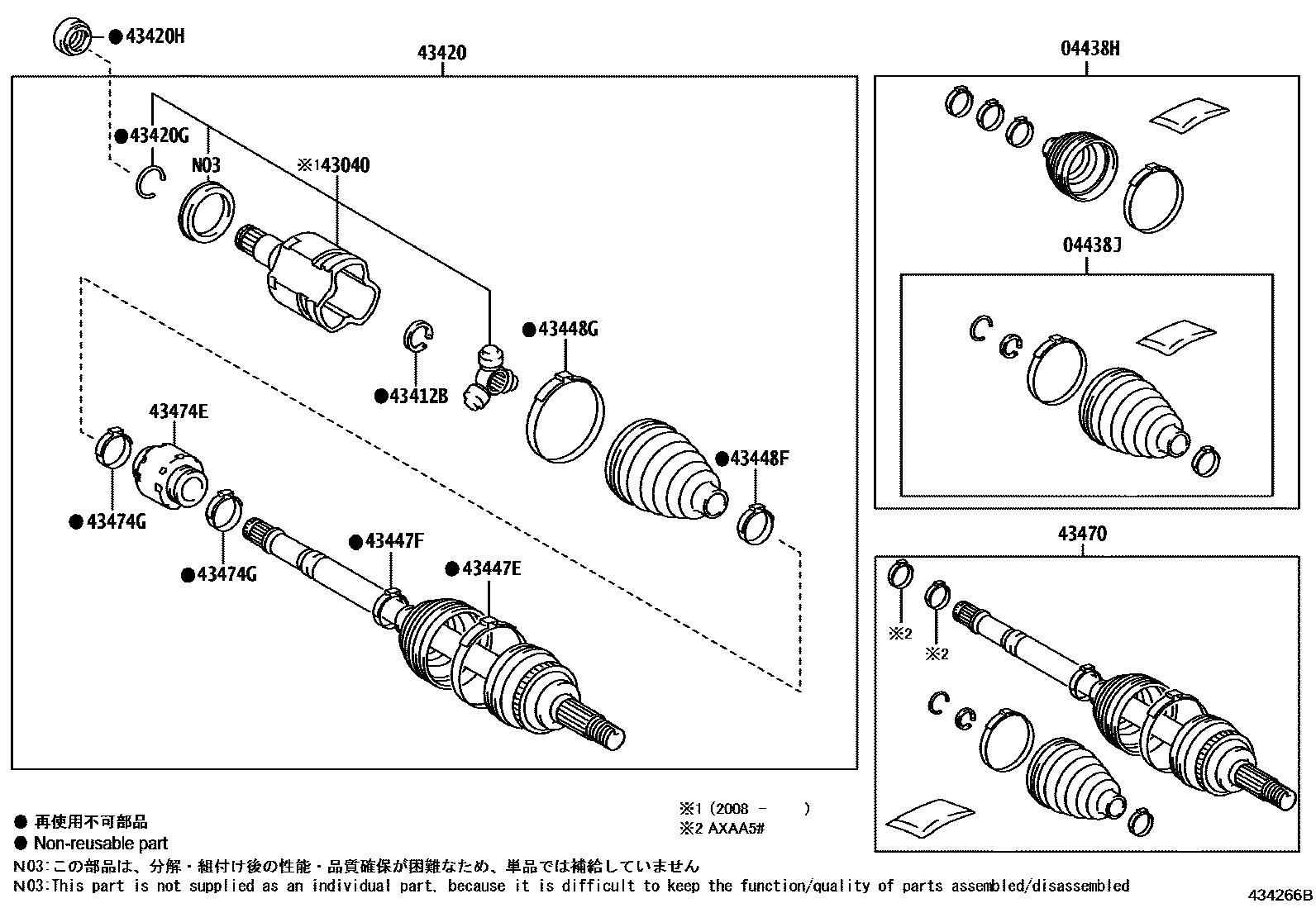

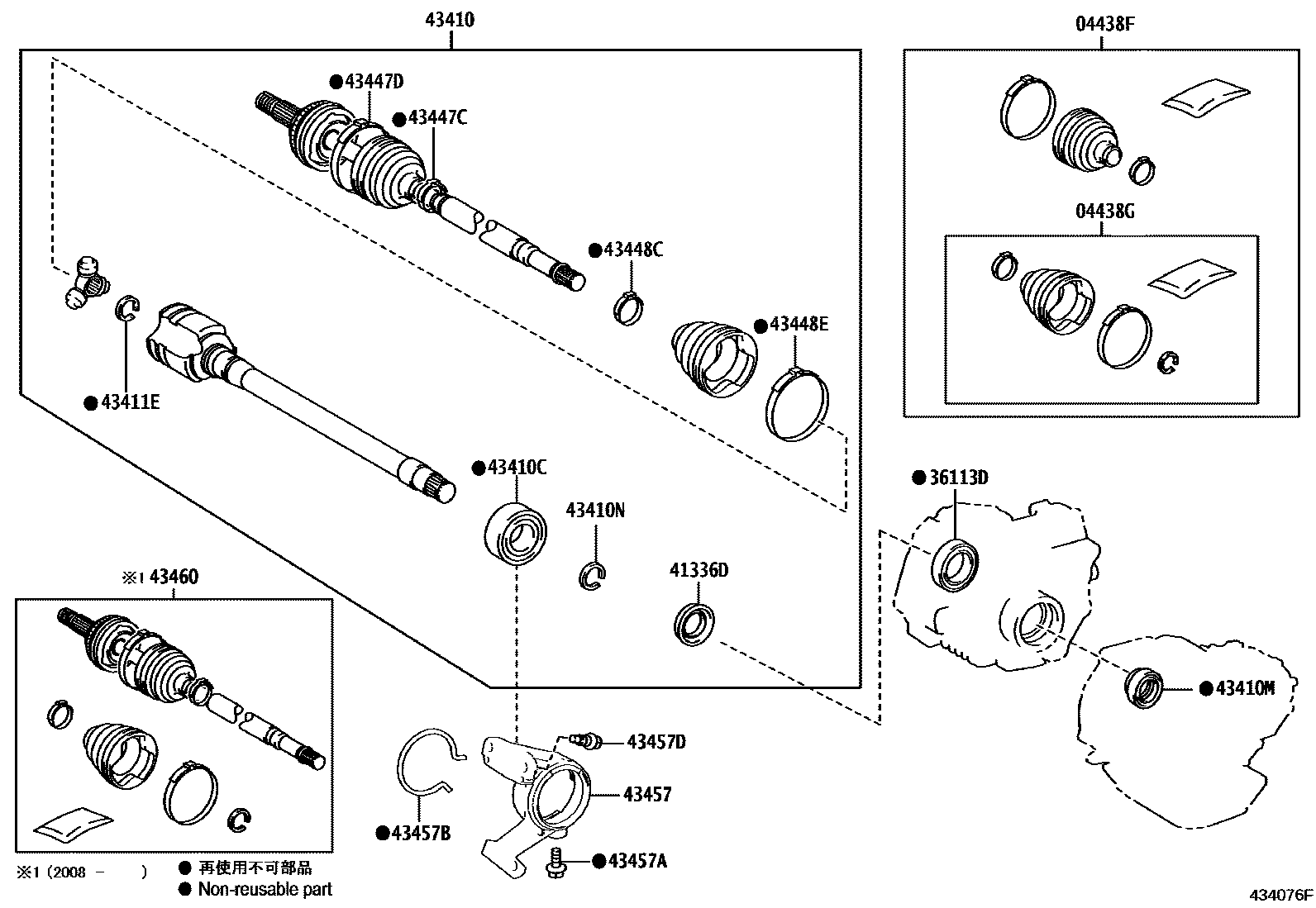

Toyota RAV4 Front Drive Shaft — Figure 4302
Toyota RAV4 EPC diagram 4302, Front Drive Shaft, with 5 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-33120 · 04427-42170 · 04427-42171 · 04427-42180 · 04427-42230 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-33090 · 04437-42080 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04427-42190 · 04427-42192 · 04428-44062 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04438-42181 |
| 36113D | JOINT, D'HUILE (POUR BOITE DE TRANSFERT MD) | 90311-35056 |
| 41336D | Right front driveshaft dust cover | 41336-52020 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-33060 · 43030-33070 · 43030-42130 · 43030-42140 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-33030 |
| 43410 | Right front driveshaft assembly | 43410-33350 · 43410-42300 · 43410-42360 · 43410-42371 · 43410-42381 · 43410-42400 · 43410-42410 |
| 43410C | Bearings (for front driveshaft) | 90363-36006 |
| 43410M | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MD | 90311-40046 · 90311-40049 · 90316-34001 |
| 43410N | Hole snap ring (for right front driveshaft) | 90520-33008 · 90520-38015 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-28010 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-28010 |
| 43420 | Left front drive shaft assembly | 43420-33330 · 43420-33340 |
| 43420G | Hole snap ring (for left front driveshaft) | 90521-33002 |
| 43420H | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MG | 90311-50058 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-42100 · 42345-42120 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-42090 · 42345-42110 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-42100 · 42345-42120 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-42090 · 42345-42110 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-28090 · 42345-33120 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-33140 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-28090 · 42345-33120 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-33140 |
| 43457 | drive shaft bearing bracket | 43457-33050 · 43457-33060 · 43457-42190 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90105-10361 · 90105-W0214 · 90119-10461 |
| 43457B | Hole snap ring (for drive shaft bearing bracket) | 90521-75002 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90105-10381 · 90105-W0215 |
| 43460 | Right front outer drive universal joint shaft assembly | 43470-80465 · 43470-80466 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-80468 · 43470-80469 |
| 43474D | Right front driveshaft shock absorber | 43474-48080 |
| 43474E | Left front driveshaft shock absorber | 43474-42030 · 43474-42050 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-12090 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-12090 |
