Toyota RAV4 车轮和车轮盖 — Figure 4103
Toyota RAV4 EPC diagram 4103, 车轮和车轮盖, with 4 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-33060 |

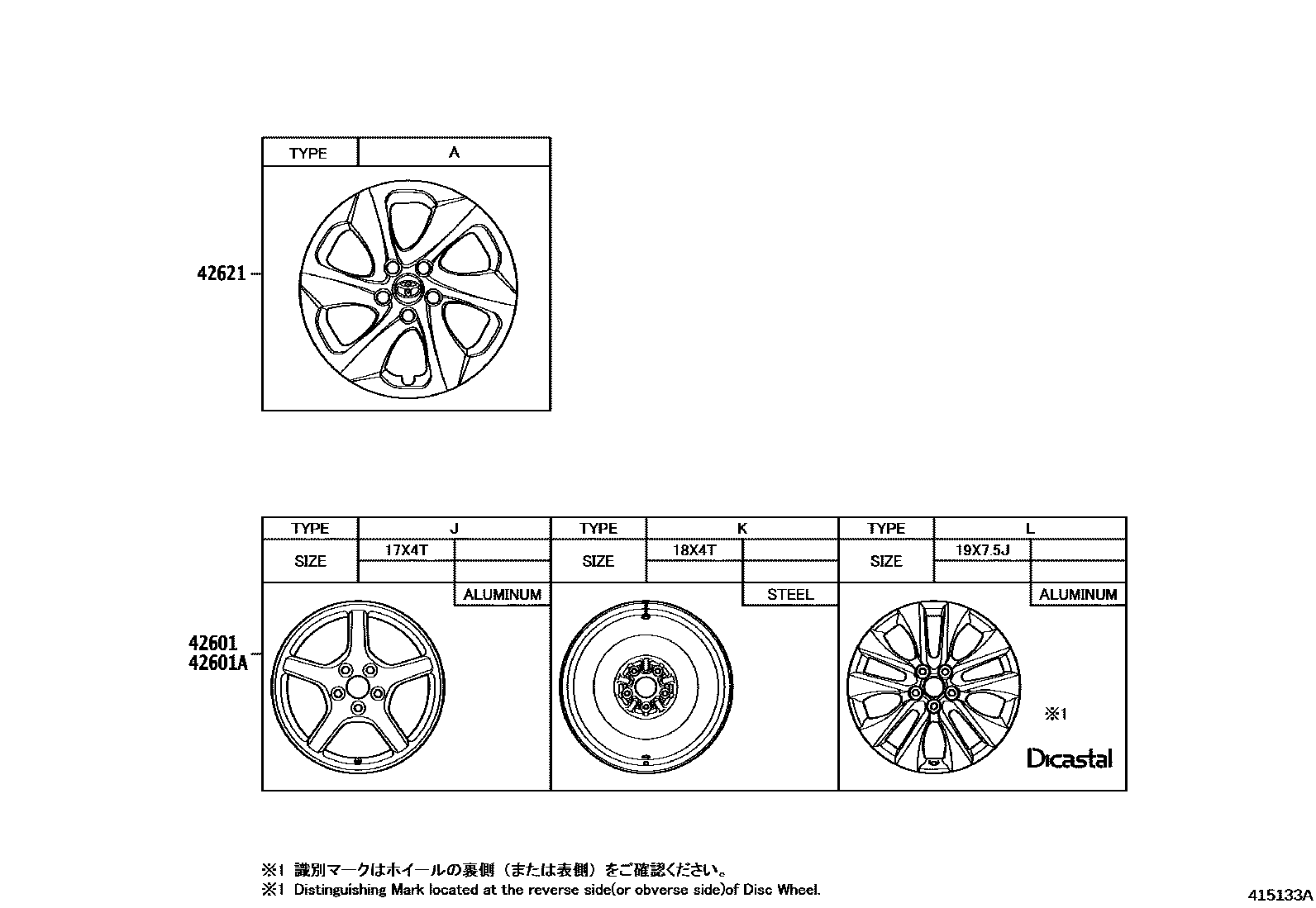

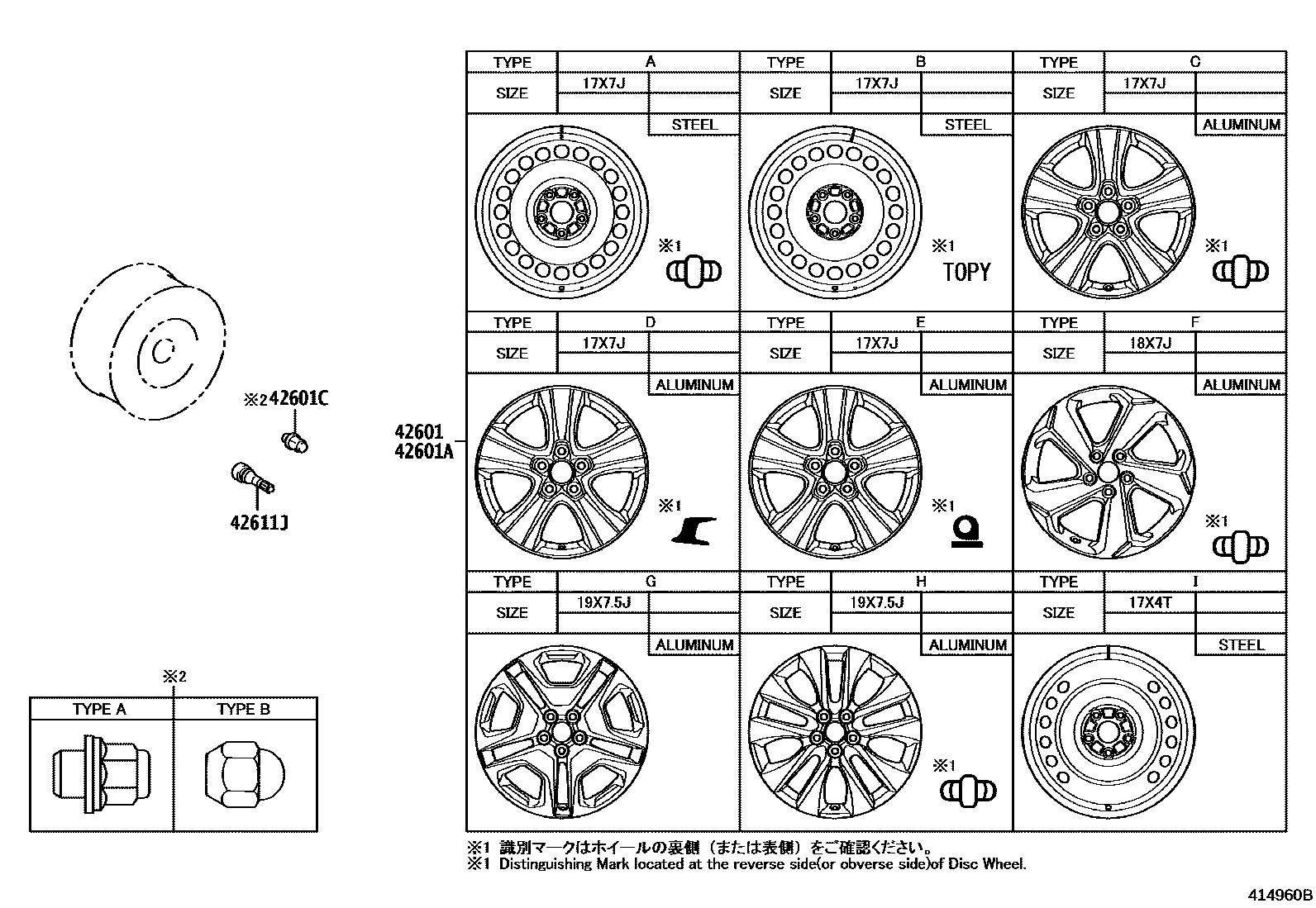

| 42601 | spoke wheel | 42611-42520 · 42611-42720 · 42611-42760 · 42611-42800 · 42611-42810 · 42611-42840 · 42611-42850 · 42611-42A10 · 42611-42A30 · 42611-42A50 · 42611-42A70 · 42611-42B30 · 4261A-0W010 · 4261A-42130 · 4261A-42150 · 4261A-42170 |
| 42601A | Spoke wheel (for spare tire) | 42611-33E70 · 42611-42780 · 42611-48751 · 42611-48752 · 4261B-42010 |
| 42601C | Hub nut (for axle) | 90942-01021 · 90942-01033 · 90942-01115 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-42130 · 42603-48140 |

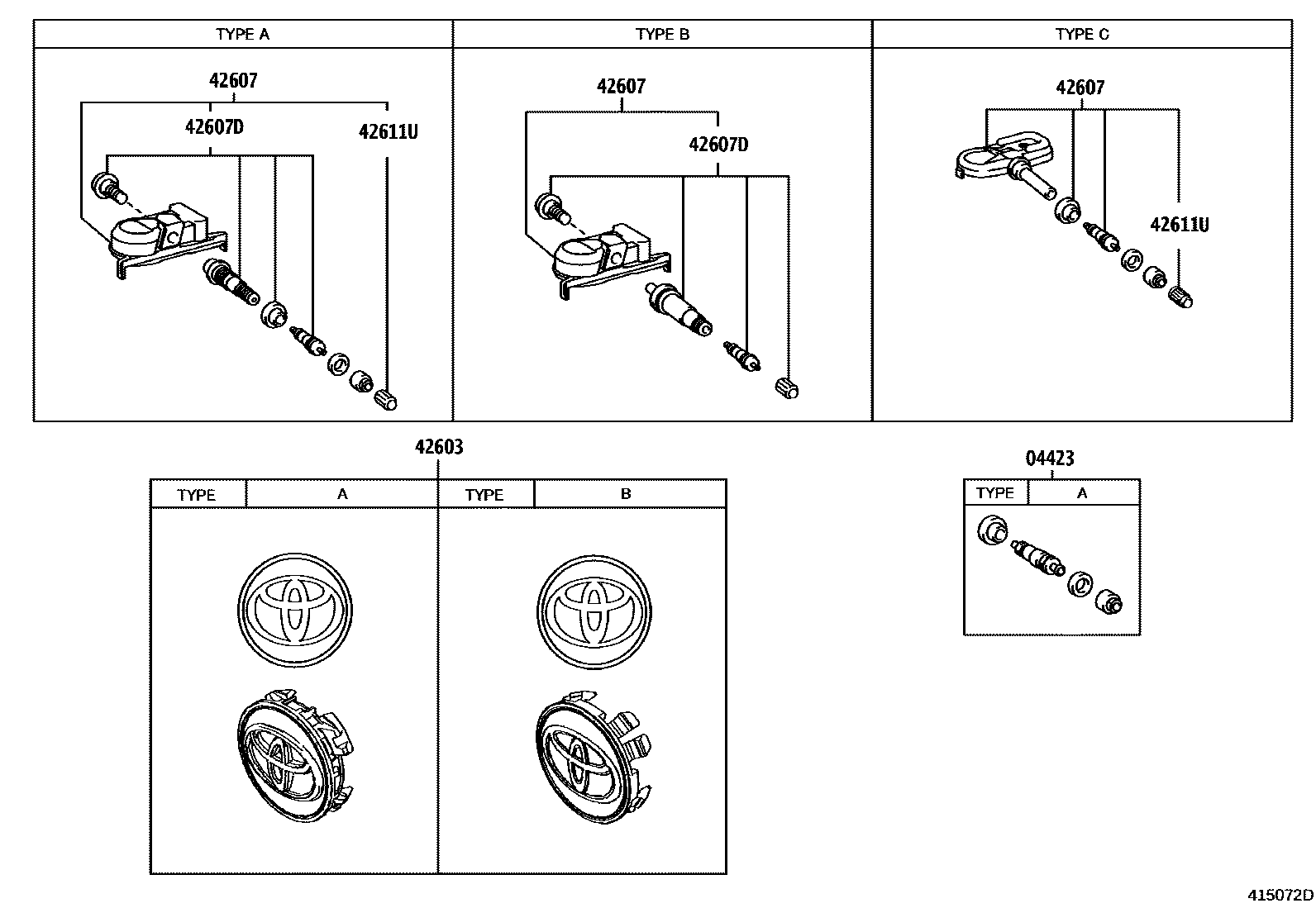

| 42607 | Tire pressure monitoring valve sub-assembly | 42607-12010 · 42607-12020 · 42607-12040 · 42607-33050 · 42607-60010 |
| 42607D | SOUPAPE, CONTROLE PRESSION PNEU | 90942-05043 · 90942-05044 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42611U | tire valve cover | 90942-05039 |
| 42621 | wheel cover | 42602-42040 |
