Toyota RAV4 3号制动器、一档和倒档制动器(ATM) — Figure 3509

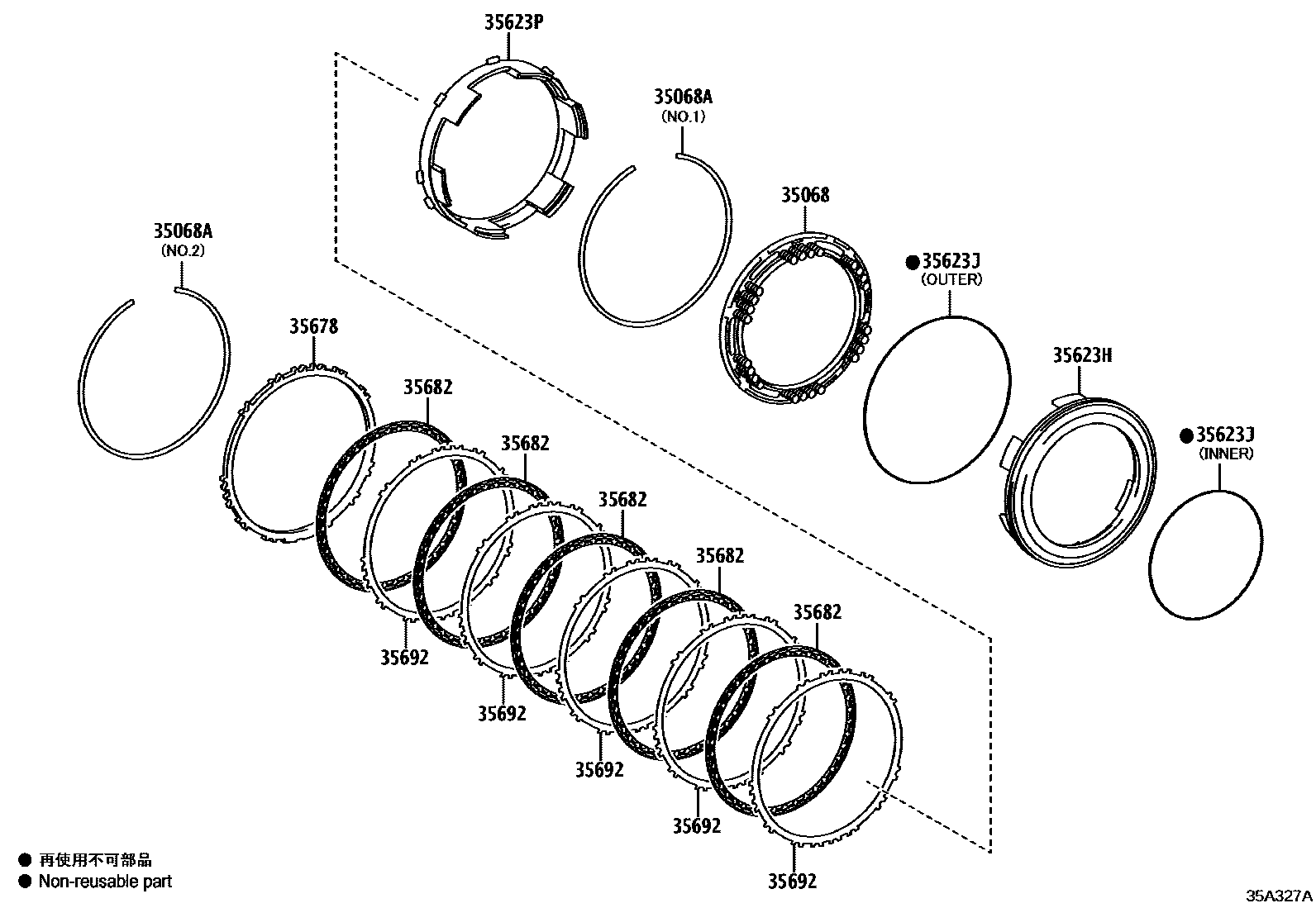

Toyota RAV4 EPC diagram 3509, 3号制动器、一档和倒档制动器(ATM), with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35068 | First and reverse brake return spring sub-assembly | 35068-33040 |
| 35068A | Shaft snap ring (for first and reverse brake return spring) | 90521-99193 · 90521-99198 |
| 35623H | First and reverse brake piston | 35623-33101 |
| 35623J | O-ring (for first and reverse brakes) | 90301-99220 · 90301-99231 |
| 35623P | No. 2 first and reverse brake piston | 35624-33050 |
| 35678 | Brake flange (for second gear brake) | 35678-33280 · 35678-33290 · 35678-33300 · 35678-33310 · 35678-33320 · 35678-33330 · 35678-33340 |
| 35682 | Brake disc (for second gear brake) | 35682-33040 |
| 35692 | Brake pads (for second gear brake) | 35692-33040 |
