Toyota RAV4 变矩器、前油泵和链条(ATM) — Figure 3502

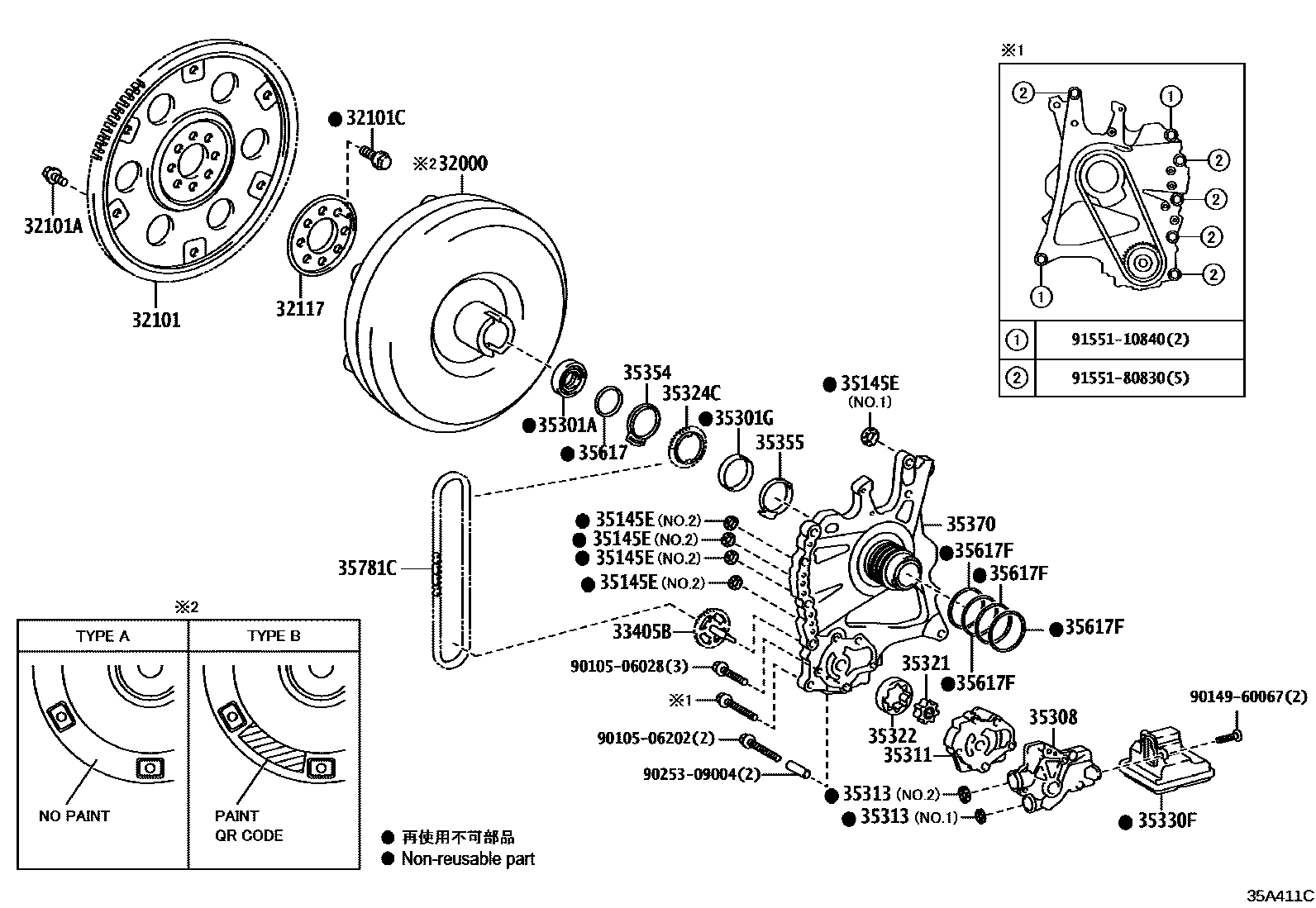

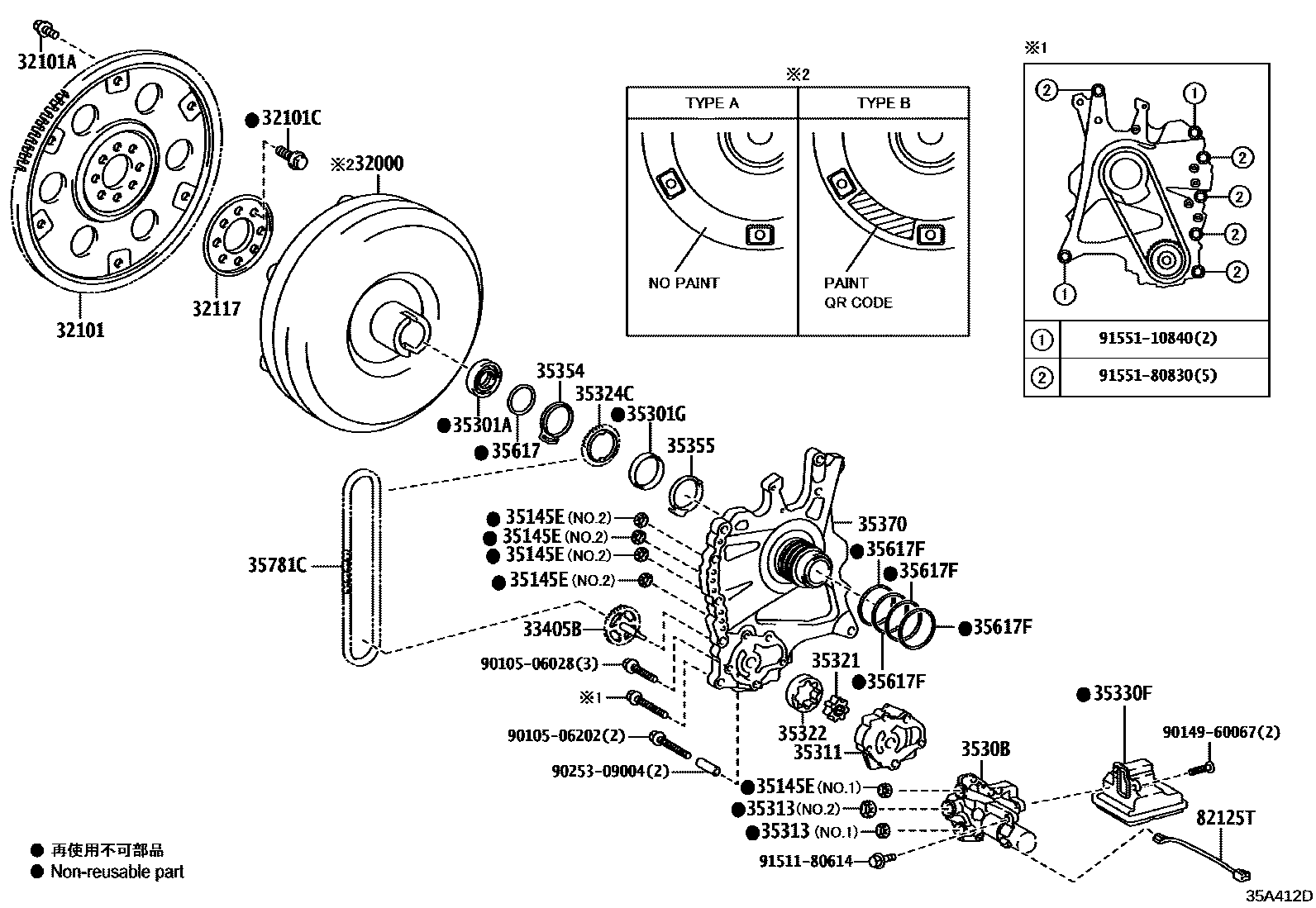

Toyota RAV4 EPC diagram 3502, 变矩器、前油泵和链条(ATM), with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32000 | Torque converter assembly | 32000-06060 · 32000-33180 |
| 32101 | Transmission plate and ring gear sub-assembly | 32101-33020 |
| 32101A | Bolts (for securing transmission plate and torque converter) | 90109-09001 · 90119-09025 |
| 32101C | Hexagonal bolts (used to fix the transmission plate) | 90105-12404 |
| 32117 | Rear transmission plate spacer | 32117-33010 |
| 33405B | SOUS-ENS. D'ARBRE DE TRANSMISSION DE POMPE A HUILE | 33405-48010 |
| 35145E | JOINT D'ETANCHEITE, BOITIER DE TRANSAXE | 35145-33010 · 35145-33020 · 35145-33040 · 35145-48030 |
| 35301A | Oil seal (for front oil pump) | 90311-51013 |
| 35301G | Needle roller bearings | 90364-51004 |
| 35308 | Front oil pump cover sub-assembly | 35308-48110 |
| 3530B | SOUS-ENS. CACHE, POMPE HUILE AV & SOLENOIDE | 3530B-48040 |
| 35311 | CARROSSERIE, POMPE HUILE AVANT | 35311-48040 |
| 35313 | Front oil pump cover gasket | 35313-48020 · 35313-48030 |
| 35321 | Front oil pump driving gear | 35321-48110 |
| 35322 | Front oil pump driven gear | 35322-48110 |
| 35324C | PIGNON, ENTRAINEMENT POMPE HUILE TRANSMISSION | 35324-48040 |
| 35330F | ENSEMBLE CREPINE | 35330-48040 |
| 35354 | RONDELLE, BUTEE PIGNON POMPE HUILE, AVANT | 35354-48010 |
| 35355 | RONDELLE, BUTEE PIGNON POMPE HUILE, ARRIERE | 35355-48010 · 35355-48011 |
| 35370 | stator shaft assembly | 35370-33070 |
| 35617 | Clutch drum oil ring | 35617-48050 |
| 35617F | Clutch drum oil ring | 35617-33020 |
| 35781C | CHAINE ENTR.TRANSMISSION | 35781-48020 |
| 82125T | CABLE, TRANSMISSION | 82125-48050 |
