Toyota RAV4 Ventilation Hose — Figure 1201

Toyota RAV4 EPC diagram 1201, Ventilation Hose, with 2 images and 4 PNC and OE references.

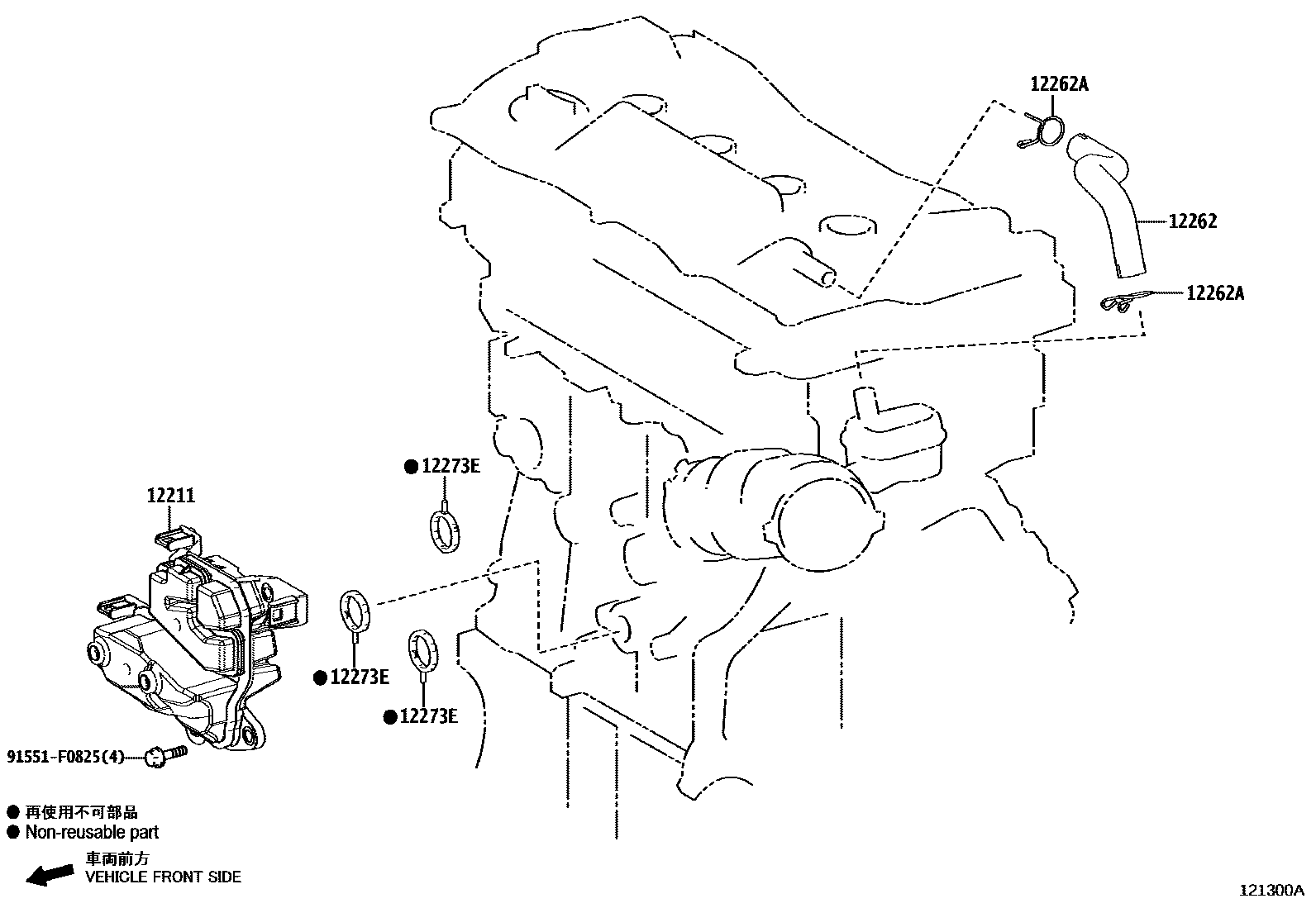

Toyota RAV4 Ventilation Hose EPC diagram — 121300A
Ventilation Hose — 121300A (201811 – 999999)
Toyota RAV4 Ventilation Hose EPC diagram — 121301A
Ventilation Hose — 121301A (201811 – 999999)

PNC and OE references

PNCPart nameOE numbers
12211Ventilation box No. 112211-25010 · 12211-25011
12262Ventilation hose No. 212262-25030 · 12262-25080
12262AClamp (for vent hose No. 2)90467-21004
12273EJOINT(POUR CARTER VENTILATION)12273-24010
