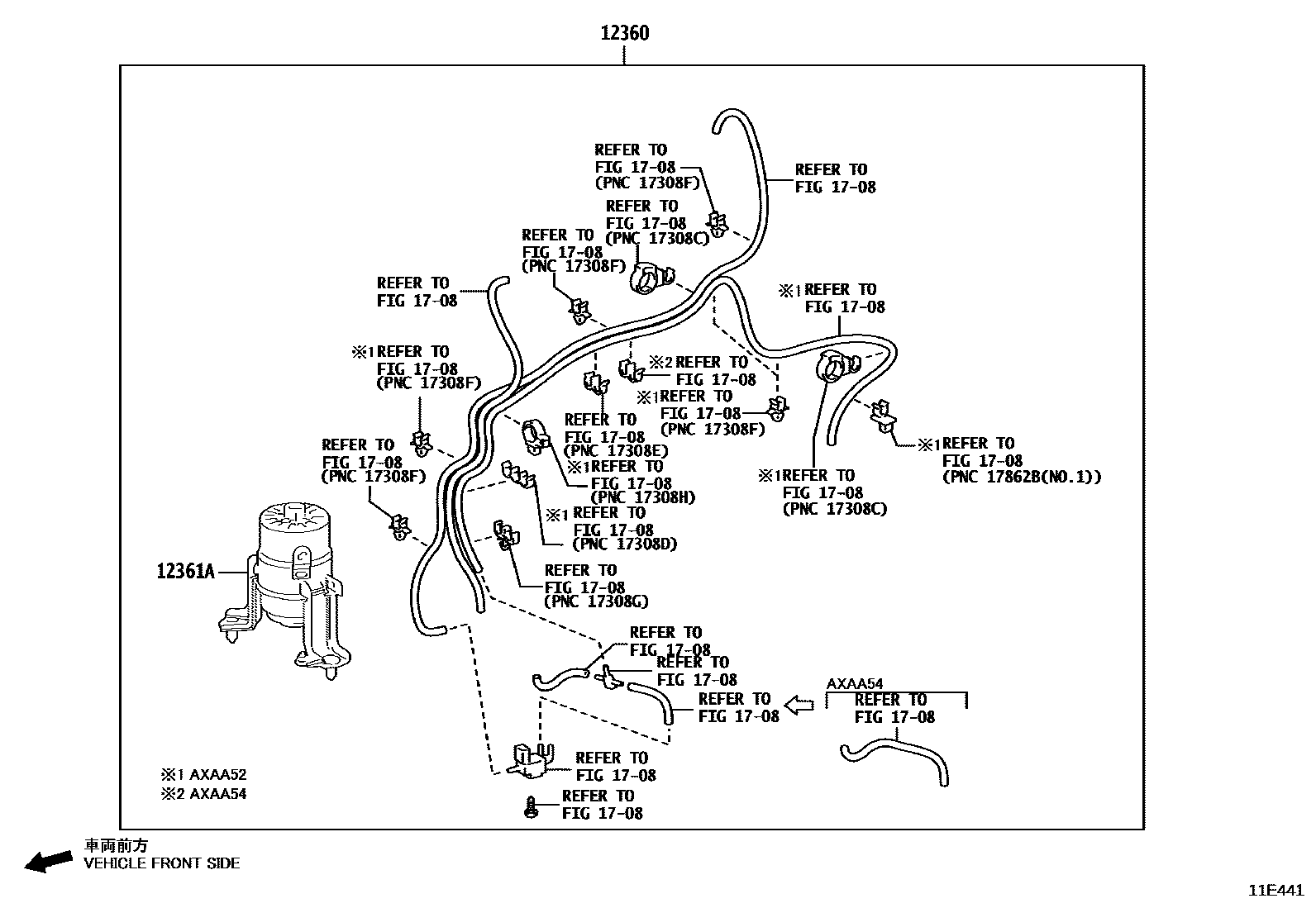

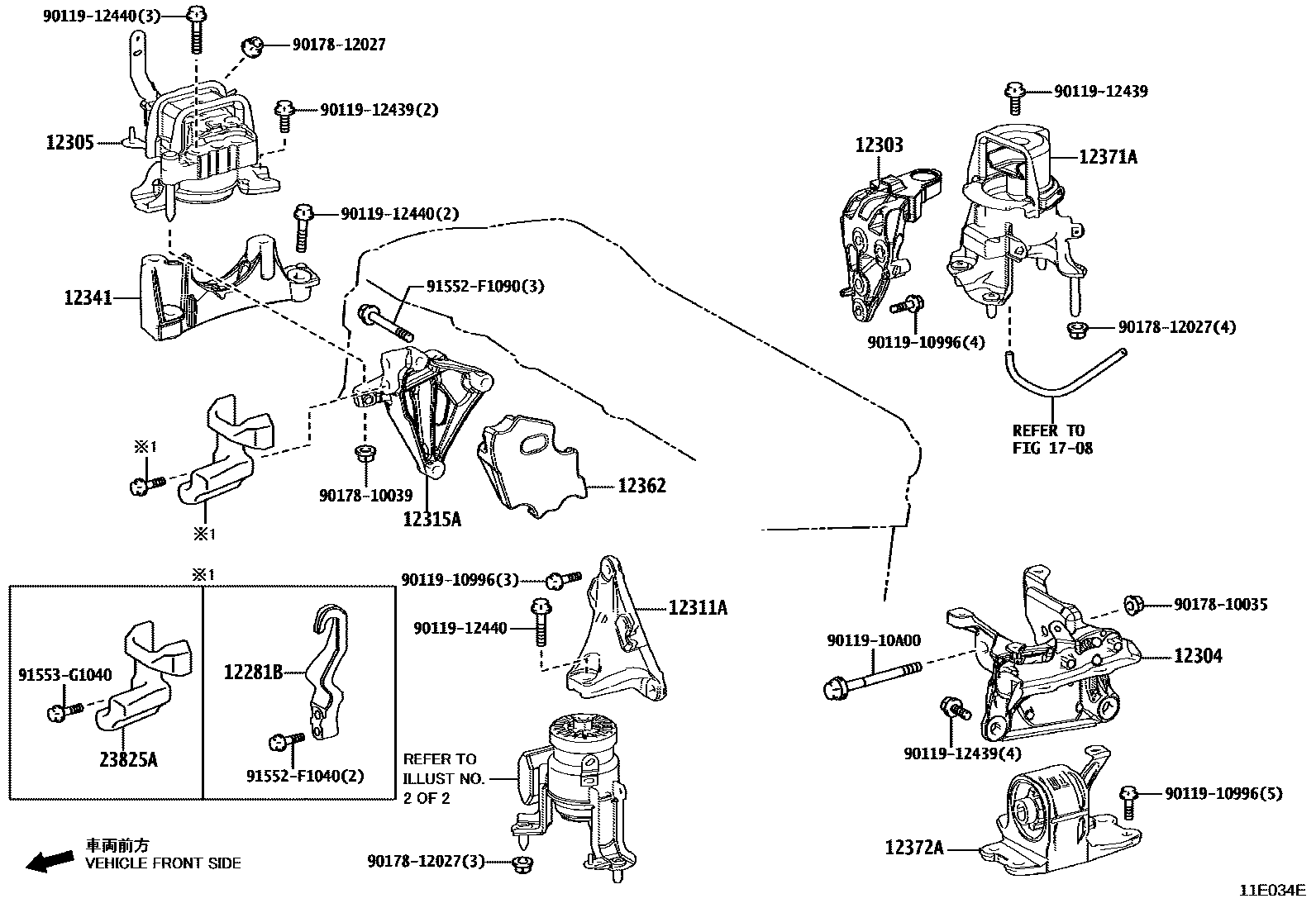

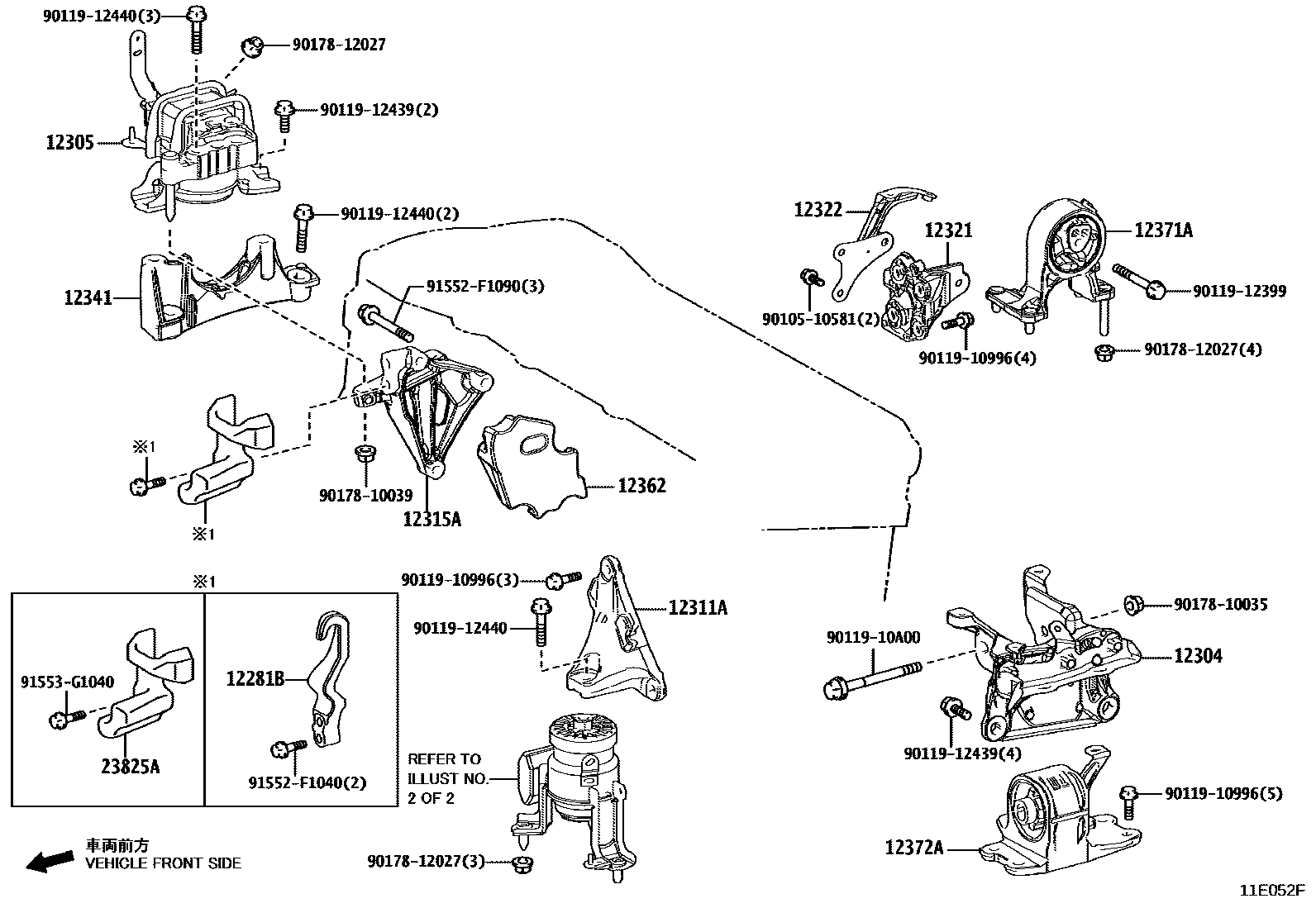

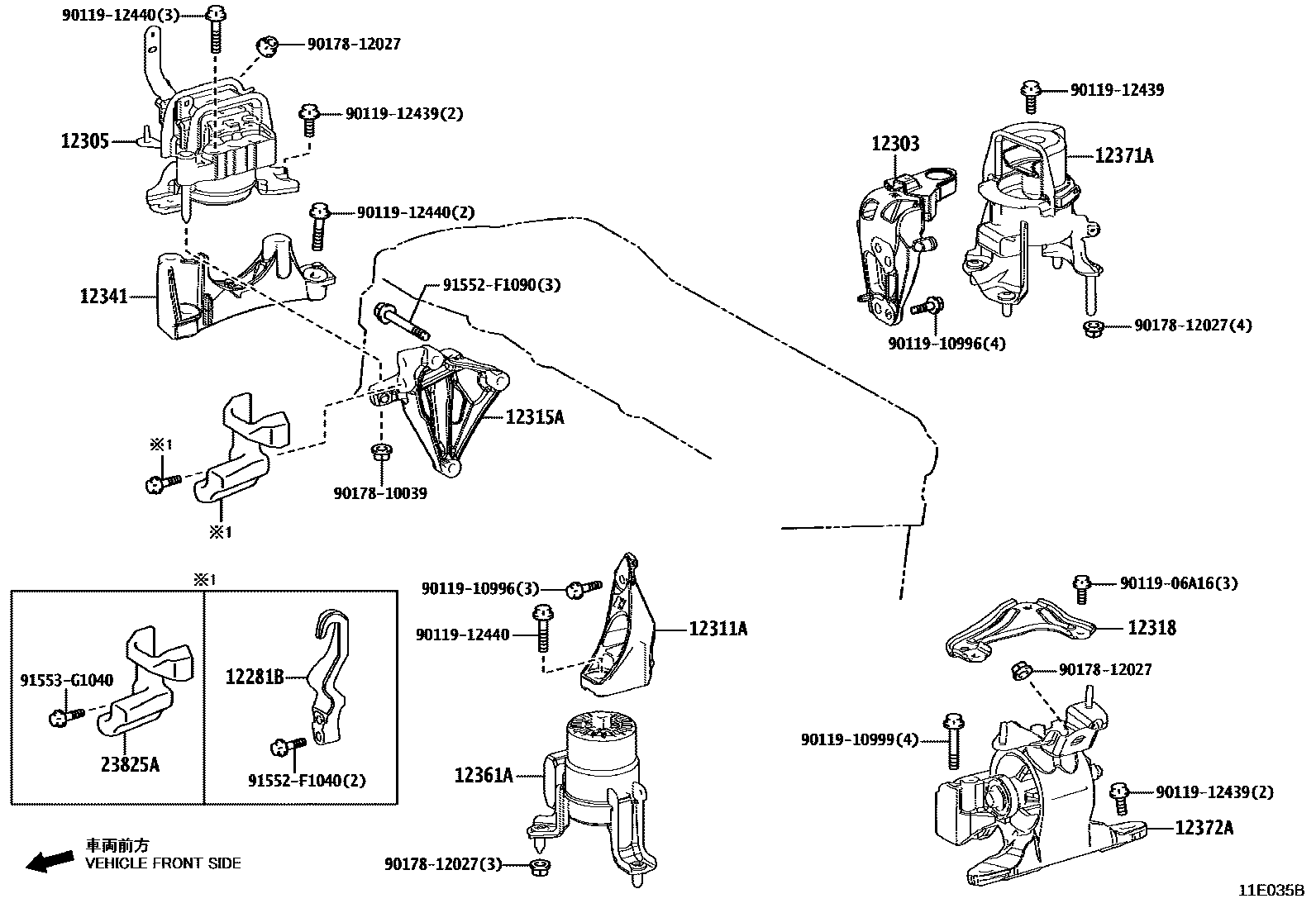

Toyota RAV4 Engine Mounting — Figure 1107
Toyota RAV4 EPC diagram 1107, Engine Mounting, with 4 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12281B | CROCHET SUSPENSION MOTEUR NO.1 | 12281-25030 |
| 12303 | Engine rear mounting bracket sub-assembly | 12303-25010 · 12303-25020 |
| 12304 | SOUS-ENS. SUPPORT, PROTECTION MOTEUR, MG | 12304-25010 |
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-25030 · 12305-25040 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-25070 · 12311-25080 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-25030 · 12315-25031 |
| 12318 | Engine left mounting bracket | 12318-25020 |
| 12321 | Engine No. 1 rear suspension bracket | 12321-25030 |
| 12322 | Engine No. 2 rear suspension bracket | 12322-25010 |
| 12341 | engine mounting spacer | 12341-25010 |
| 12360 | Engine front mount vibration isolation pad assembly | 12360-25020 · 12360-25030 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-25080 · 12361-25090 |
| 12362 | Engine right side mounting vibration isolation pad (for transversely mounted engine) | 12362-25010 · 12362-25011 |
| 12371A | Engine rear mount vibration isolation pad | 12371-25050 · 12371-25060 · 12371-25070 · 12371-25130 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12306-25020 · 12306-25030 · 12372-25030 |
| 23825A | PROTECTION, ALIM CARBURANT | 23825-25010 |
