Toyota RAV4 Timing Gear Cover & Rear End Plate — Figure 1106

Toyota RAV4 EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 2 images and 11 PNC and OE references.

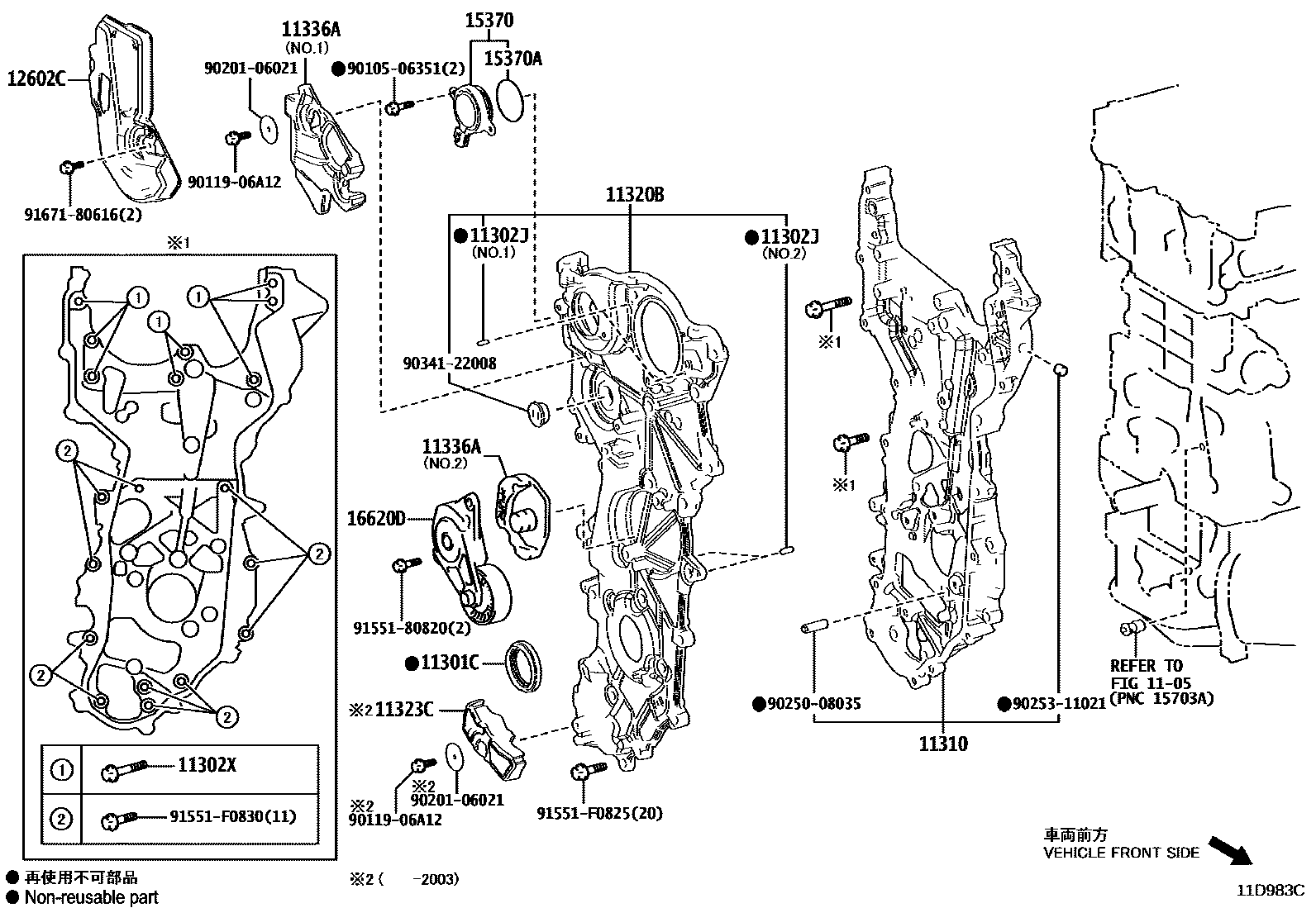

Toyota RAV4 Timing Gear Cover & Rear End Plate EPC diagram — 11D983C
Timing Gear Cover & Rear End Plate — 11D983C (201811 – 999999)

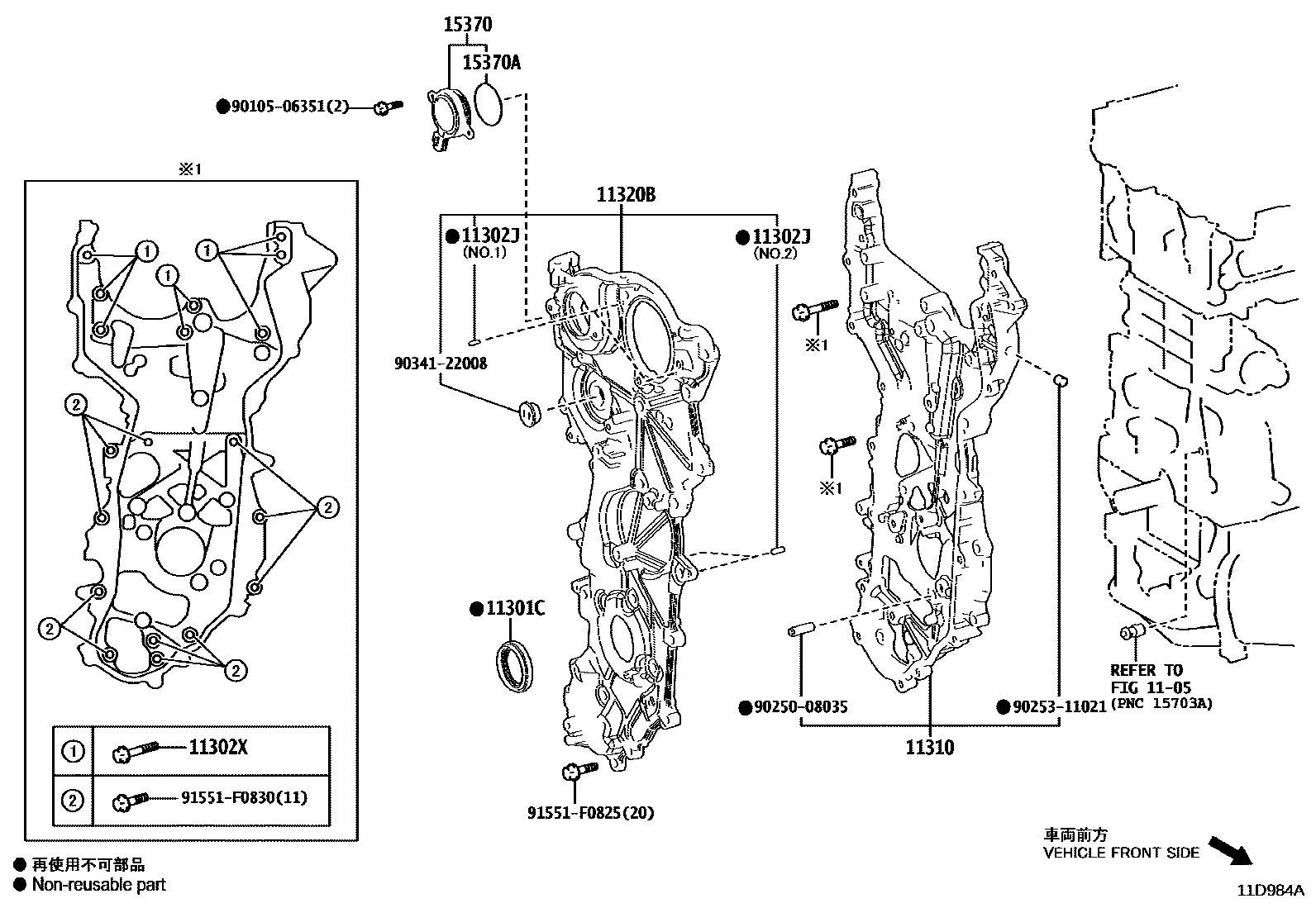

Toyota RAV4 Timing Gear Cover & Rear End Plate EPC diagram — 11D984A
Timing Gear Cover & Rear End Plate — 11D984A (201811 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301COIL SEAL (FOR TIMING GEAR OR CHAIN CASE)90311-40044
11302JDirect sales (for timing chain cover)90250-04097 · 90250-06003
11302XBOULON, A COLLERETTE91551-F0845
11310ENSEMBLE COUVERCLE, CHAINE DE DISTRIBUTION11310-25030
11320BENS. CACHE, CHAINE DISTRIBUTION, NO.211320-25010 · 11320-25011
11323CCACHE, CHAINE DISTRIBUTION, NO.311323-25010
11336ATiming gear cover vibration isolation pad11336-25010 · 11339-25010
12602CEngine hood No. 212612-25010
15370ENS. SOLENOIDE, COMMANDE HUILE DISTRIB ARBRE CAMES15370-25020
15370AJOINT, TORIQUE(POUR SOLENOIDE COM HUILE DISTRIB ARBRE CAMES)90301-44006
16620DPoly V-belt tensioner assembly16620-25010 · 16620-25011
