Toyota RAV4 Standard Tools — Figure 0901

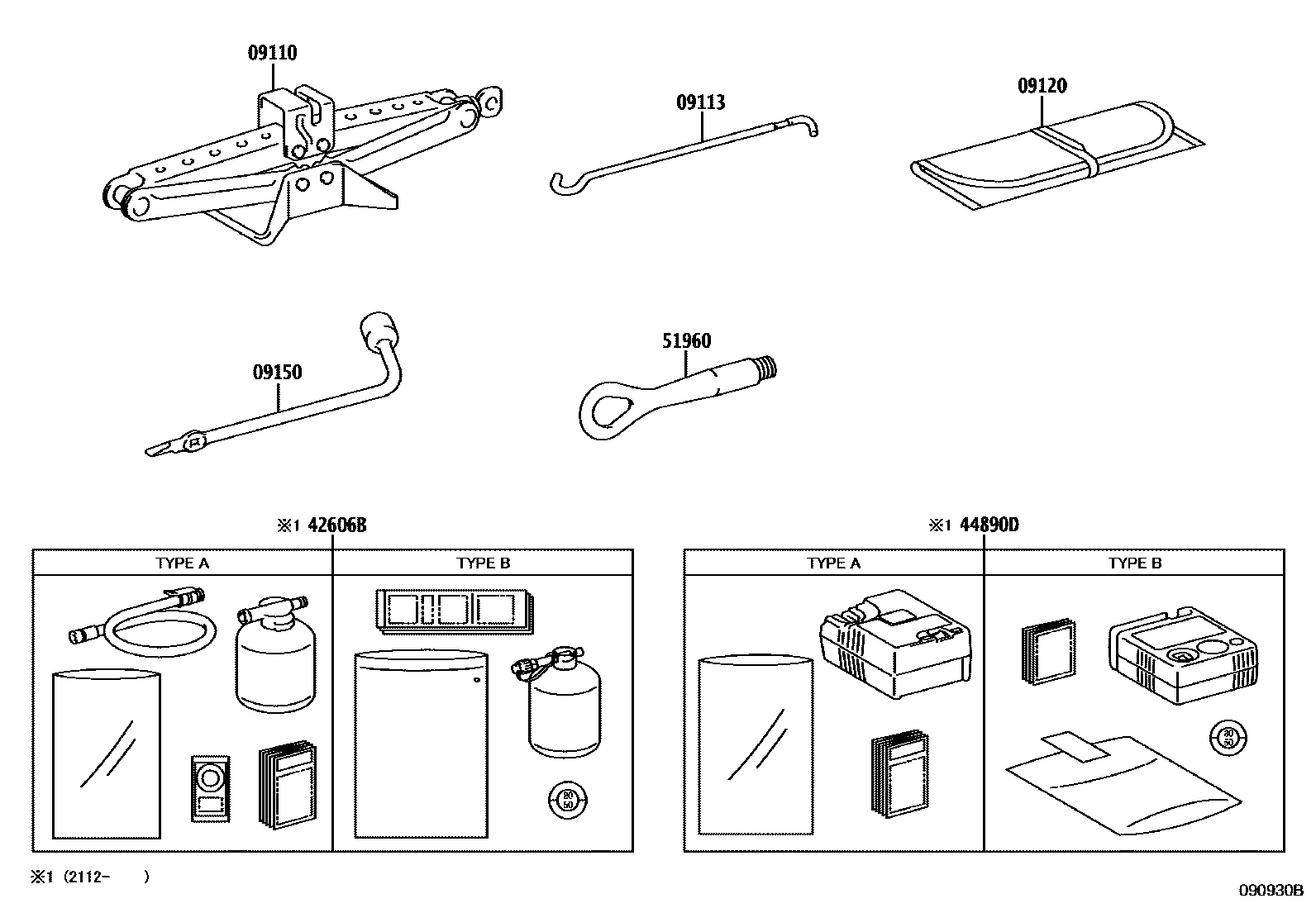

Toyota RAV4 EPC diagram 0901, Standard Tools, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09110 | Jack Assembly | 09111-42050 · 09111-42051 |
| 09113 | Jack Handle | 09113-42030 |
| 09120 | Tool Bag | 09120-10040 |
| 09150 | Wheel Nut Wrench | 09150-42010 |
| 42606B | Tubeless tire repair components | 42606-30011 · 42606-33010 · 42606-42080 · 42606-42100 · 42606-46040 · 42606-F4041 |
| 44890D | Air Compressor Assembly | 44890-12011 · 44890-42050 · 44890-42060 |
| 51960 | Front Towing Hook Assembly | 51961-42060 |
