Toyota RAV4 暖风和空调系统 - 冷却器组件 — Figure 8714

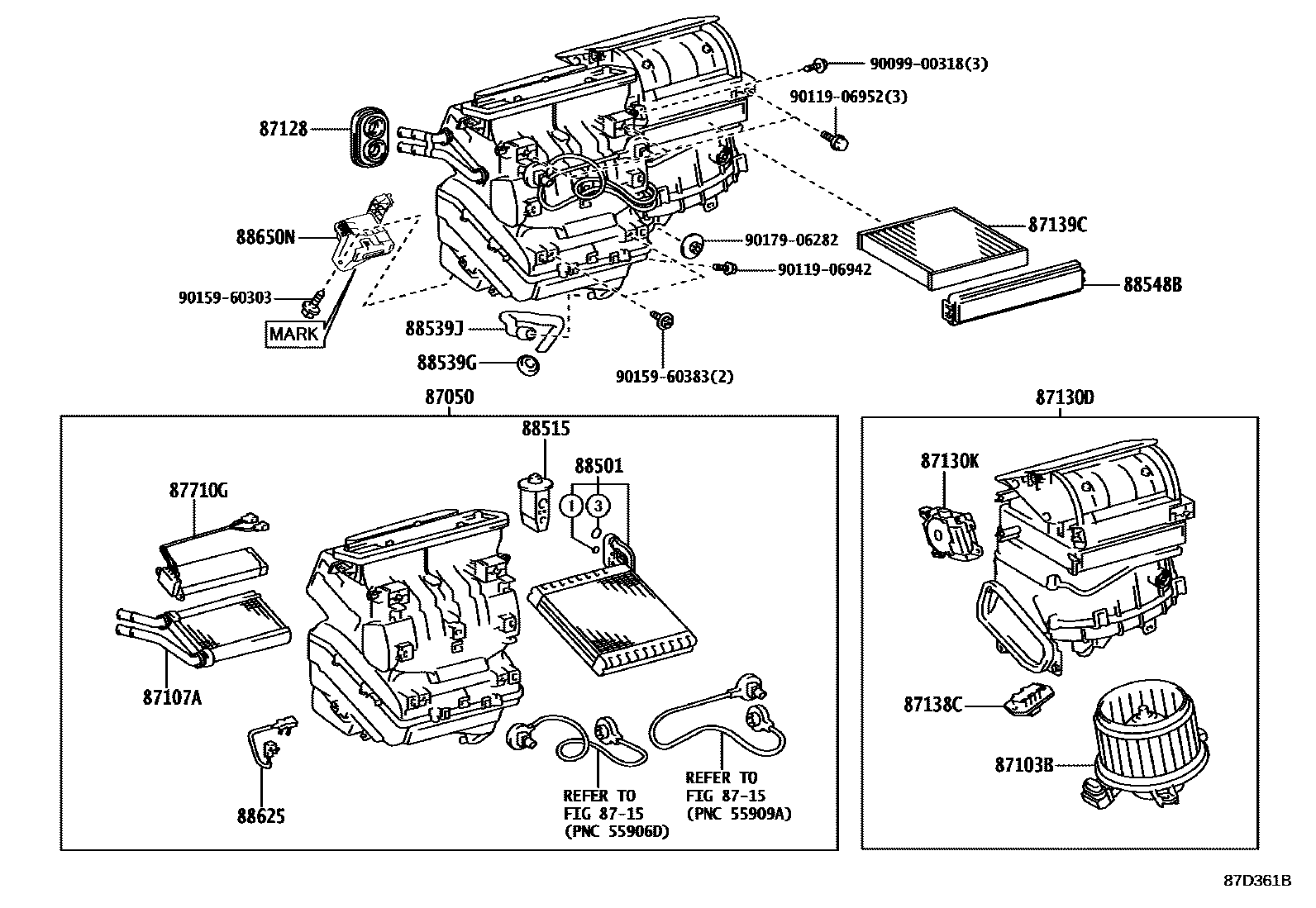

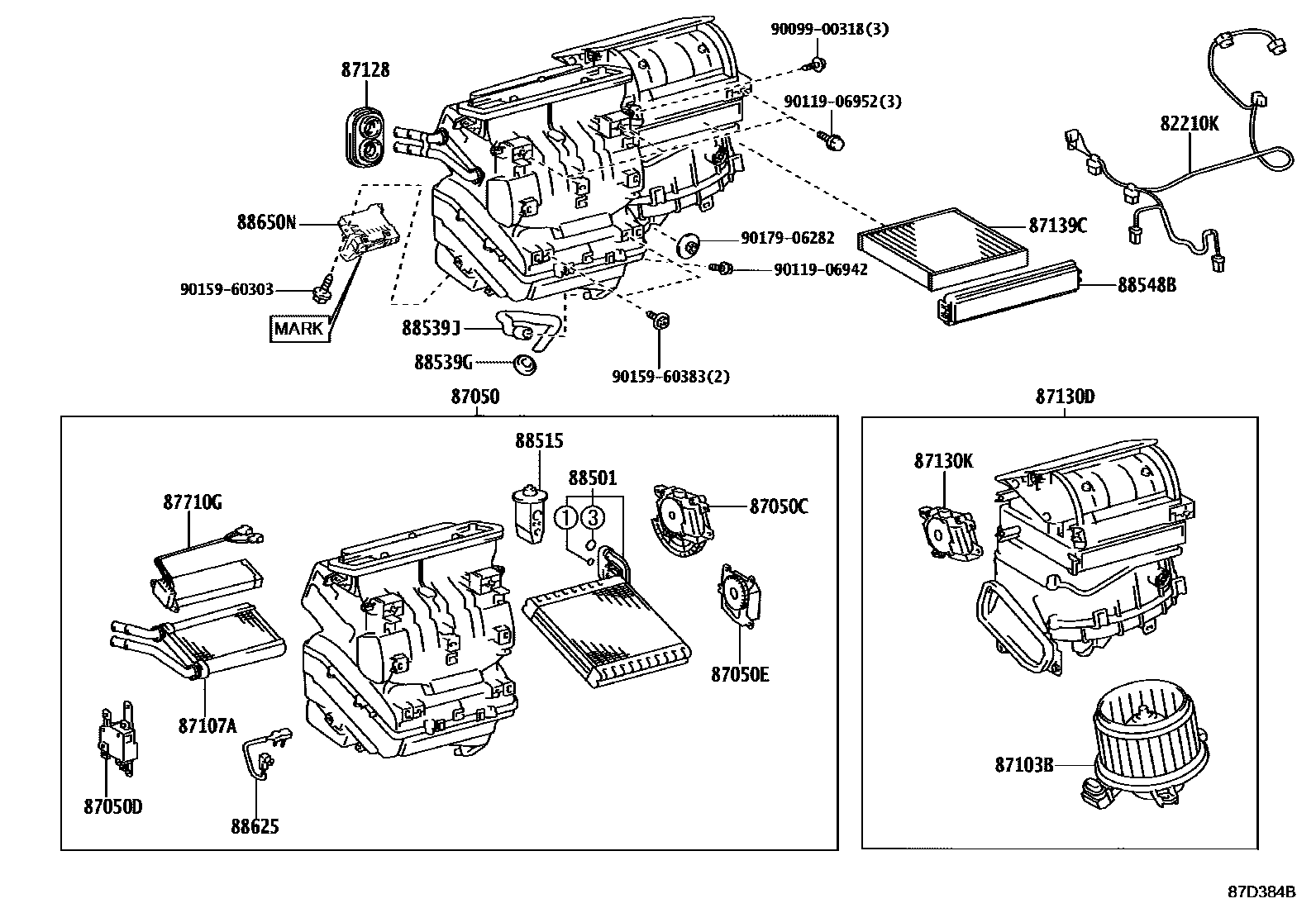

Toyota RAV4 EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-12030 |
| 87050 | Air conditioning radiator assembly | 87050-12401 · 87050-12420 · 87050-42531 · 87050-42541 · 87050-42720 |
| 87050C | No. 1 air conditioner radiator damper servo mechanism sub-assembly | 87106-42100 · 87106-42190 |
| 87050D | No. 2 air conditioner radiator damper servo mechanism sub-assembly | 87106-42090 · 87106-75010 |
| 87050E | No. 3 air conditioner radiator damper servo mechanism sub-assembly | 87106-12170 · 87106-47170 |
| 87103B | Blower motor sub-assembly with fan | 87103-42090 · 87103-42101 |
| 87107A | Heater radiator device sub-assembly | 87107-42170 |
| 87128 | heater seal | 87128-42010 |
| 87130D | Blower assembly | 87130-12561 · 87130-12581 · 87130-42340 · 87130-42350 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-42130 · 87106-42170 · 87106-47130 · 87106-47160 |
| 87138C | Blower resistor | 87138-26160 |
| 87139C | air purification filter | 87139-50100 · 87139-52040 · 87139-60020 |
| 87710G | Rapid heater assembly | 87710-12020 · 87710-42040 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-72020 · 88501-75010 |
| 88515 | Cooler expansion valve | 88515-12100 · 88515-30780 · 88515-68010 |
| 88539G | Seal (for cooler unit drain hose) | 90480-26030 |
| 88539J | Cooler drain hose | 88539-42061 |
| 88548B | air filter housing | 88548-42020 |
| 88625 | Cooler No. 1 Thermistor | 88620-42010 · 88625-26090 |
| 88650N | Air conditioning amplifier assembly | 88650-42410 · 88650-42460 · 88650-42480 · 88650-42481 · 88650-42490 · 88650-42491 · 88650-42530 · 88650-42531 · 88650-42550 · 88650-42551 · 88650-42560 · 88650-42590 · 88650-42600 · 88650-42610 · 88650-42630 · 88650-42680 · 88650-42700 · 88650-42730 · 88650-42740 · 88650-42760 · 88650-42850 |
