Toyota RAV4 后视镜 — Figure 8701

Toyota RAV4 EPC diagram 8701, 后视镜, with 2 images and 16 PNC and OE references.

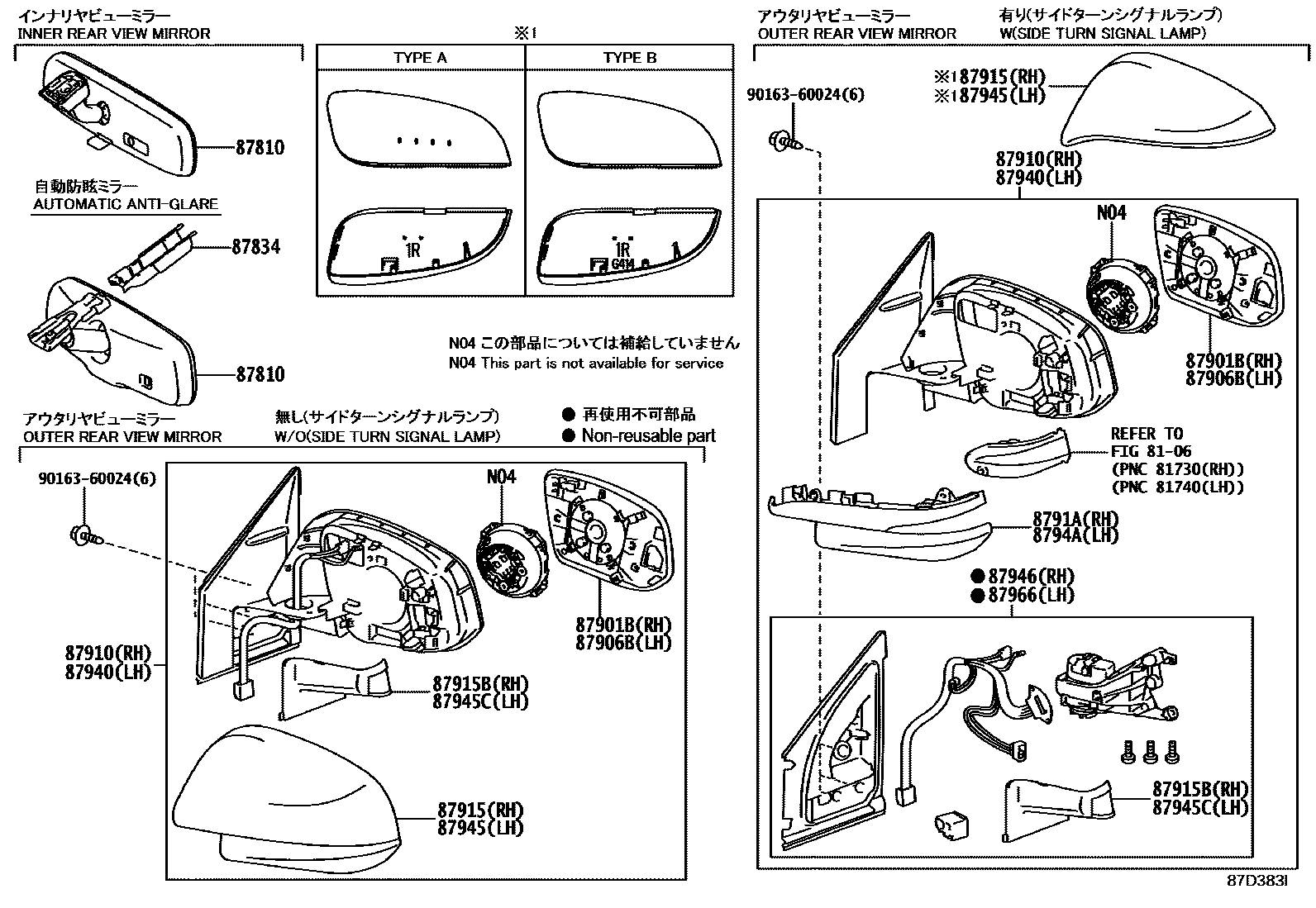

Toyota RAV4 后视镜 EPC diagram — 87D383I
后视镜 — 87D383I (201212 – 201510)

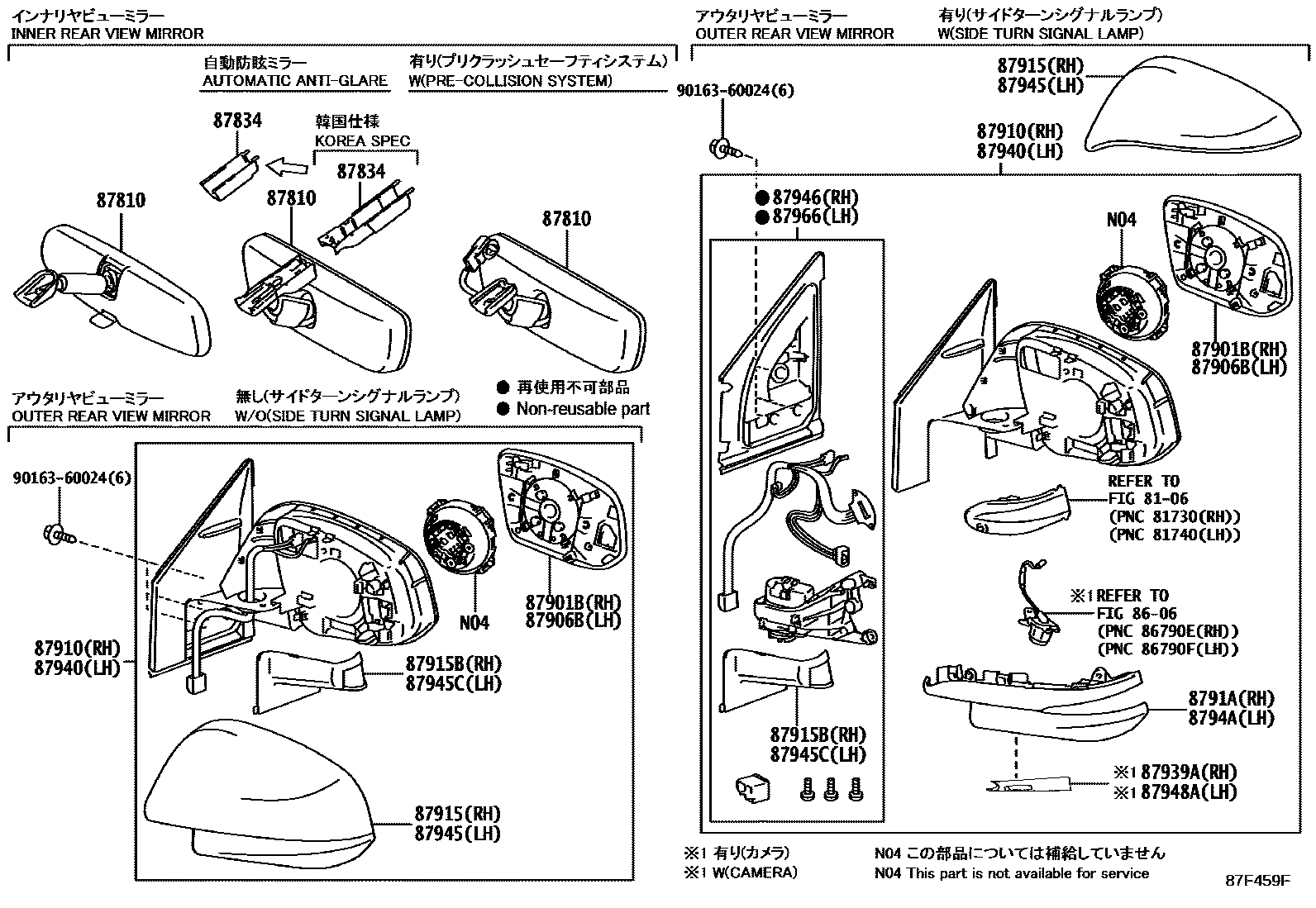

Toyota RAV4 后视镜 EPC diagram — 87F459F
后视镜 — 87F459F (201510 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-0WK00 · 87810-0WK20 · 87810-0WQ10 · 87810-0WQ20 · 87810-0WQ30 · 87810-0WQ40 · 87810-52041
87834Interior rearview mirror stay fixing cover87818-0W070 · 87818-47010 · 87818-76010
87901BRight exterior rearview mirror sub-assembly87931-42B70 · 87931-42B80 · 87931-42C80 · 87931-42D40 · 87931-42D50 · 87931-42D60
87906BLeft exterior rearview mirror sub-assembly87961-42B40 · 87961-42B50 · 87961-42C50 · 87961-42D10 · 87961-42D20 · 87961-42D30 · 87961-42G50
87910Right exterior rearview mirror assembly87910-42B70 · 87910-42B80 · 87910-42C80 · 87910-42D00 · 87910-42D20 · 87910-42D40 · 87910-42D50 · 87910-42D60 · 87910-42G70
87915Right exterior rearview mirror cover87915-42150 · 87915-42190
87915BRight exterior rearview mirror lower cover87915-42140
8791ARight exterior rearview mirror cover No. 28791B-35C00 · 8791B-42C10
87939ARight exterior rearview mirror hole cover87939-42D70
87940Left exterior rearview mirror assembly87940-42B40 · 87940-42B50 · 87940-42C50 · 87940-42C70 · 87940-42C90 · 87940-42D10 · 87940-42D20 · 87940-42D30 · 87940-42G50
87945Left exterior rearview mirror cap87945-42150 · 87945-42190
87945CLeft exterior rearview mirror lower cover87945-42140
87946Right exterior rearview mirror retractor00000-00000 · 87946-42C20
87948ALeft exterior rearview mirror hole cover87948-42D40
8794ANo. 2 left exterior rearview mirror cap8794B-35B70 · 8794B-42B80
87966Left exterior rearview mirror retractor00000-00000 · 87966-42B90
