Toyota RAV4 antenna — Figure 8604

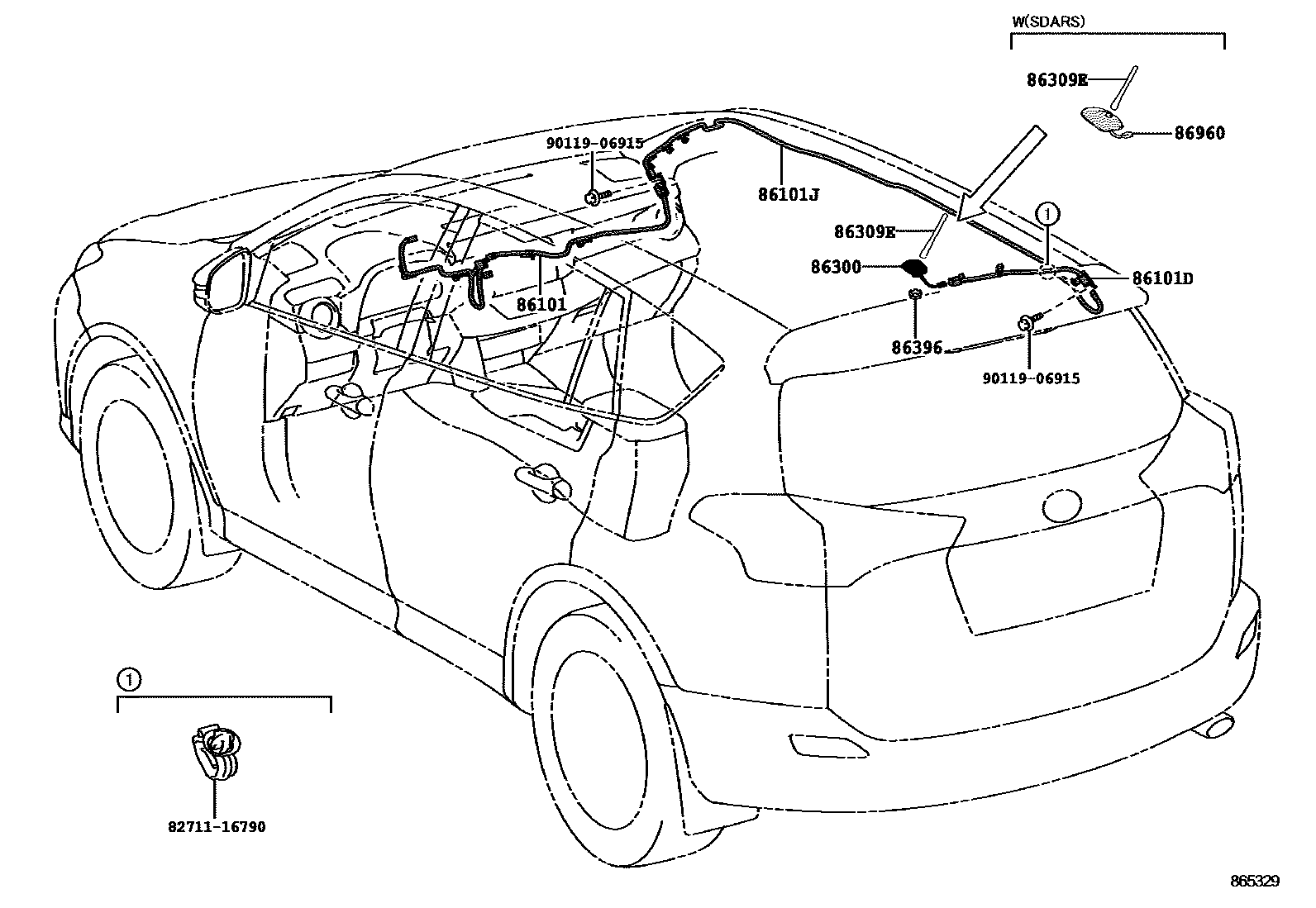

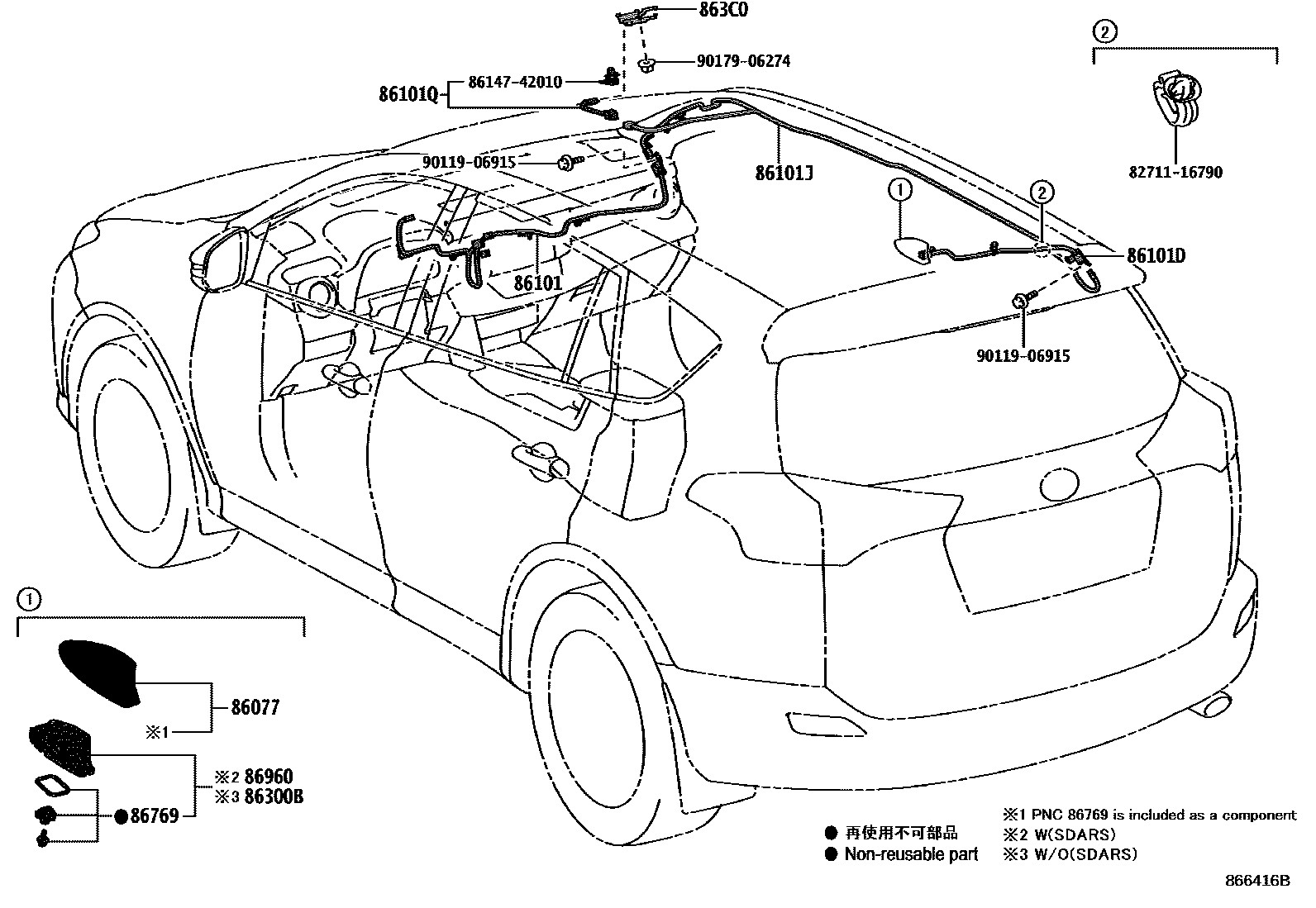

Toyota RAV4 EPC diagram 8604, antenna, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-42500 · 86101-42520 · 86101-42521 · 86101-42522 · 86101-42530 · 86101-42531 · 86101-42532 · 86101-42770 · 86101-42780 |
| 86101D | No. 3 antenna wire sub-assembly | 86101-42660 · 86101-42670 · 86101-42790 · 86101-42800 |
| 86101J | No. 2 antenna wire sub-assembly | 86101-42580 · 86101-42590 · 86101-42750 |
| 86101Q | No. 4 antenna wire sub-assembly | 86101-42820 |
| 86300 | Antenna assembly with fixing parts | 86300-42210 · 86300-42221 |
| 86300B | Amplifier antenna assembly | 86300-47180 · 86960-47050 |
| 86309E | Roof antenna sub-assembly | 86309-13030 · 86309-42080 · 86309-42090 |
| 86396 | Antenna nut | 86396-47010 |
| 863C0 | Digital audio broadcast receiver antenna assembly | 863C0-78010 |
| 86769 | LOGEMENT, ANTENNE DE TOIT | 86769-12010 |
| 86960 | Satellite radio antenna assembly | 86960-42021 |
