Toyota RAV4 导航和前监视器显示屏 — Figure 8603

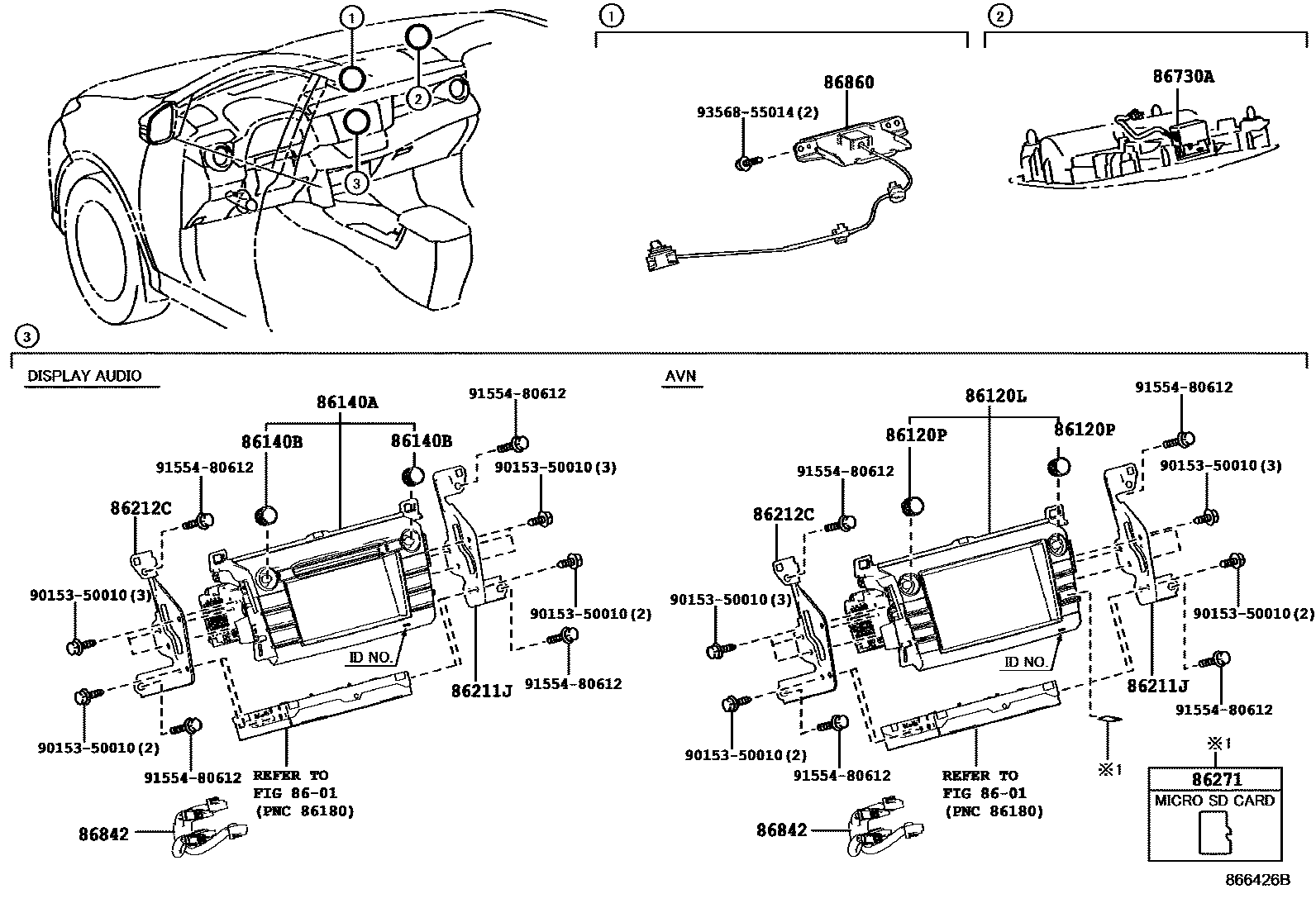

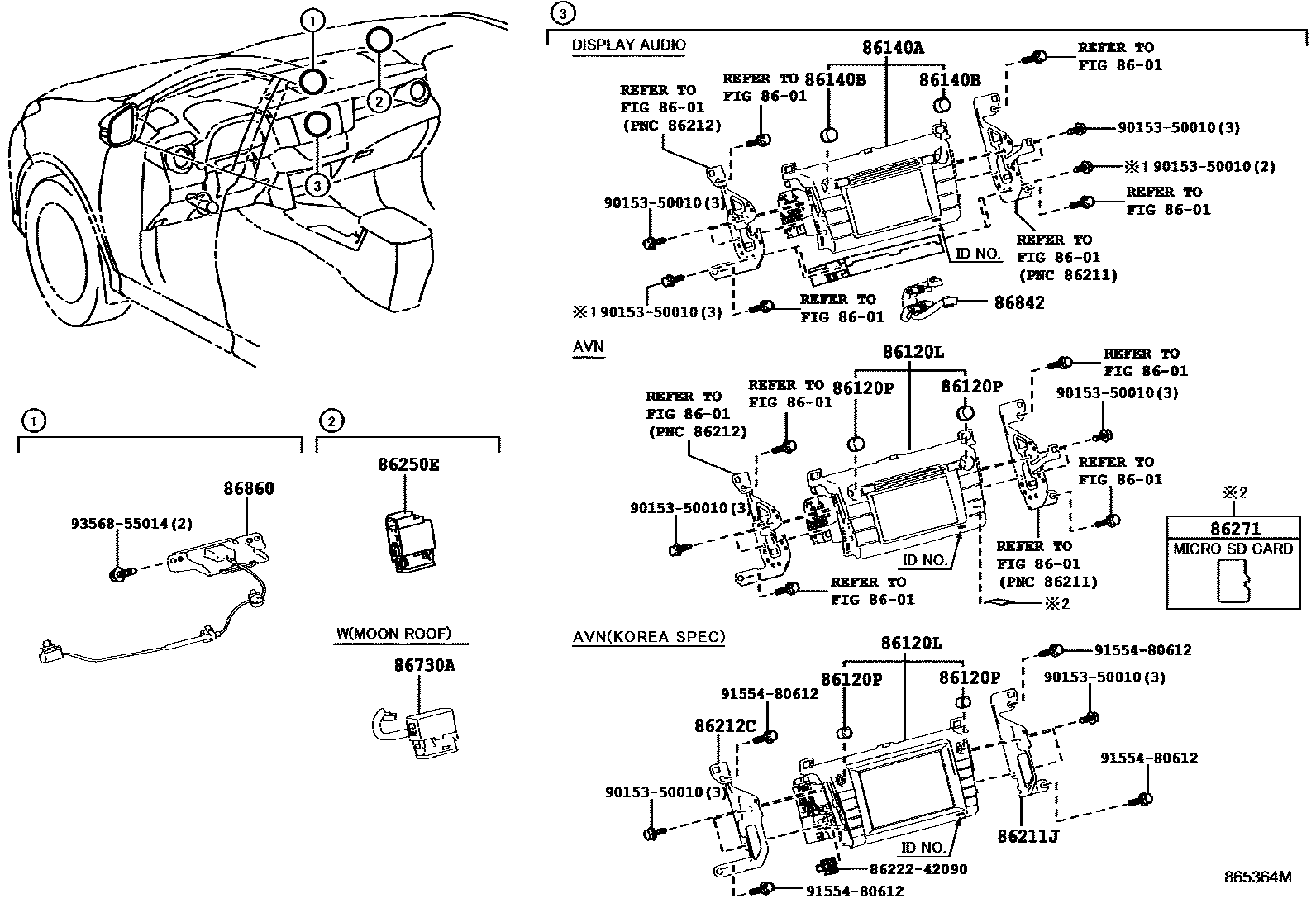

Toyota RAV4 EPC diagram 8603, 导航和前监视器显示屏, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120L | Navigation receiver assembly | 86804-42040 · 86804-42090 · 86804-42100 · 86804-42101 · 86804-42110 · 86804-42111 |
| 86120P | Navigation receiver switch button | 90010-23046 · 90010-23050 · 90010-24167 · 90011-23034 |
| 86140A | Radio and display receiver assembly | 86140-42010 · 86140-42020 · 86140-42110 · 86140-42111 · 86140-42190 · 86140-42200 · 86140-42290 · 86140-42300 · 86140-42460 · 86140-42461 |
| 86140B | Radio and display receiver switch button | 90010-23037 · 90010-23046 · 90010-23050 |
| 86211J | No. 1 radio bracket | 86211-42070 · 86211-42100 |
| 86212C | No. 2 radio bracket | 86212-42070 · 86212-42100 |
| 86250E | amplifier loudspeaker assembly | 86250-52050 |
| 86271 | CD | 86271-35010 · 86271-35011 · 86271-35012 · 86271-35013 · 86271-35014 · 86271-35015 · 86271-35021 |
| 86730A | Telephone amplifier assembly | 86730-47040 · 86730-52070 |
| 86842 | Navigation harness No. 1 | 86842-42010 |
| 86860 | Navigation antenna assembly | 86860-42041 · 86860-42042 |
