Toyota RAV4 挡风玻璃刮水器 — Figure 8501

Toyota RAV4 EPC diagram 8501, 挡风玻璃刮水器, with 2 images and 14 PNC and OE references.

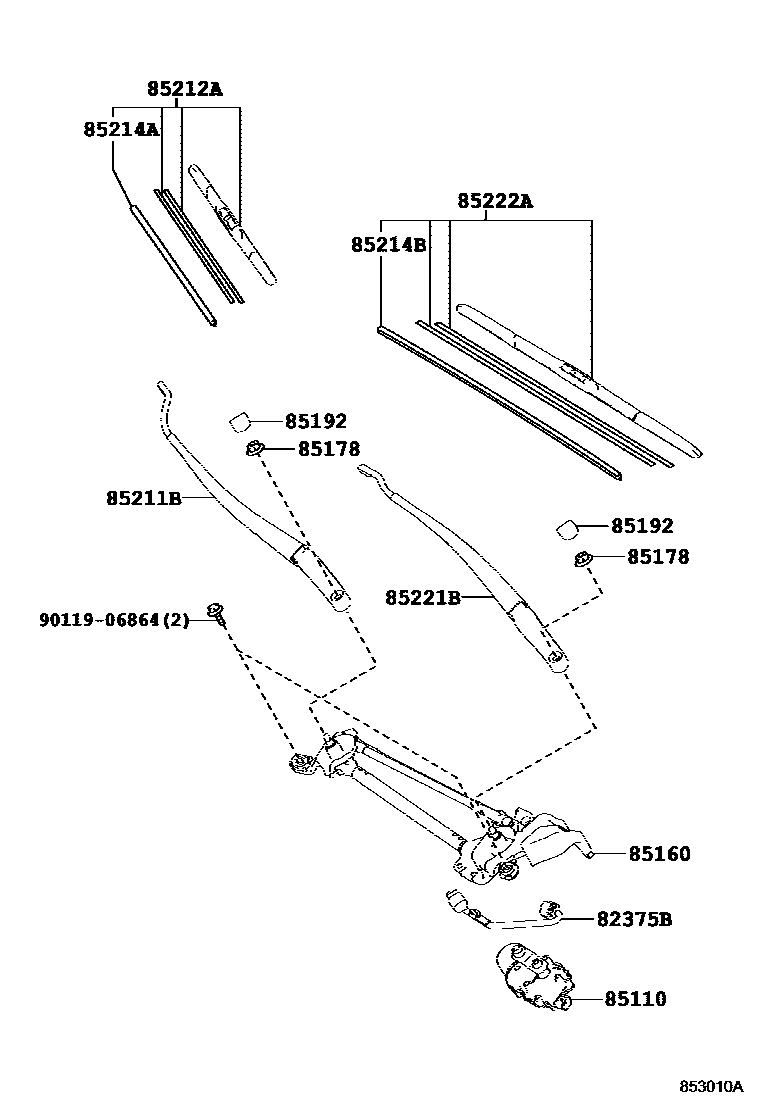

Toyota RAV4 挡风玻璃刮水器 EPC diagram — 853010A
挡风玻璃刮水器 — 853010A (201212 – 201510)

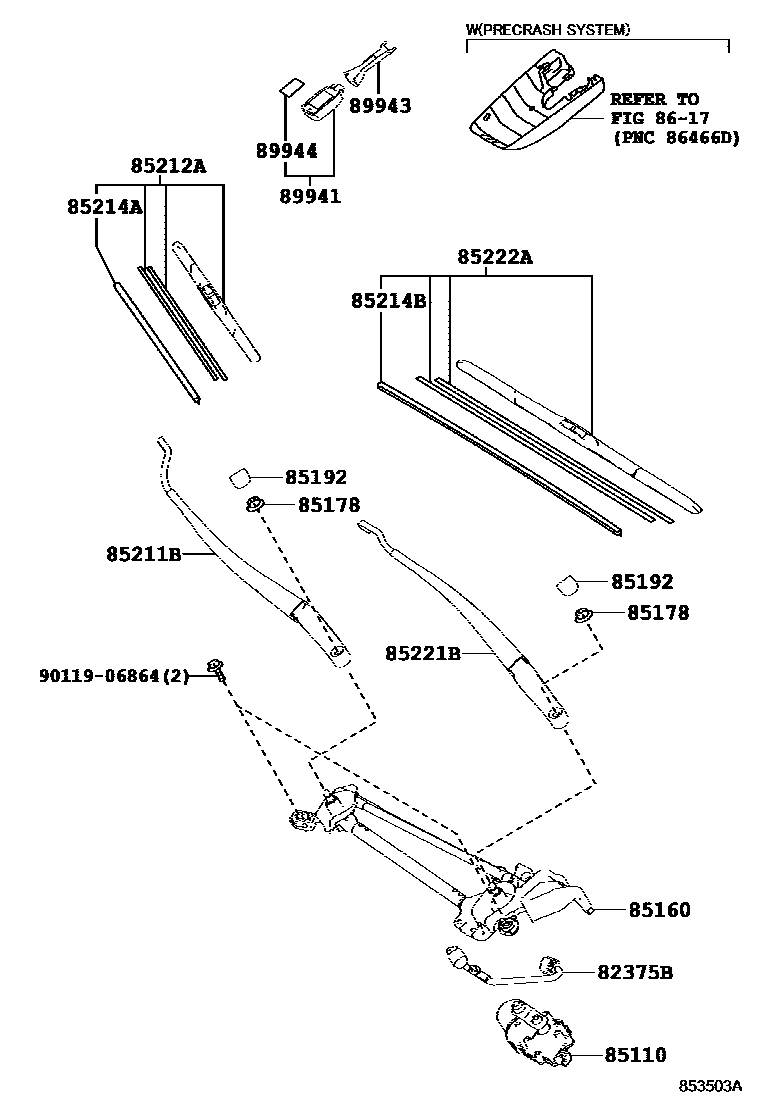

Toyota RAV4 挡风玻璃刮水器 EPC diagram — 853503A
挡风玻璃刮水器 — 853503A (201510 – 999999)

PNC and OE references

PNCPart nameOE numbers
82375BWiper motor wiring harness82375-48020
85110Windshield wiper motor assembly85110-42190
85160Windshield wiper connecting rod assembly85150-42170
85178Nut (for securing front wiper arm)90182-10006
85192windshield wiper arm cover85292-13010
85211BRight front wiper arm85211-42140
85212ARight front wiper blade85212-42130
85214ARight wiper rubber strip85214-28090
85214BLeft wiper rubber strip85214-52110 · 85214-68020
85221BLeft front wiper arm85221-42140
85222ALeft front wiper blade85222-42120
89941rain sensor89941-52010
89943Rain sensor cover89943-42020
89944Rain sensor tape89944-42010
