Toyota RAV4 HV逆变器 — Figure 8431

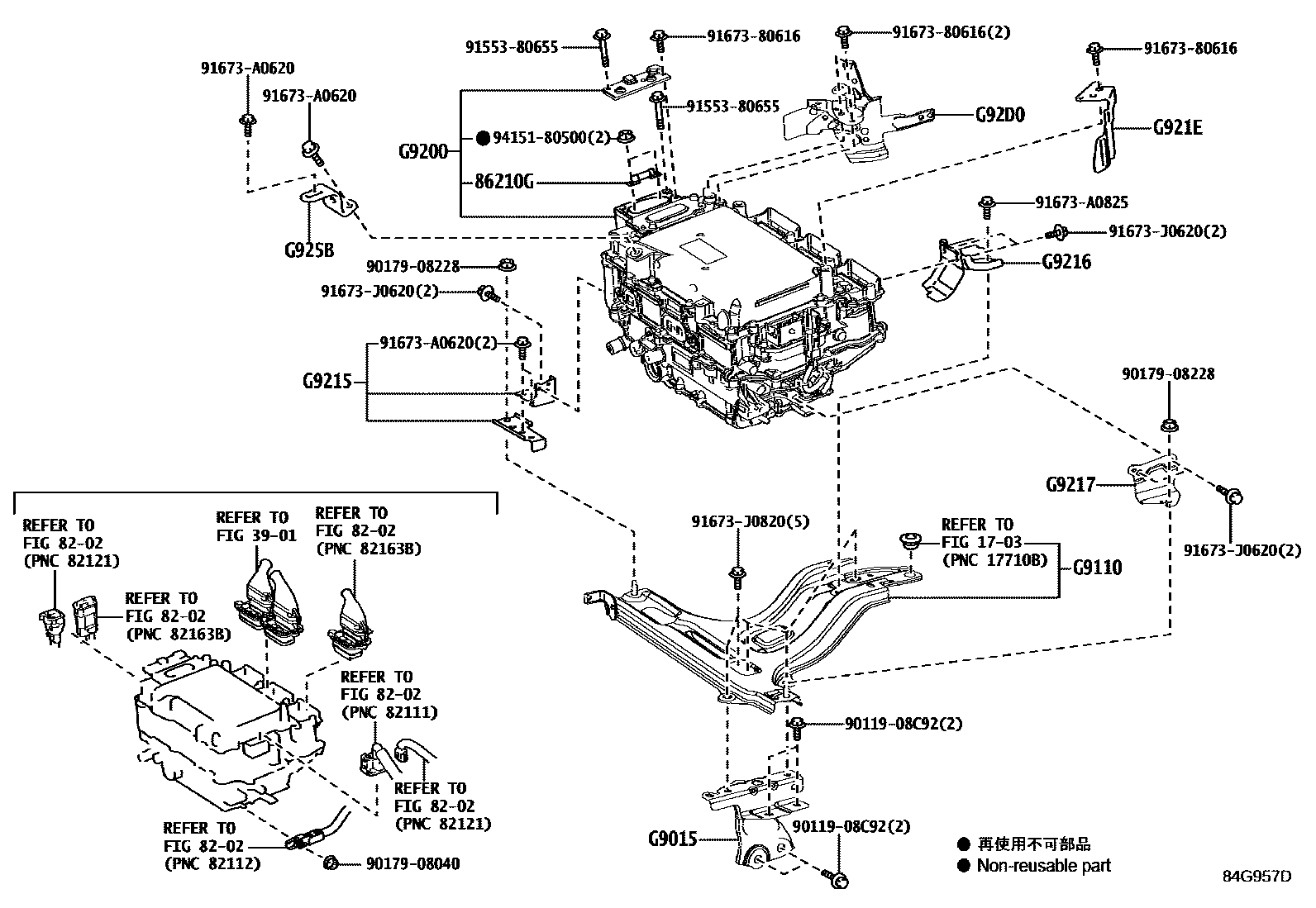

Toyota RAV4 EPC diagram 8431, HV逆变器, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86210G | FUSIBLE, HAUTE TENSION | 90982-11050 |
| G9015 | SOUS-ENSEMBLE SUPPORT, INVERSEUR, NO.2 | G9015-78010 |
| G9110 | Inverter bracket assembly | G9110-48020 |
| G9200 | Inverter assembly with converter | G92A0-42050 |
| G9215 | No. 2 inverter bracket | G9215-48060 |
| G9216 | No. 3 inverter bracket | G9216-78010 |
| G9217 | No. 4 inverter bracket | G9217-48150 |
| G921E | Inverter protection device | G921E-78010 |
| G925B | No. 6 inverter bracket | G925B-78010 |
| G92D0 | HV inverter protection device assembly | G92D0-48010 |
