Toyota RAV4 空气囊 — Figure 8421

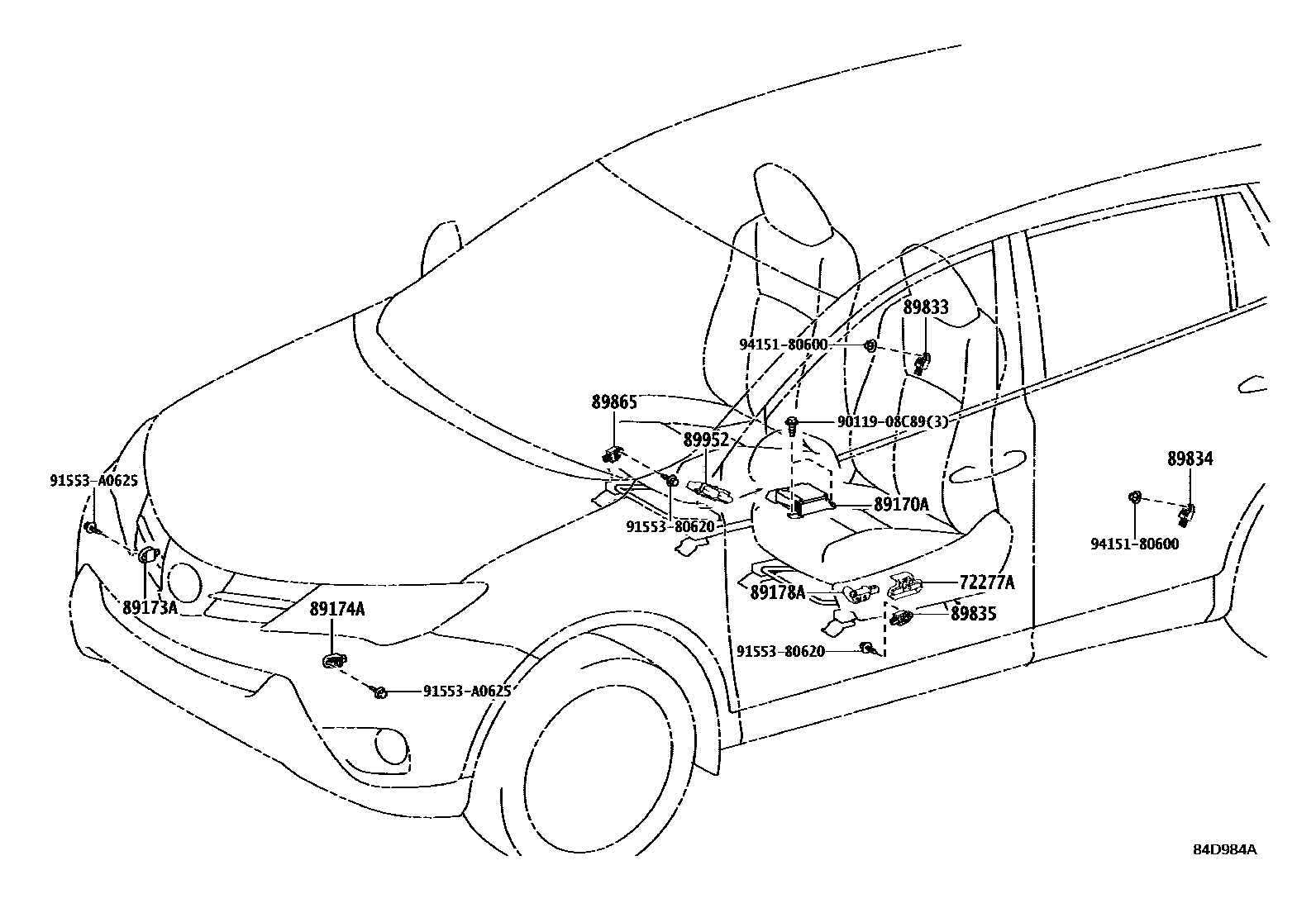

Toyota RAV4 EPC diagram 8421, 空气囊, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 72277A | Seat sliding position sensor protective cover | 72277-47010 |
| 89170A | Air bag ECU assembly | 89170-42270 · 89170-42271 · 89170-42280 · 89170-42420 · 89170-42670 |
| 89173A | Right front air bag sensor | 89173-19465 |
| 89174A | Left front air bag sensor | 89173-19465 |
| 89178A | Seat position air bag sensor | 89178-33050 |
| 89833 | Right rear air bag sensor | 89831-12030 |
| 89834 | Left rear air bag sensor | 89831-12030 |
| 89835 | Left door side air bag sensor | 89831-33050 |
| 89865 | Right door side air bag sensor | 89831-33050 |
| 89952 | Occupant detection ECU | 89952-42010 · 89952-53021 |
