Toyota RAV4 ABS 和 VSC — Figure 8414

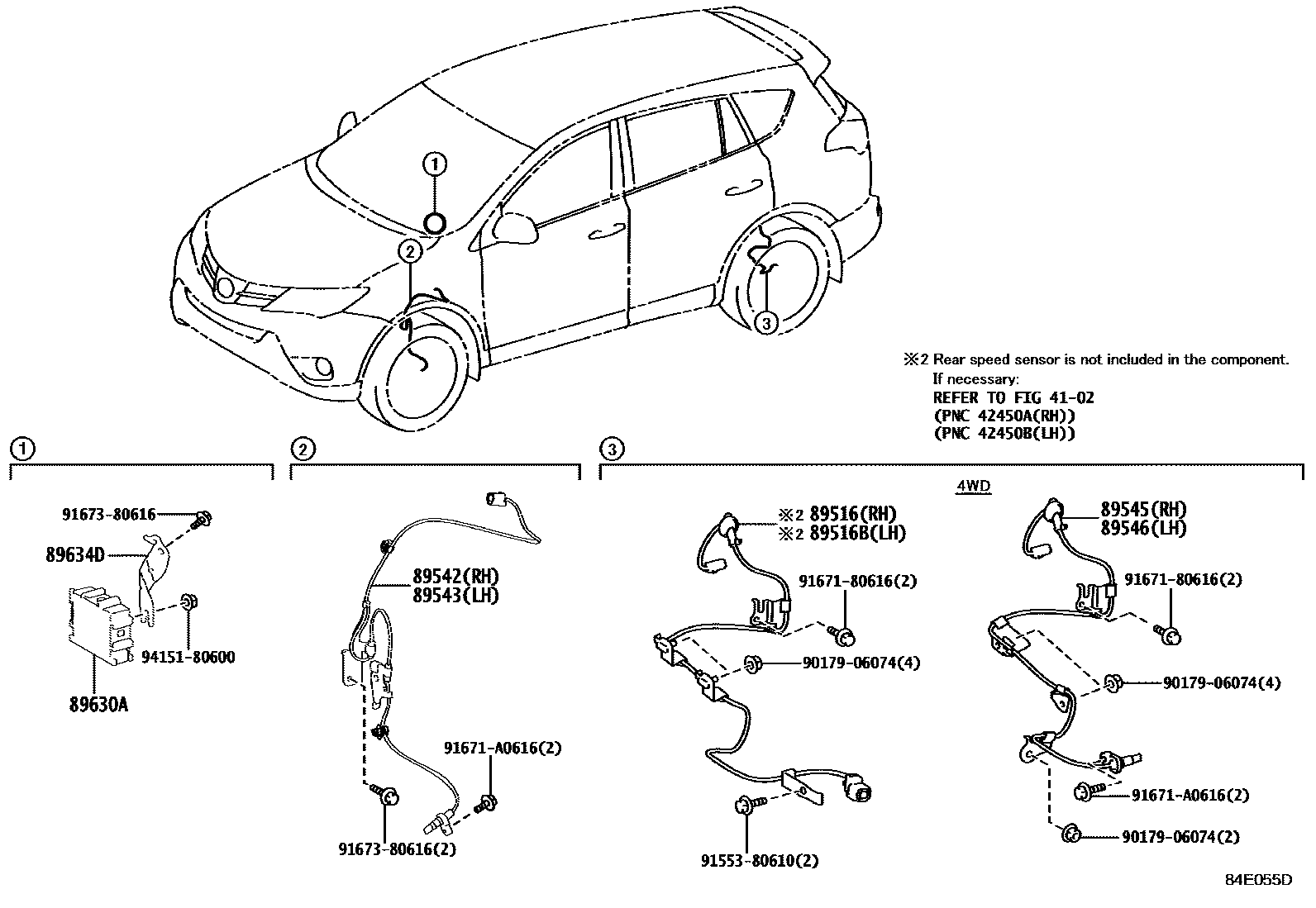

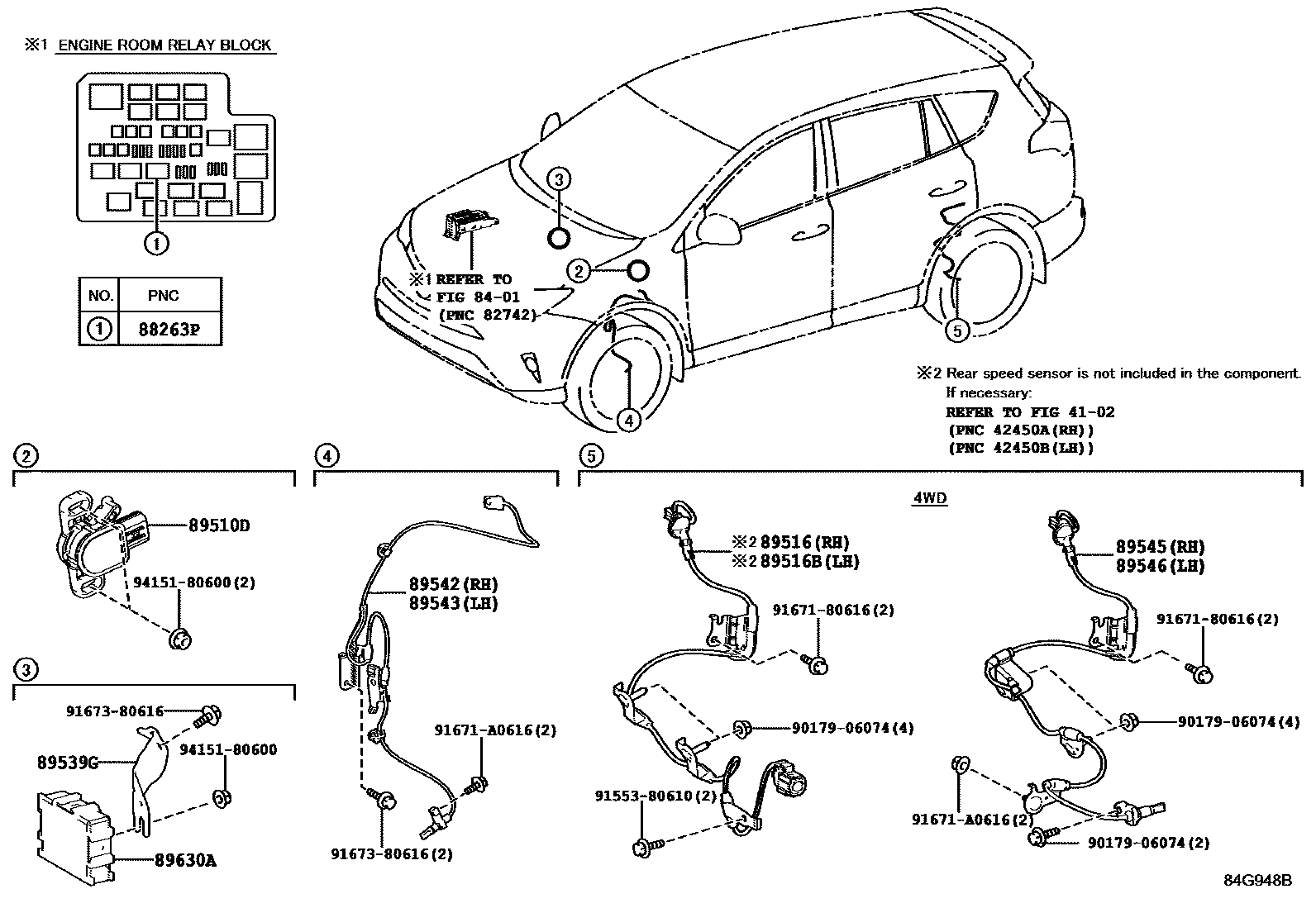

Toyota RAV4 EPC diagram 8414, ABS 和 VSC, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88263P | brake light control relay | 90987-04004 |
| 89510D | Brake pedal stroke sensor assembly | 89510-33030 |
| 89516 | Anti-skid control sensor wiring harness | 89516-42070 · 89516-78050 |
| 89516B | Anti-skid control sensor wiring harness | 89516-42080 · 89516-78060 |
| 89539G | ECU bracket | 89634-42020 |
| 89542 | Right front wheel speed sensor | 89542-42050 |
| 89543 | Left front wheel speed sensor | 89543-42050 |
| 89545 | Right rear wheel speed sensor | 89545-42050 · 89545-48070 |
| 89546 | Left rear wheel speed sensor | 89546-42050 · 89546-48070 |
| 89630A | Four-wheel drive ECU assembly | 89630-42080 · 89630-42081 · 89630-42082 · 89630-42110 |
| 89634D | No. 3 anti-skid control ECU bracket | 89634-42020 |
