Toyota RAV4 巡航控制(自动行驶) — Figure 8408

Toyota RAV4 EPC diagram 8408, 巡航控制(自动行驶), with 2 images and 5 PNC and OE references.

Toyota RAV4 巡航控制(自动行驶) EPC diagram — 84E004
巡航控制(自动行驶) — 84E004 (201212 – 201510)

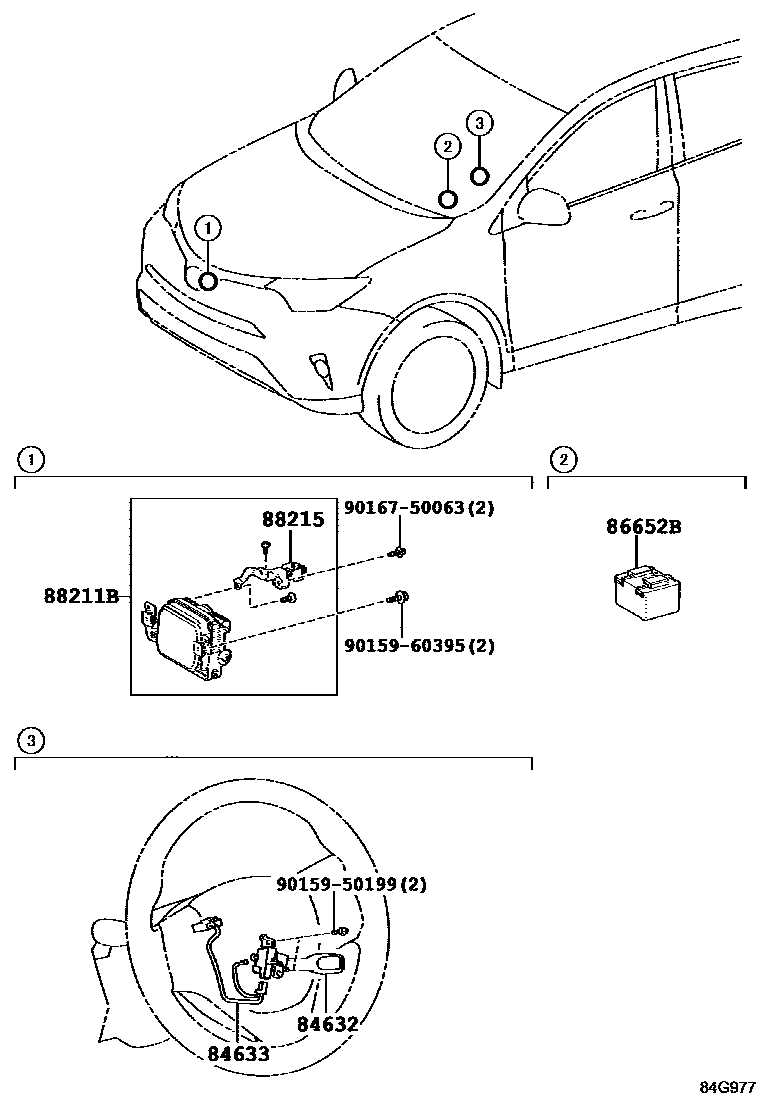

Toyota RAV4 巡航控制(自动行驶) EPC diagram — 84G977
巡航控制(自动行驶) — 84G977 (201510 – 999999)

PNC and OE references

PNCPart nameOE numbers
84632cruise control master switch84632-0E020 · 84632-0R011 · 84632-0R030 · 84632-34011
84633cruise control switch wiring harness84633-0E040 · 84633-0R021 · 84633-0R030 · 84633-48020
86652BAnti-skid control buzzer86652-50010
88211BMillimeter wave radar sensor assembly88210-47090
88215Millimeter wave radar sensor bracket No. 188201-60010
