Toyota RAV4 电子燃油喷射系统 — Figure 8404

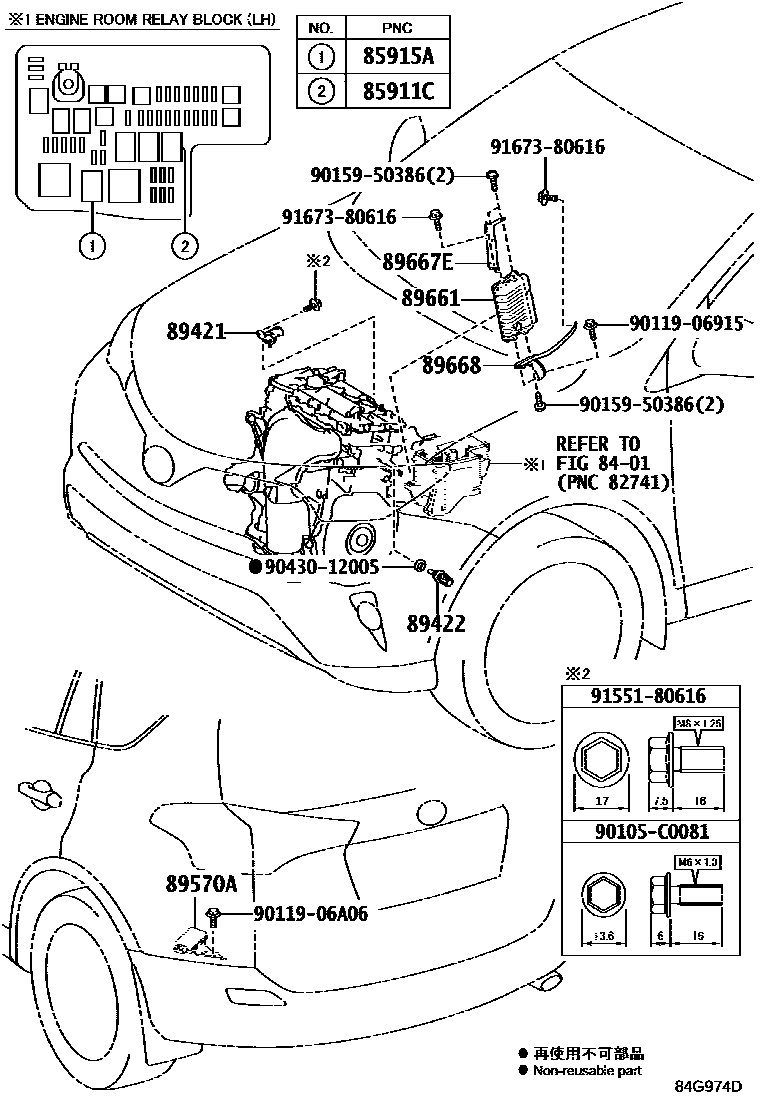

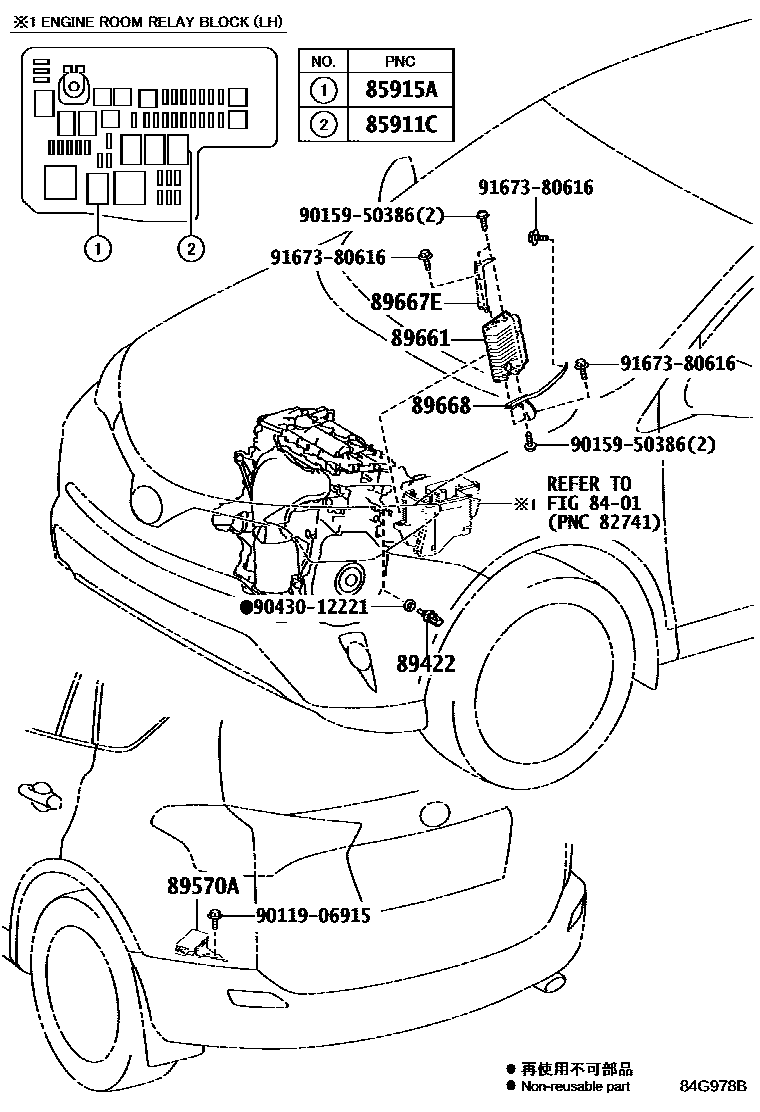

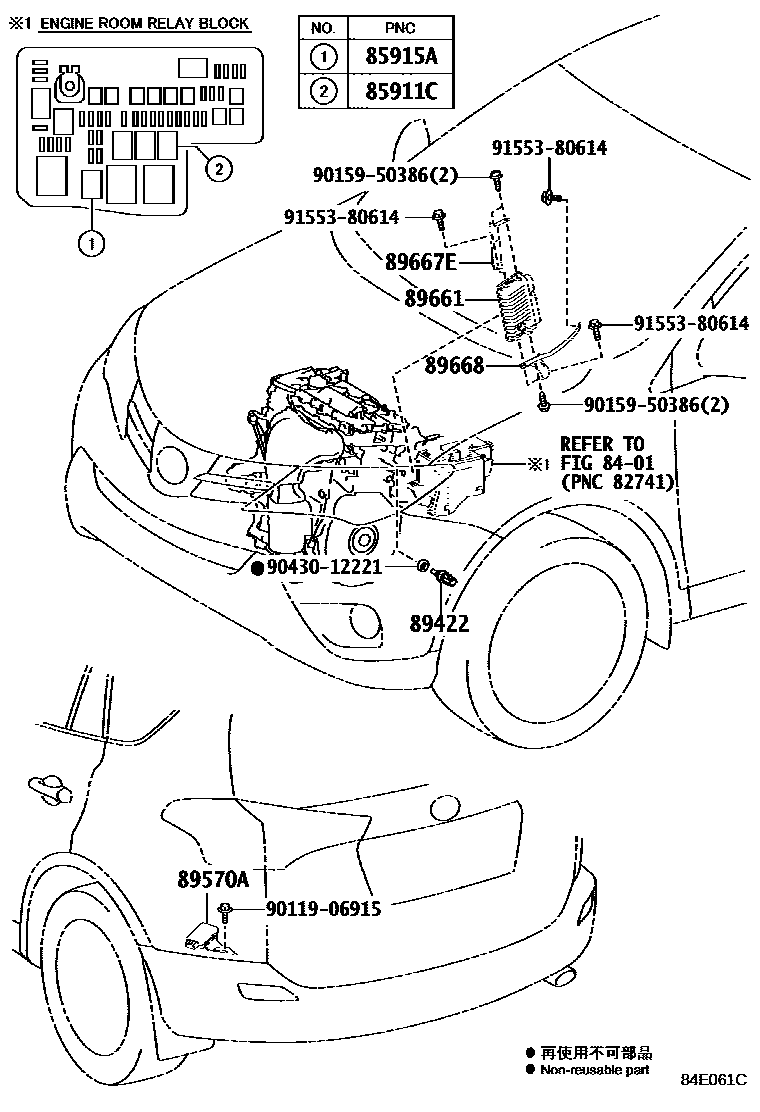

Toyota RAV4 EPC diagram 8404, 电子燃油喷射系统, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85911C | EFI2 relay | 90987-02027 |
| 85915A | main relay | 90987-02027 |
| 89421 | Vacuum sensor assembly (for E.F.I.) | 89421-26030 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-33030 |
| 89570A | Fuel pump control ECU assembly | 89570-42010 · 89570-42030 |
| 89661 | Engine control ECU | 89661-42K50 · 89661-42K60 · 89661-42K70 · 89661-42K71 · 89661-42U30 · 89661-42U40 · 89661-42U60 · 89661-42U61 · 89661-42U70 · 89661-42U71 · 89661-42V90 · 89661-42V91 · 89661-42V92 · 89661-42V93 · 89661-42W00 · 89661-42W01 · 89661-42W02 |
| 89667E | No. 1 engine control ECU bracket | 89667-42060 |
| 89668 | No. 2 engine control ECU bracket | 89668-42060 · 89668-78020 |
