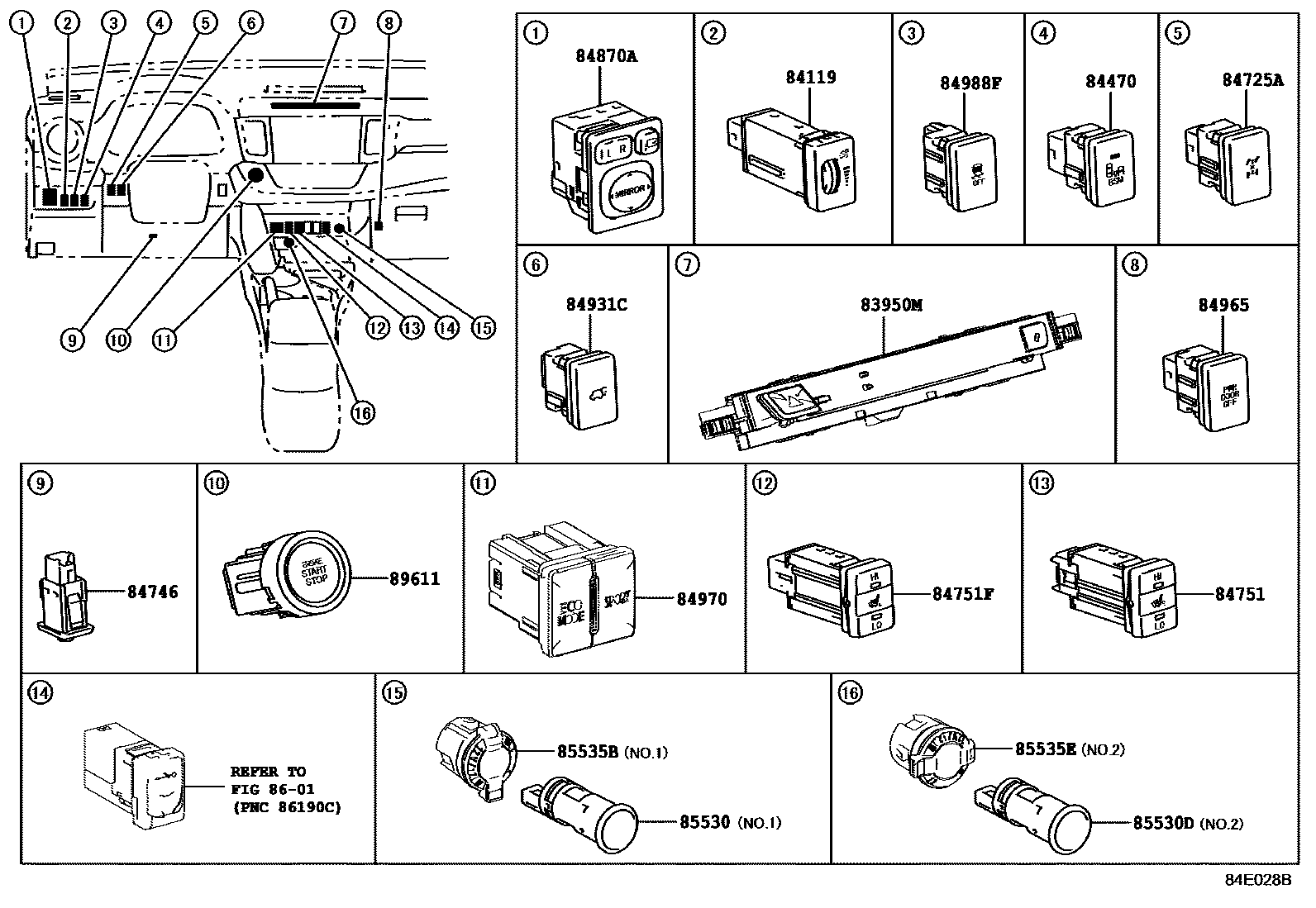

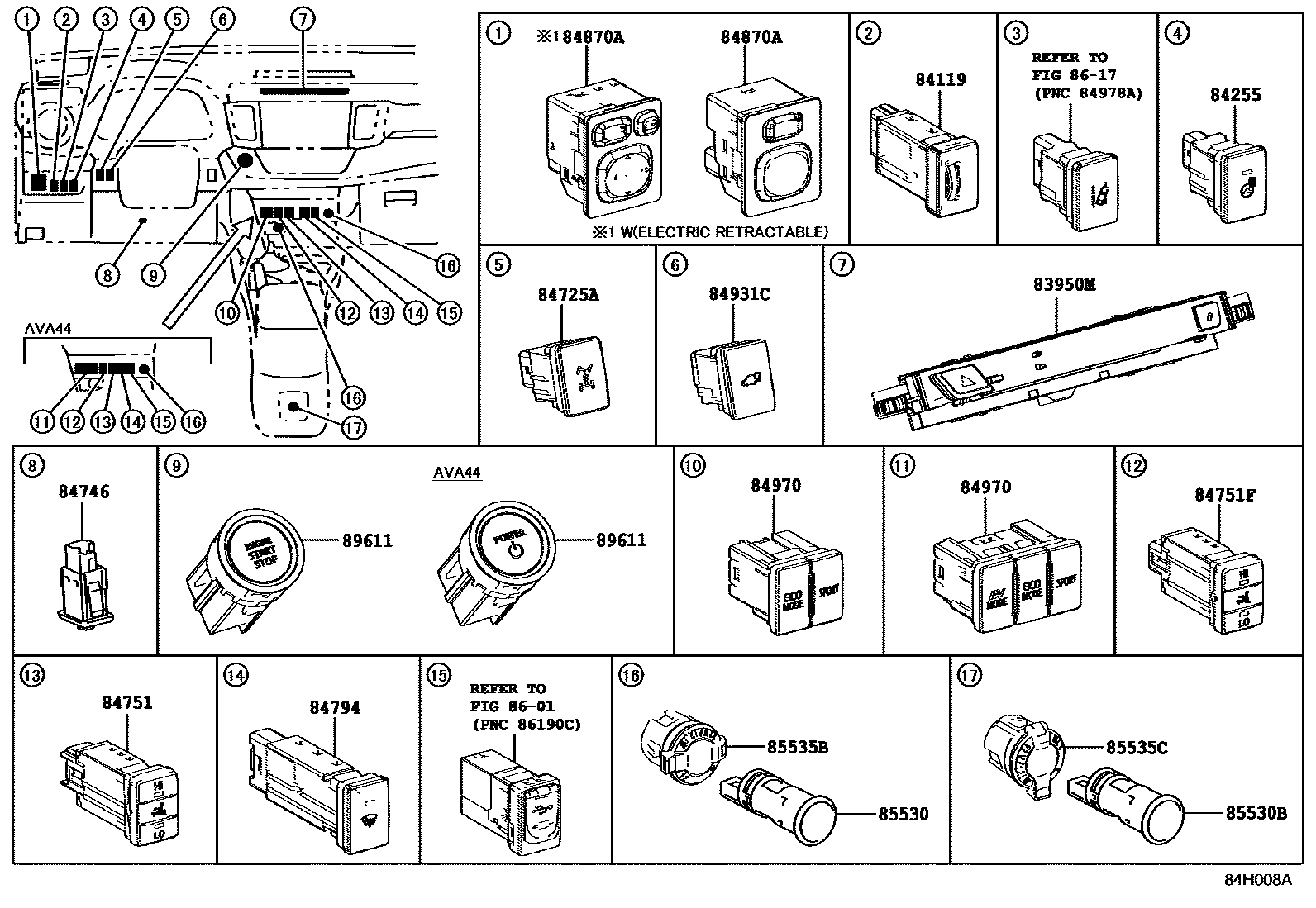

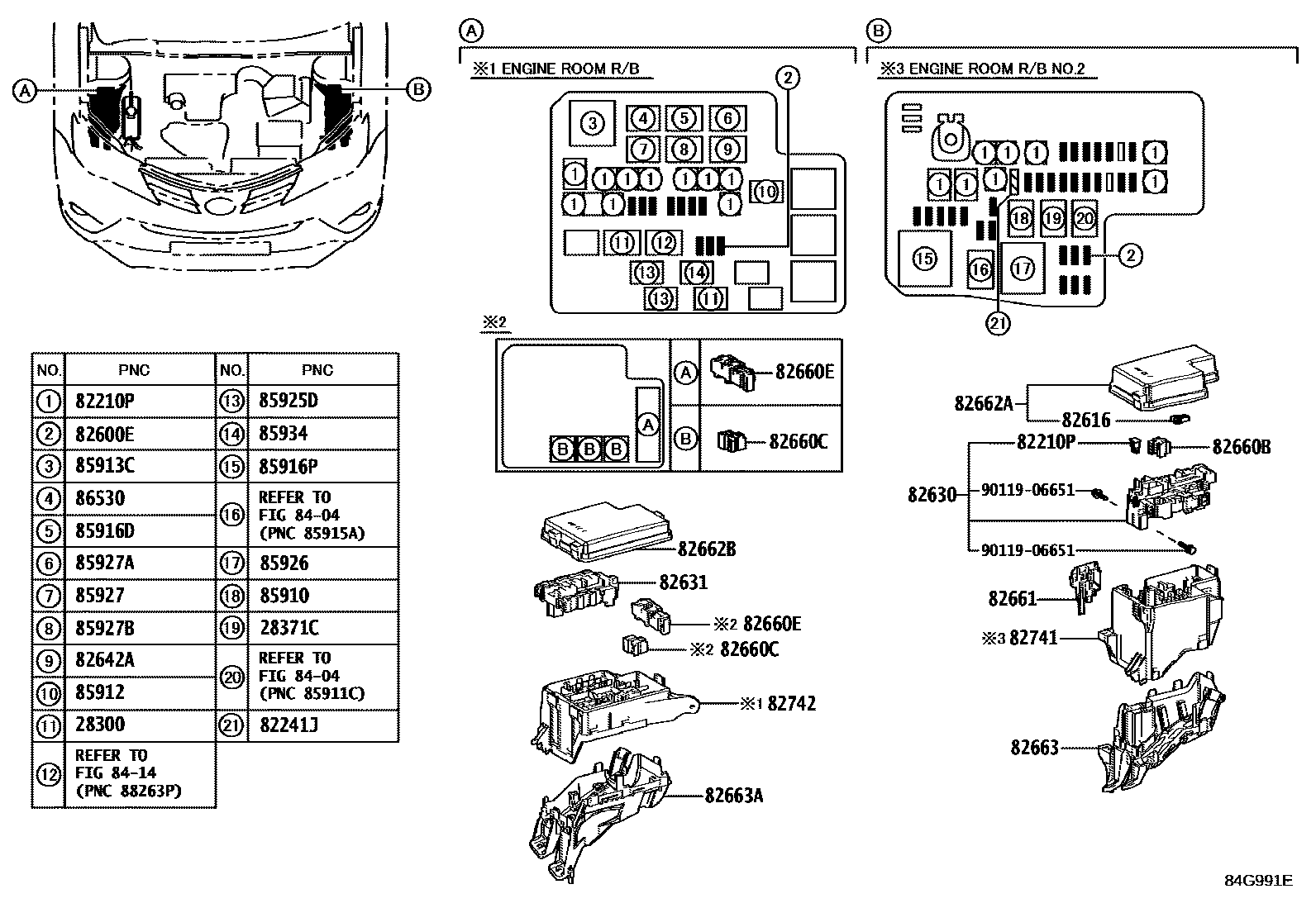

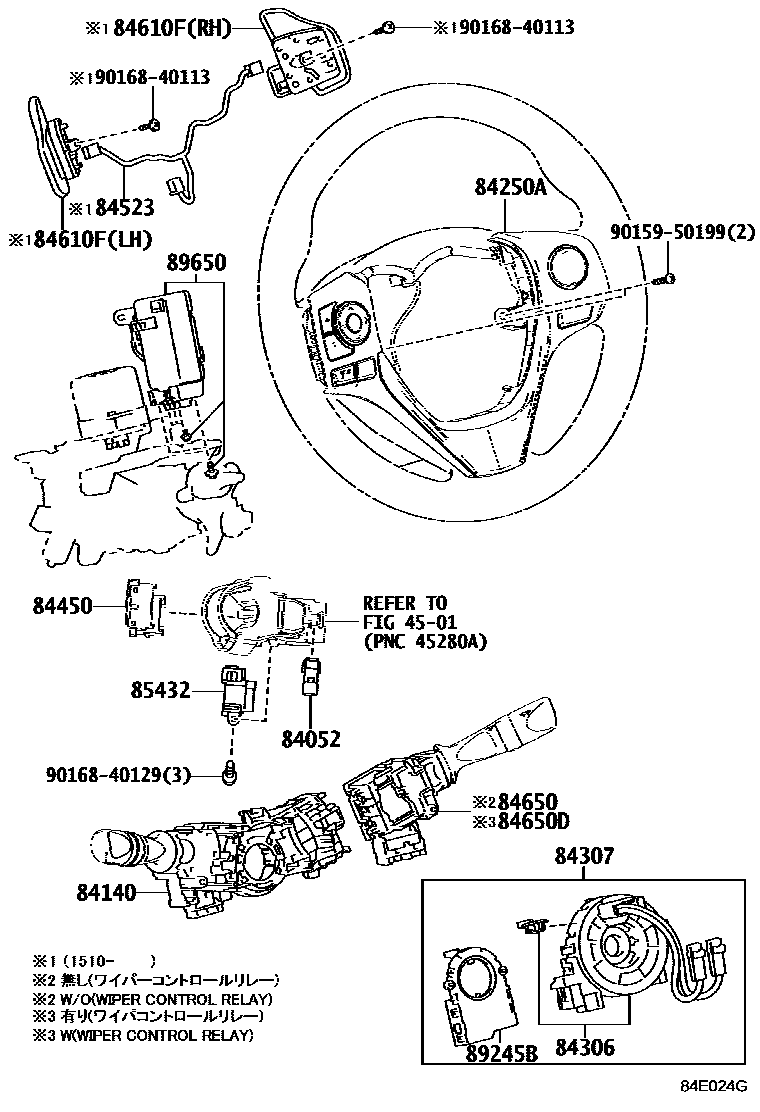

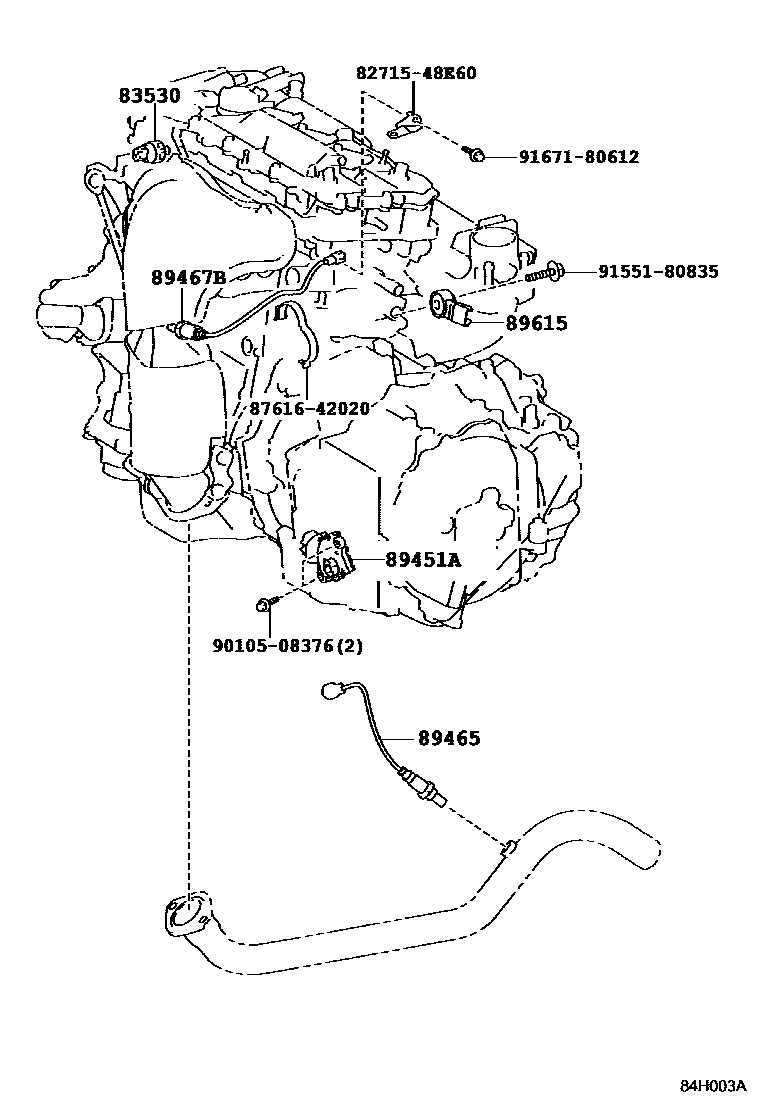

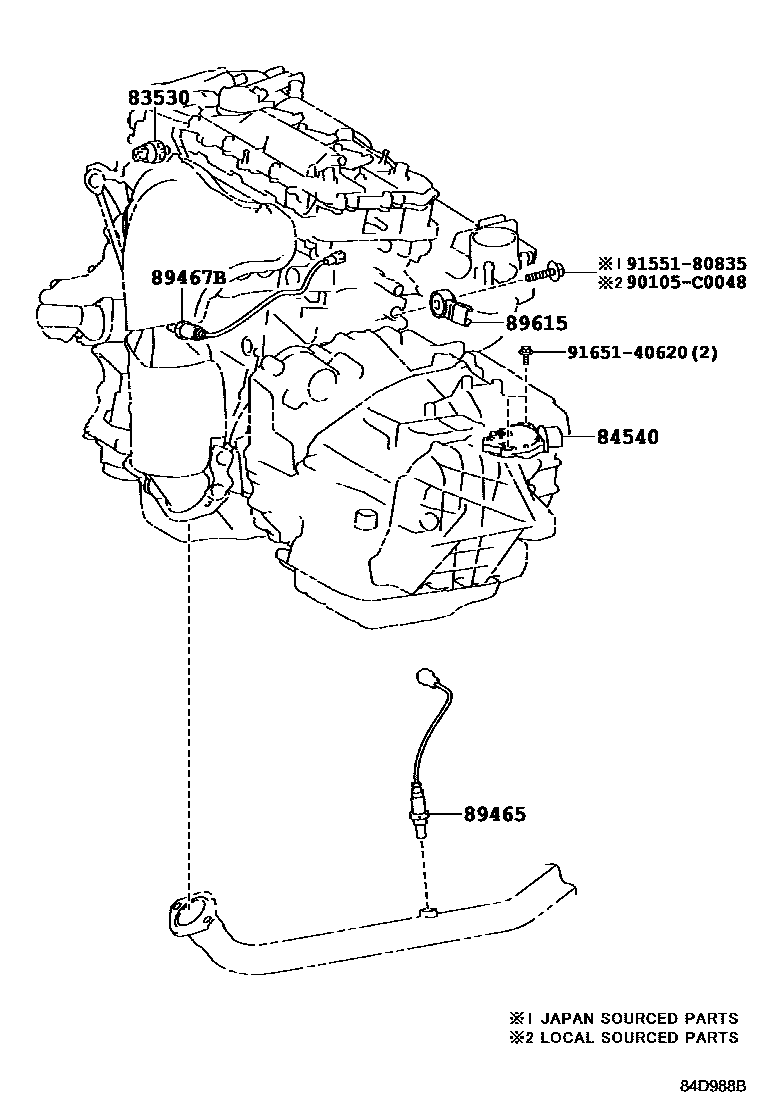

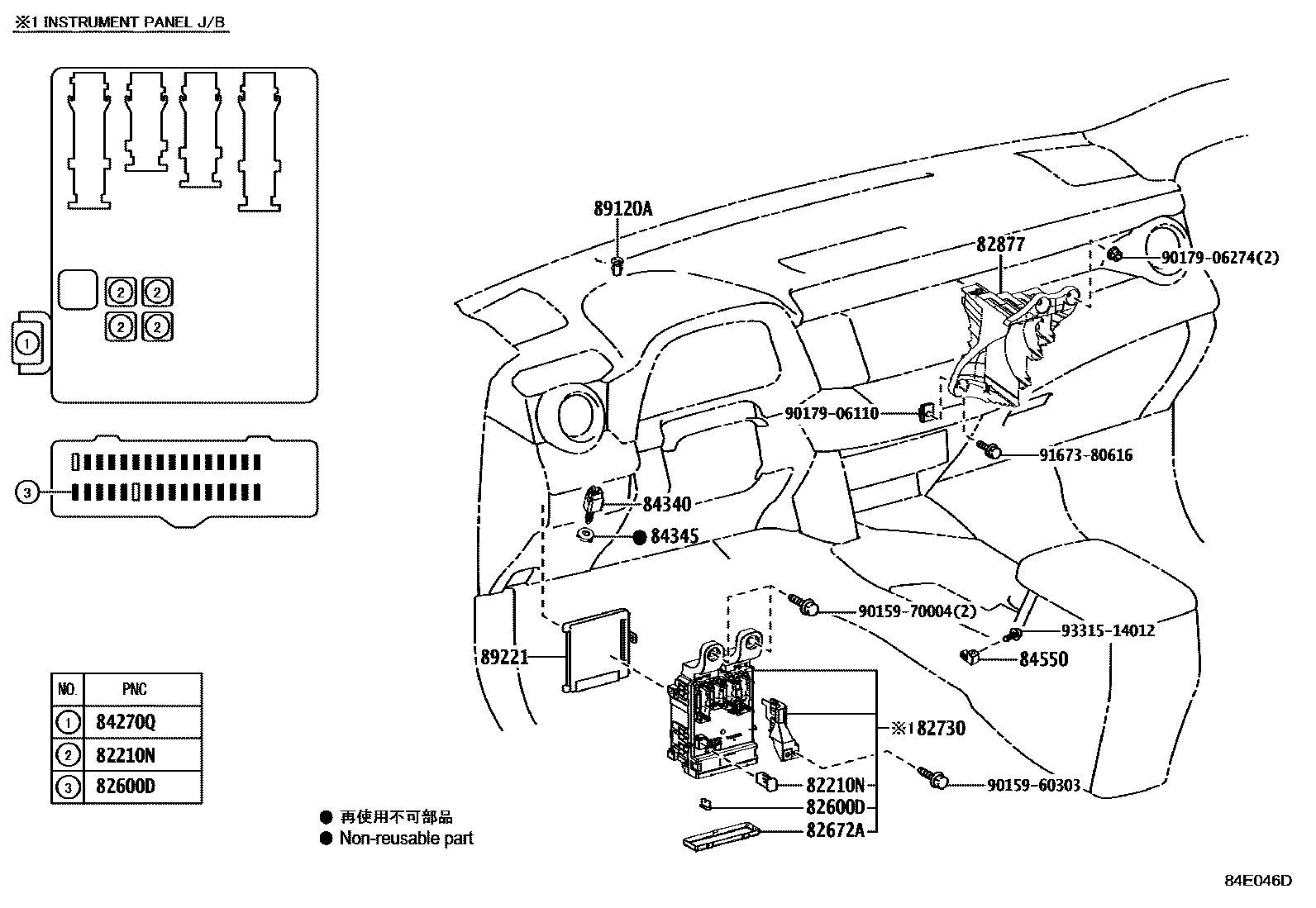

Toyota RAV4 开关和继电器和ECU — Figure 8401
Toyota RAV4 EPC diagram 8401, 开关和继电器和ECU, with 15 images and 119 PNC and OE references.
PNC and OE references

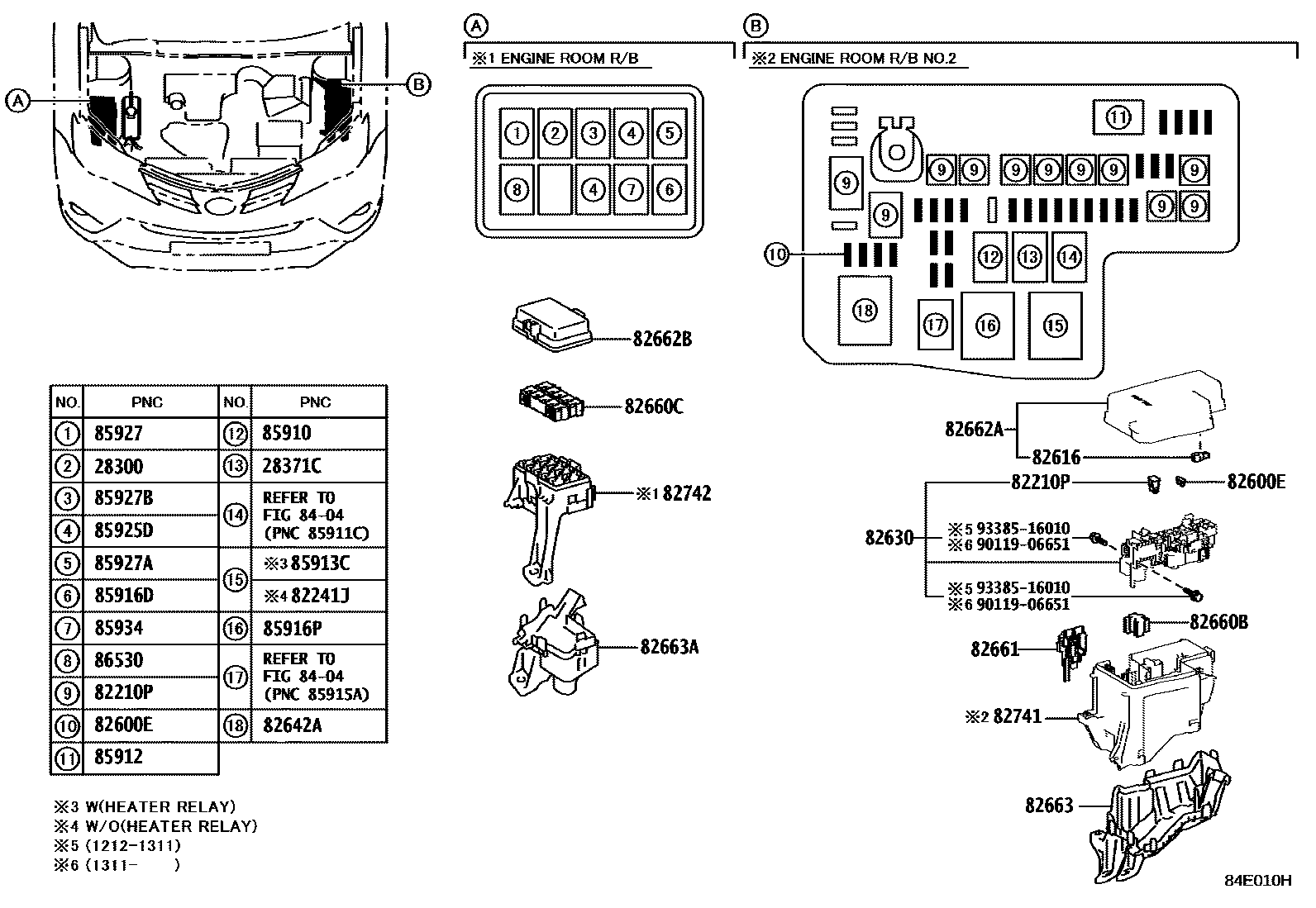

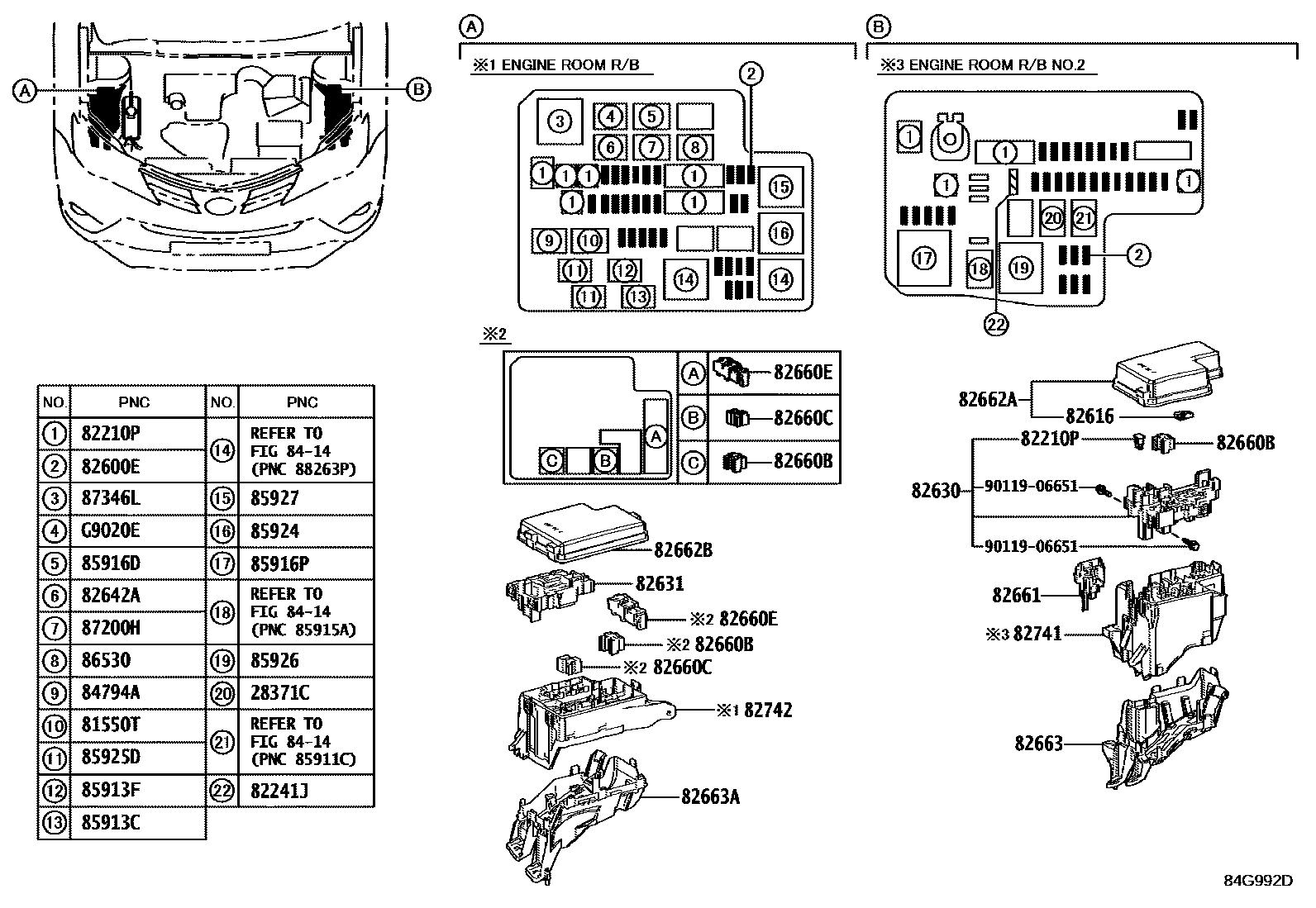

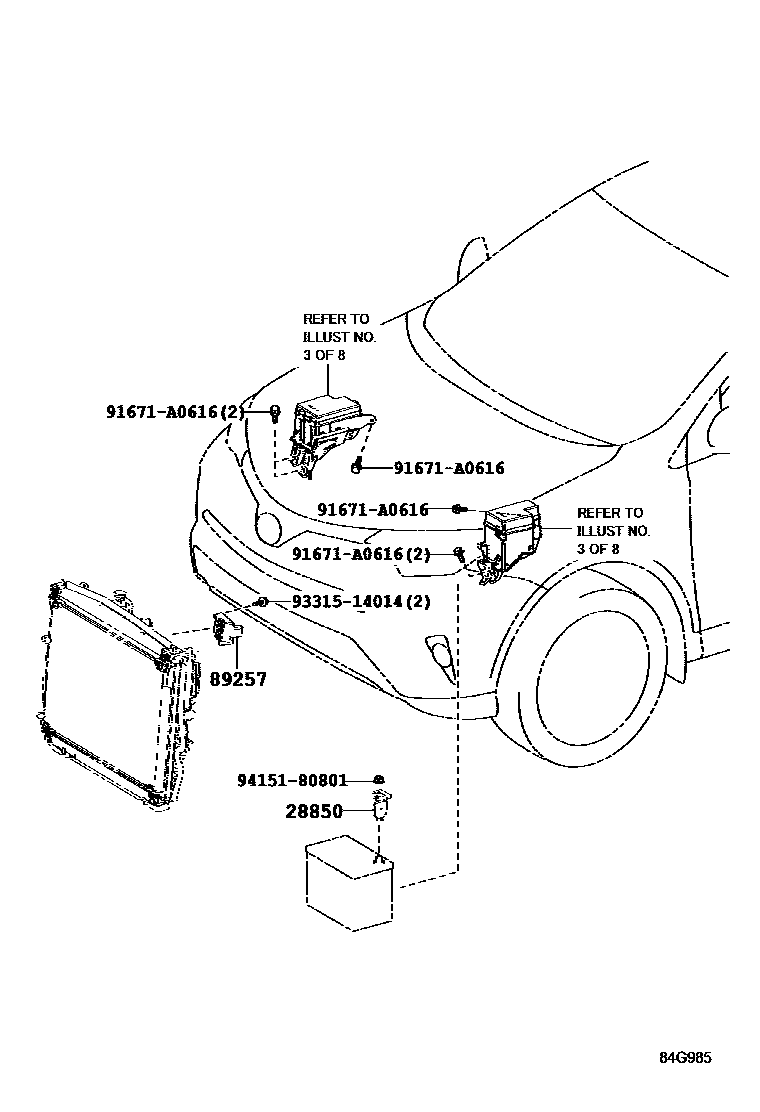

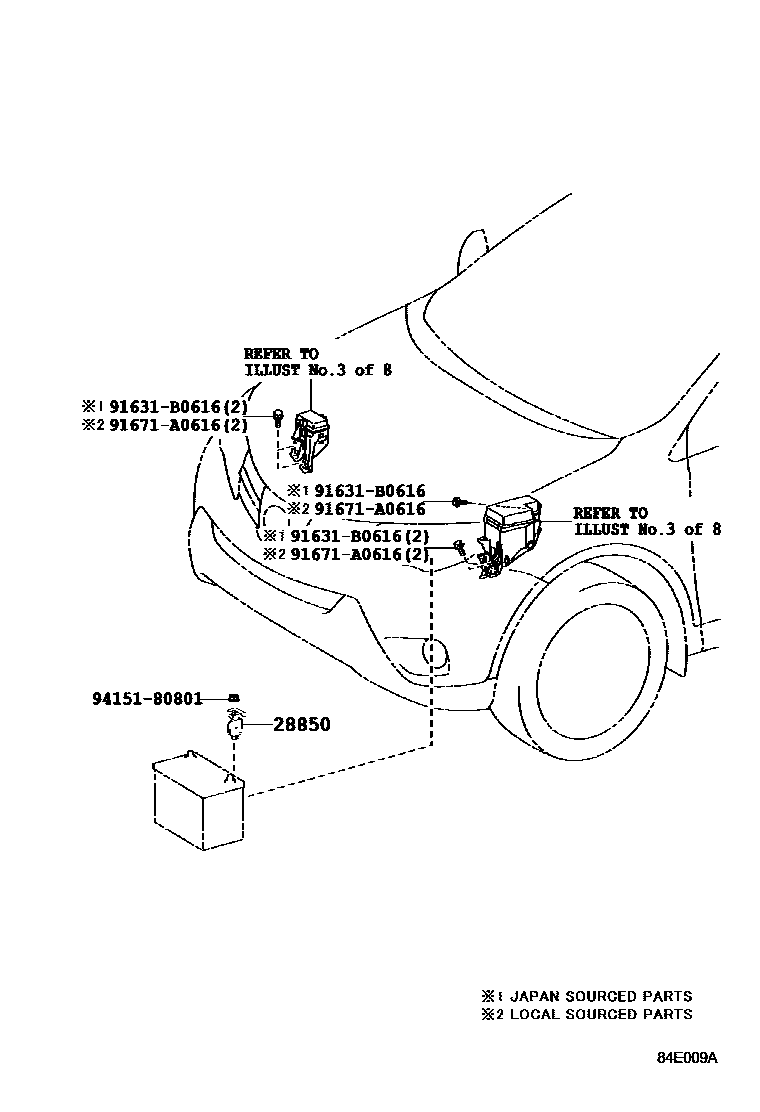

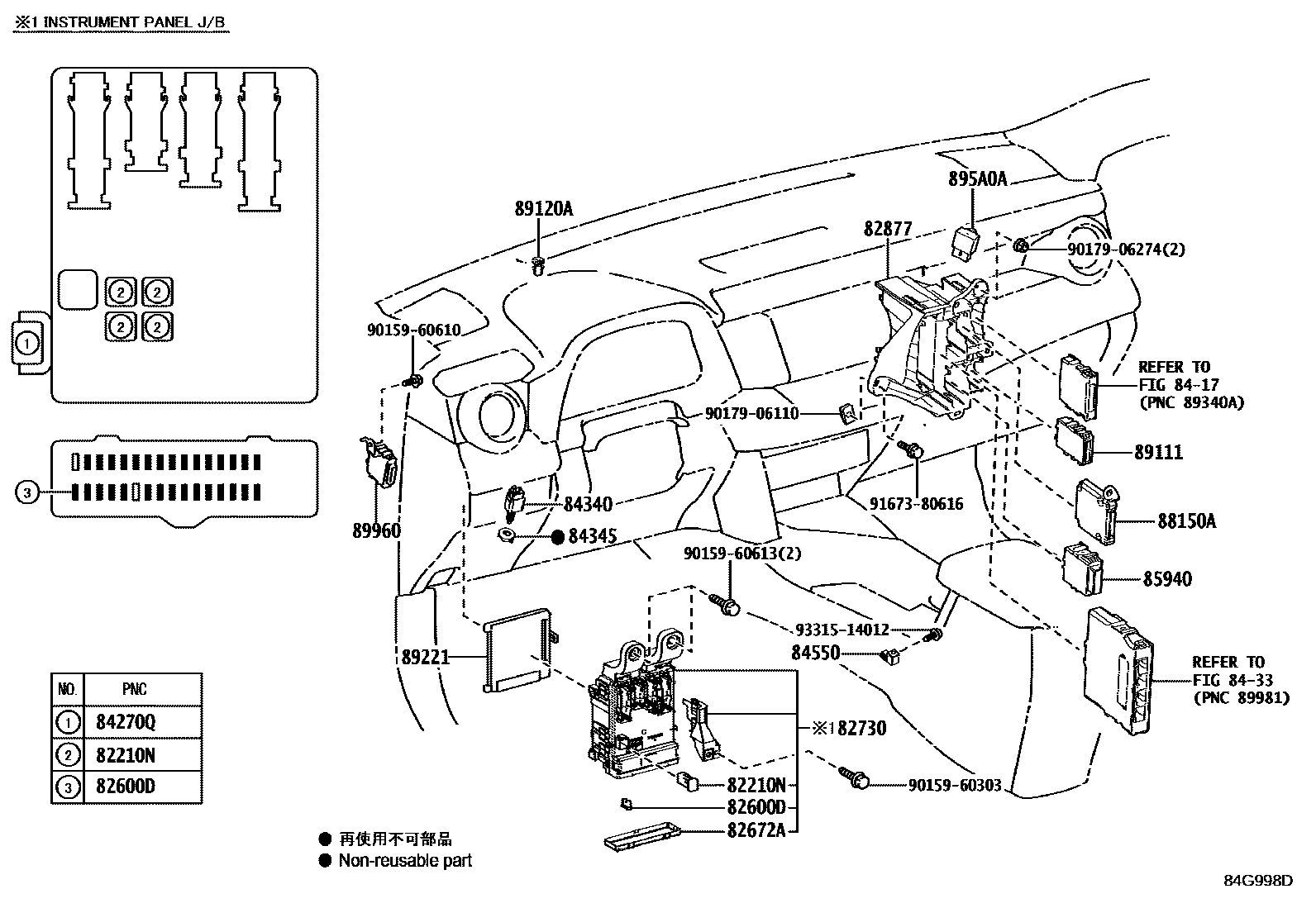

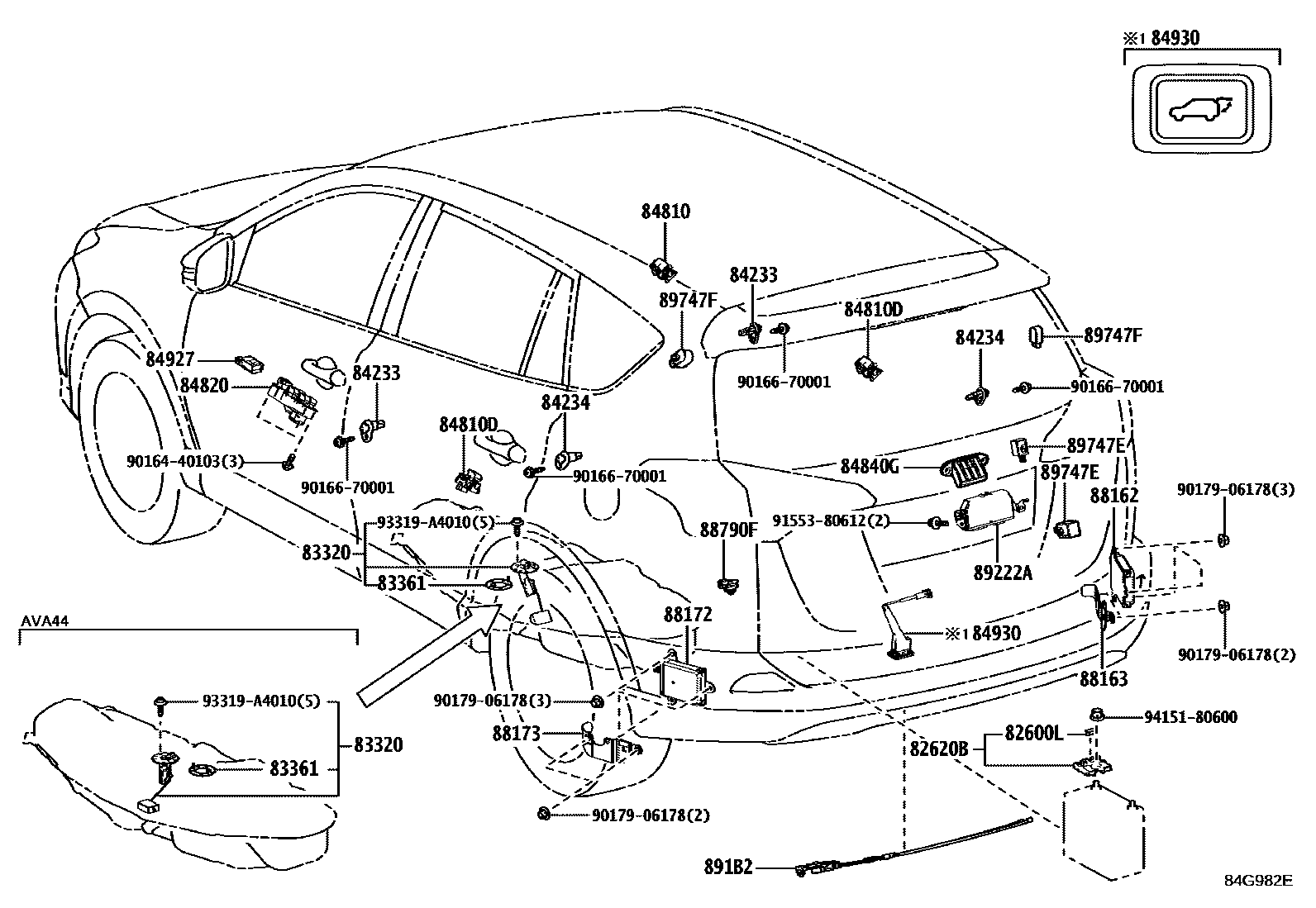

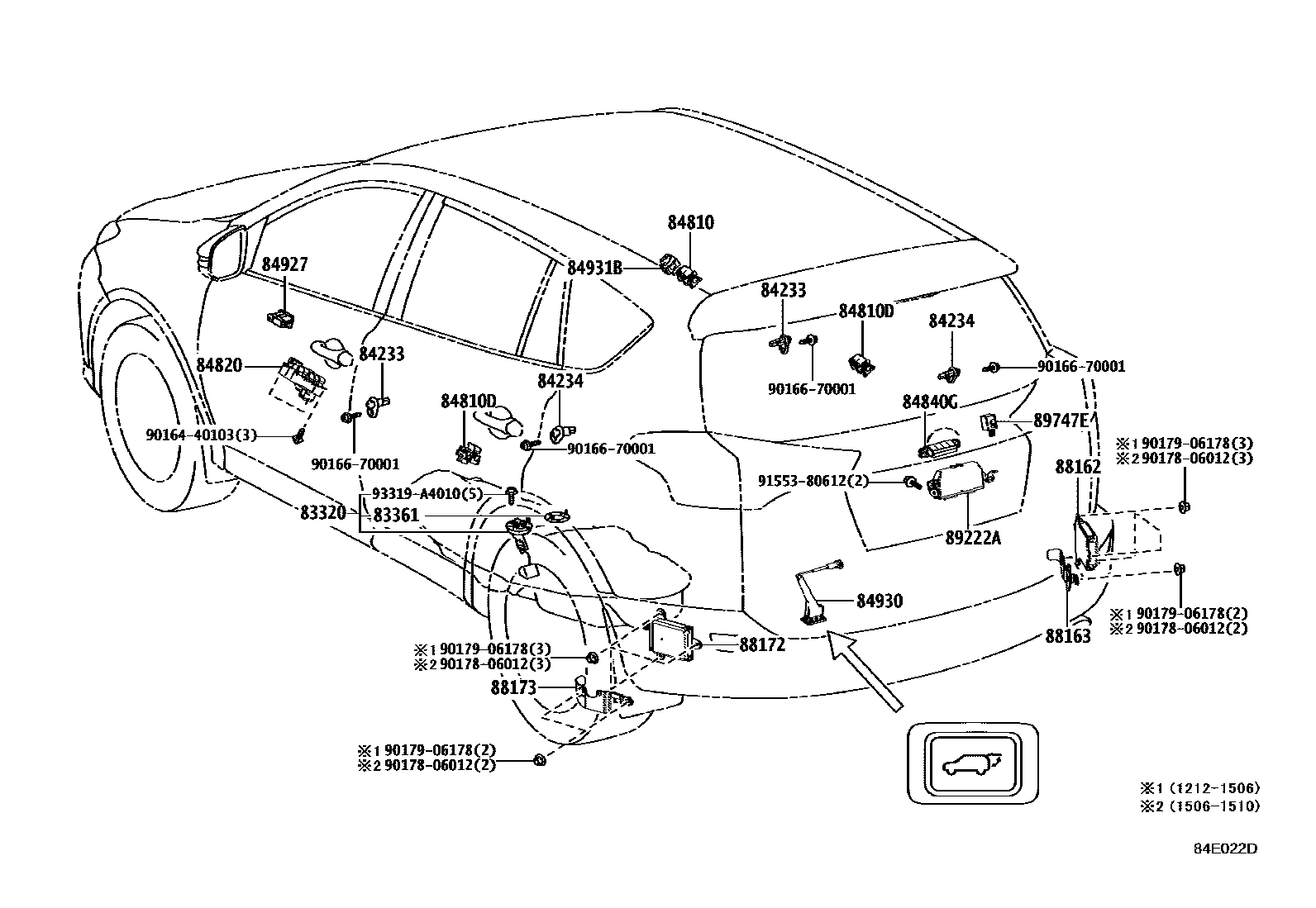

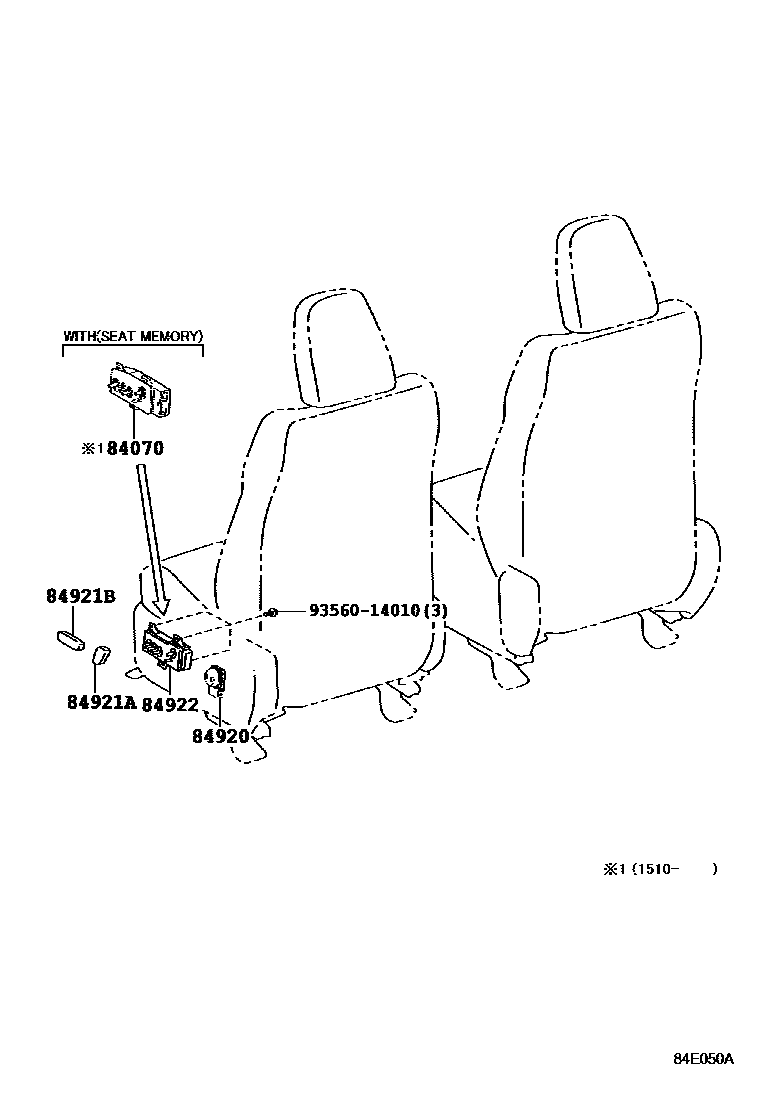

| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-21020 · 28300-28010 |
| 28371C | No. 2 ignition relay | 90987-02027 |
| 28850 | Battery current sensor assembly | 28850-36010 |
| 81550T | Reversing light relay | 90987-02027 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82210P | Engine room fuse | 90982-08274 · 90982-08286 · 90982-08294 · 90982-08295 · 90982-08296 · 90982-08302 · 90982-08303 · 90982-08305 |
| 82241J | Shorting pin | 82241-42010 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82600L | FUSIBLE DU COMPARTIMENT BAGAGE | 90982-09020 |
| 82616 | fuse puller | 82616-58010 |
| 82620B | Fuse box assembly | 82620-30300 |
| 82630 | Fuse holder assembly | 82630-42020 · 82630-42030 · 82630-48010 |
| 82631 | fuse holder | 82631-42060 · 82631-48020 |
| 82642A | driving light relay | 82642-52030 · 82642-60020 · 90987-02027 |
| 82660B | Relay assembly | 82660-0H070 · 82660-52130 · 82660-60170 |
| 82660C | Relay assembly | 82660-42060 · 82660-52010 |
| 82660E | Relay assembly | 82660-26290 |
| 82661 | No. 1 relay box cover | 82661-42040 |
| 82662A | No. 1 relay box upper cover | 82662-42340 · 82662-42410 · 82662-42600 · 82662-42601 |
| 82662B | No. 2 relay box upper cover | 82662-42370 · 82662-42610 · 82662-42611 · 82662-42620 · 82662-42621 |
| 82663 | Relay box lower cover | 82663-42100 |
| 82663A | No. 2 relay box lower cover | 82663-42110 · 82663-42120 |
| 82672A | Junction box cover | 82672-42150 · 82672-42180 |
| 82730 | Instrument panel junction box assembly | 82730-42720 · 82730-42730 · 82730-42750 · 82730-42790 · 82730-42791 · 82730-42800 · 82730-42801 |
| 82741 | Engine room relay box | 82741-42020 · 82741-48080 |
| 82742 | Engine room No. 2 relay box | 82741-42031 · 82741-42040 · 82741-48090 |
| 82877 | Right ECU integrated box | 82877-42010 · 82877-42030 |
| 83320 | Fuel gauge sensor assembly | 83320-49205 · 83320-49255 |
| 83361 | fuel gauge sensor gasket | 77169-14020 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 |
| 83950M | Warning light assembly | 83950-42020 · 83950-42040 · 83950-42190 · 83950-42200 · 83950-42210 · 83950-42360 · 83950-42370 · 83950-42380 |
| 84052 | Unlock warning switch assembly | 84052-71010 |
| 84070 | Position control ECU and switch assembly | 84070-33120 · 84070-76011 |
| 84119 | Light control rheostat | 84119-42021 · 84119-47030 · 84119-47031 |
| 84140 | Headlight dimmer switch assembly | 84140-33240 · 84140-42120 · 84140-42130 · 84140-42140 · 84140-42150 · 84140-42160 · 84140-62020 |
| 84233 | Door control light switch assembly (for front door) | 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-60070 |
| 84255 | Steering heater switch | 84255-42010 |
| 84270Q | headlight relay | 90987-02027 |
| 84306 | Spiral cable sub-assembly | 84308-53010 · 84308-53011 · 84308-60010 |
| 84307 | Spiral cable sub-assembly with sensor | 84307-42050 · 84307-42080 |
| 84340 | brake light switch assembly | 84340-19025 · 84340-19026 · 84340-20060 · 84340-30130 · 84340-39015 · 84340-49065 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84450 | Ignition or starter switch assembly | 84450-12320 |
| 84470 | Warning release switch assembly | 84470-42010 · 84470-42011 |
| 84523 | No. 1 switch harness | 84523-42010 |
| 84540 | Neutral start switch assembly | 84540-33010 |
| 84550 | Parking brake switch assembly | 84550-33010 |
| 84610F | Transmission shift switch assembly | 84610-12120 · 84610-12130 |
| 84650 | Windshield wiper switch assembly | 84652-12A90 |
| 84650D | ENS. COMM, ESS-GL PARE-BRISE AV RELAIS, COMM ESS-GL | 84652-1A860 · 84652-42160 · 84652-42170 |
| 84725A | Differential lock switch | 84725-42010 · 84725-42011 |
| 84746 | tire pressure warning switch | 84746-50010 |
| 84751 | Seat heater switch | 84751-42070 · 84751-42071 · 84751-42072 |
| 84751F | Seat heater switch | 84751-42080 · 84751-42081 · 84751-42082 |
| 84794 | Front wiper de-icer switch | 84794-48021 |
| 84794A | Front wiper de-icer relay | 90987-02027 |
| 84810 | Electric window lift switch assembly | 84810-52030 |
| 84810D | Rear electric window lift switch assembly | 84810-52030 |
| 84820 | Electric window lift main switch assembly | 84820-42200 · 84820-42210 |
| 84840G | Back door opener switch assembly | 84840-28030 · 84840-28040 · 84840-48020 · 84840-78010 |
| 84870A | Exterior rearview mirror switch assembly | 84870-52050 · 84870-74010 |
| 84922 | Front electric seat switch | 84922-60180 |
| 84927 | Seat memory switch | 84927-42010 · 84927-42011 · 84927-42030 |
| 84930 | Door control switch assembly | 84930-42040 |
| 84931B | door control switch | 84930-12250 |
| 84931C | Back door control switch | 84930-42050 · 84930-42051 |
| 84965 | Electric back door main switch | 84962-42020 · 84962-42021 |
| 84970 | Combination switch assembly | 84970-42010 · 84970-42090 |
| 84988F | traction control switch | 84988-42080 · 84988-42081 |
| 85432 | Key interlock solenoid valve | 85432-52010 |
| 85530 | No. 1 power socket assembly | 85530-42010 |
| 85530B | No. 1 rear power socket assembly | 85530-42010 |
| 85530D | No. 2 power socket assembly | 85530-42010 |
| 85535B | No. 1 power outlet cover | 85535-42060 |
| 85535C | Rear power outlet cover | 85535-42070 |
| 85535E | No. 2 power outlet cover | 85535-42060 |
| 85910 | Circuit breaking relay assembly | 90987-02027 |
| 85912 | defogger relay | 90987-02027 |
| 85913C | Heater relay No. 1 | 90987-02028 · 90987-04010 |
| 85913F | Steering heater relay | 90987-02027 |
| 85916D | fog light relay | 90987-02027 |
| 85916P | headlight relay | 90987-02025 |
| 85924 | Ignition control relay | 90987-02025 |
| 85925D | PTC heater relay | 90987-02027 |
| 85926 | Headlight dimmer relay | 90987-02025 |
| 85927 | cooling fan relay | 90987-02025 · 90987-02027 |
| 85927A | Cooling fan relay No. 2 | 90987-04004 |
| 85927B | Cooling fan relay No. 3 | 90987-02027 |
| 85934 | Electromagnetic clutch relay | 90987-02027 |
| 85940 | Windshield wiper relay assembly | 85940-42030 |
| 86530 | Speaker relay assembly | 90987-02027 |
| 87200H | RELAIS, POMPE EAU CHAUFFAGE | 90987-02027 |
| 87346L | PTC heater relay | 90987-02025 |
| 88150A | Driving assistance ECU assembly | 88150-42010 · 88150-42011 · 88150-42020 · 88150-42021 |
| 88162 | Blind spot monitor right sensor | 88162-0W070 · 88162-0W190 · 88162-0W380 · 88162-0W381 · 88162-0W382 · 88162-0W383 |
| 88163 | Blind spot monitor right side cover | 88163-42010 |
| 88172 | Blind spot monitor left sensor | 88162-0W070 · 88162-0W190 · 88162-0W380 · 88162-0W381 · 88162-0W382 · 88162-0W383 |
| 88173 | Blind spot monitor left cover | 88173-42010 |
| 88790F | Thermistor assembly | 88790-22131 |
| 89111 | Network gateway ECU | 89111-42020 · 89111-42021 |
| 89120A | Automatic light control sensor | 89121-50020 |
| 891B2 | CAPTEUR, COMMANDE ARRET PORTE AU PIED | 891B2-0W030 |
| 89221 | Multi-channel network body ECU | 89220-42010 · 89220-42011 · 89220-42012 · 89220-42020 · 89220-42021 · 89220-42022 · 89220-42030 · 89220-42040 · 89220-42290 · 89220-42291 · 89220-42292 · 89220-42300 · 89220-42301 · 89220-42302 · 89220-42310 · 89220-42700 · 89220-42701 · 89220-42710 · 89220-42711 · 89220-42720 · 89220-42721 · 89220-42730 · 89220-42780 · 89220-42790 · 89220-42G40 · 89220-42G50 · 89220-42G60 · 89220-42G70 · 89220-42G80 · 89220-42G90 · 89220-42U30 · 89220-42U40 · 89220-42U50 · 89220-42U60 · 89220-42U70 · 89220-42U80 · 89220-42U90 · 89220-42V00 · 89220-42V10 · 89220-42V20 · 89220-42V30 · 89220-42V40 · 89220-42V50 · 89220-42V60 · 89220-42V70 · 89220-42V80 · 89220-4A480 · 89220-4A490 · 89220-4A500 · 89220-4A510 · 89220-4A520 · 89220-4A530 · 89220-4A540 · 89220-4A550 · 89220-4A560 · 89220-4A570 · 89220-4A580 · 89220-4A590 · 89220-4A600 · 89220-4A610 · 89220-4A620 · 89220-4A630 · 89220-4A640 · 89220-4A650 · 89220-4A660 · 89220-4A670 · 89220-4A680 · 89220-4A690 · 89220-4A700 · 89220-4AG40 · 89220-4AG50 · 89220-4AG60 · 89220-4AJ50 |
| 89222A | Multi-channel network door ECU | 89222-42030 · 89222-42032 · 89222-42033 · 89222-42040 · 89222-42041 · 89222-42050 · 89222-42060 · 89222-42090 |
| 89245B | steering sensor | 8924B-12010 |
| 89257 | Cooling fan ECU | 89257-30110 |
| 89451A | shift lever position sensor | 89451-52040 |
| 89465 | oxygen sensor | 89465-42230 |
| 89467B | air fuel ratio sensor | 89467-06200 · 89467-0R060 · 89467-21020 · 89467-48270 |
| 895A0A | Brake light control ECU assembly | 895A0-20020 |
| 89611 | push button start switch | 89611-30141 · 89611-30142 · 89611-42010 · 89611-42011 · 89611-42012 |
| 89615 | knock control sensor | 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-42160 · 89650-42161 · 89650-42240 · 89650-42241 · 89650-42260 · 89650-42261 · 89650-42270 · 89650-42271 · 89650-42290 · 89650-42291 |
| 89747E | Electric back door warning buzzer | 89747-30040 |
| 89747F | Blind spot monitor buzzer | 89747-52010 |
| 89960 | Headlight beam height adjustment ECU assembly | 89960-42170 |
| G9020E | Hybrid water pump relay | 90987-02027 |
