Toyota RAV4 battery holder — Figure 7454

Toyota RAV4 EPC diagram 7454, battery holder, with 2 images and 8 PNC and OE references.

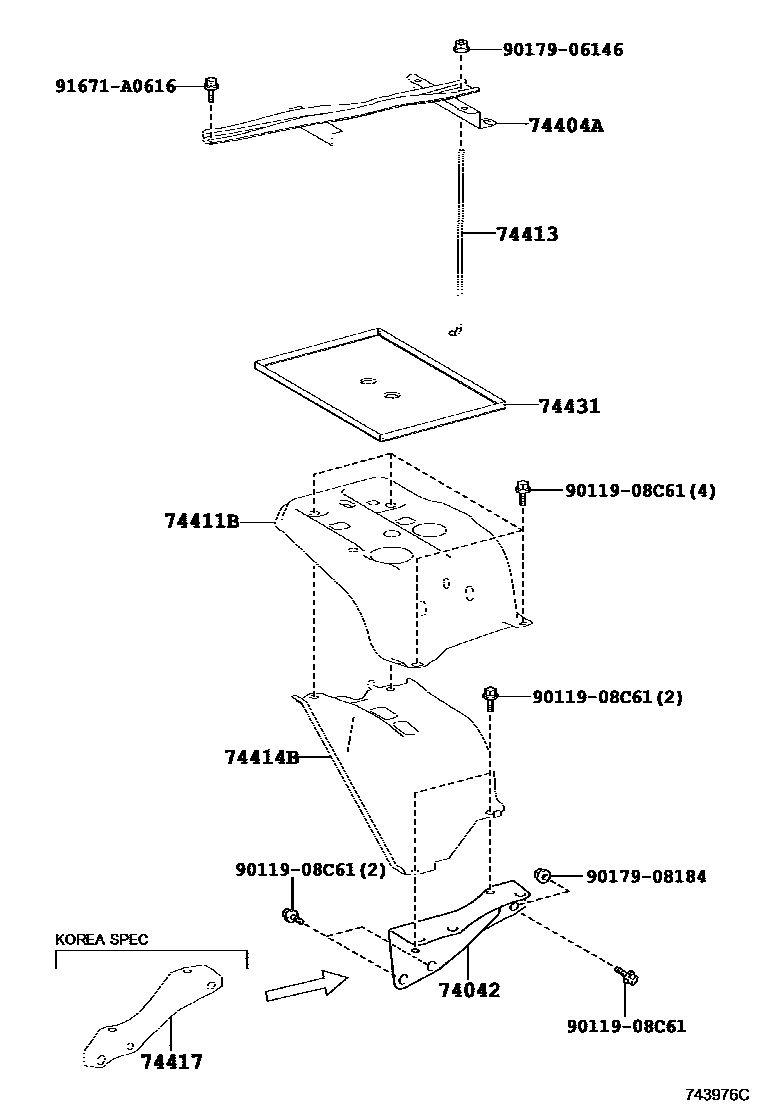

Toyota RAV4 battery holder EPC diagram — 743976C
battery holder — 743976C (201212 – 999999)

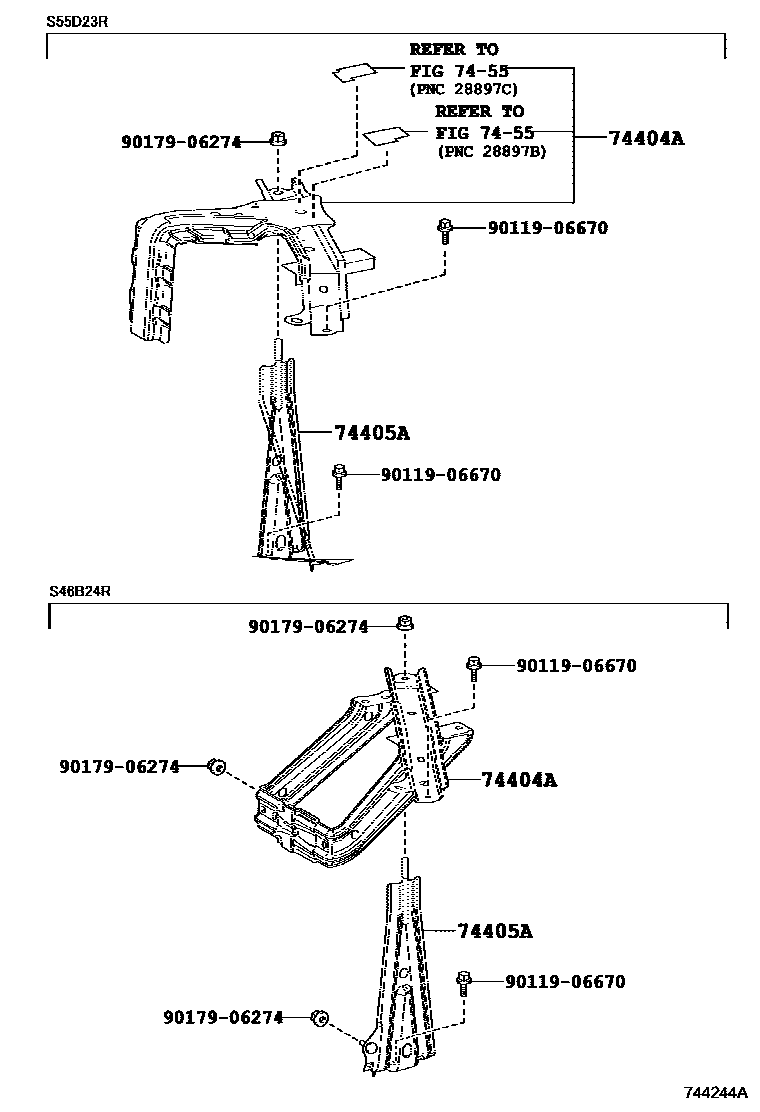

Toyota RAV4 battery holder EPC diagram — 744244A
battery holder — 744244A (201510 – 999999)

PNC and OE references

PNCPart nameOE numbers
74042Battery bracket sub-assembly74401-78010
74404ABattery clip sub-assembly74404-42190 · 74404-42240 · 74404-42250
74405ABattery upper right bracket sub-assembly74405-42010 · 74405-48050
74411BBattery front side bracket74411-42040 · 74411-78020
74413Battery clamp bolt74451-10060 · 74451-10061
74414BBattery bracket reinforcement74414-42011 · 74414-78020
74417battery holder bracket74417-42030
74431battery tray74431-42140
