Toyota RAV4 座椅和座椅滑轨 — Figure 7151

Toyota RAV4 EPC diagram 7151, 座椅和座椅滑轨, with 11 images and 82 PNC and OE references.

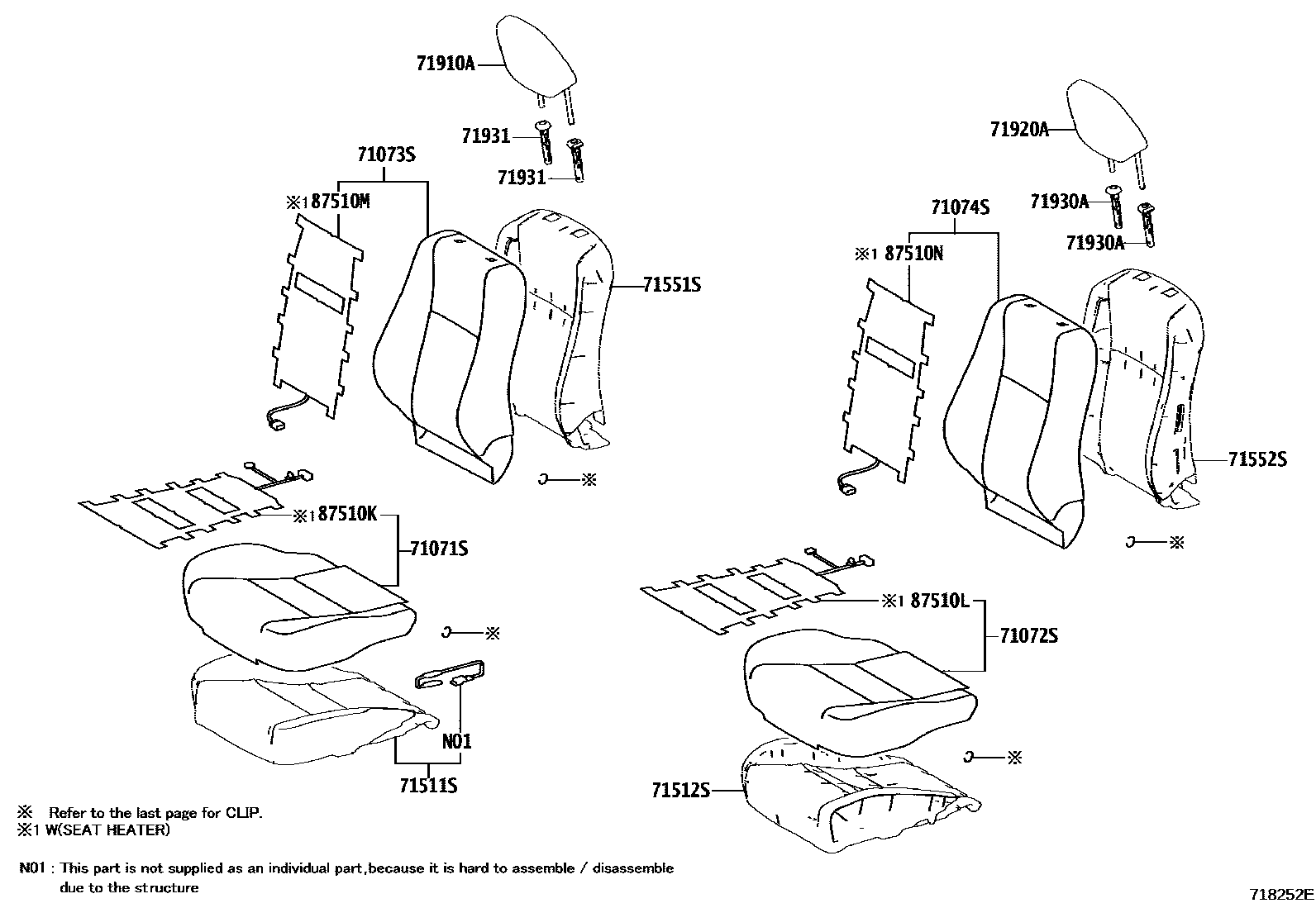

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 718252E — 座椅和座椅滑轨 — 718252E (201212 – 999999)

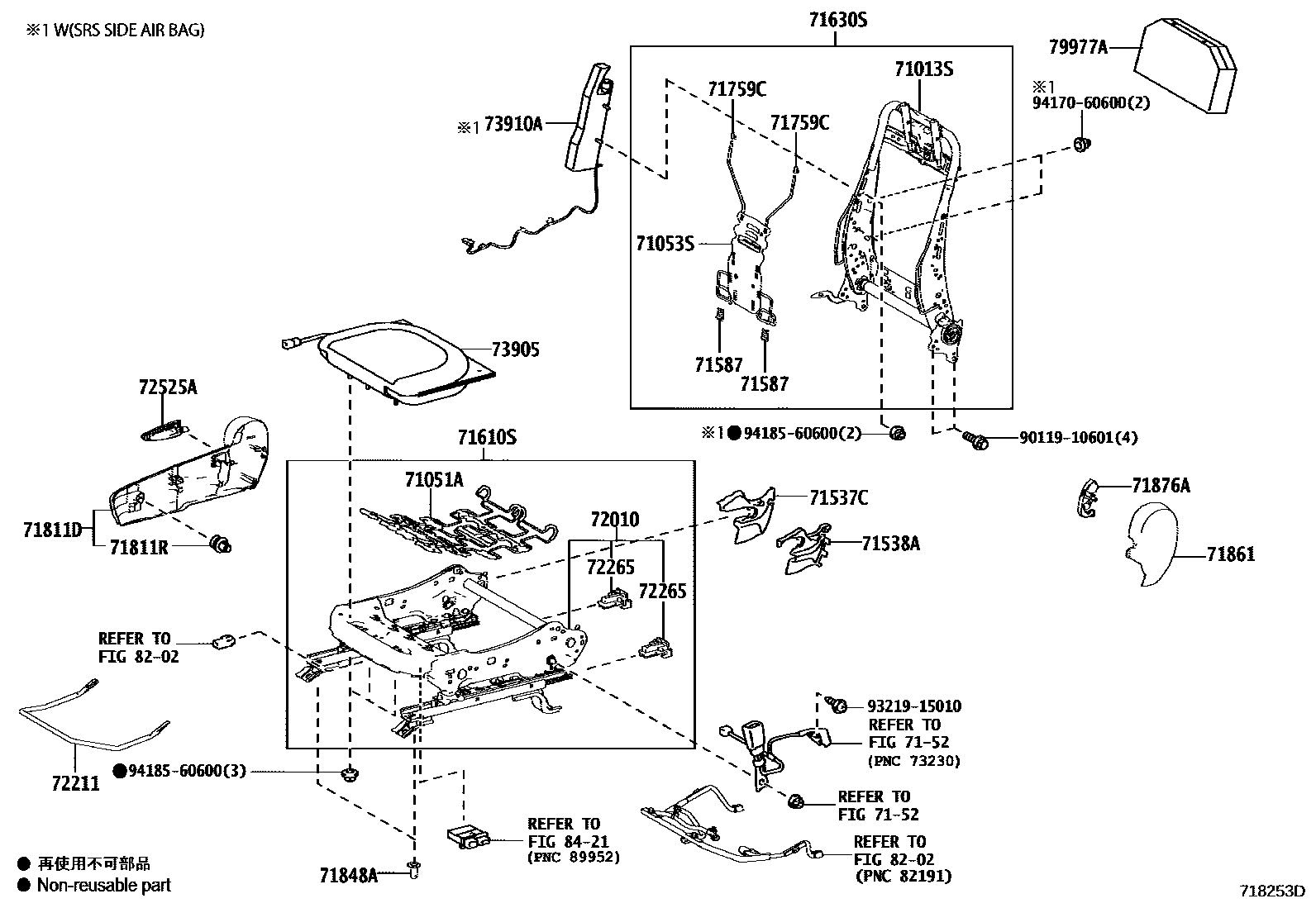

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 718253D — 座椅和座椅滑轨 — 718253D (201212 – 999999)

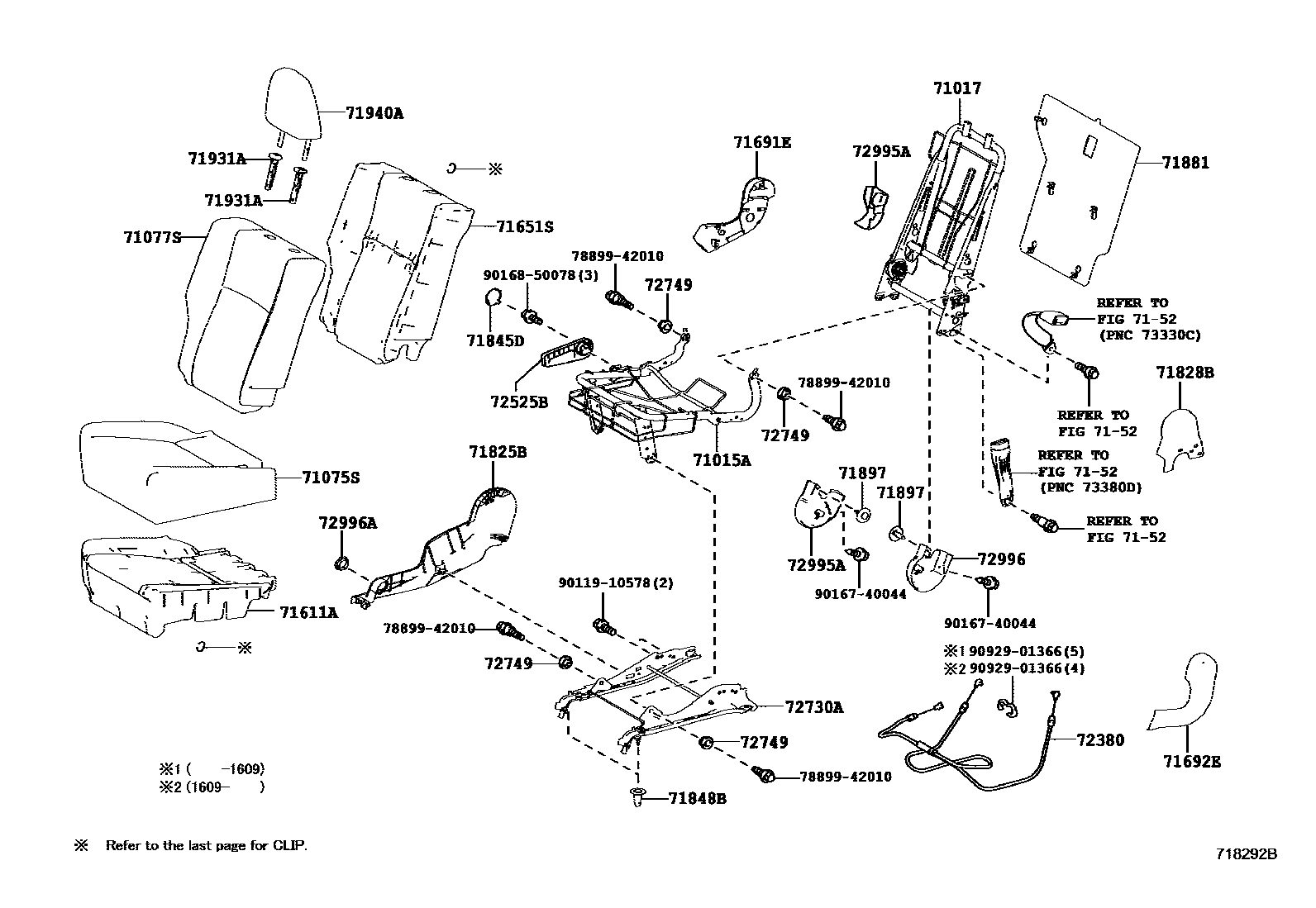

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 718292B — 座椅和座椅滑轨 — 718292B (201212 – 999999)

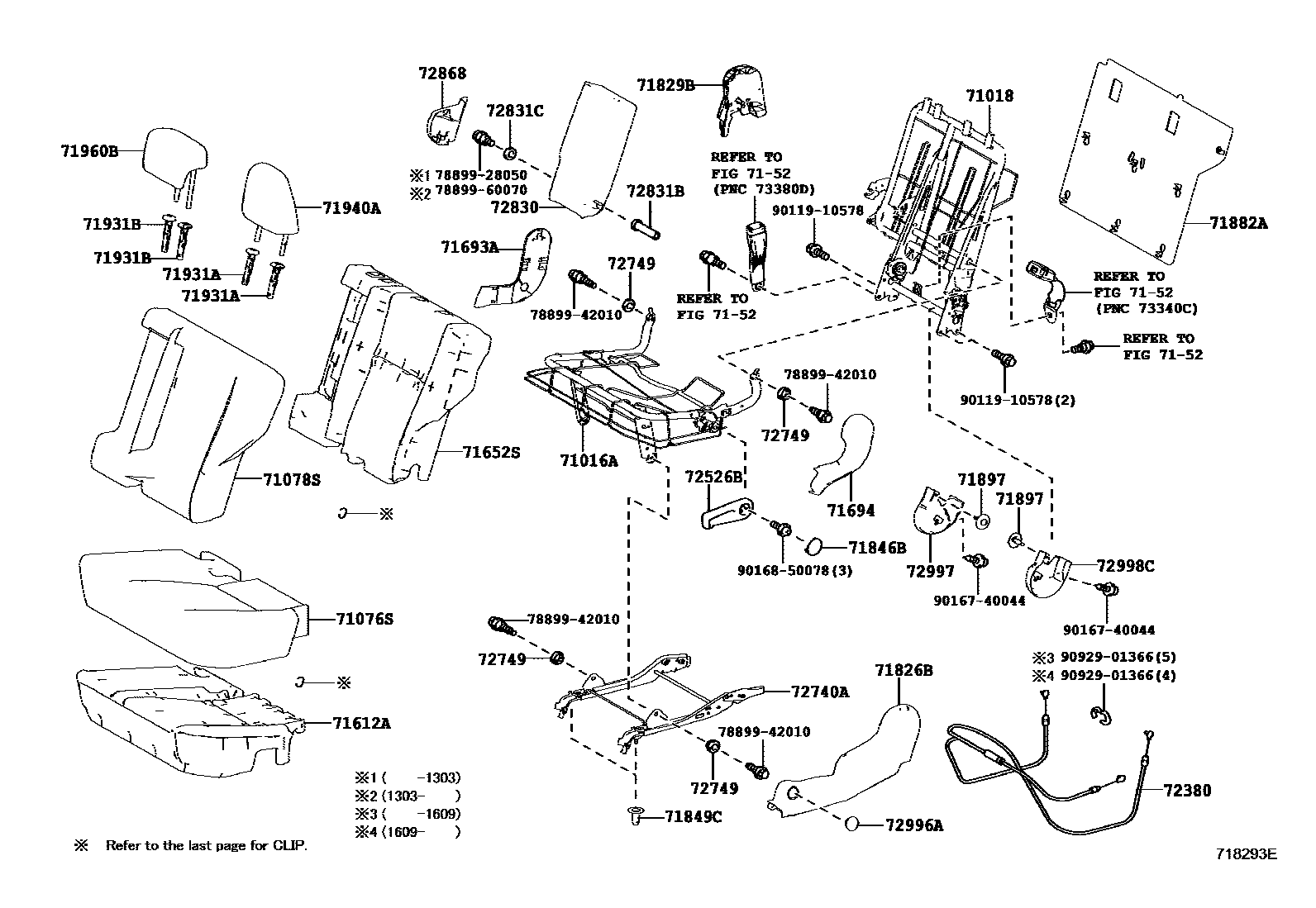

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 718293F — 座椅和座椅滑轨 — 718293F (201212 – 999999)

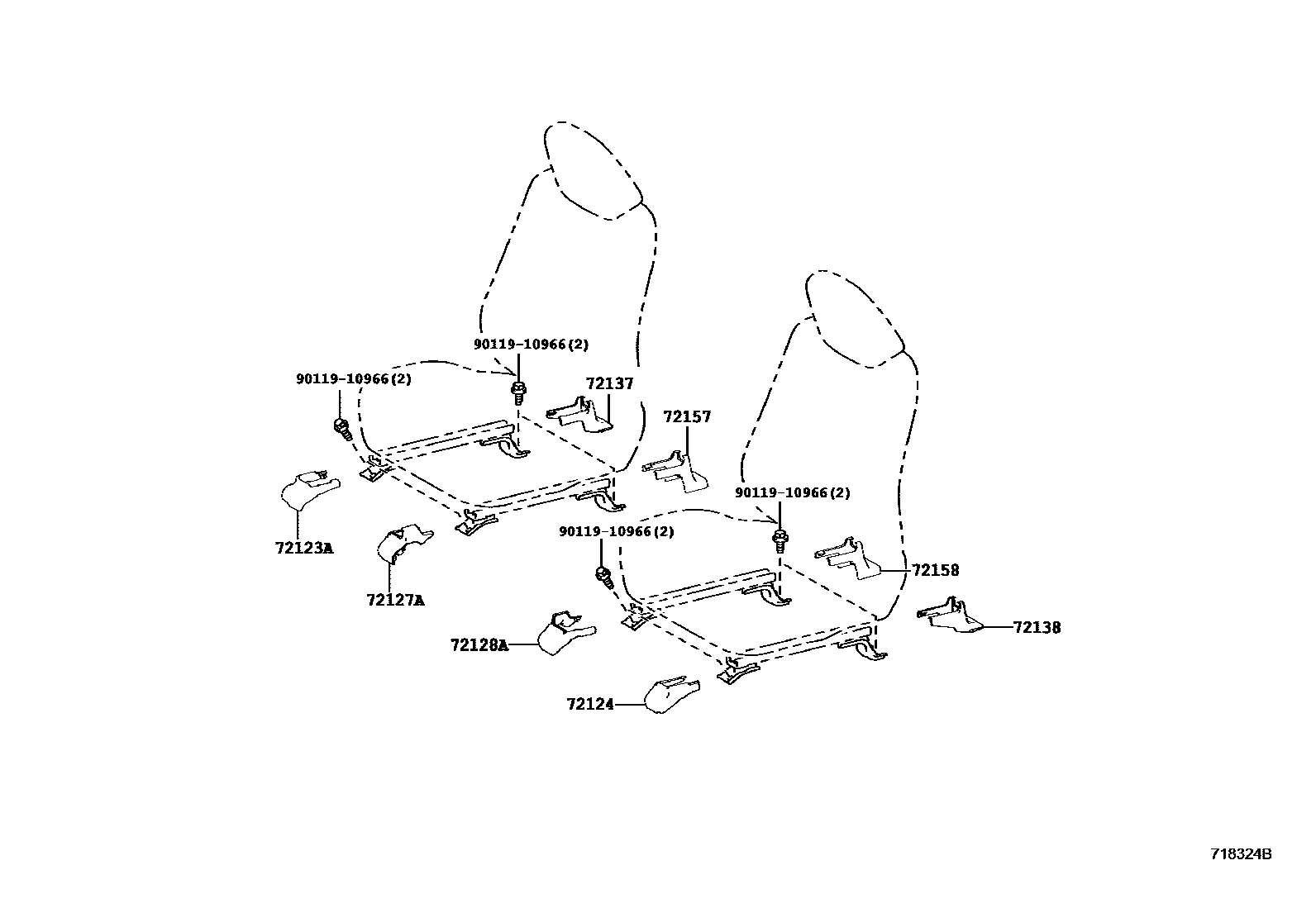

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 718324B — 座椅和座椅滑轨 — 718324B (201212 – 999999)

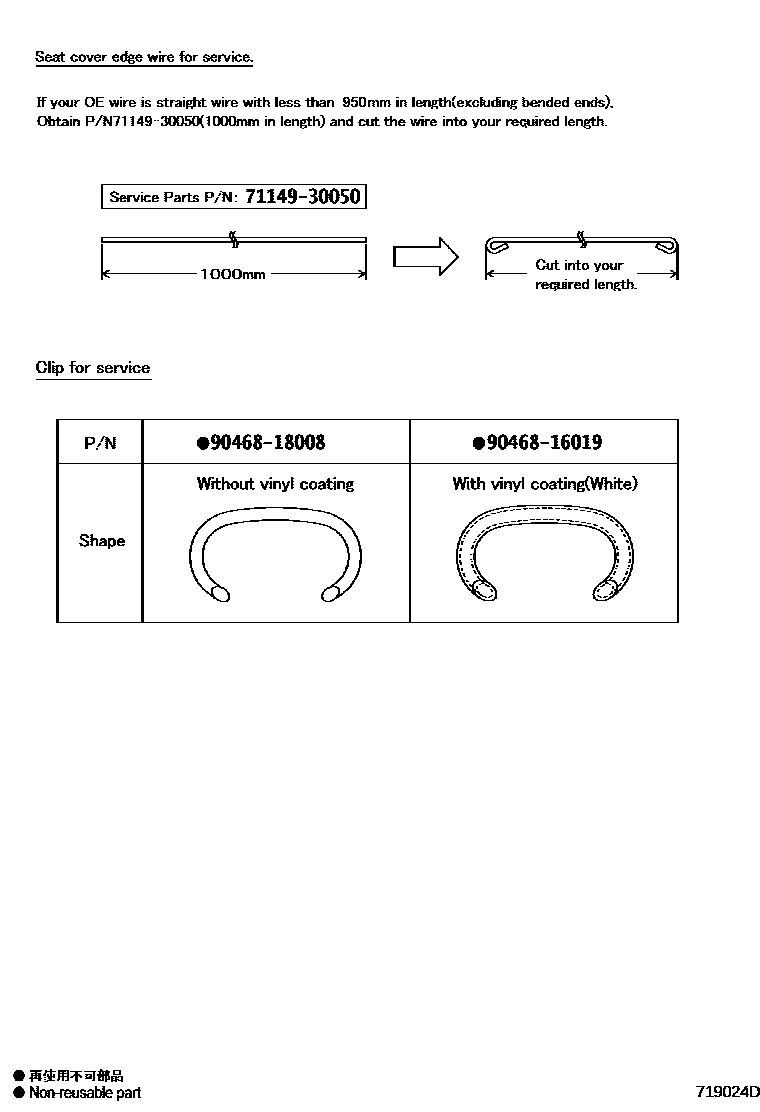

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 719024D — 座椅和座椅滑轨 — 719024D (201212 – 999999)

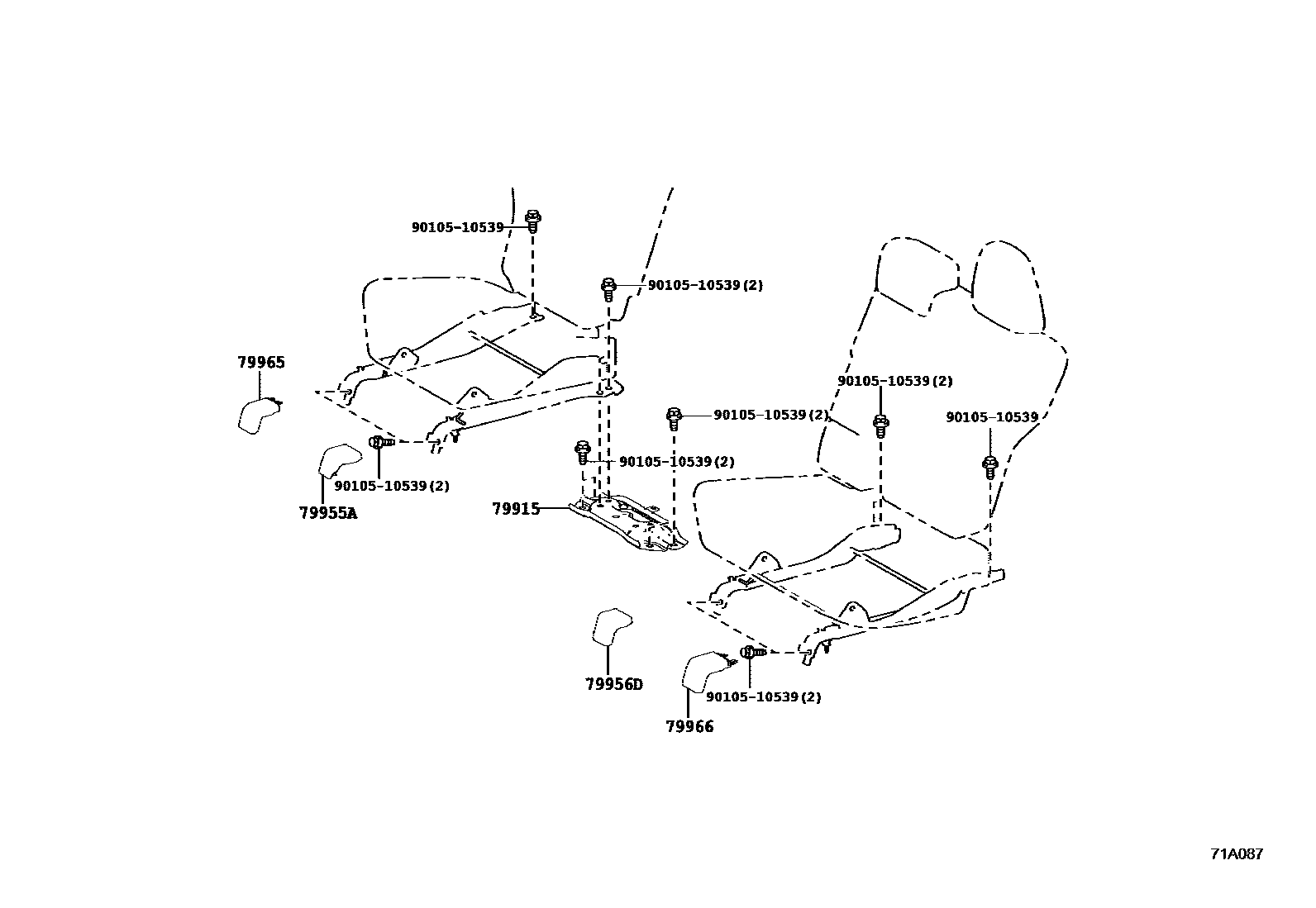

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 71A087 — 座椅和座椅滑轨 — 71A087 (201212 – 999999)

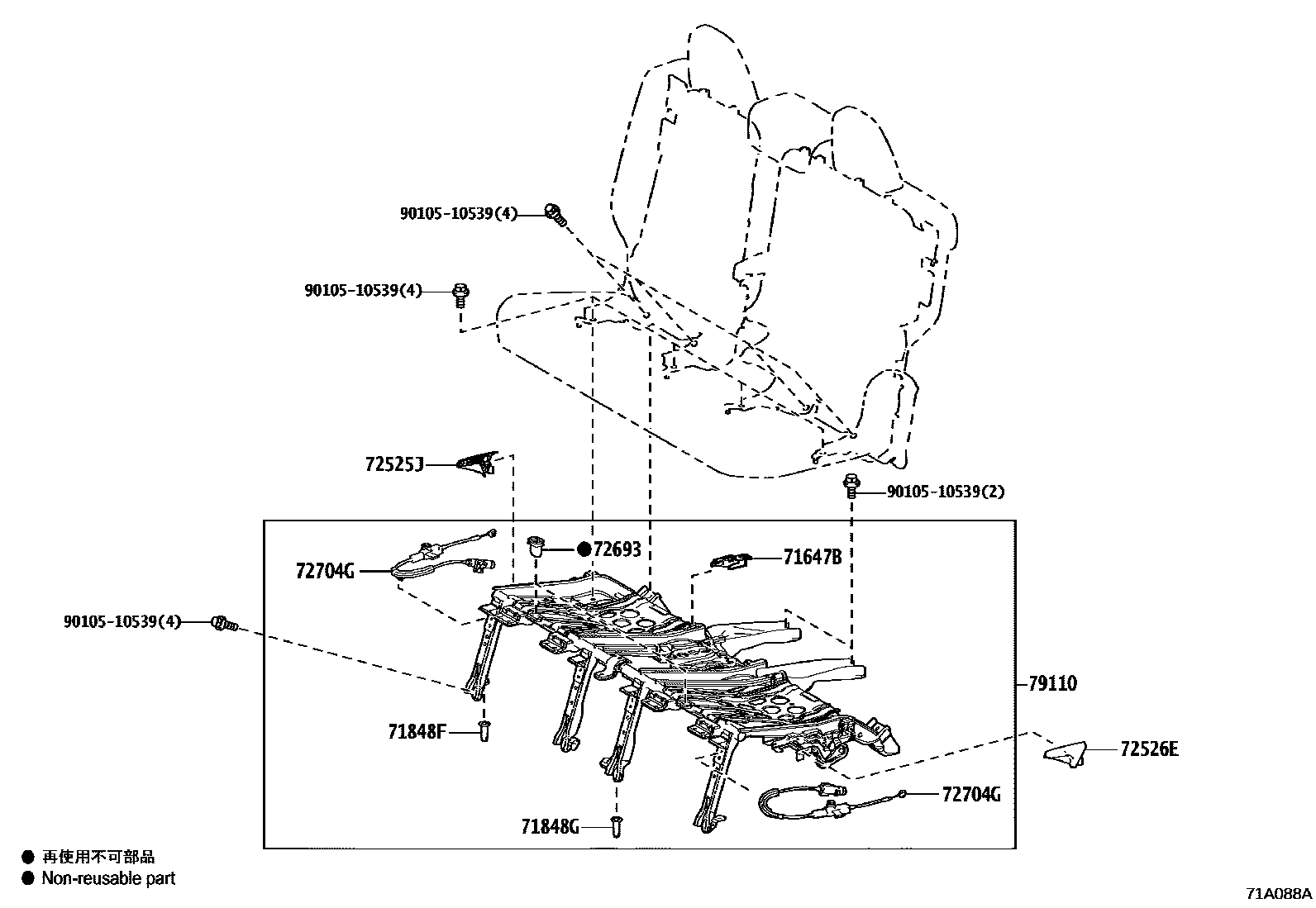

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 71A088A — 座椅和座椅滑轨 — 71A088A (201510 – 999999)

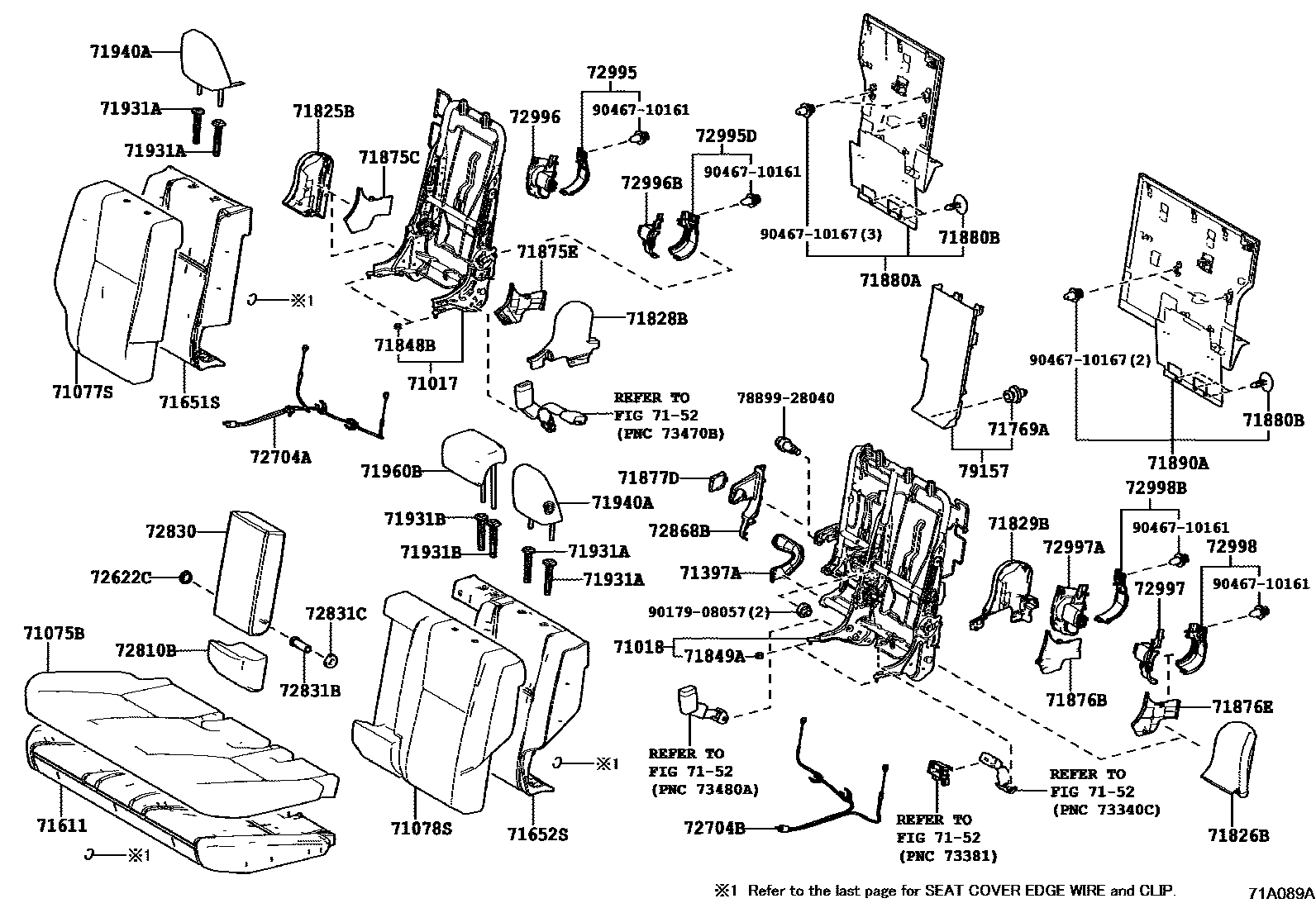

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 71A089A — 座椅和座椅滑轨 — 71A089A (201510 – 999999)

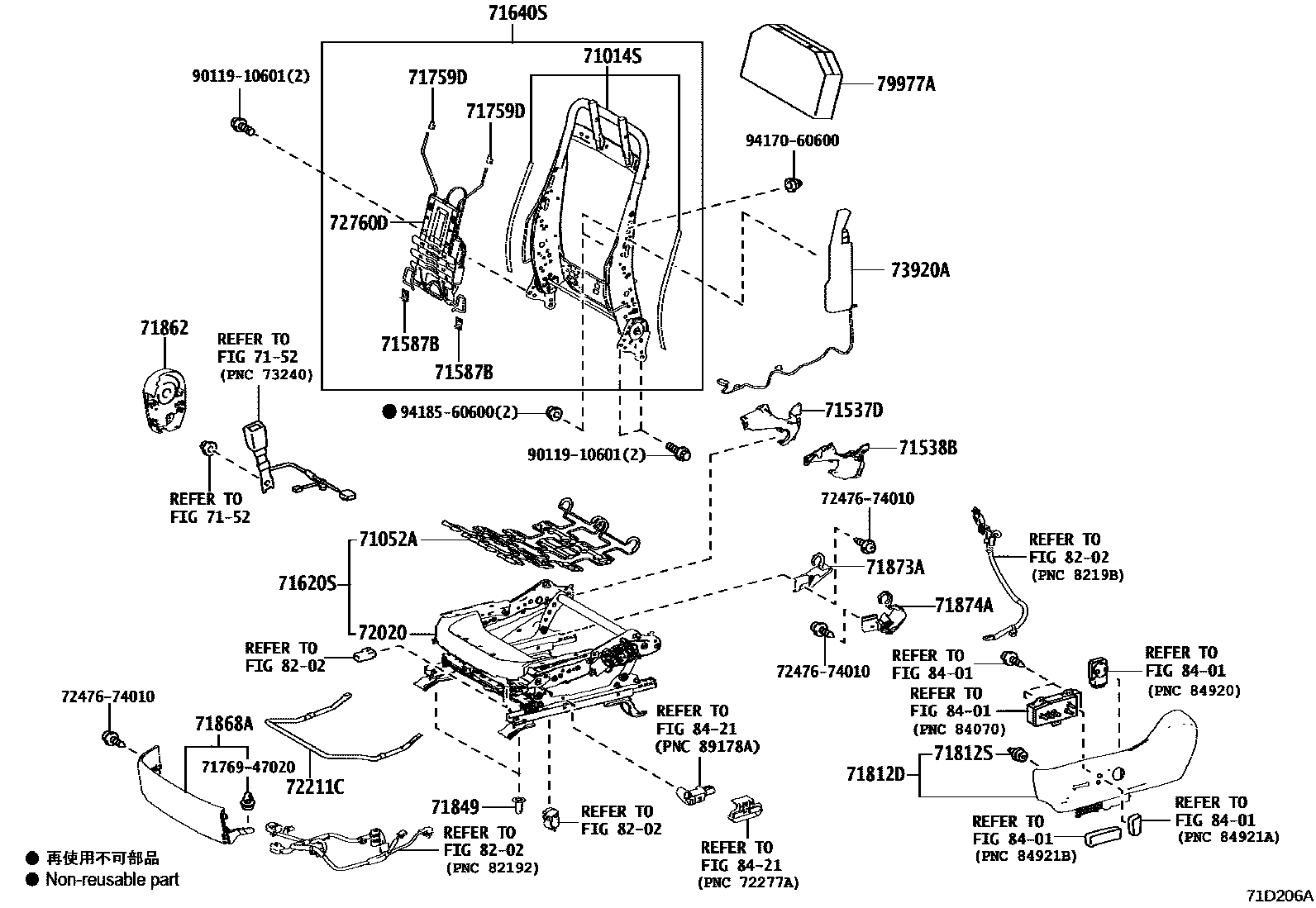

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 71D206A — 座椅和座椅滑轨 — 71D206A (201212 – 999999)

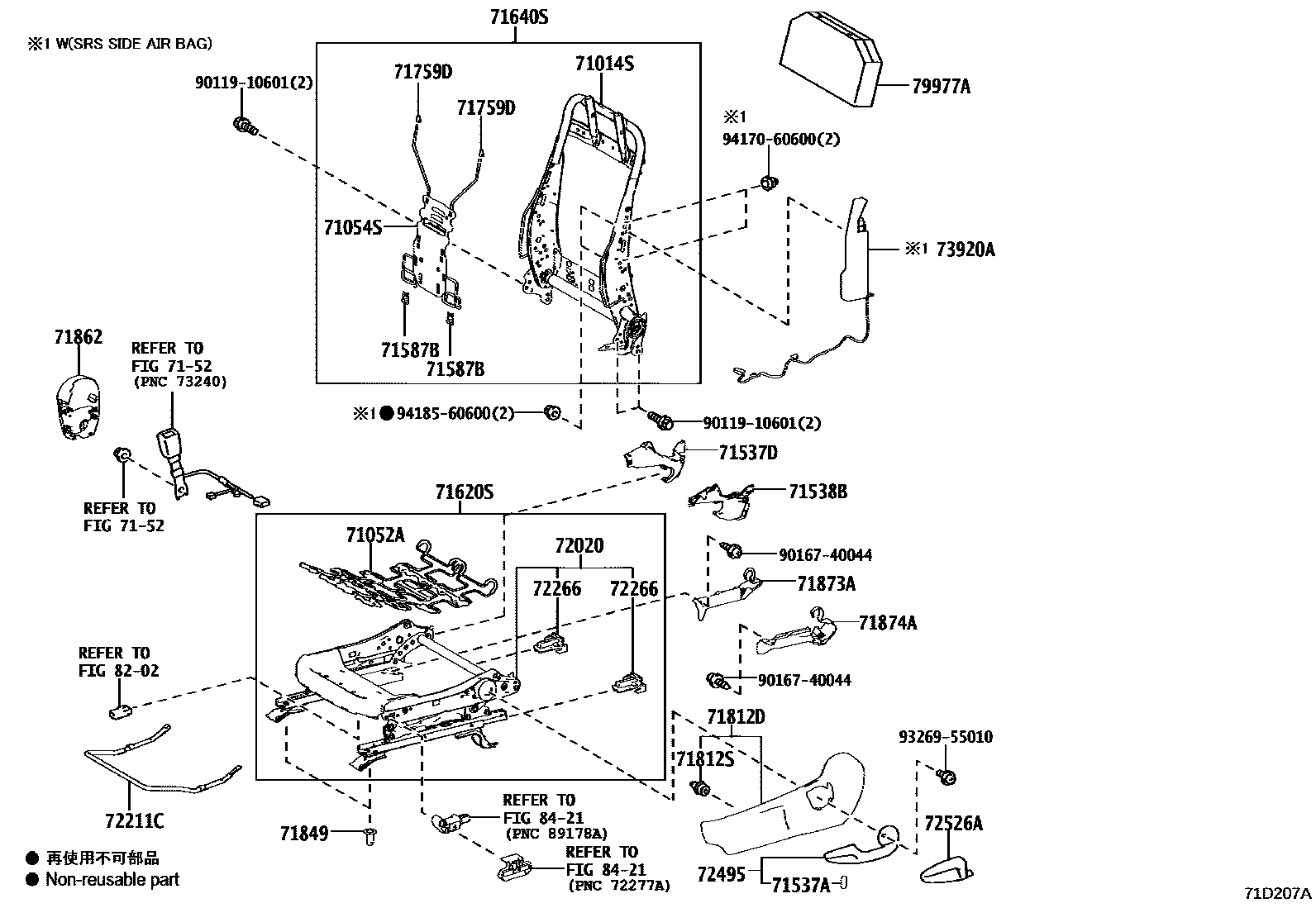

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 71D207A — 座椅和座椅滑轨 — 71D207A (201212 – 999999)

PNC and OE references

PNC	Part name	OE numbers
71013S	Front right seat back frame sub-assembly	71013-42040 · 71013-42060
71014S	Front left seat back frame sub-assembly	71014-42030 · 71014-42060 · 71014-42070 · 71014-42120
71015A	Rear right seat cushion frame sub-assembly	71650-42030
71016A	Rear left seat cushion frame sub-assembly	71660-42030
71017	Right rear seat back frame sub-assembly	71017-42150 · 71017-42170 · 71017-42210 · 71017-42220 · 71017-42221
71018	Rear left seat back frame sub-assembly	71018-42170 · 71018-42190 · 71018-42230 · 71018-42250 · 71018-42251
71051A	Front right seat cushion spring sub-assembly	71051-47060
71052A	Front left seat cushion spring sub-assembly	71051-47060
71053S	Front right seat back spring sub-assembly	71053-52050
71054S	Front left seat back spring sub-assembly	71053-52050
71511S	Front right seat cushion cushion (for split seats)	71511-42200 · 71511-42210
71512S	Front left seat cushion cushion (for split seats)	71512-42120 · 71512-42130 · 71512-42140
71537A	Front seat cushion protective cover	71537-47040
71537C	Front right seat cushion edge protective cover	71537-42020
71537D	Front left seat cushion edge protective cover	71537-42010
71538A	Front seat cushion left edge guard (for right seat)	71538-42020
71551S	Front right seat back cushion (for split seats)	71551-42240 · 71551-42250 · 71551-42290 · 71551-42300
71552S	Front left seat back cushion (for split seats)	71552-42090 · 71552-42140 · 71552-42160 · 71552-42190
71587	Front seat back edge protective cover	71587-52030
71587B	Front seat back edge protective cover	71587-52030
71610S	Front right seat cushion spring assembly (for split seats)	71610-42060 · 71610-42061
71611	Rear seat cushion cushion	71503-42010 · 71503-42030
71611A	Rear right seat cushion	71611-42100
71612A	Rear left seat cushion	71612-42100
71620S	Front left seat cushion spring assembly (for split seats)	71620-42040 · 71620-42050 · 71620-42060 · 71620-42100
71630S	Front right seat back spring assembly (for split seats)	71630-42080 · 71630-42100
71640S	Front left seat back spring assembly (for split seats)	71640-42080 · 71640-42090 · 71640-42100 · 71640-42150 · 71640-42160 · 71640-42180
71647B	Rear seat cushion edge protective cover	71647-48010
71651S	Rear right seat back cushion (for split seats)	71651-42120 · 71651-42140 · 71651-42160 · 71651-42170
71652S	Rear left seat back cushion (for split seats)	71652-42120 · 71652-42140 · 71652-42160 · 71652-42170
71759C	Front seat back hook No. 1	71759-47010 · 71759-47011
71759D	Front seat back hook 2	71759-47010 · 71759-47011
71769A	Rear seat back panel clip	71769-47020
71811D	Front right seat cushion guard	71811-42130
71811R	Front right seat cushion guard clip	71769-47020
71812S	Front left seat cushion guard clip	71769-47020
71845D	Rear right seat cover	71845-48010
71846B	Rear No. 1 seat back panel cover	71846-48010
71848A	Right seat adjuster cover	71848-48050 · 71848-76010
71848B	Right seat adjuster cover	71848-42010 · 71848-78010
71848F	Seat adjuster cover No. 1	71848-48030
71848G	Seat adjuster cover No. 2	71848-48040
71849	left seat adjuster cover	71848-48050 · 71848-76010
71849A	left seat adjuster cover	71848-78010
71849C	Left-hand seat adjuster cover (for left-hand seat)	71848-42010
71861	Front right seat cushion inner guard	71861-42090
71862	Front left seat cushion inner guard	71862-42110
71873A	Front seat cushion lower guard	71873-47040 · 71873-60030
71874A	Front left seat cushion lower guard	71874-47040 · 71874-60110
71881	Rear right seat back panel	71881-42010
71882A	Rear left seat back panel	71882-42010
72010	Front right seat adjuster assembly	72010-42220 · 72010-42221 · 72010-42222
72020	Front left seat adjuster assembly	72020-42240 · 72020-42241 · 72020-42250 · 72020-42251 · 72020-42261 · 72020-42300
72211	Seat slide adjustment handle	72211-47020
72211C	Seat slide adjustment handle	72211-47020
72265	Right seat rail upper rail cover	72265-42010
72266	Left seat rail upper rail cover	72265-42010
72380	No. 2 seat adjuster control cable assembly	72380-42070
72525A	Right seat back recliner release handle	72525-52050
72525B	Right seat back recliner release handle	72525-48030
72526B	Left No. 1 seat back recliner release handle	72526-48030
72622C	Rear seat back protection shaft bushing	72622-48010
72693	Rear seat cushion hook	72693-12080
72704A	Rear seat backrest tilt control cable	72704-48110
72704B	Rear No. 2 seat backrest inclination control cable	72704-48130
72704G	Rear No. 4 seat backrest angle control cable	72704-48120
72730A	Rear right seat backrest tilt adjuster assembly	71308-42010
72740A	Rear left seat backrest angle adjuster assembly	71309-42010
72749	Rear seat backrest tilt cushion	72749-42010
72760D	Left lumbar support adjuster assembly	72750-78010 · 72760-47020 · 72760-76010
72831B	No. 1 rear seat center armrest panel	72831-47010
72831C	No. 2 rear seat center armrest panel	72831-42020 · 72831-52010
73905	Front right seat airbag sub-assembly	73905-42010
73910A	Front right seat airbag assembly	73910-42050 · 73910-42060
73920A	Front left seat airbag assembly	73920-42050 · 73920-42060
79110	No. 1 seat leg assembly	79110-42500
79915	seat leg bracket	79915-42010
79977A	Seat back felt pad	79977-52120
87510K	Front right seat cushion heater assembly	87510-42180 · 87510-42181
87510L	Front left seat cushion heater assembly	87510-42180 · 87510-42181 · 87510-42190 · 87510-42191
87510M	Front right seat back heater assembly	87510-42170 · 87510-42171
87510N	Front left seat back heater assembly	87510-42170 · 87510-42171
