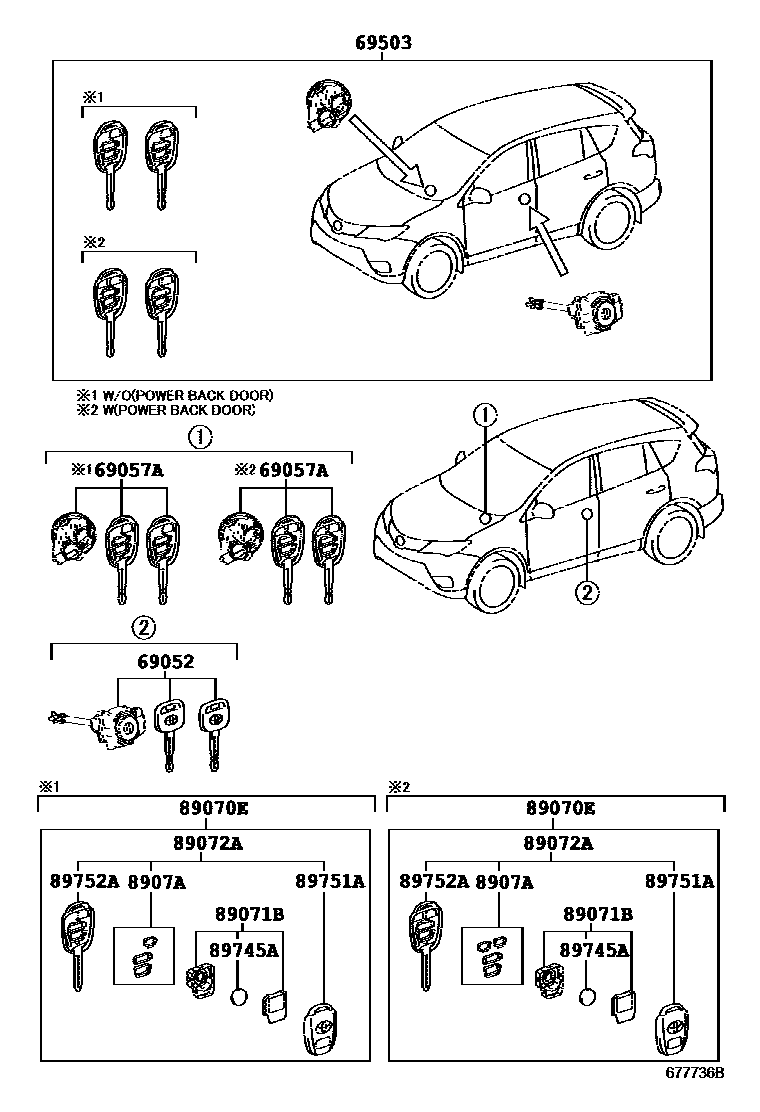

Toyota RAV4 锁芯组件 — Figure 6765
Toyota RAV4 EPC diagram 6765, 锁芯组件, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69052 | Left door lock cylinder and key assembly | 69052-42170 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-42310 · 69057-42340 |
| 69503 | Door lock cylinder components | 69005-42560 · 69005-42570 · 69005-42580 |
| 69503A | external tooth key | 69515-33100 |
| 69503B | internal tooth key | 69515-33090 |
| 89070E | Remote key assembly | 89070-42820 · 89070-42830 · 89070-42D30 · 89070-42D40 |
| 89071B | Remote key sub-assembly module assembly | 89071-42110 · 89071-42240 · 89071-42320 · 89071-42330 |
| 89072A | Remote key shell assembly | 89072-42340 · 89072-42350 · 89072-42550 · 89072-42560 |
| 8907A | Transmitter switch assembly | 8907A-42010 · 8907A-52020 |
| 89745A | Transmitter battery | 89745-48030 |
| 89745C | Transmitter battery | 89745-45010 · 89745-50020 |
| 89751A | Transmitter housing cover | 89751-42090 · 89751-52210 |
| 89752A | transmitter housing | 89752-42020 · 89752-42080 |
| 8975B | Remote control battery case cover | 8975B-33010 |
| 89904B | Electronic key transmitter sub-assembly | 89904-42070 · 89904-42230 · 89904-42310 · 89904-52290 |
