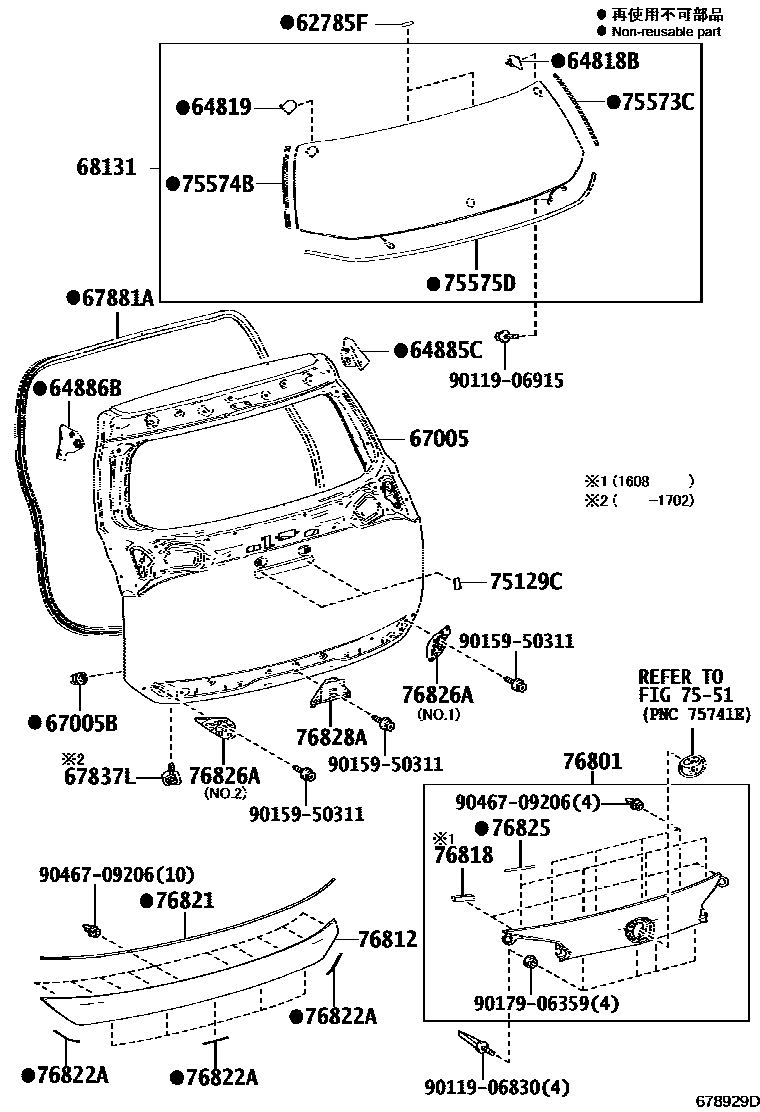

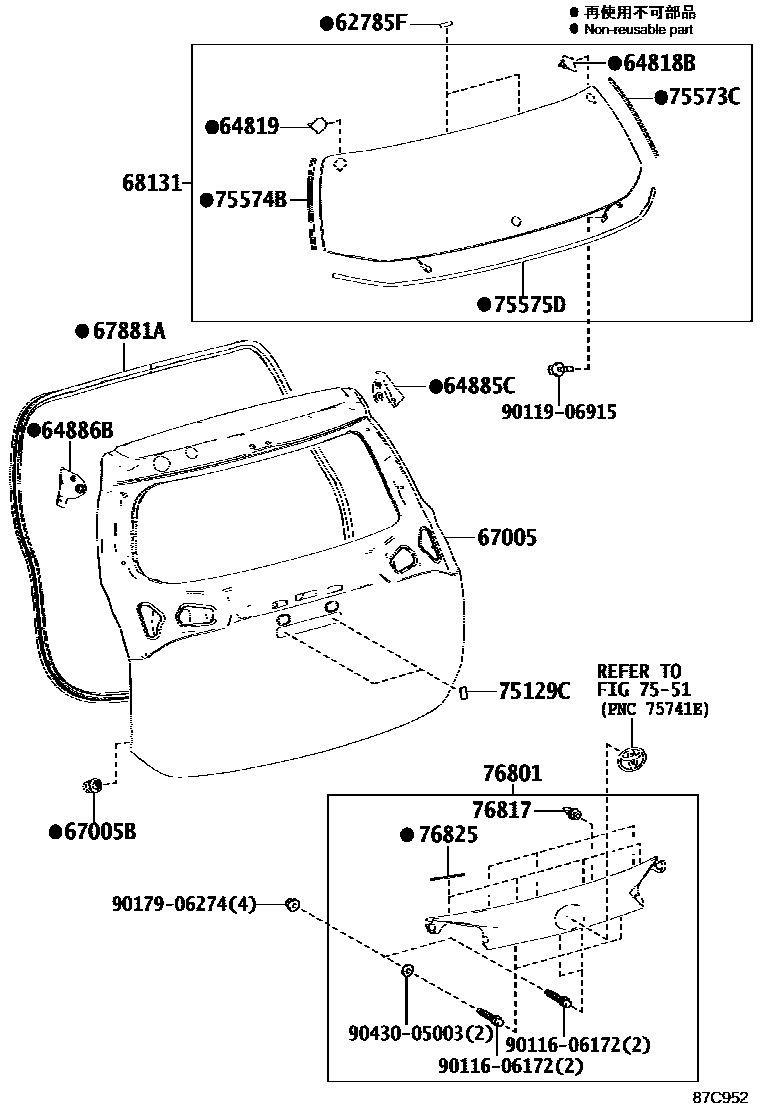

Toyota RAV4 背门板和背门玻璃 — Figure 6761
Toyota RAV4 EPC diagram 6761, 背门板和背门玻璃, with 3 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62785F | Back door glass spacer | 62785-16030 |
| 64818B | No. 1 back door glass spacer | 64818-42040 |
| 64819 | No. 2 back window glass spacer | 64819-42040 |
| 64885C | Rear door right glass slot | 64885-42010 |
| 64886B | Rear door left glass slot | 64886-42010 |
| 67005 | Rear door panel sub-assembly | 67005-42510 · 67005-42511 · 67005-42520 · 67005-42521 · 67005-42530 · 67005-42531 · 67005-42540 · 67005-42541 · 67005-42610 · 67005-42630 |
| 67005B | Cushion pad (for back door panel) | 90541-09142 |
| 67750A | Clip (for rear door trim panel) | 90467-10161 |
| 67837L | Door dust seal retainer | 67837-52040 |
| 67881A | Back door seal | 67881-42060 |
| 67937C | Clip (for rear door side decorative strip) | 67771-58010 |
| 67939C | Clip (for rear door center trim strip) | 90467-10161 |
| 68131 | back door glass | 68105-42150 · 68105-42160 |
| 75129C | rear license plate cushion | 75129-30010 |
| 75573C | Protective strip for rear window | 75573-42050 |
| 75574B | Rear window left outer protective strip | 75574-42010 |
| 75575D | Protective strip under rear window | 75575-42030 |
| 76801 | Rear door exterior decorative strip sub-assembly | 76801-42901 · 76801-42903 |
| 76812 | Lower trim strip outside rear door | 76812-42900 |
| 76817 | Rear door exterior decorative strip clip | 90467-09206 |
| 76818 | Rear door outer trim strip lining | 76818-42030 |
| 76821 | Protective cover for rear door trim strip | 76821-42030 |
| 76822A | Protective cover under rear door trim strip | 76822-42050 |
| 76825 | Rear door exterior decorative strip protective cover | 76825-42020 |
| 76826A | No. 1 rear door trim strip fixing | 76826-42130 · 76827-42030 |
| 76828A | ARRETOIR, GARNITURE HAYON, NO.3 | 76828-42010 |
