Toyota RAV4 前门车窗升降器和合页 — Figure 6754

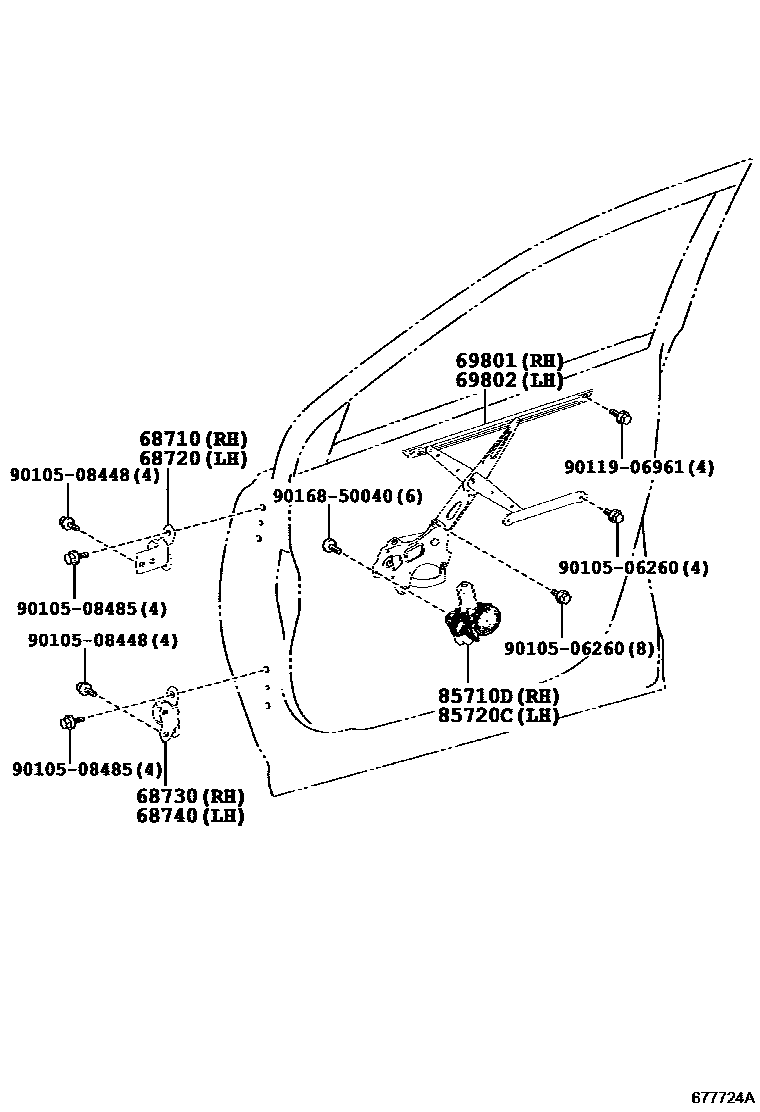

Toyota RAV4 EPC diagram 6754, 前门车窗升降器和合页, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68710 | Right front door upper hinge assembly | 68710-12151 |
| 68720 | Left front door upper hinge assembly | 68720-12151 |
| 68730 | Right front door lower hinge assembly | 68730-12120 |
| 68740 | Left front door lower hinge assembly | 68740-12120 |
| 69801 | Right front door window lifter sub-assembly | 69801-30280 · 69801-42040 |
| 69802 | Left front door window lifter sub-assembly | 69802-30280 · 69802-42040 |
| 85710D | Right power window lift motor assembly | 85710-35180 |
| 85720C | Left electric window lift motor assembly | 85720-35140 · 85720-42110 · 85720-42120 |
