Toyota RAV4 前门锁和车门把手 — Figure 6753

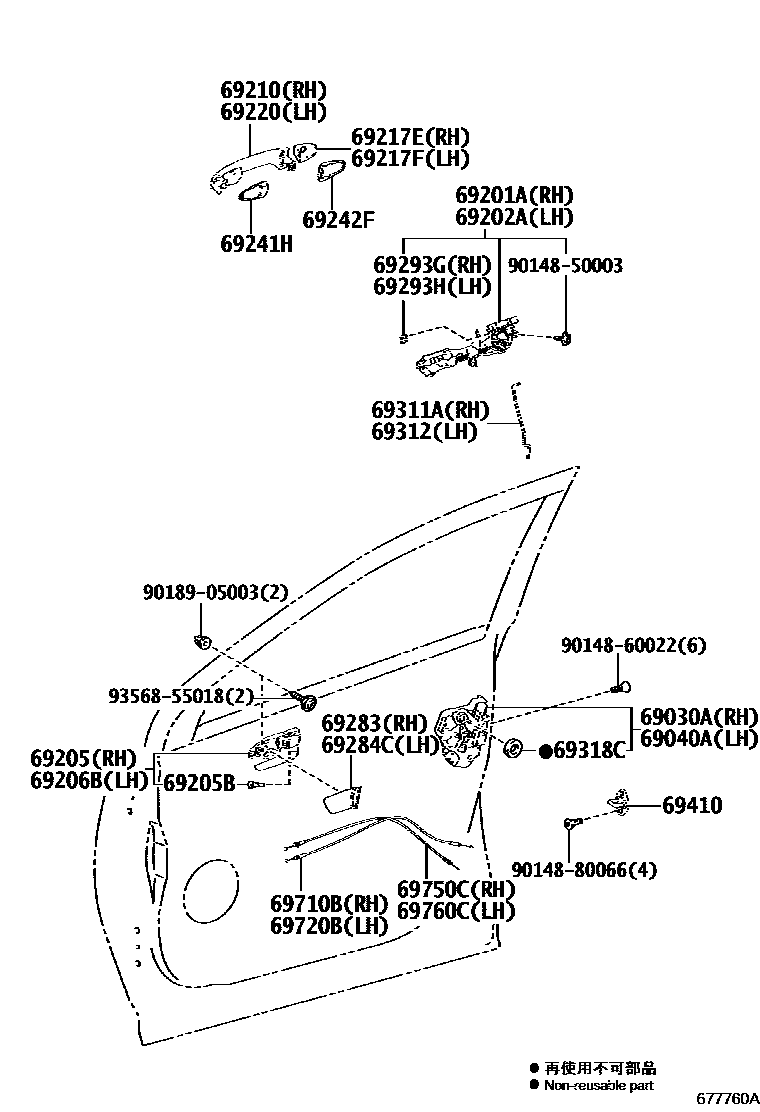

Toyota RAV4 EPC diagram 6753, 前门锁和车门把手, with 1 images and 21 PNC and OE references.

Toyota RAV4 前门锁和车门把手 EPC diagram — 677760A
前门锁和车门把手 — 677760A (201212 – 999999)

PNC and OE references

PNCPart nameOE numbers
69030ARight front door lock assembly with motor69030-42230
69040ALeft front door door lock assembly with motor69040-42250
69201ARight front door outer handle frame sub-assembly69201-42070
69202ALeft front door outer handle frame sub-assembly69202-42040
69205BCushion pad (for inner front door handle)90541-04027
69210Right front door outer handle assembly69210-42110
69217ERight front door outer handle cover69217-42120
69217FLeft front door outer handle cover69217-42110
69220Left front door outer handle assembly69210-42110
69241HFront door exterior handle pad69241-42040
69242FFront door rear outer handle pad69242-30100
69293GRight front door outer handle buckle69293-12030
69293HLeft front door outer handle buckle69293-12040
69311ARight front door lock opening lever69311-42040
69312Left front door lock opening lever69312-42040
69318Cdoor lock harness seal69318-51010
69410Front door lock plate assembly69410-20110
69710BRight front door lock remote control cable assembly69710-42060
69720BLeft front door lock remote control cable assembly69710-42060
69750CRight front door inner lock cable assembly69750-42040
69760CLeft front door inner lock cable assembly69750-42040
