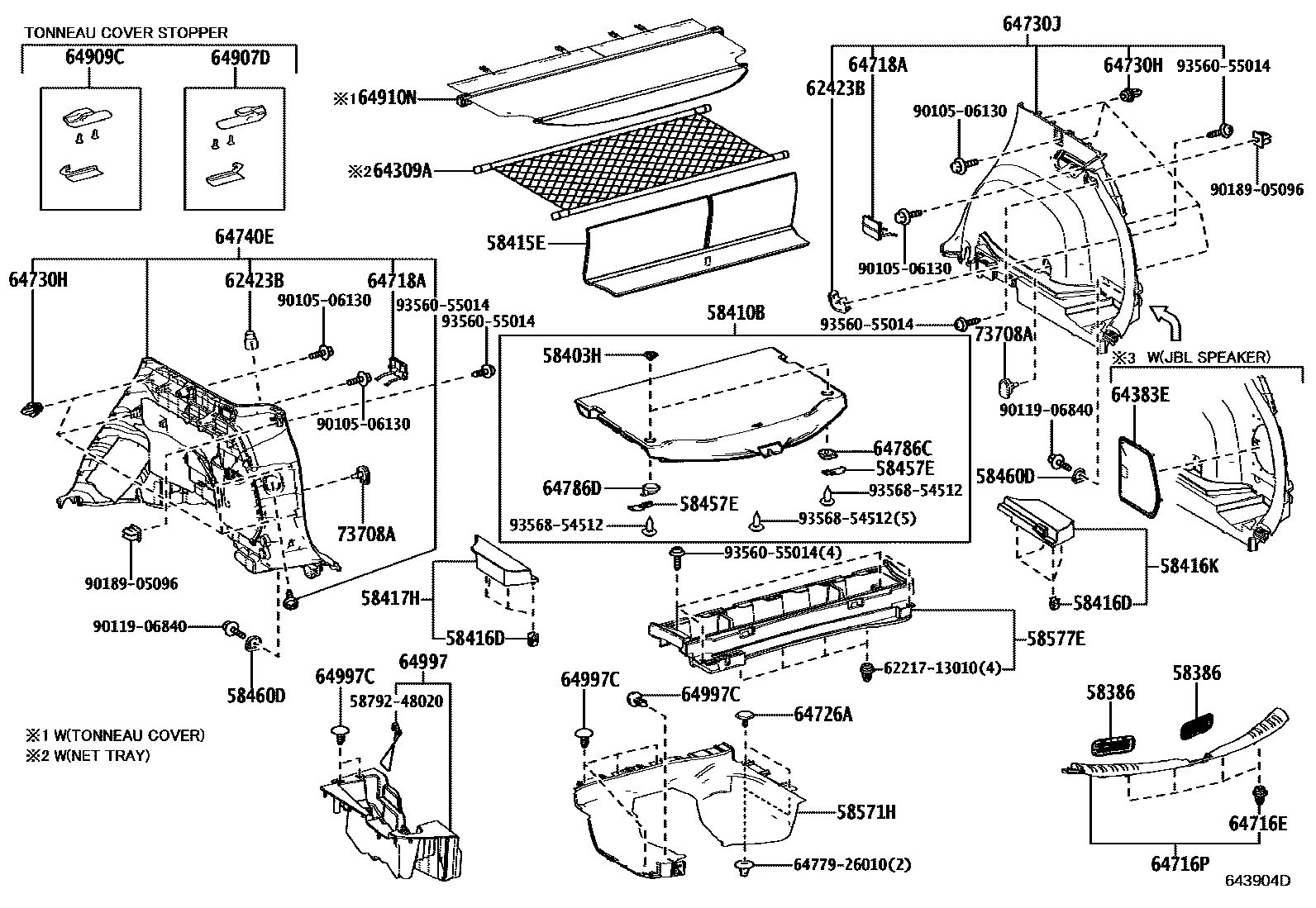

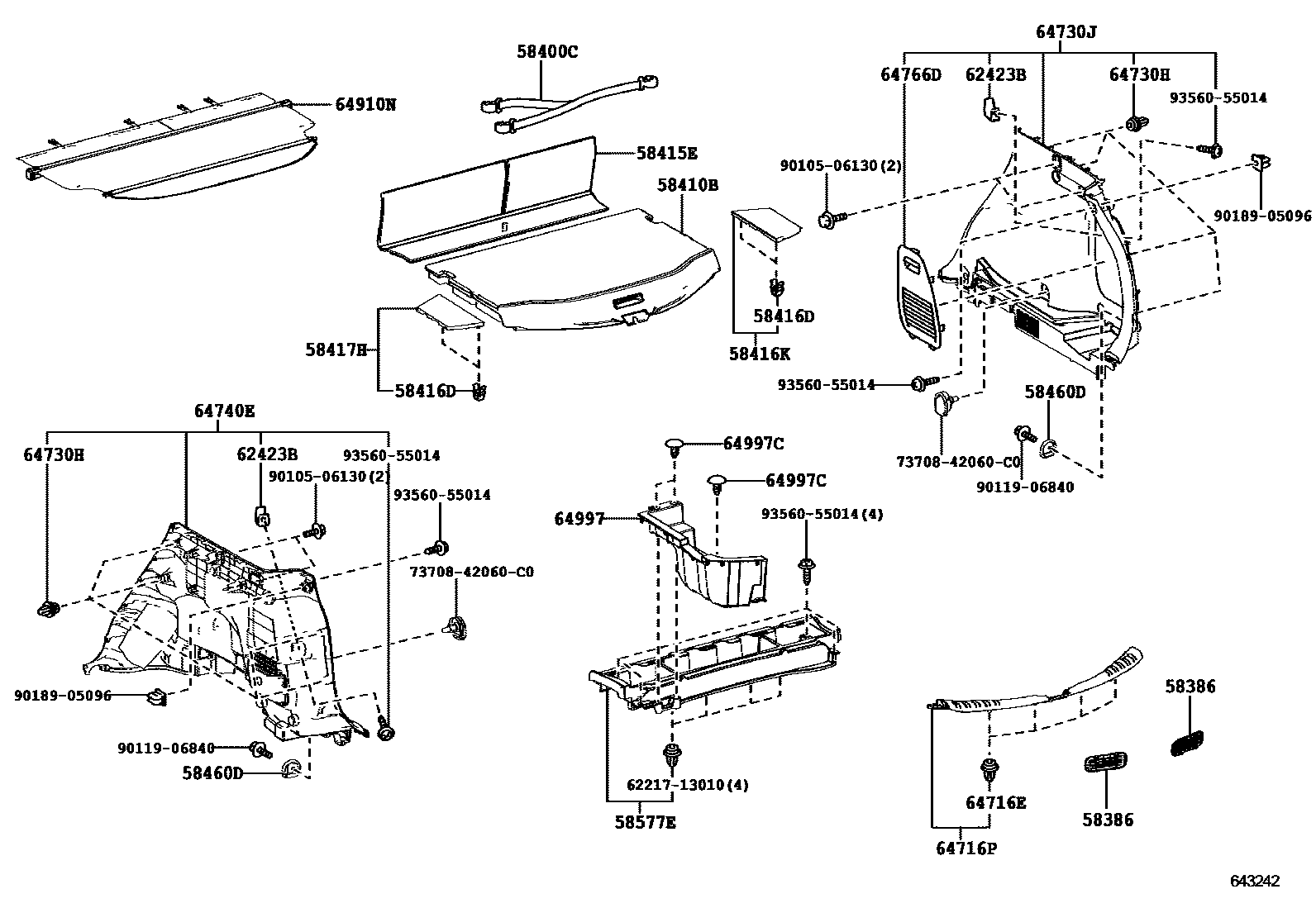

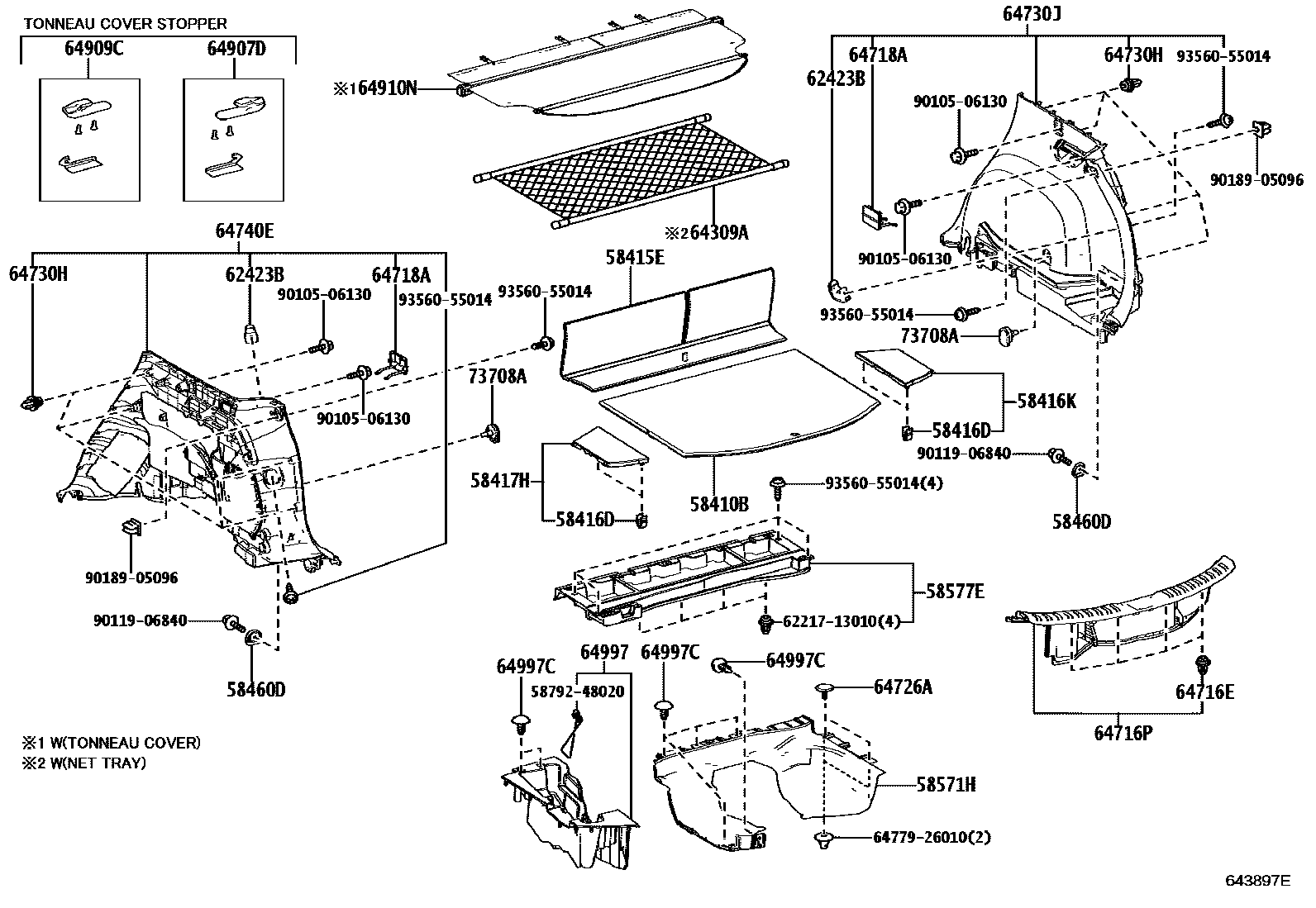

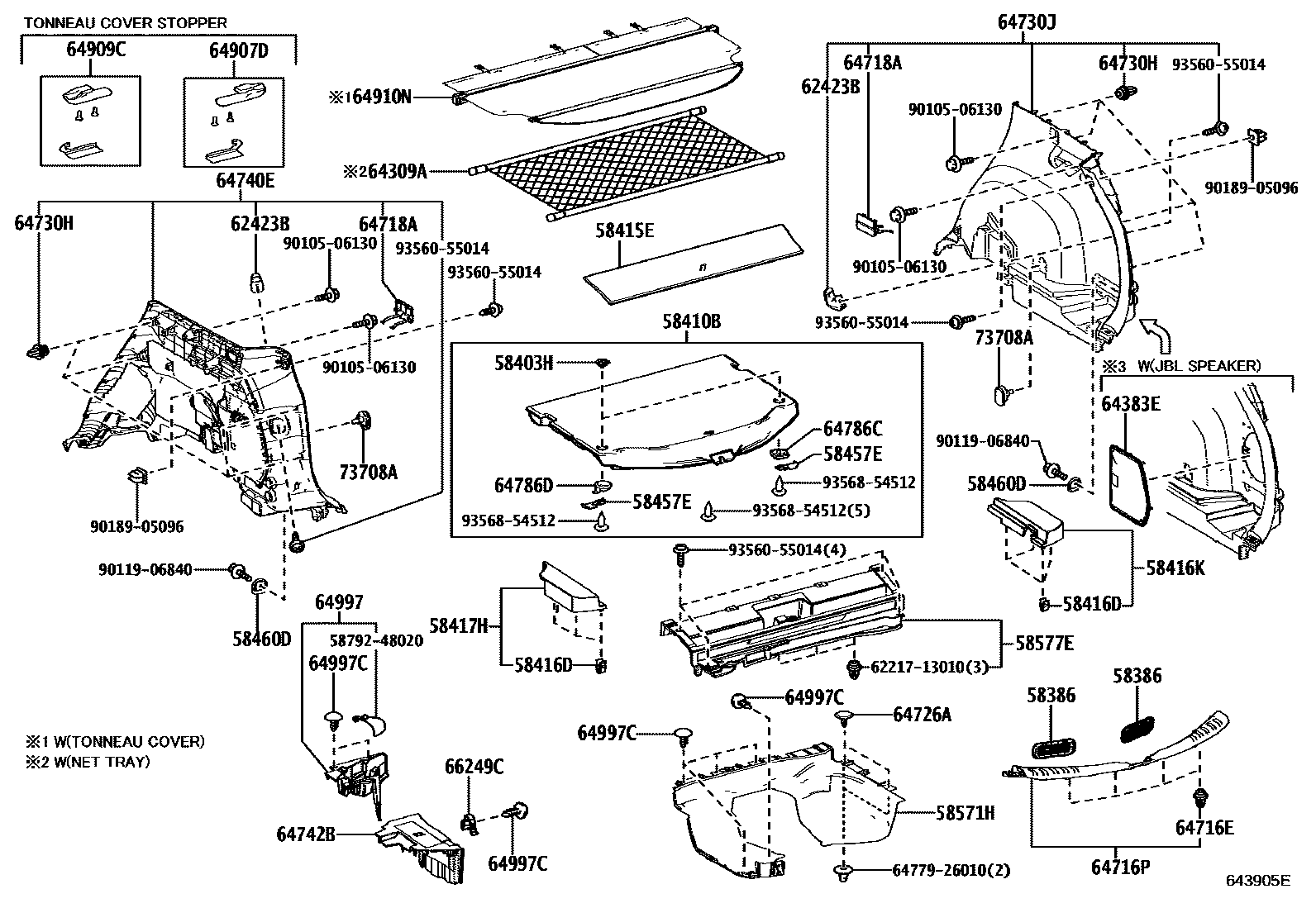

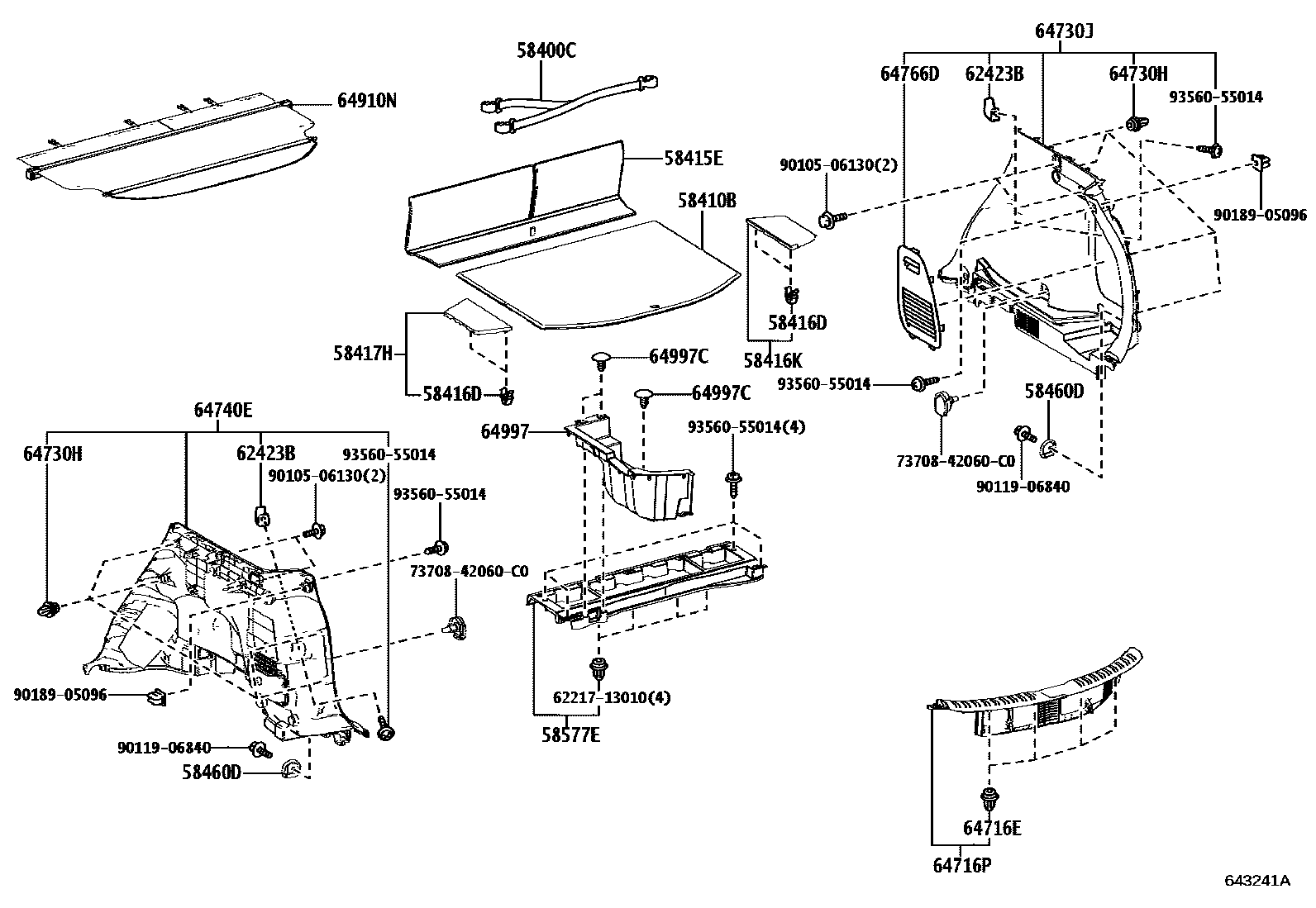

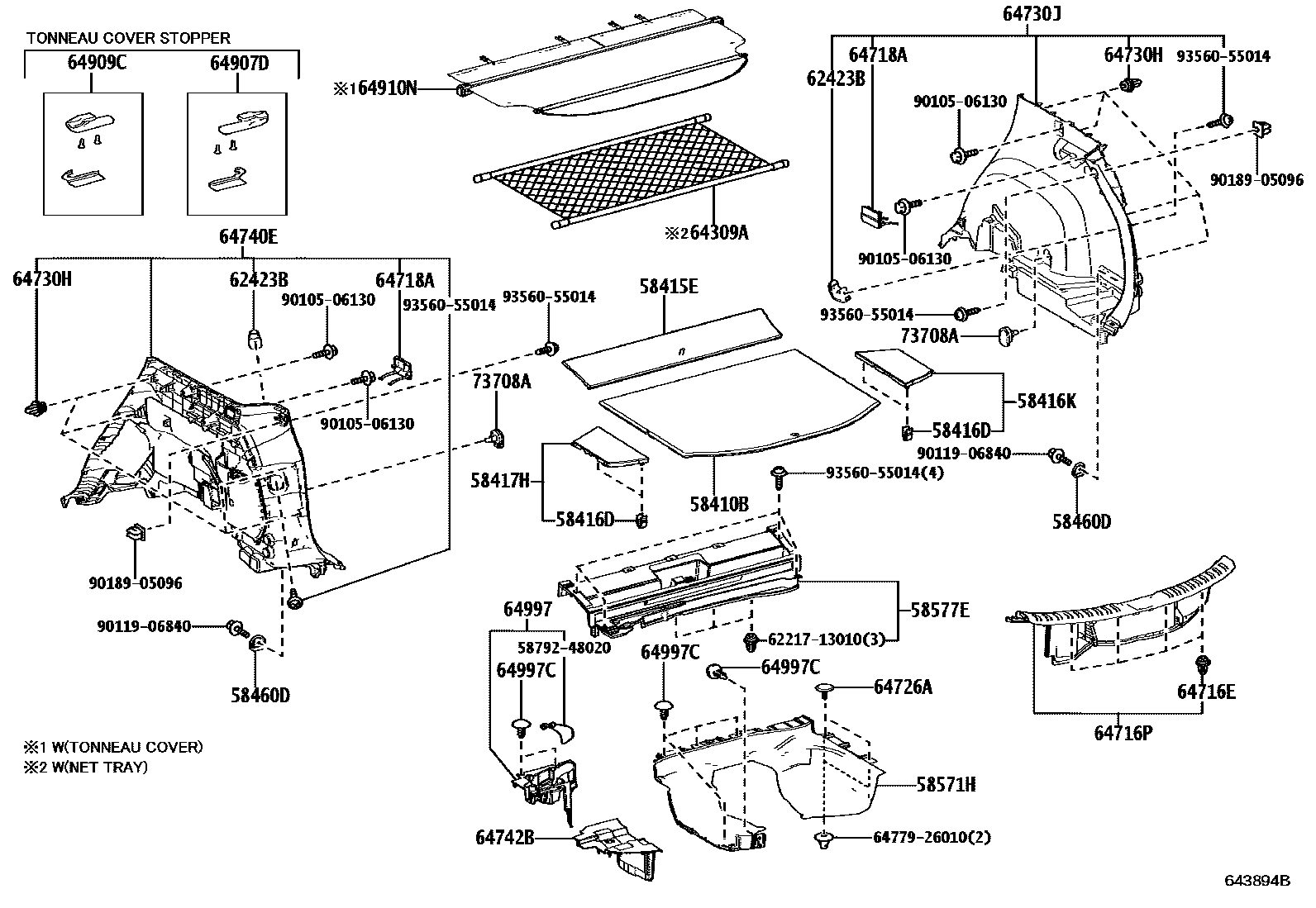

Toyota RAV4 底板和底板装饰罩 — Figure 6455
Toyota RAV4 EPC diagram 6455, 底板和底板装饰罩, with 6 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58400C | Luggage fixing strap assembly | 58400-42010 |
| 58403H | Base plate lock spacer | 64982-47010 · 64982-47020 |
| 58416D | Rear floor clip | 90467-10201 |
| 58457E | Base plate rear bracket | 58457-12010 |
| 58460D | Luggage fixing belt lock assembly | 58460-33020 |
| 58571H | TAPIS, PLANCHER ARRIERE | 58571-42130 |
| 64716E | Clip (for rear floor decorative cover) | 90467-10161 |
| 64730H | Clip (for bottom panel side decorative panel) | 90467-10161 |
| 64742B | Decorative cover base on the left side of the bottom panel | 64742-42020 · 64742-42030 |
| 64786C | PLAQUE, COUVERCLE CRIC | 64786-47010 |
| 64786D | PLAQUE, COUVERCLE CRIC, NO.2 | 64786-47020 |
| 64907D | SOUS-ENS. BUTEE, COUV. TONNEAU, DROIT | 64907-0R010 · 64907-42010 |
| 64909C | SOUS-ENS. BUTEE, COUV. TONNEAU, GAUCHE | 64909-0R010 · 64909-42010 |
| 64997 | Bottom left floor box | 64997-42010 · 64997-42050 · 64997-42060 · 64997-42070 · 64997-42080 |
| 66249C | COUVERCLE, LATERAL PLANCHER CHASSIS ARR., GAUCHE | 66249-42010 |
