Toyota RAV4 天窗板和背板 — Figure 6153
Toyota RAV4 EPC diagram 6153, 天窗板和背板, with 3 images and 45 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63102A | Windshield roof sub-assembly | 63102-42903 · 63102-42904 · 63102-42905 · 63102-42906 |
| 63103B | Center roof panel reinforcement sub-assembly | 63103-42030 |
| 63104E | Rear roof panel reinforcement sub-assembly | 63104-42020 |

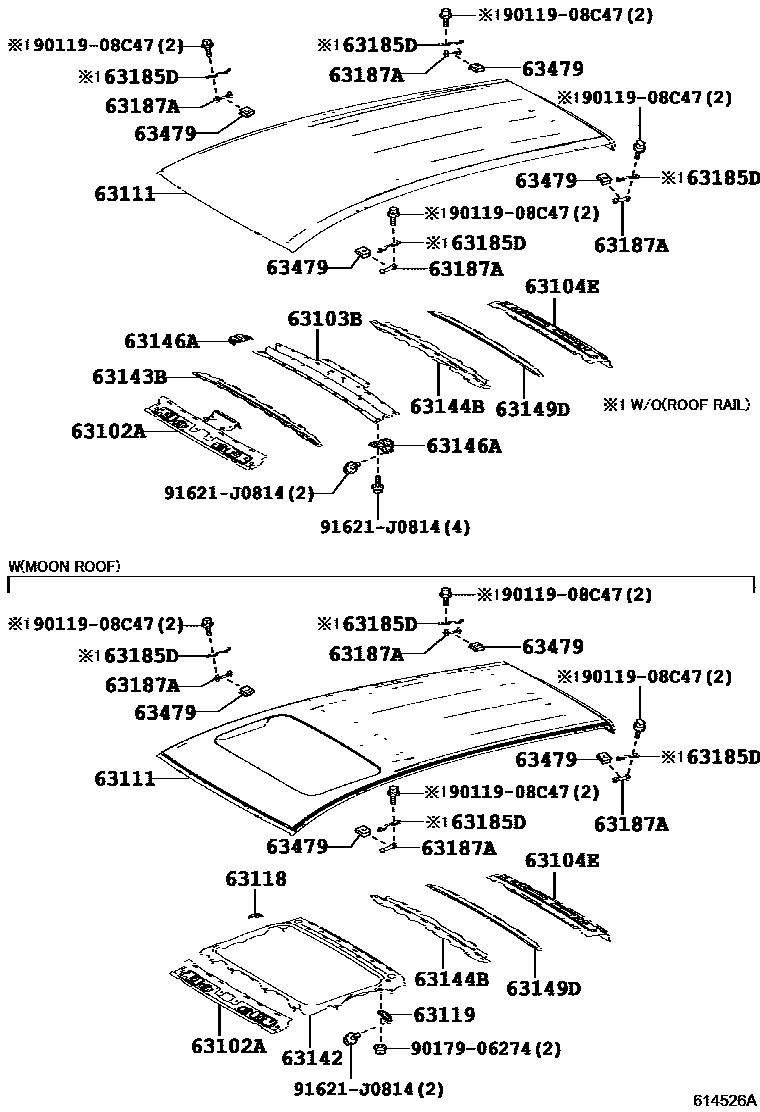

| 63111 | roof panel | 63111-42230 · 63111-42231 · 63111-42240 · 63111-42241 |
| 63118 | Right roof panel bracket | 63118-42070 |
| 63119 | Left roof panel bracket | 63118-42070 |
| 63142 | No. 2 roof panel reinforcement | 63142-42050 |
| 63143B | No. 3 roof panel reinforcement | 63143-42060 |
| 63144B | No. 4 roof panel reinforcement | 63144-42041 |
| 63146A | No. 1 roof panel reinforcement bracket | 63146-42020 |
| 63149D | No. 8 roof panel reinforcement | 63149-42070 |
| 63185D | Front roof rack bracket | 63185-42020 |
| 63187A | Rear roof rack bracket | 63187-42010 |

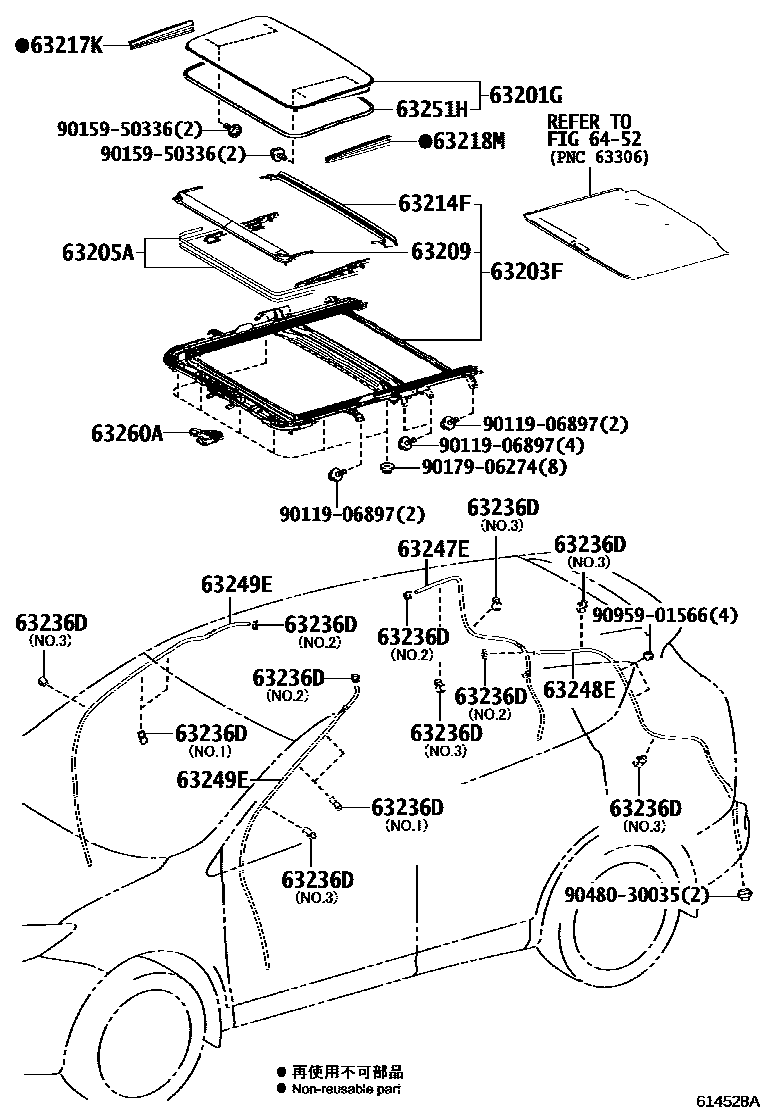

| 63201G | Sliding sunroof glass sub-assembly | 63201-42100 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-42070 · 63203-42090 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-33050 · 63205-33051 |
| 63209 | Roof deflector sub-assembly | 63209-42070 |
| 63214F | Roof rear drain channel | 63214-33070 |
| 63217K | Right sliding sunroof trim | 63217-33080 · 63217-33110 |
| 63218M | Sliding sunroof trim, left | 63217-33080 · 63217-33110 |
| 63230A | Removable skylight bolt assembly | 63230-42010 |
| 63236D | Sliding skylight drain hose clamp | 63236-30010 · 63236-33030 · 63236-42010 · 63236-48010 |
| 63247E | Right rear sliding sunroof drain hose | 63247-42010 · 63247-42020 |
| 63248E | Left rear sliding sunroof drain hose | 63248-42010 |
| 63249E | Sliding skylight drain hose | 63249-42150 |
| 63251H | Sliding skylight seal | 63251-48050 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-42110 |
| 63437A | Roof rack No. 2 seal | 63437-42010 |
| 63438A | No. 1 roof rack end cap | 63438-42020 |
| 63439 | No. 2 roof rack end cap | 63439-42020 |

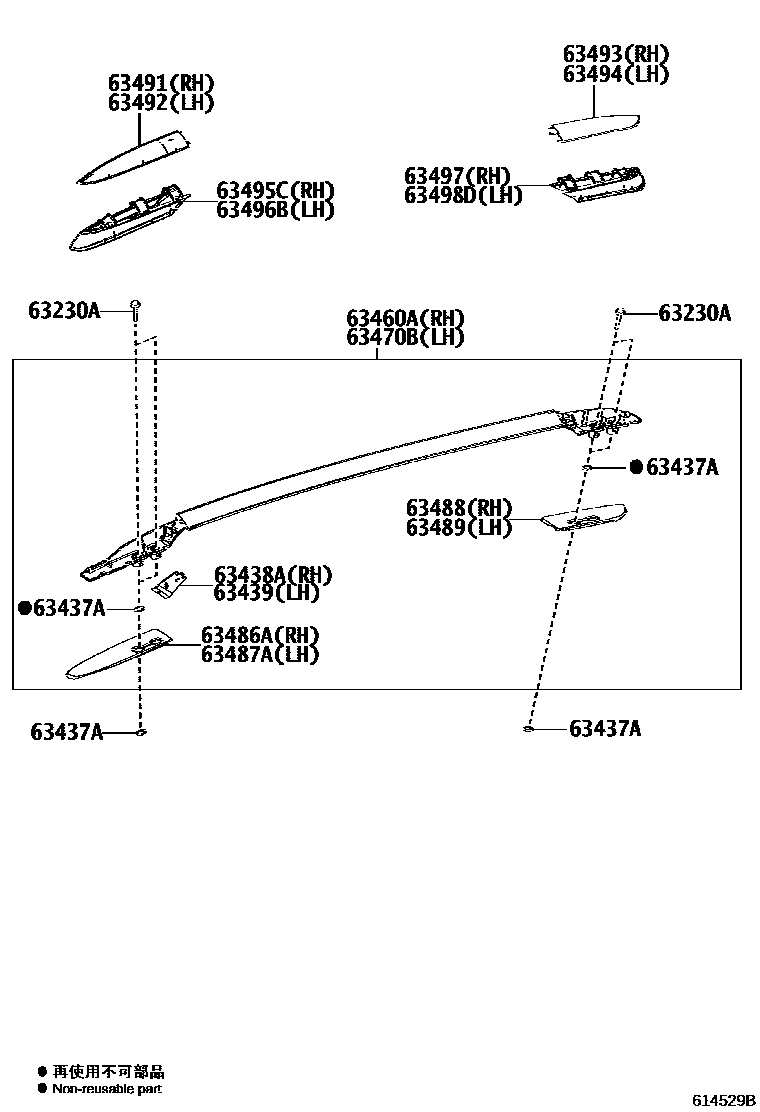

| 63460A | Roof right luggage rack assembly | 63460-42050 |
| 63470B | Roof left luggage rack assembly | 63470-42050 |
| 63479 | Roof rack fixings | 63479-42010 |
| 63486A | Right front roof rack support foot cushion | 63486-42040 |
| 63487A | Left front roof rack support foot cushion | 63487-42040 |
| 63488 | Right rear roof rack foot cushion pad | 63488-42040 |
| 63489 | Left rear roof rack support foot cushion pad | 63489-42040 |
| 63491 | Right front roof rack leg cover | 63491-42040 |
| 63492 | Left front roof rack leg cover | 63492-42040 |
| 63493 | Right rear roof rack foot cover | 63493-42050 |
| 63494 | Left rear roof rack leg cover | 63494-42050 |
| 63495C | REVETEMENT, BARRES DE TOIT INFERIEUR, AVANT MD | 63495-42040 |
| 63496B | REVETEMENT, BARRES DE TOIT INFERIEUR, AVANT MG | 63496-42040 |
| 63497 | Right rear roof rack lower cover | 63497-42010 |
| 63498D | Left rear roof rack lower cover | 63498-42020 |
