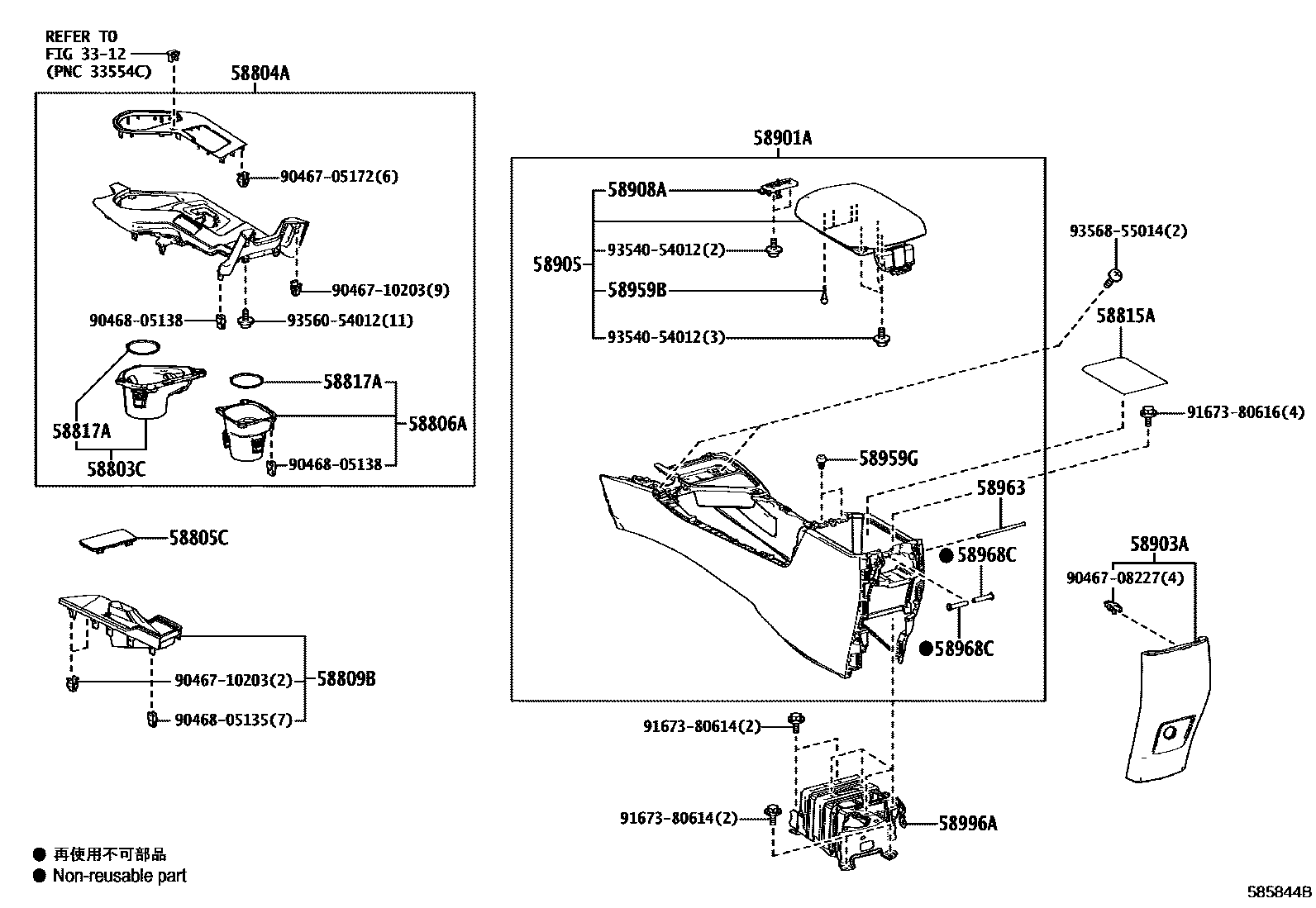

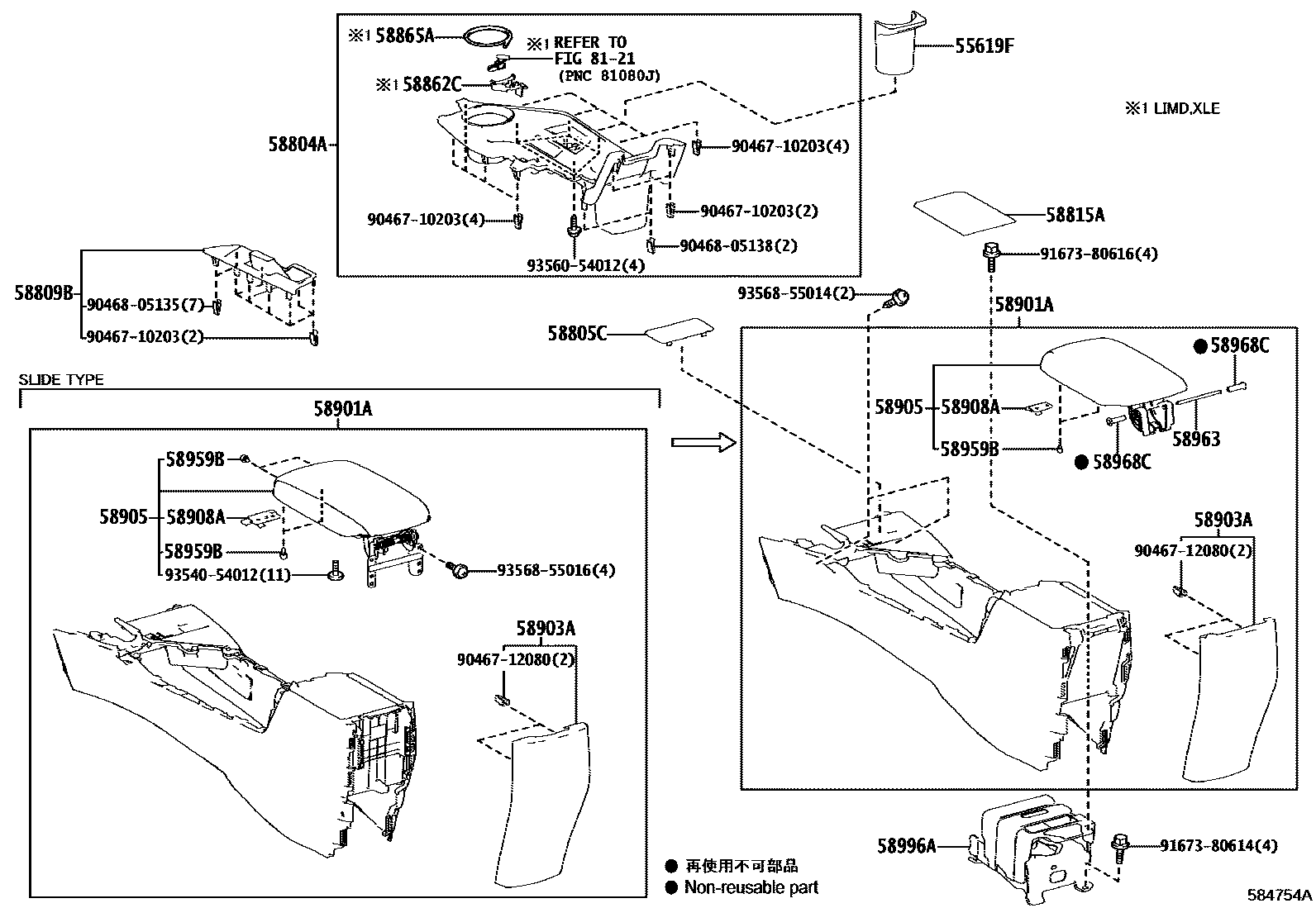

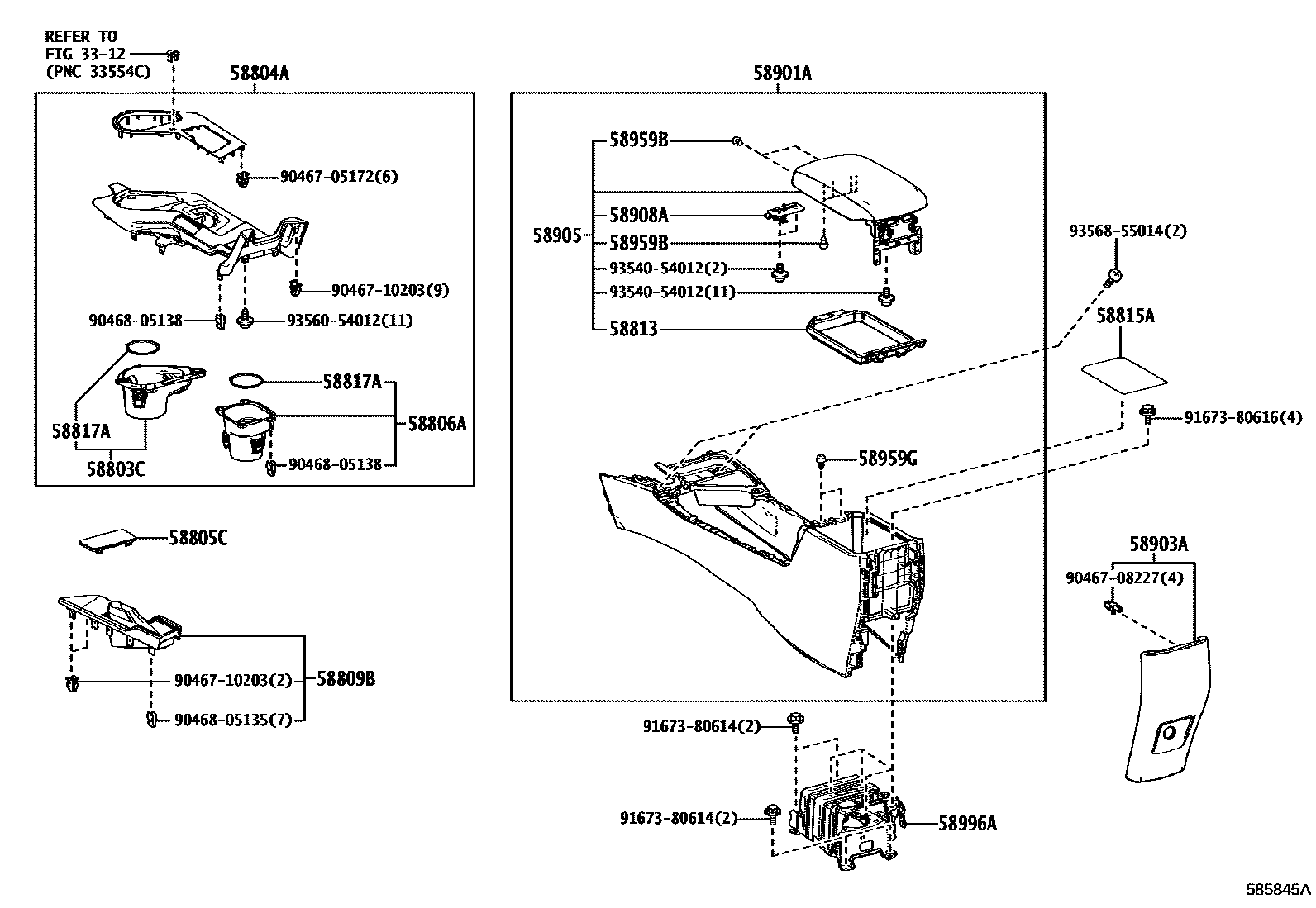

Toyota RAV4 中央扶手箱和支架 — Figure 5855
Toyota RAV4 EPC diagram 5855, 中央扶手箱和支架, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55619F | Cup holder No. 2 in armrest box | 55619-42030 |
| 58815A | Armrest box felt pad | 58815-42030 |
| 58817A | Front armrest box insert No. 2 | 58817-42010 |
| 58862C | Armrest box No. 2 bracket | 58862-42010 |
| 58865A | Front No. 1 armrest box lampshade | 58865-42010 |
| 58908A | Armrest box lid lock assembly | 58908-12080 · 58908-42010 · 58908-42020 |
| 58959B | Armrest box cover cushion | 58959-35010 · 58959-42020 · 58959-60060 |
| 58959G | Armrest box cover cushion | 58959-35010 |
| 58963 | Armrest box lid hinge shaft | 58963-47010 |
| 58968C | Armrest box lid stopper gasket | 58968-42010 · 58968-42030 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-42040 · 58996-42060 |
