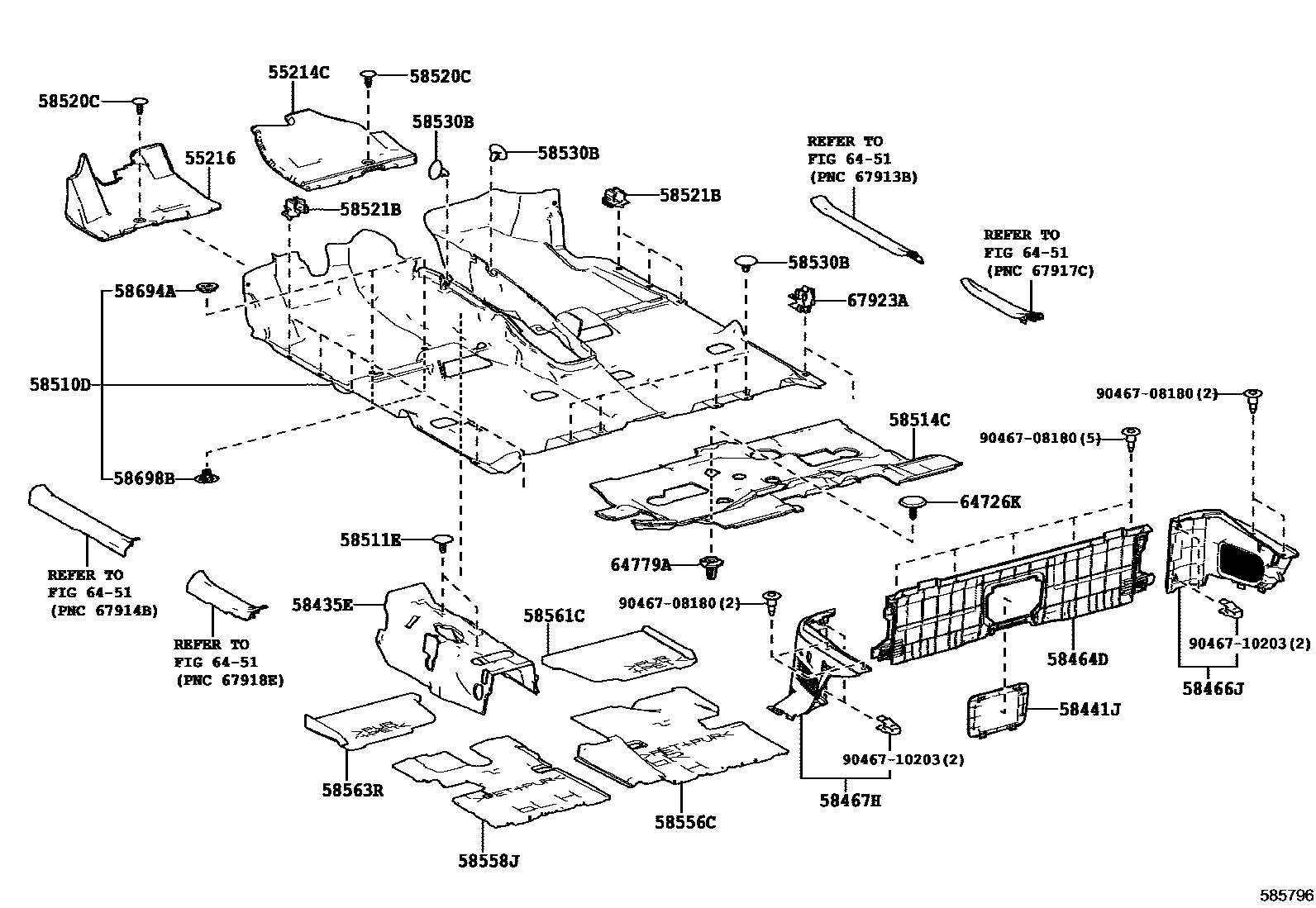

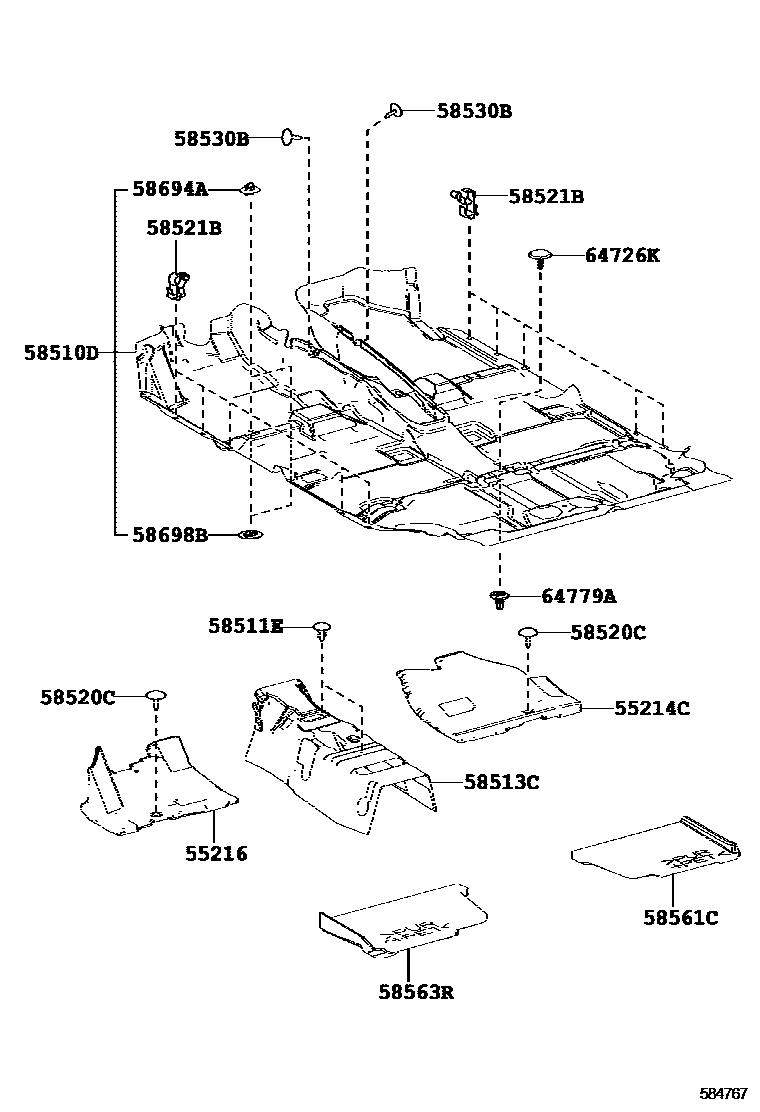

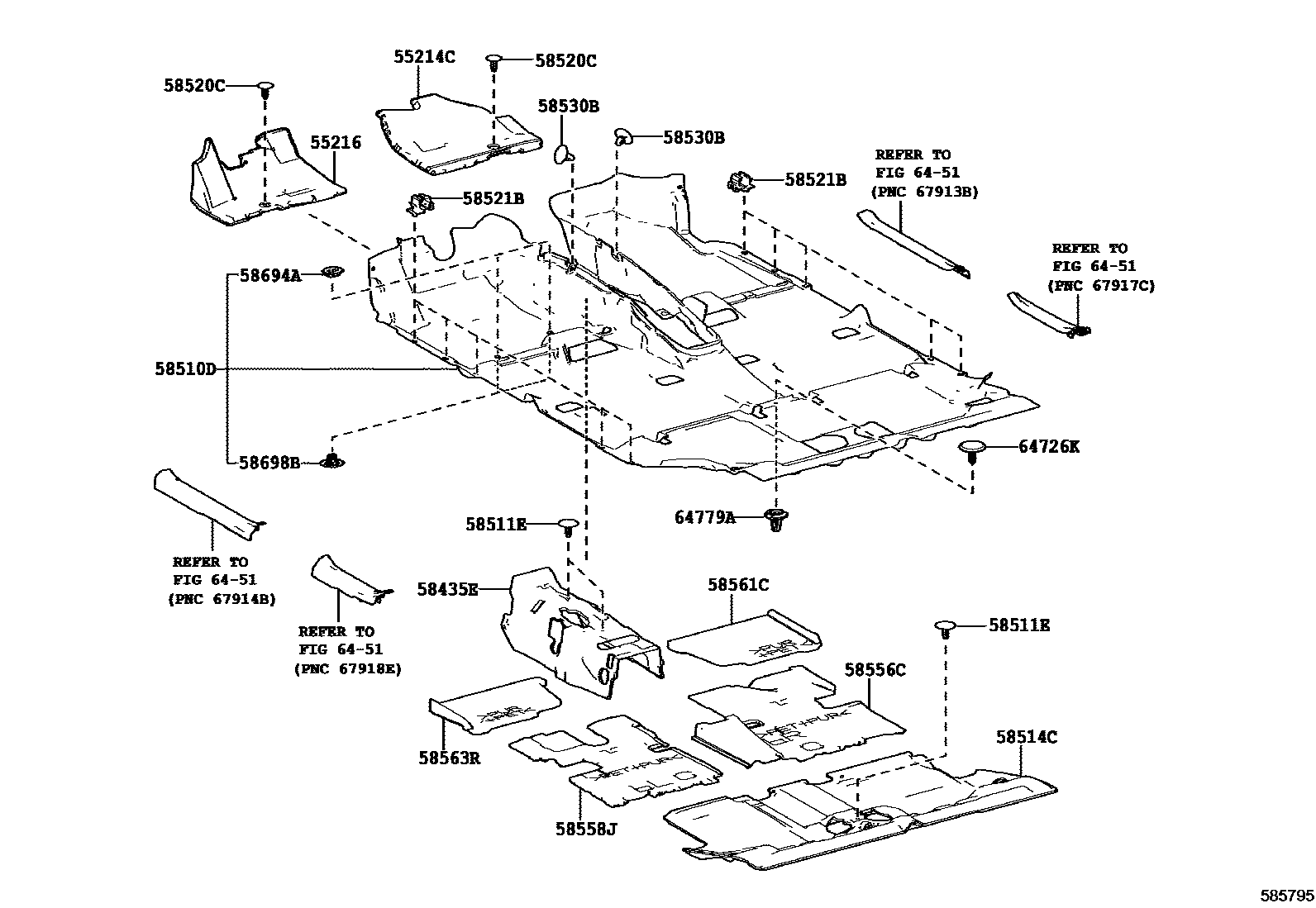

Toyota RAV4 地板垫和消声垫 — Figure 5854
Toyota RAV4 EPC diagram 5854, 地板垫和消声垫, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55214C | No. 2 insulation pad for front wall panel | 55214-42060 |
| 55216 | No. 4 heat insulation pad for front wall | 55216-42080 · 55216-42081 · 55216-42100 |
| 58435E | Front floor center muffler | 58435-42030 |
| 58513C | Front floor center mat | 58513-42020 |
| 58514C | rear floor mat | 58514-42010 · 58514-42030 |
| 58521B | carpet hook | 58521-12150 |
| 58530B | Clip (for front carpet) | 90467-09050 |
| 58556C | Rear floor silencer | 58556-42010 · 58556-42020 |
| 58558J | AMORTISSEUR DE BRUIT, PLANCHER ARRIERE NO.3 | 58558-42010 · 58558-42020 |
| 58561C | Front floor silencer No. 1 | 58561-42050 · 58561-42051 |
| 58563R | Front floor silencer No. 3 | 58563-42060 · 58563-42061 |
| 58694A | Pad the fixing plate | 58694-76010 · 58694-78010 |
| 58698B | Fixing plate under the pad | 58698-76010 · 58698-78010 |
| 64779A | Spare tire cover stop | 64779-26010 |
| 67923A | Car door No. 1 wear plate clip | 67923-48080 |
