Toyota RAV4 前地板和前地板梁 — Figure 5851

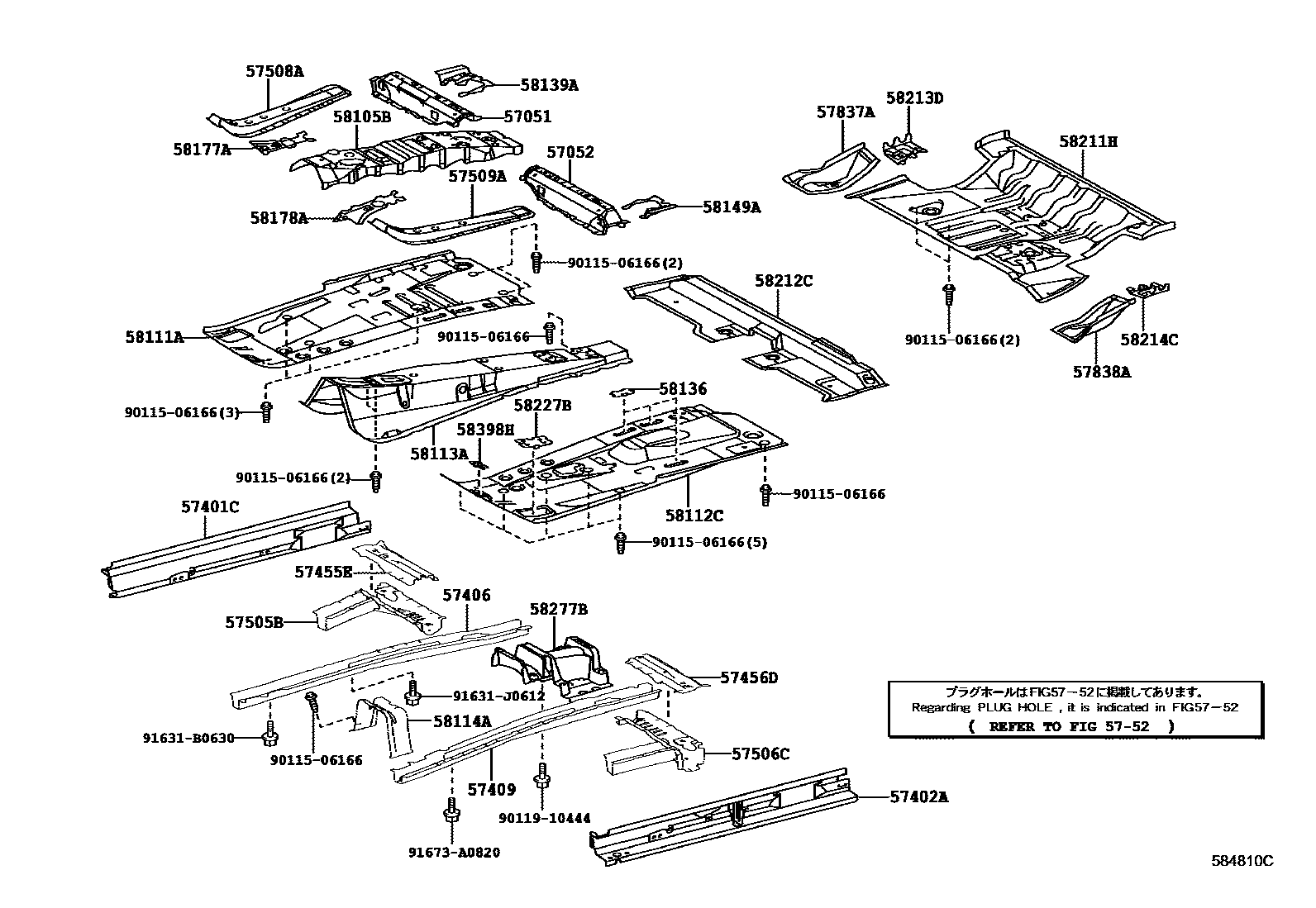

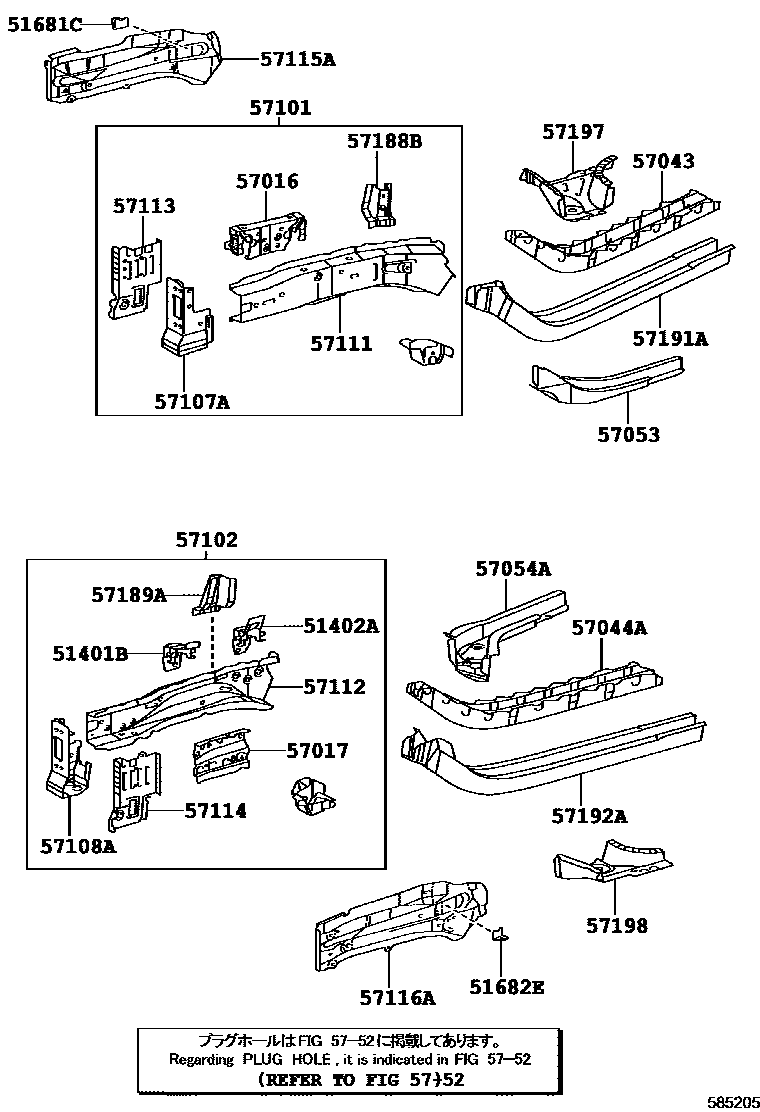

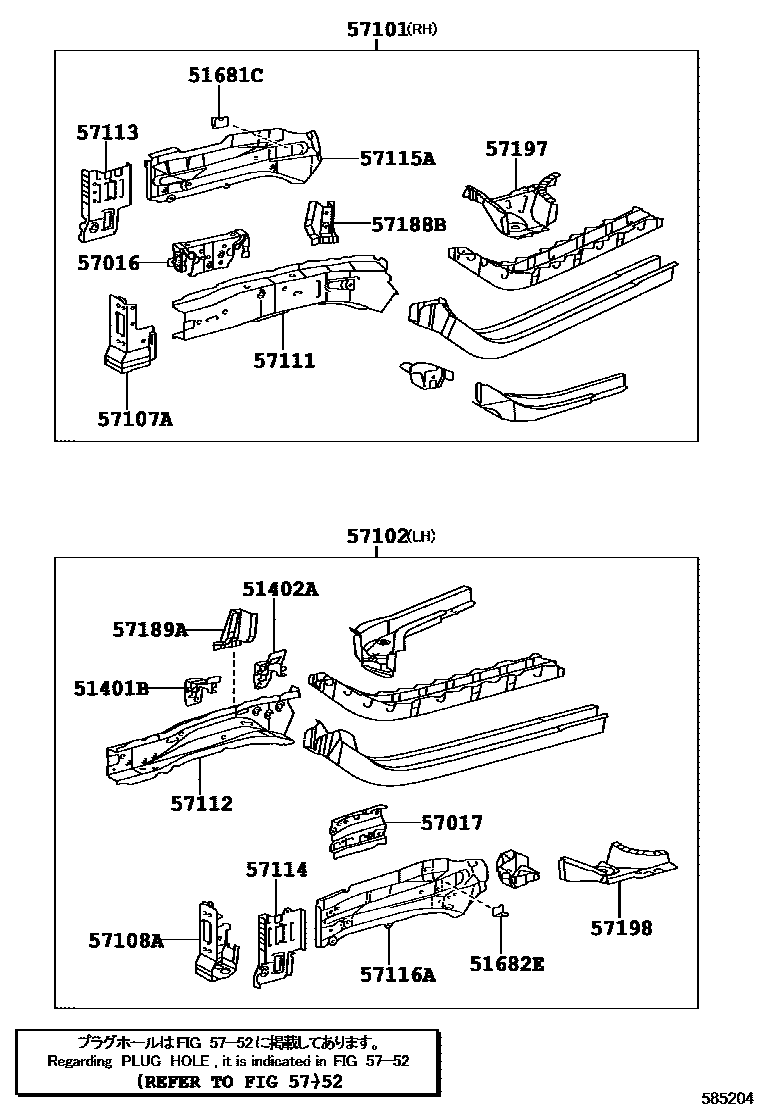

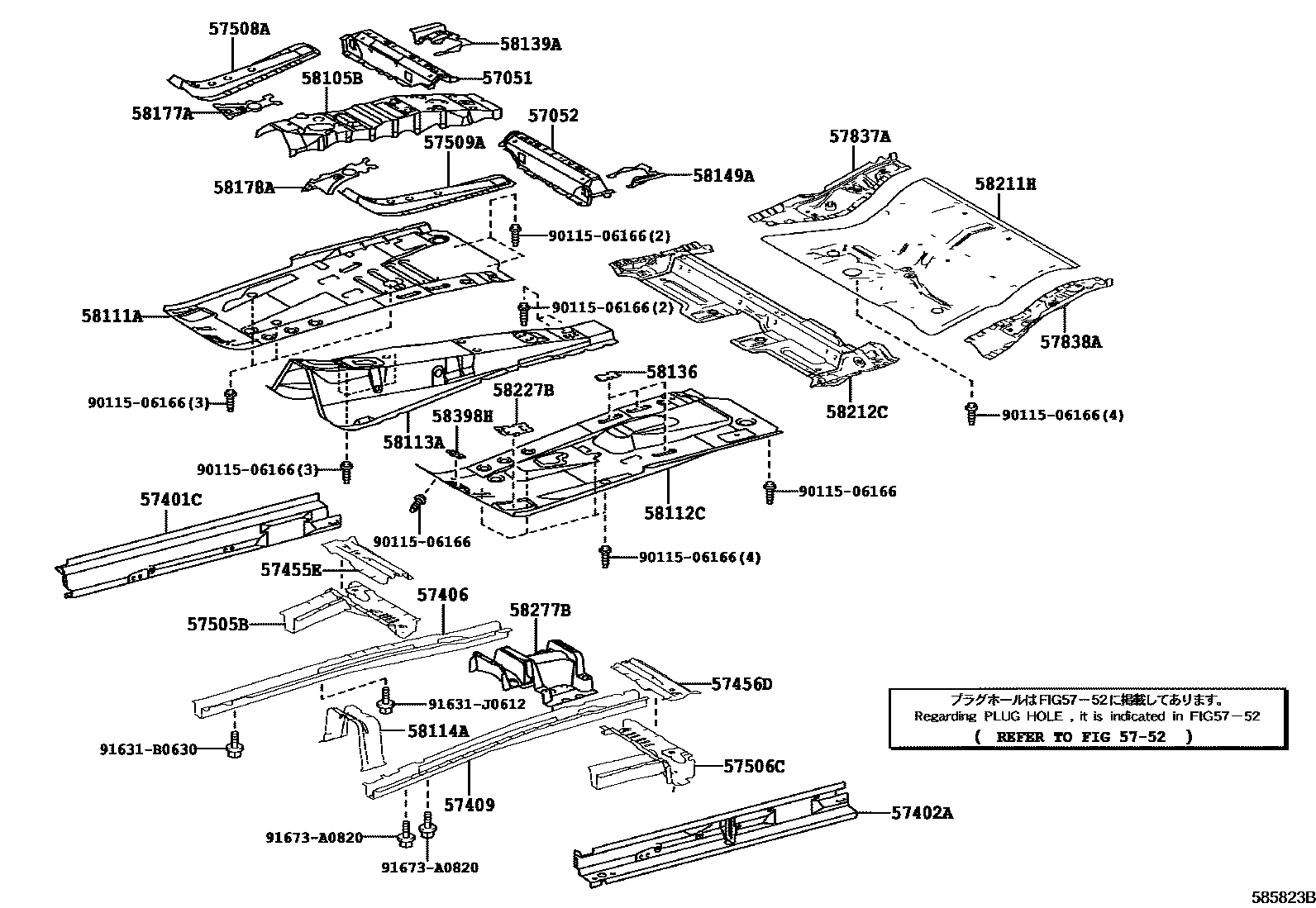

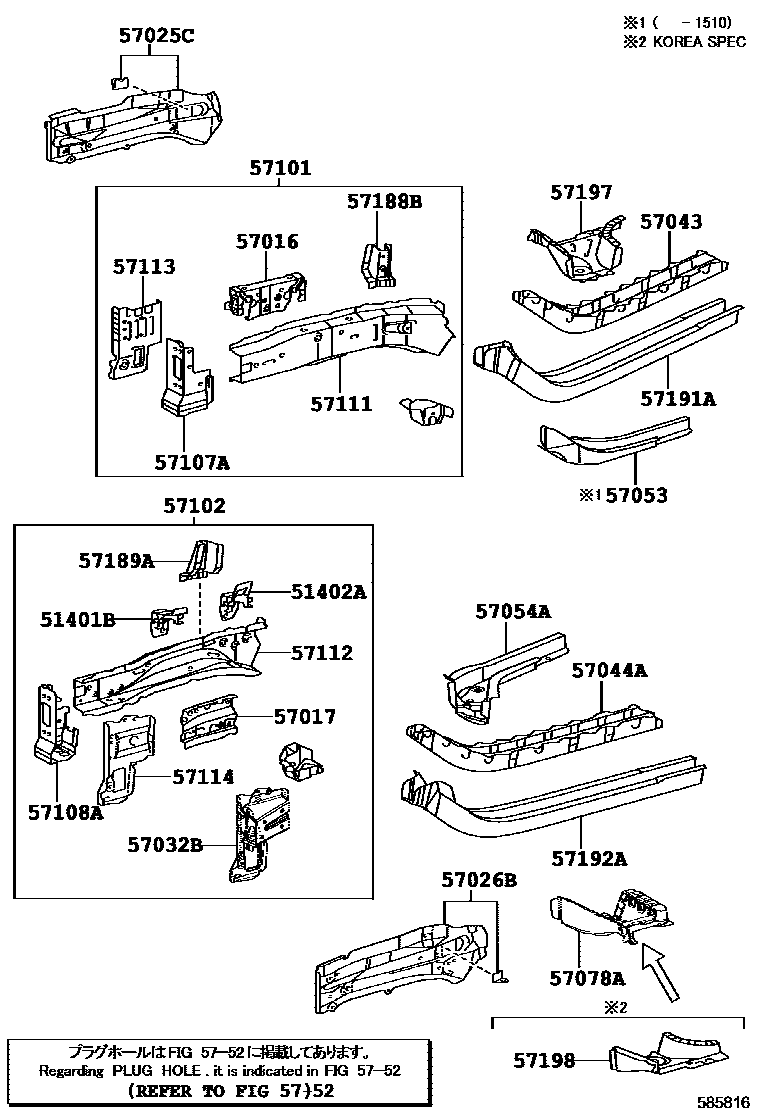

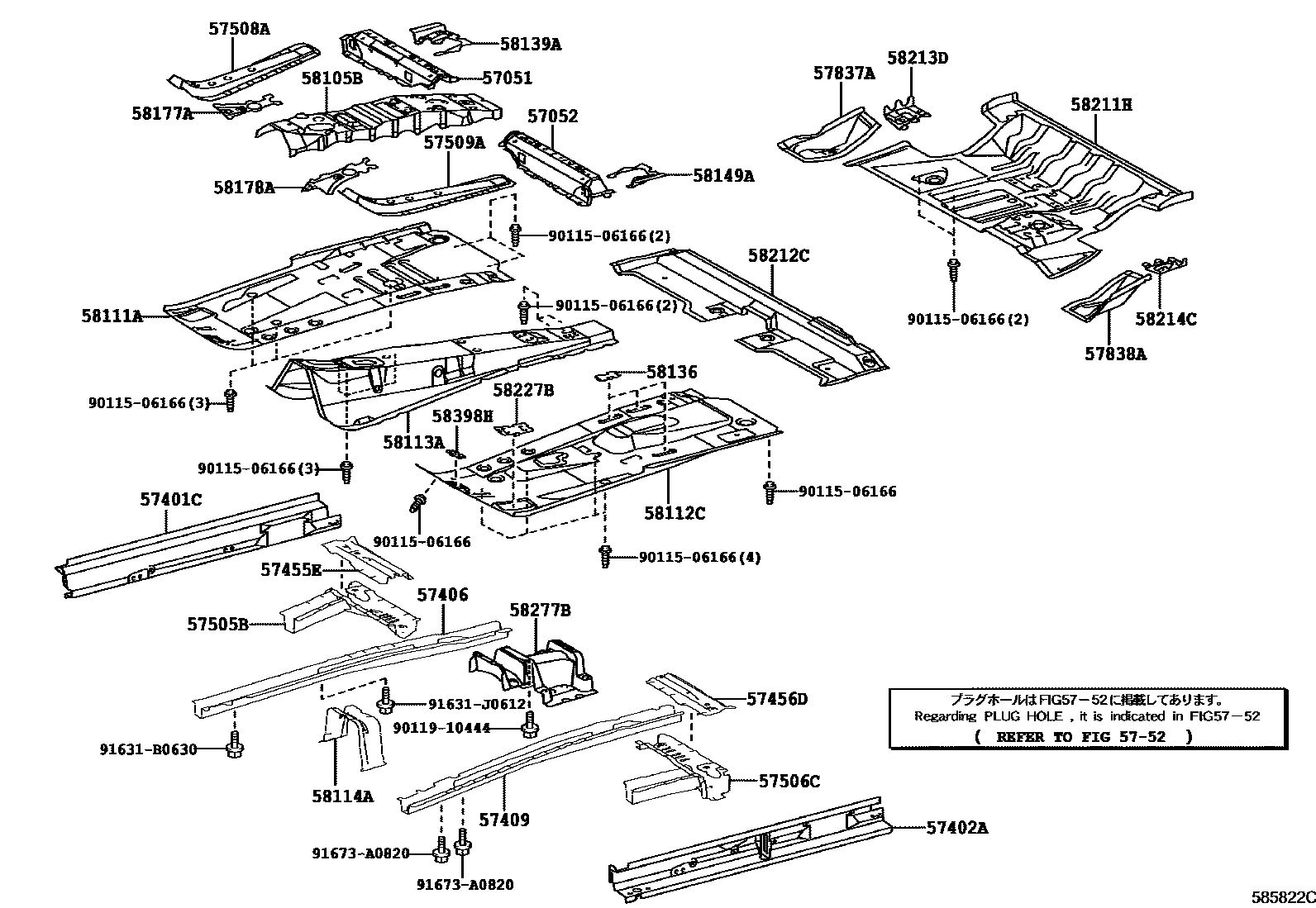

Toyota RAV4 EPC diagram 5851, 前地板和前地板梁, with 6 images and 61 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51401B | Engine front mounting bracket sub-assembly | 51401-42010 · 51401-42020 |
| 51402A | Engine left front mounting bracket sub-assembly | 51402-42010 |
| 51681C | Right front wheel brake flexible hose support plate | 51681-12080 |
| 51682E | Left front wheel brake flexible hose support plate | 51682-12080 |
| 57016 | Right front longitudinal beam reinforcement sub-assembly | 57016-12110 |
| 57017 | Left front longitudinal beam reinforcement sub-assembly | 57017-12070 |
| 57025C | Right front outer longitudinal beam sub-assembly | 57025-12010 |
| 57026B | Left front outer longitudinal beam sub-assembly | 57026-12020 |
| 57032B | No. 2 left front longitudinal beam reinforcement sub-assembly | 57032-78010 |
| 57043 | Right front longitudinal beam rear reinforcement sub-assembly | 57043-42010 |
| 57044A | Left front longitudinal beam rear reinforcement sub-assembly | 57044-42010 |
| 57051 | Front floor right cross member sub-assembly | 57051-42011 |
| 57052 | Front floor left cross member sub-assembly | 57052-42011 |
| 57053 | Front floor right cross member reinforcement sub-assembly | 57053-42011 |
| 57054A | Front floor left cross member reinforcement sub-assembly | 57054-42010 |
| 57078A | Left front anti-torsion box-section sub-assembly | 57078-78010 |
| 57101 | Right front longitudinal beam sub-assembly | 57101-42110 · 57111-42900 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-42090 · 57112-12904 · 57112-12906 · 57112-12907 · 57112-42900 |
| 57107A | No. 2 right front longitudinal beam plate sub-assembly | 57107-42030 |
| 57108A | No. 2 left front longitudinal beam plate sub-assembly | 57108-42030 · 57108-42031 |
| 57111 | Right front longitudinal beam | 57111-12230 |
| 57112 | Left front longitudinal beam | 57112-12190 |
| 57113 | Right front longitudinal beam extension | 57113-42050 |
| 57114 | Left front longitudinal beam extension | 57114-42051 · 57114-78010 |
| 57115A | Right front longitudinal beam outer panel | 57115-12090 |
| 57116A | Left front longitudinal beam outer panel | 57116-12090 · 57116-12091 |
| 57188B | Right front longitudinal beam to spring bracket corner plate | 57188-42030 |
| 57189A | Left front longitudinal beam to spring bracket corner plate | 57189-42020 |
| 57191A | Right rear longitudinal member inside front floor | 57191-42060 |
| 57192A | Left rear longitudinal member inside front floor | 57192-42060 |
| 57197 | Right front torsion box section piece | 57197-42060 |
| 57198 | Left front anti-torsion box section piece | 57198-42060 |
| 57401C | Floor right inner longitudinal beam sub-assembly | 57401-42150 |
| 57402A | Floor left inner longitudinal beam sub-assembly | 57402-42150 · 57402-42160 |
| 57406 | Main floor right longitudinal beam sub-assembly | 57406-42010 · 57406-42011 |
| 57409 | Main floor left longitudinal beam sub-assembly | 57409-42010 |
| 57455E | PLAQUE, TRAVERSE DE PLANCHER AVANT, NO.3 MD | 57455-42030 |
| 57456D | PLAQUE, TRAVERSE DE PLANCHER AVANT, NO.3 MG | 57456-42010 |
| 57505B | SOUS-ENSEMBLE RENFORT, DESSOUS DE PLANCHER AVANT, MD | 57505-42110 |
| 57506C | SOUS-ENSEMBLE RENFORT, DESSOUS DE PLANCHER AVANT, MG | 57506-42050 |
| 57508A | Front floor right reinforcement sub-assembly | 57508-42010 |
| 57509A | Front floor left reinforcement sub-assembly | 57509-42010 |
| 57837A | Rear No. 1 seat support No. 3 rear reinforcement | 57837-42030 · 57837-78010 |
| 57838A | Rear No. 1 seat support No. 4 rear reinforcement | 57838-42020 · 57838-78010 |
| 58105B | Front floor and rear upper sub-panel sub-assembly | 58105-42012 · 58105-42013 |
| 58111A | Front floor right bottom panel | 58111-42201 |
| 58112C | Front floor left bottom panel | 58112-42011 |
| 58113A | front floor center panel | 58113-42010 · 58113-42011 · 58113-42012 |
| 58114A | front floor reinforcement | 58114-42041 |
| 58136 | Front floor hole cover | 58136-42020 |
| 58139A | Front floor right rear side panel | 58139-42010 |
| 58149A | Front floor left rear side panel | 58149-42011 |
| 58177A | Front floor right extension | 58177-42010 |
| 58178A | Front floor left extension | 58178-42010 |
| 58211H | central floor base | 58211-42011 · 58211-78010 |
| 58212C | Center floor front floor | 58202-42020 · 58202-78010 · 58202-78020 |
| 58213D | Central floor reinforcement | 58213-42010 |
| 58214C | Center floor left reinforcement | 58214-42010 |
| 58227B | Front floor right panel | 58227-42010 |
| 58277B | Drive shaft center bracket reinforcement | 58209-42030 · 58209-48010 |
| 58398H | No. 1 floor under cover | 58398-42010 |
