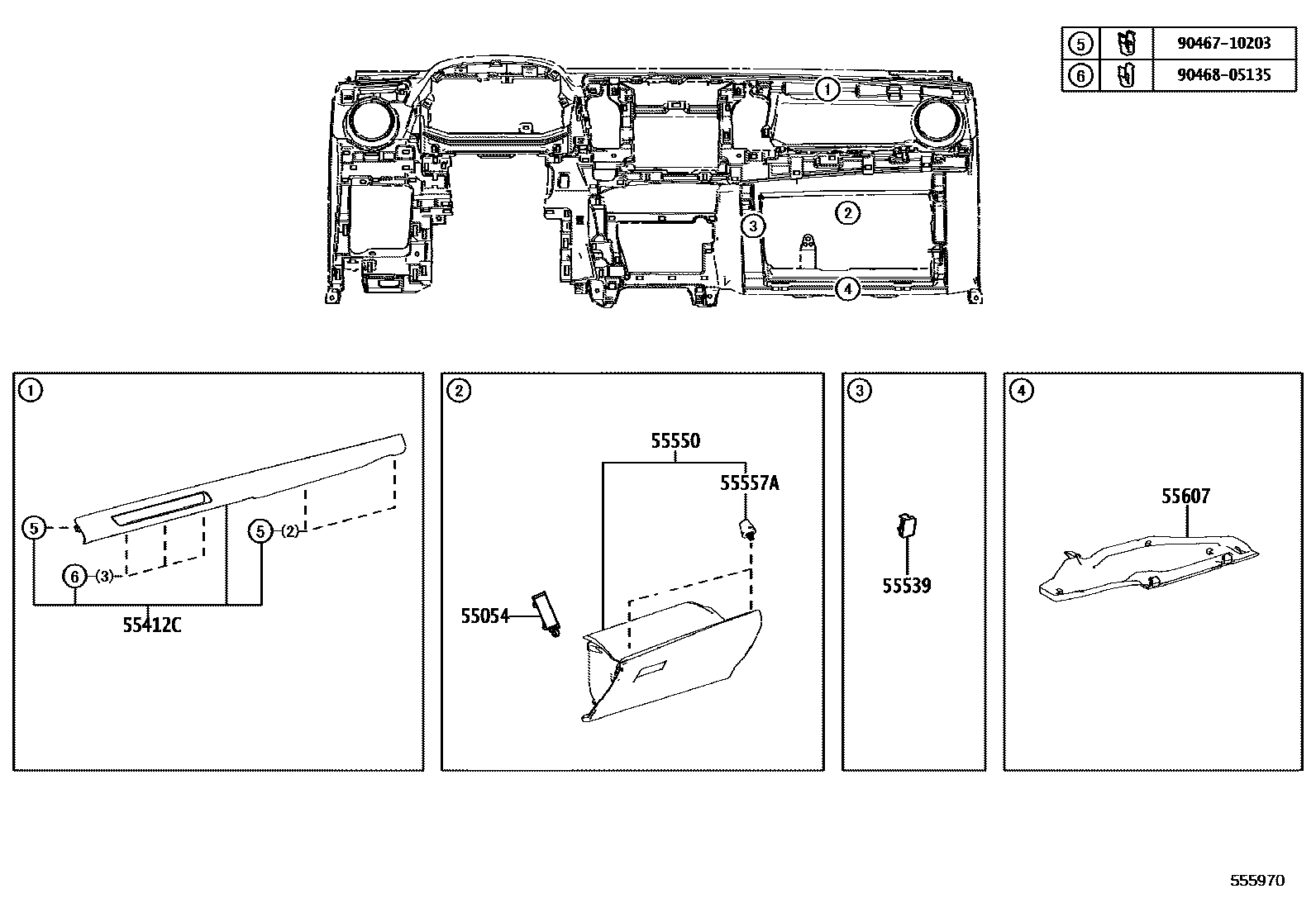

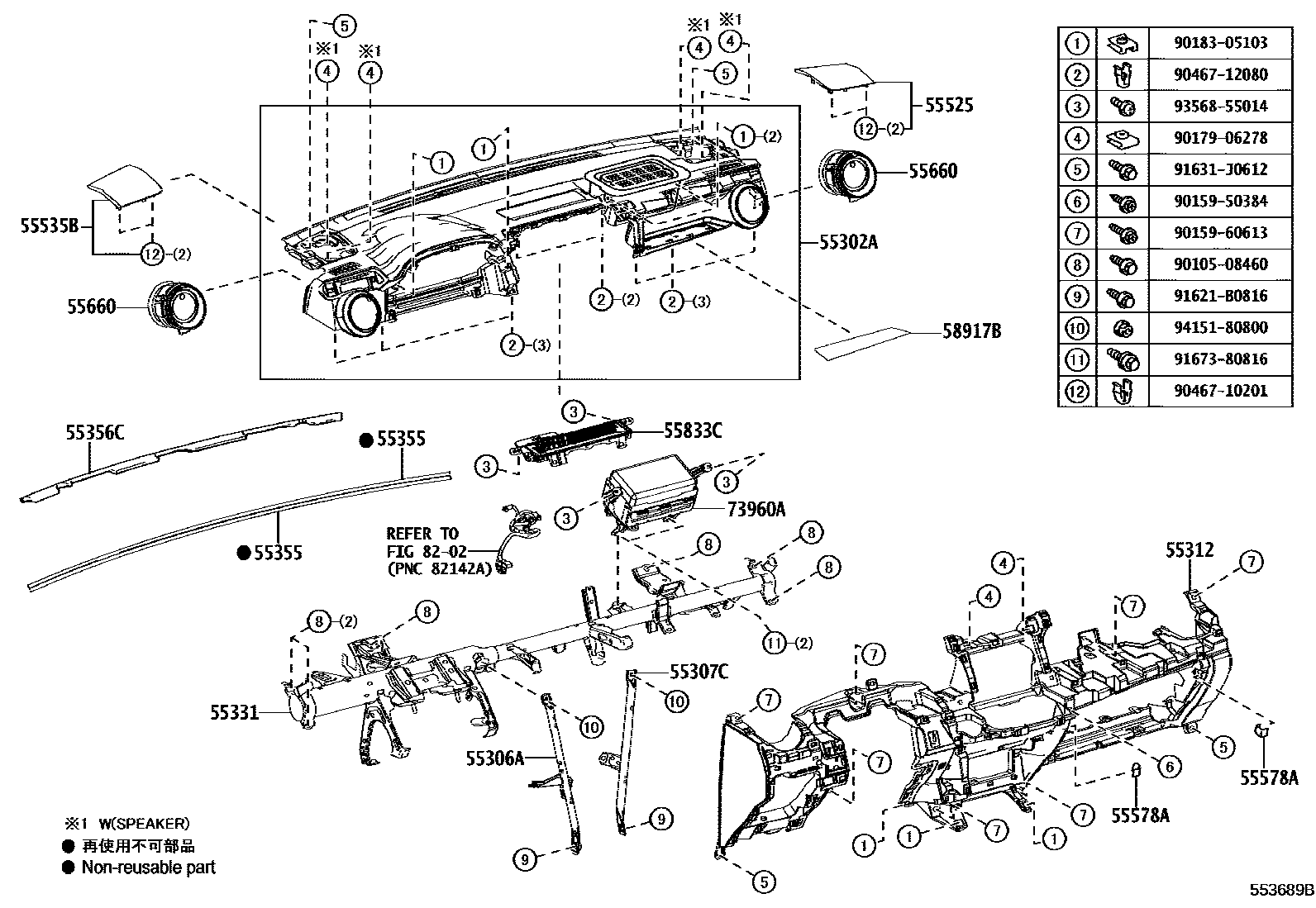

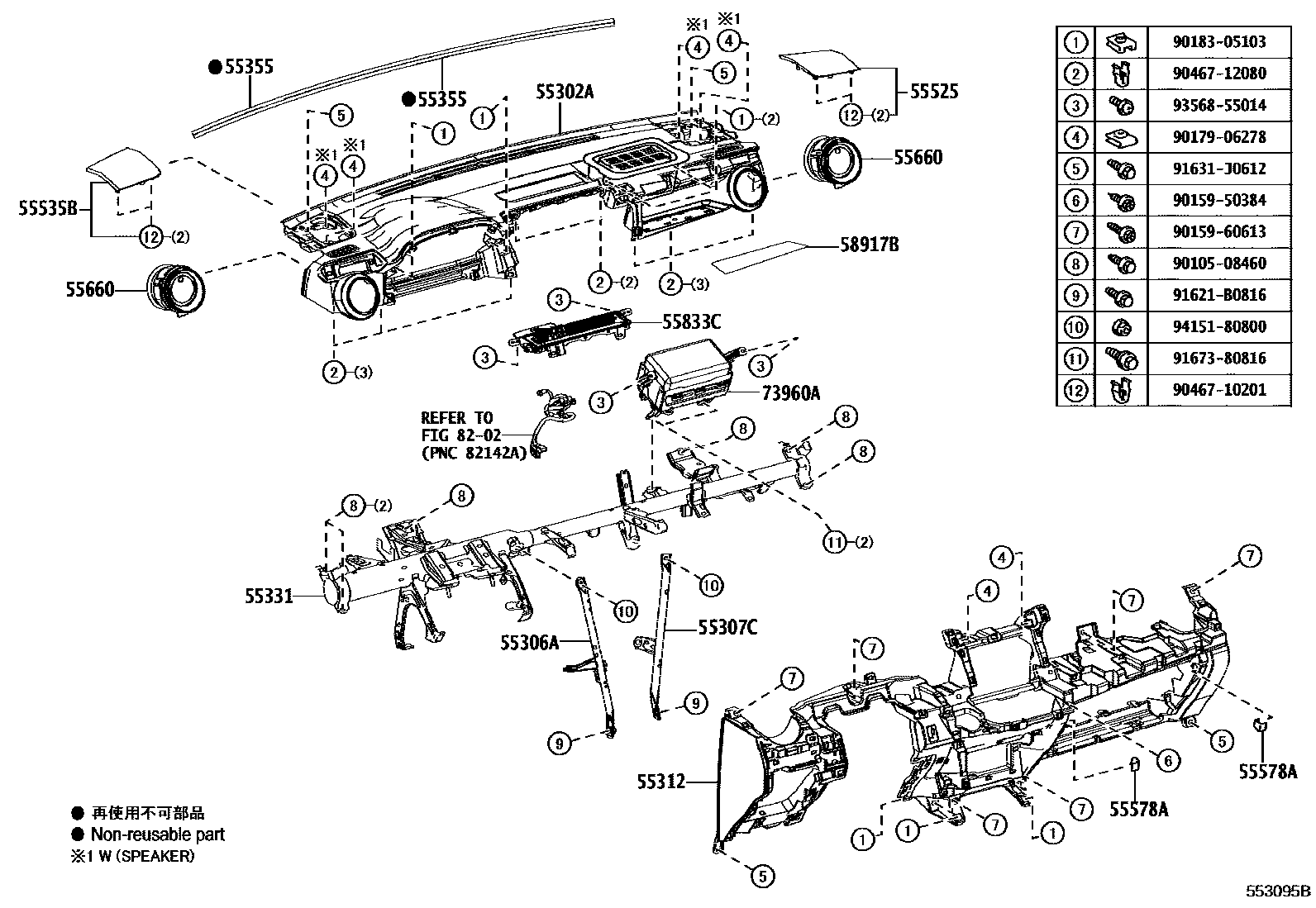

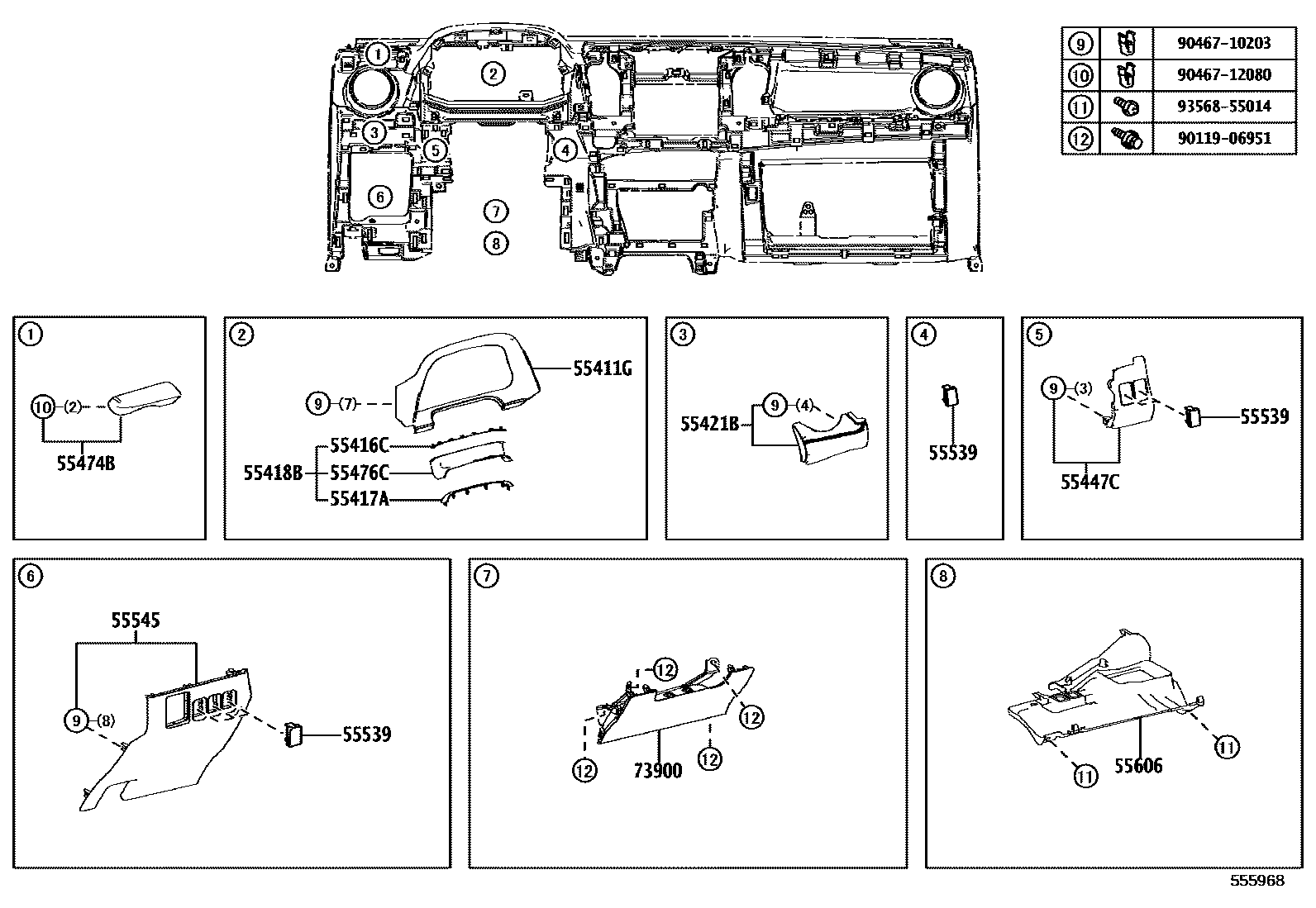

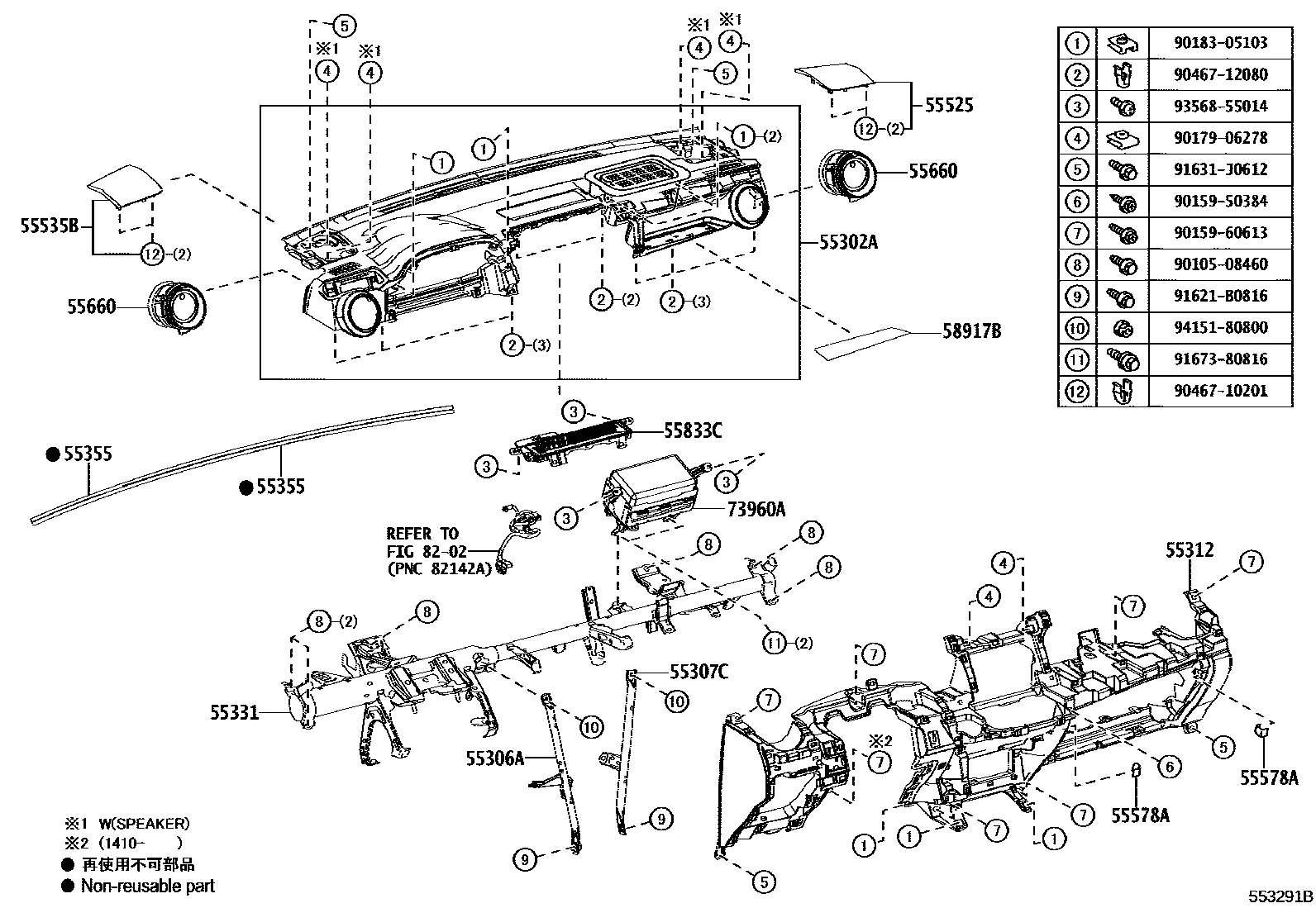

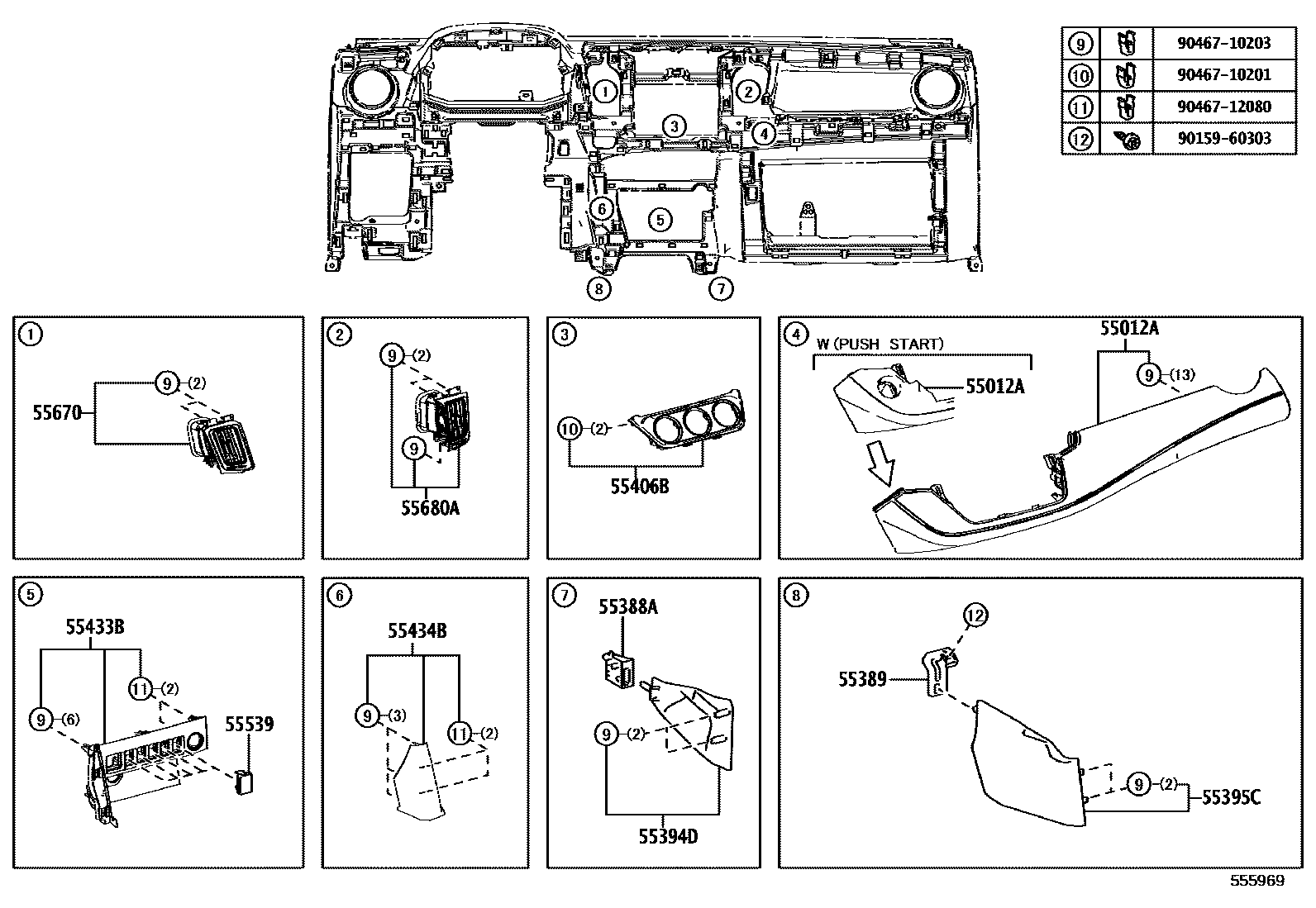

Toyota RAV4 仪表板和手套箱 — Figure 5551
Toyota RAV4 EPC diagram 5551, 仪表板和手套箱, with 6 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-33060 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-42130 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-42070 |
| 55331 | Dashboard reinforcement | 55330-42250 · 55330-42251 · 55330-42252 · 55330-42290 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-42030 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-42060 |
| 55388A | Mounting bracket on the right side of the console | 55388-42010 |
| 55389 | Console left side mounting bracket | 55389-42010 |
| 55406B | Center instrument cluster lower decorative panel sub-assembly | 55406-42040 · 55406-42060 |
| 55411G | Instrument cluster No. 1 decorative panel | 55411-42070 |
| 55412C | Center instrument cluster No. 1 decorative panel | 55412-42070 |
| 55416C | Instrument cluster decorative panel fixings | 55416-42020 |
| 55417A | Instrument cover No.2 fixing piece | 55417-42030 |
| 55418B | Instrument cover spacer | 55418-42010 |
| 55434B | Center dashboard lower trim panel | 55434-42010 |
| 55474B | Instrument cluster decorative panel trim parts | 55474-42030 |
| 55476C | Dashboard decorative panel trim parts | 55476-42030 |
| 55557A | Glove box cover limit pad | 55557-60050 |
| 55578A | Glove box cover silencer | 55578-52040 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-42050 · 55606-42080 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-42030 · 55607-42060 |
| 55670 | Instrument panel No. 3 air regulator assembly | 55670-42090 · 55670-42100 · 55670-42150 · 55670-42160 |
| 55680A | No. 4 air regulator assembly on instrument panel | 55680-42030 · 55680-42040 · 55680-42080 · 55680-42090 |
| 58917B | Armrest box bottom pad | 58917-42010 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-42040 |
