Toyota RAV4 前翼子板挡泥板和前围板 — Figure 5355

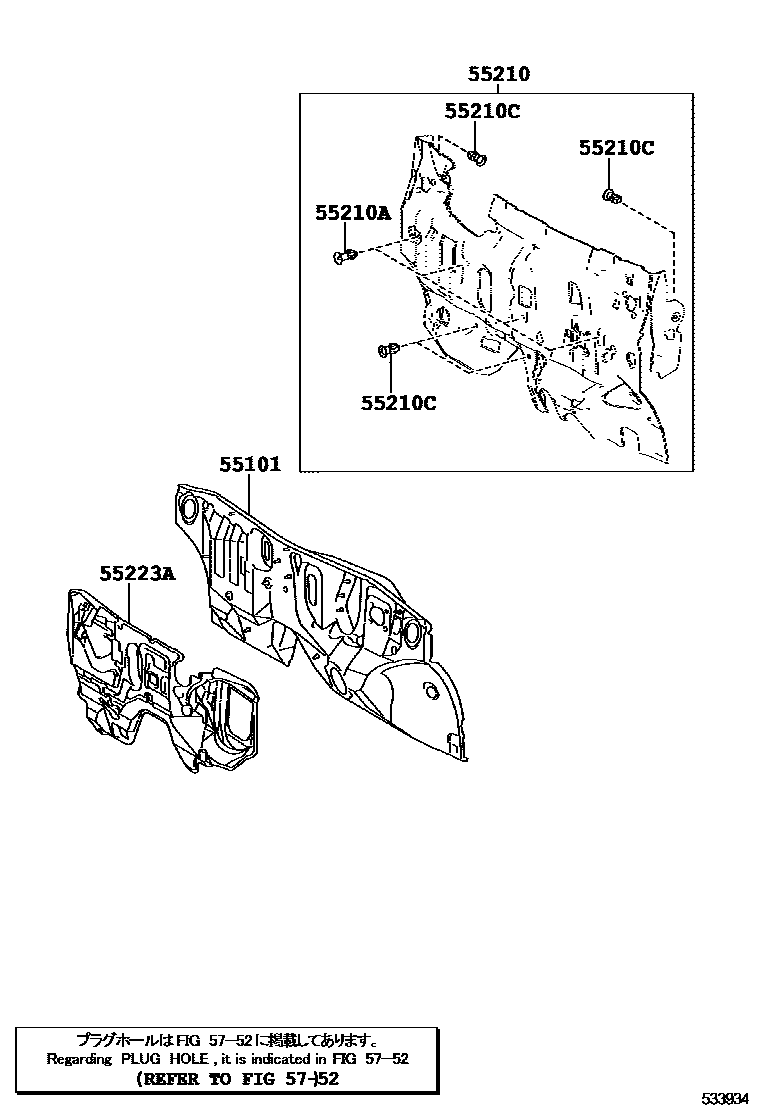

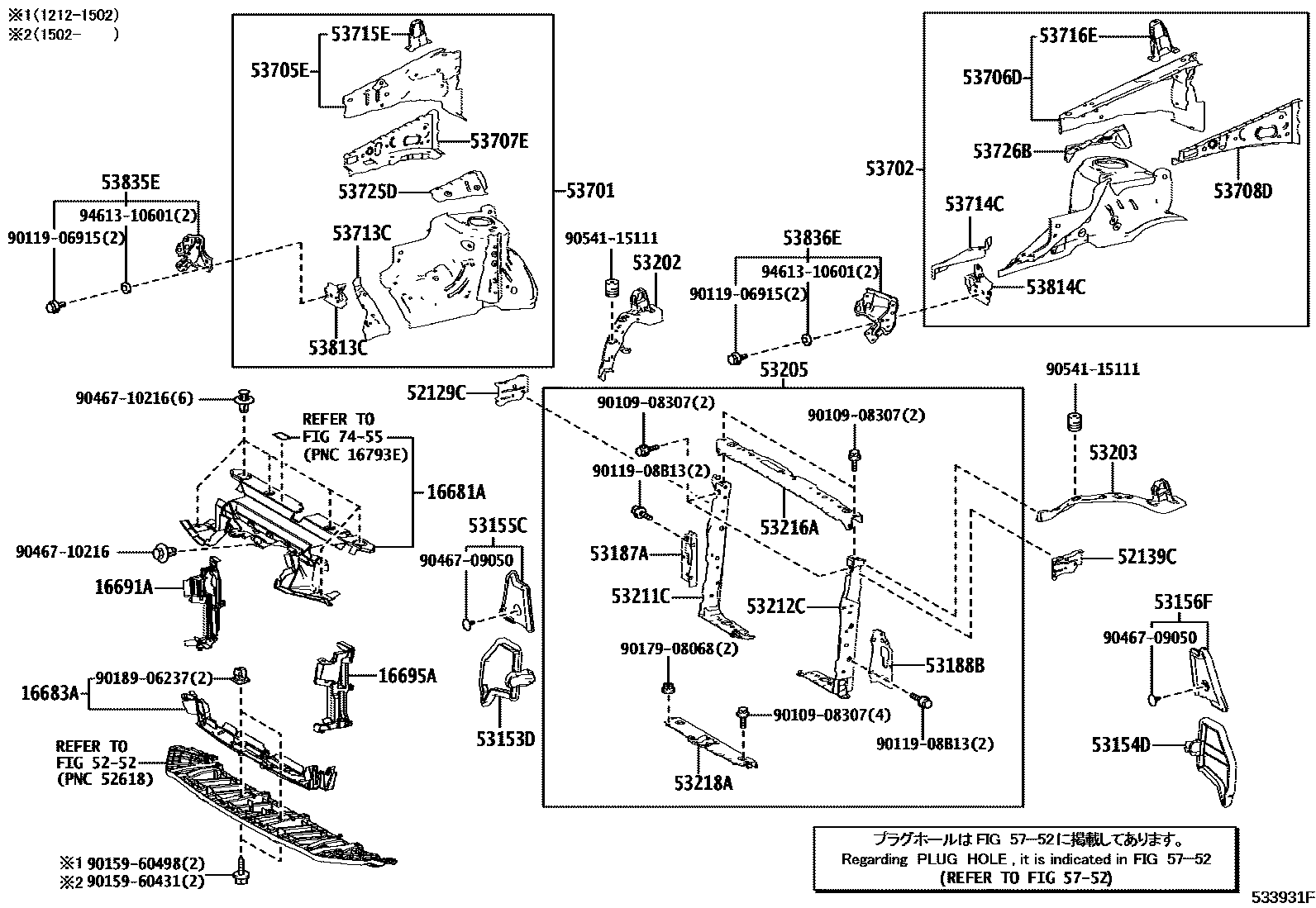

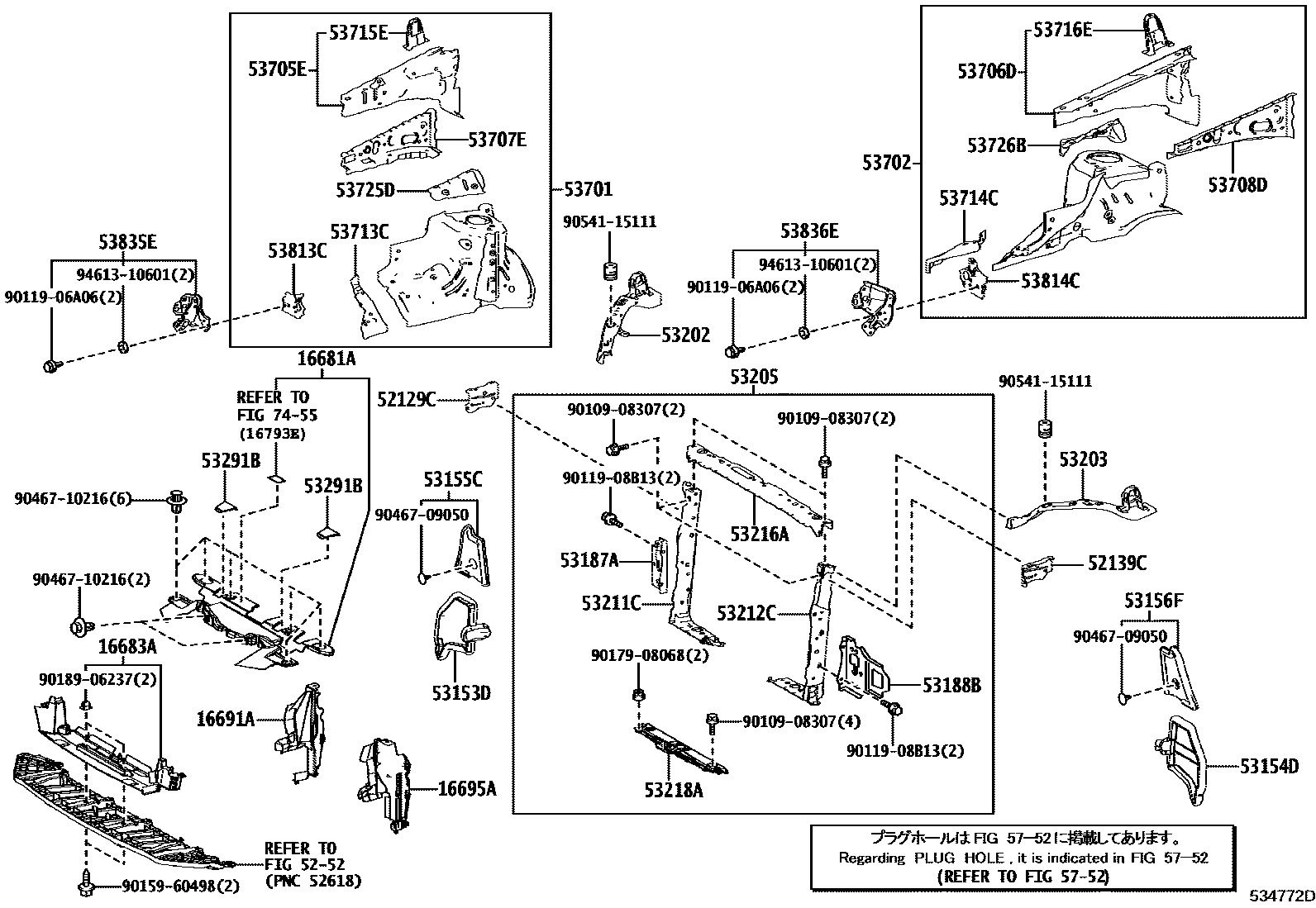

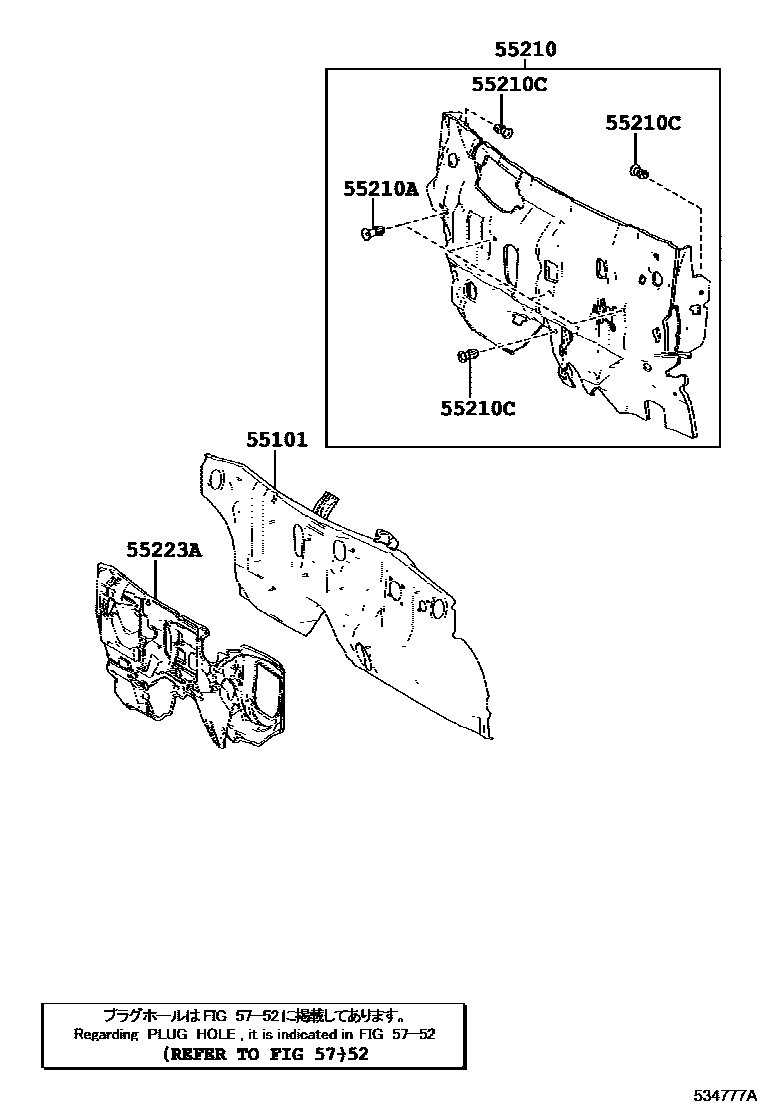

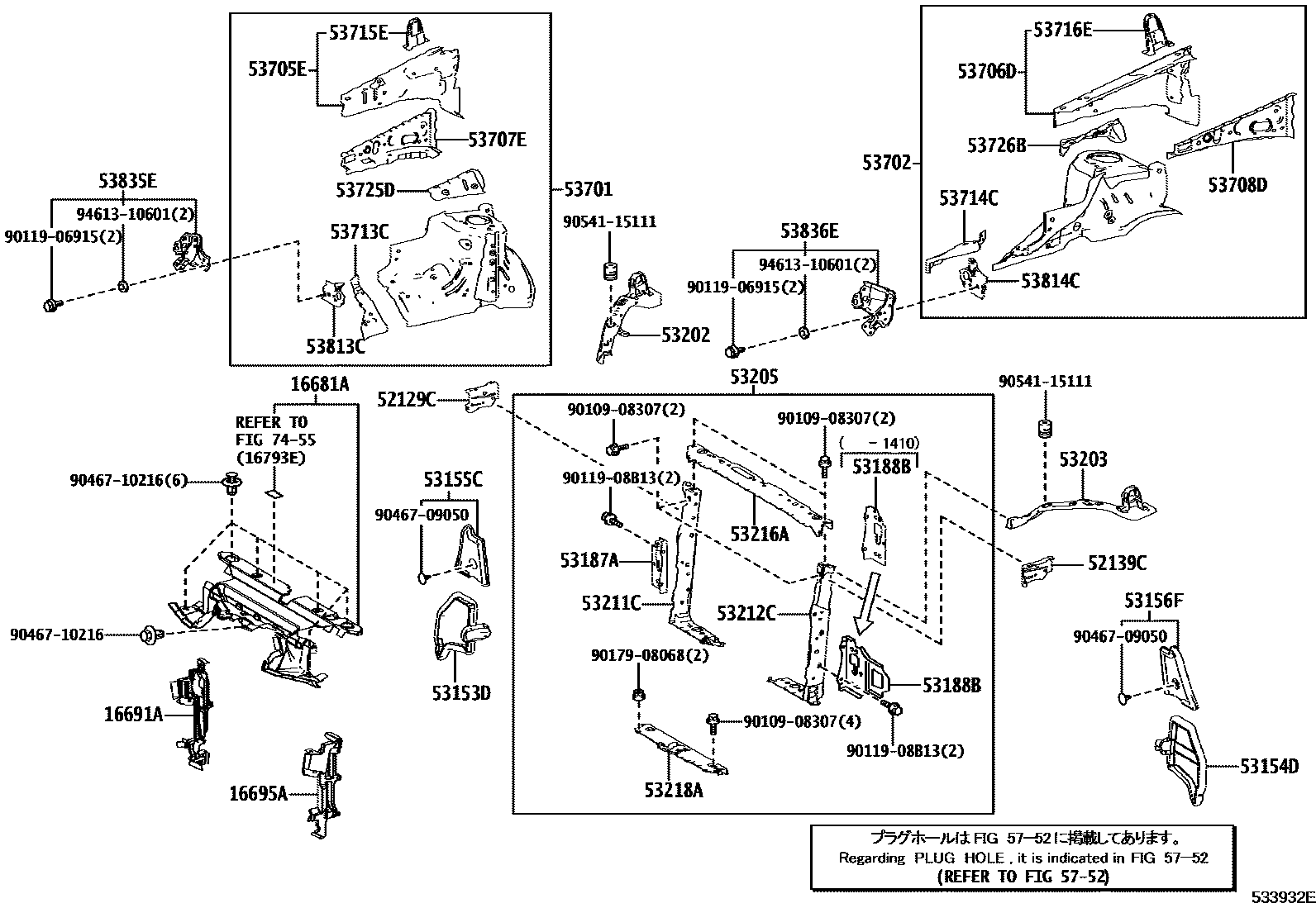

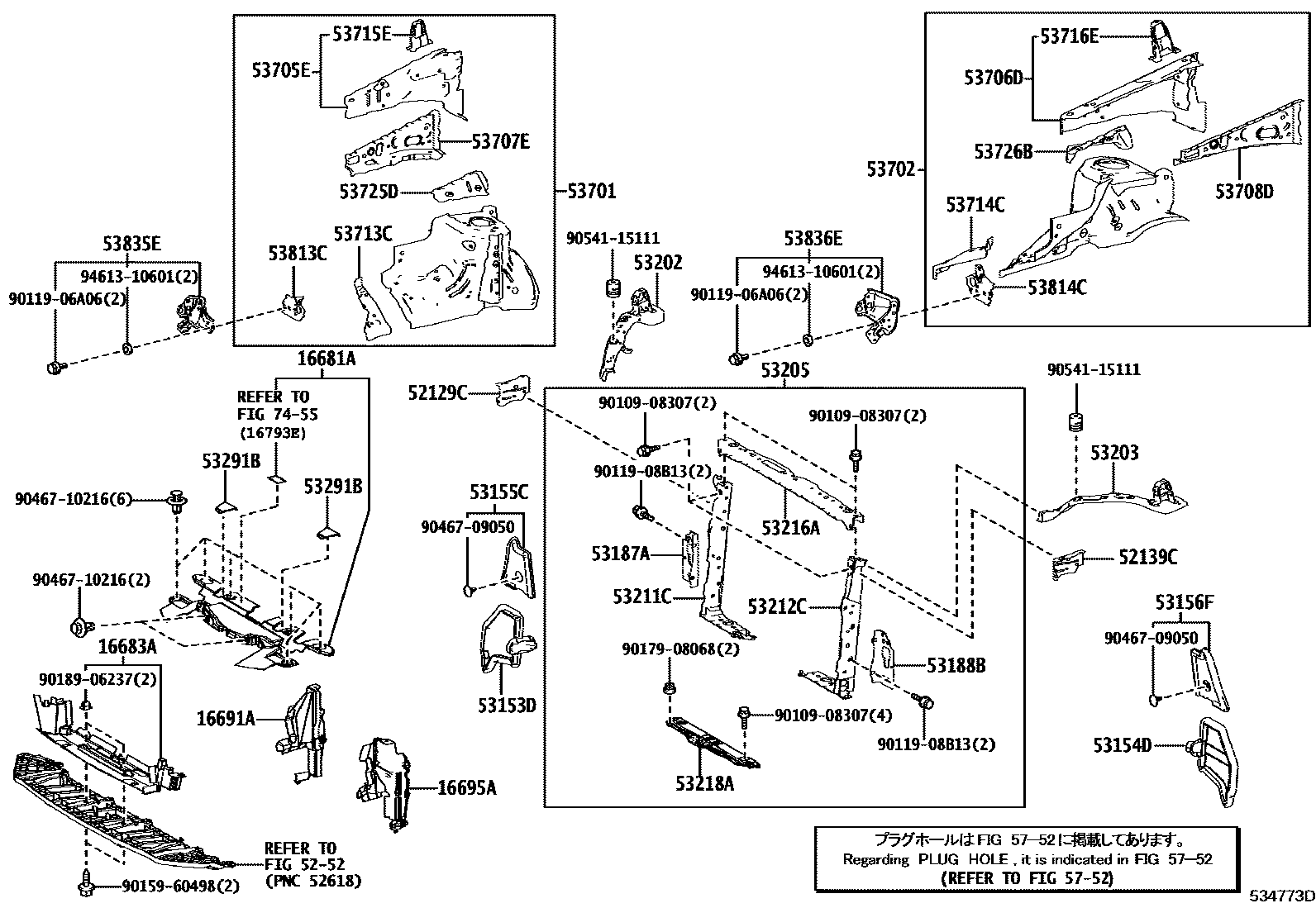

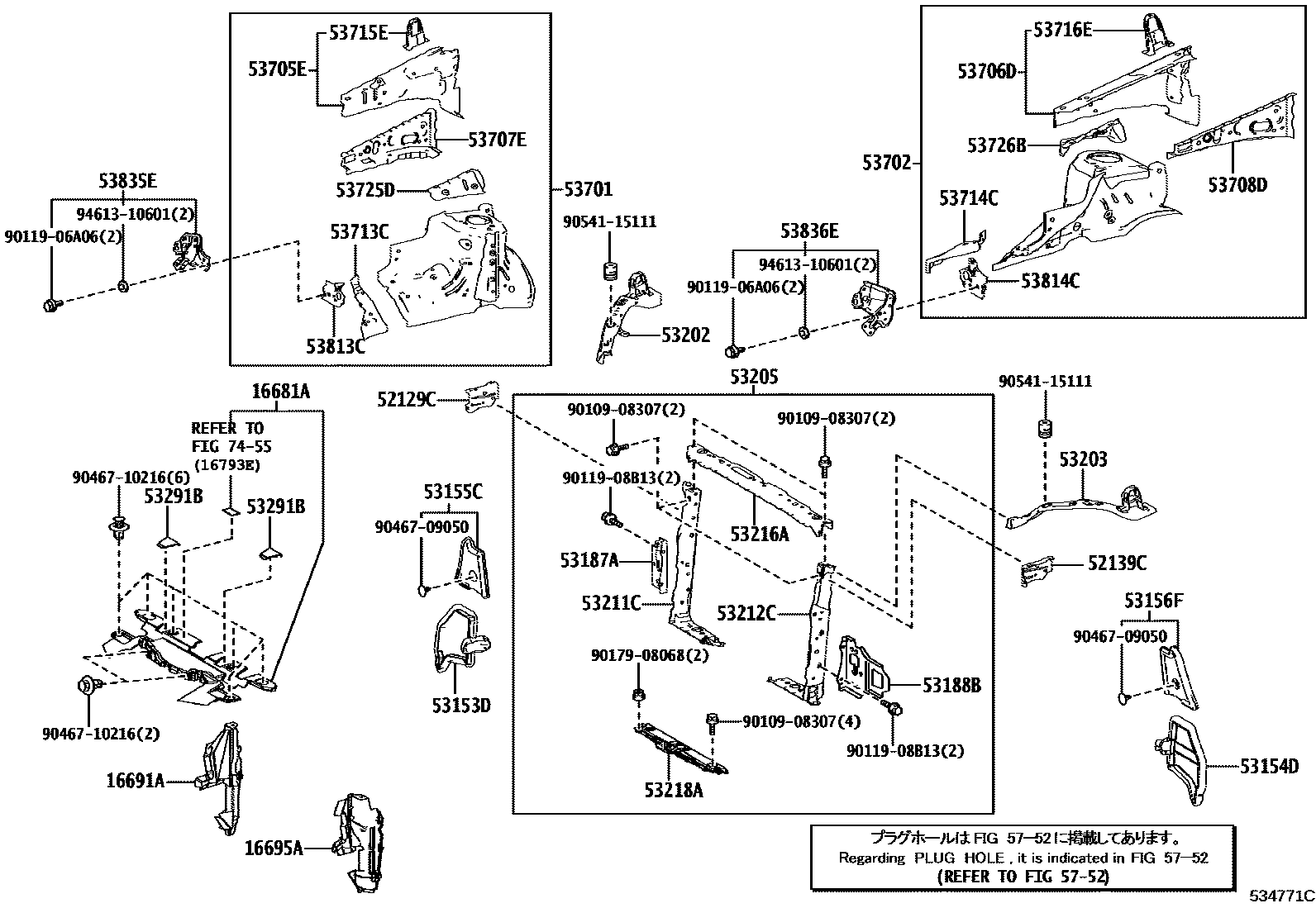

Toyota RAV4 EPC diagram 5355, 前翼子板挡泥板和前围板, with 7 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16681A | PLATEAU, DIFFUSEUR D'AIR SUPERIEUR DU RADIATEUR | 16681-36010 · 16681-36020 · 16681-36021 |
| 16683A | PLATEAU, DIFFUSEUR D'AIR INFERIEUR DU RADIATEUR | 16683-36010 · 16683-36060 · 16683-36070 |
| 16691A | PLATEAU, DIFFUSEUR D'AIR DE COTE DU RADIATEUR, AVANT MD | 16691-26010 · 16691-36010 · 16691-36080 · 16691-36081 · 16691-36090 · 16691-36100 · 16691-36110 · 16691-36111 |
| 16695A | PLATEAU, DIFFUSEUR D'AIR DE COTE DU RADIATEUR, AVANT MG | 16695-26010 · 16695-36010 · 16695-36080 · 16695-36081 · 16695-36090 · 16695-36100 · 16695-36110 · 16695-36111 |
| 52129C | Front bumper No. 2 upper right arm | 52129-42020 |
| 52139C | Front bumper No. 2 left upper arm | 52139-42020 |
| 53153D | Radiator grille right deflector | 53153-42010 |
| 53154D | Radiator grille left deflector | 53154-42020 |
| 53155C | Radiator grille seal No. 1 | 53155-42040 |
| 53156F | JOINT, GRILLE DE RADIATEUR, NO.2 | 53156-42020 |
| 53187A | Radiator right side bracket stay | 53187-42010 |
| 53188B | Radiator left bracket stay | 53188-42010 · 53188-78010 |
| 53202 | Radiator right side bracket sub-assembly | 53202-42030 |
| 53203 | Radiator left bracket sub-assembly | 53203-42040 |
| 53205 | Radiator upper bracket sub-assembly | 53205-42080 · 53205-42090 · 53205-42110 · 53205-42120 |
| 53211C | Radiator right side support | 53211-42903 |
| 53212C | Radiator left support | 53212-42903 |
| 53216A | Radiator upper bracket | 53216-42902 |
| 53218A | Radiator lower support | 53209-42020 · 53209-78010 |
| 53291B | Radiator cover | 53291-42020 |
| 53701 | Right front fender fender sub-assembly | 53701-42150 |
| 53702 | Left front fender fender sub-assembly | 53702-42160 |
| 53705E | Front fender to front wall right side beam sub-assembly | 53705-42020 |
| 53706D | Front fender to front wall left side beam sub-assembly | 53706-42020 |
| 53707E | Fender right fender sub-assembly | 53707-42010 |
| 53708D | Fender left fender sub-assembly | 53708-42010 |
| 53713C | Right front fender fender front extension | 53713-42040 |
| 53714C | Left front fender fender front extension | 53714-42040 · 53714-42041 |
| 53715E | Right front fender fender rear extension | 53715-42020 |
| 53716E | Left front fender fender rear extension | 53716-42020 |
| 53725D | No. 2 front spring bracket right side reinforcement | 53725-42010 |
| 53726B | No. 2 front spring bracket left reinforcement | 53726-42010 |
| 53813C | Right front fender extension | 53813-42030 |
| 53814C | Left front fender extension | 53814-42030 |
| 53835E | Right front fender to fender stay | 53803-42010 · 53803-42020 |
| 53836E | Left front fender to fender stay | 53804-42010 |
| 55101 | Front apron sub-assembly | 55101-42520 |
| 55210 | Front wall insulation pad assembly | 55210-42170 · 55210-42190 · 55210-42210 |
| 55210A | clip | 90467-11122 |
| 55210C | clip | 90467-13079 |
| 55223A | Front wall outer heat insulation pad | 55223-42051 · 55223-42070 |
