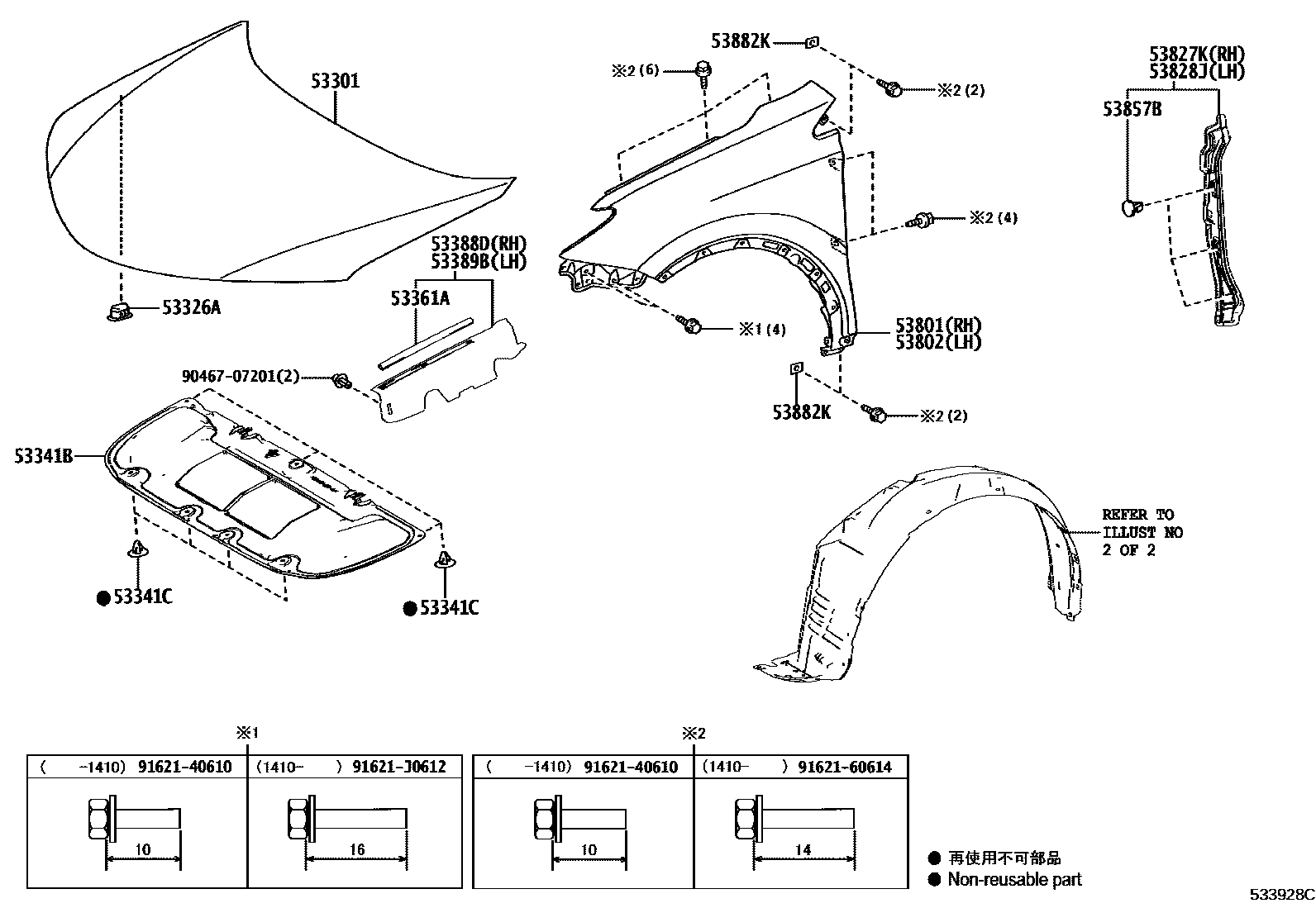

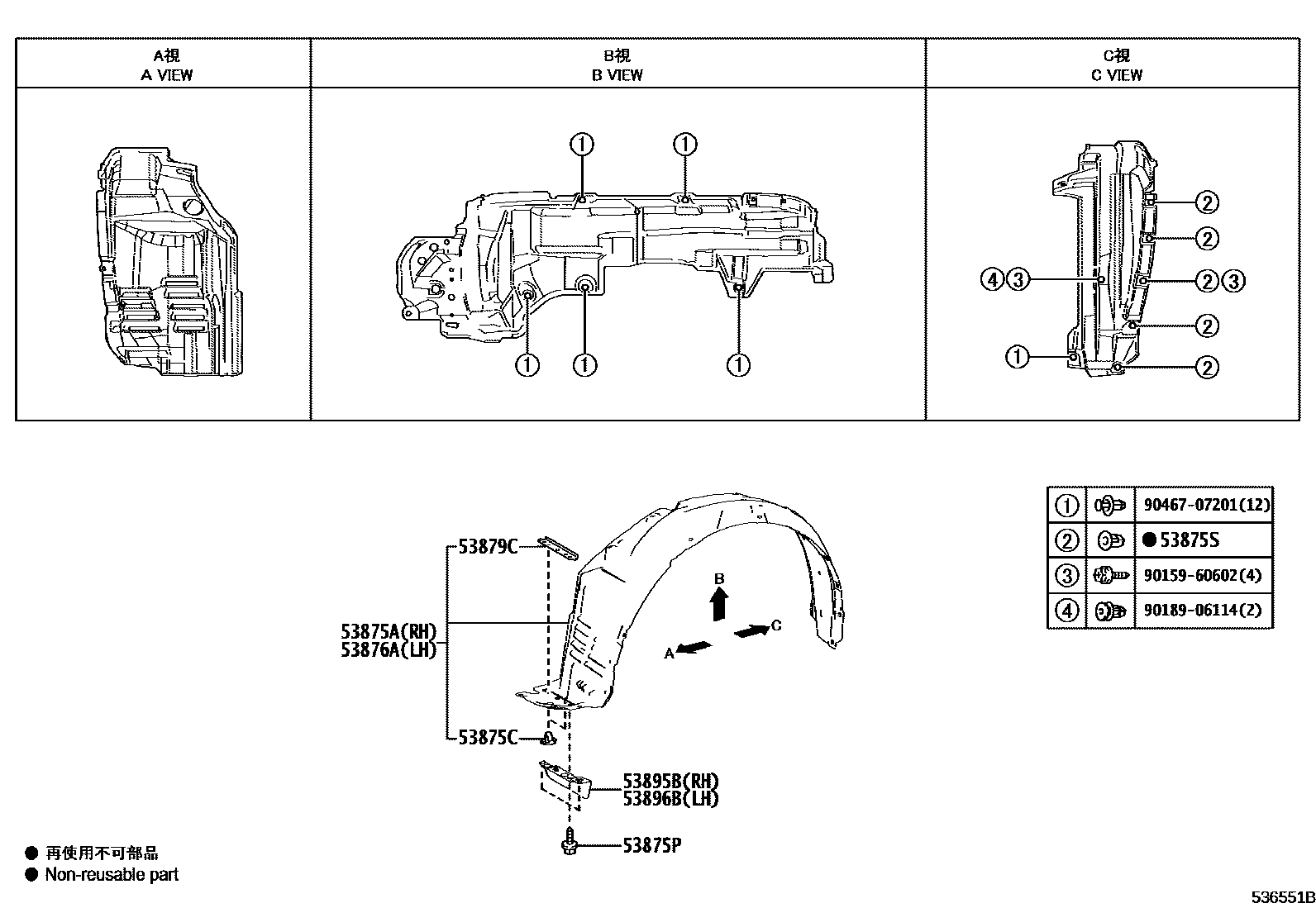

Toyota RAV4 发动机盖和前翼子板 — Figure 5353
Toyota RAV4 EPC diagram 5353, 发动机盖和前翼子板, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-42110 · 53301-42120 |
| 53326A | ATTACHE, MOULURE DU CAPOT | 53326-52010 |
| 53341B | engine cover gasket | 53341-42090 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 |
| 53361A | engine cover seal | 53361-42010 |
| 53388D | Engine cover to right front fender seal | 53388-42030 · 53388-42031 |
| 53389B | Engine cover to left front fender seal | 53389-42050 · 53389-42051 |
| 53801 | Right front fender sub-assembly | 53801-42170 |
| 53802 | Left front fender sub-assembly | 53802-42200 |
| 53827K | Right front fender side panel protector | 53827-42050 |
| 53828J | Left front fender side panel protector | 53828-42070 |
| 53857B | Right front fender external panel fixing piece | 53857-47011 |
| 53875A | Right front fender lining | 53875-42080 |
| 53875C | Front fender lining clip | 90467-06192 |
| 53875P | VIS, NO.1 | 90159-60620 |
| 53875S | OEILLET, NO.1 | 90189-06065 |
| 53876A | Left front fender lining | 53876-42090 |
| 53879C | Front fender lining fixing parts | 53879-42020 |
| 53882K | front fender seal | 53882-16030 |
| 53895B | Right front fender front splash guard | 53895-42040 · 53895-42050 |
| 53896B | Left front fender front splash guard | 53896-42030 · 53896-42040 |
