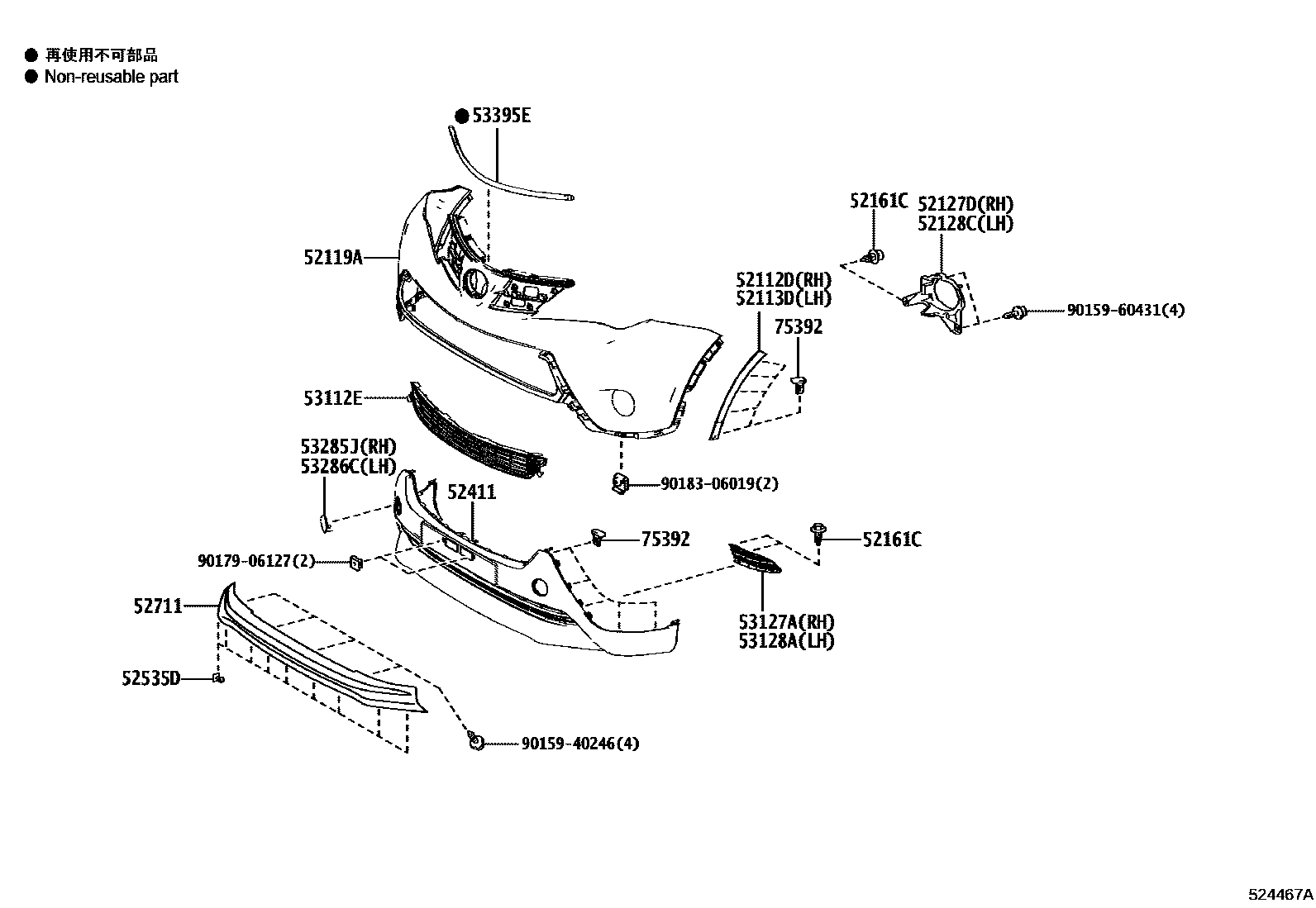

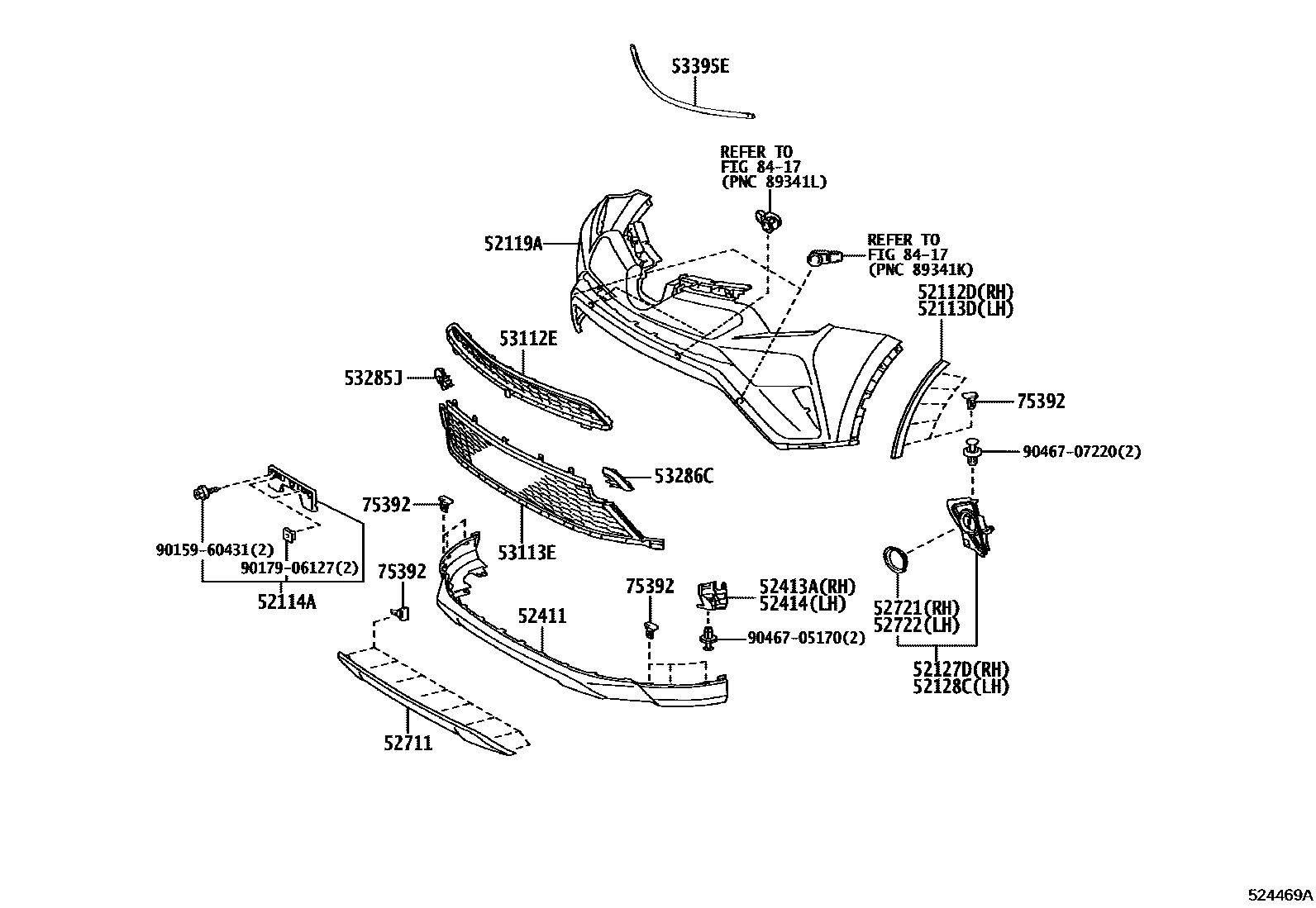

Toyota RAV4 前保险杠及附件 — Figure 5252

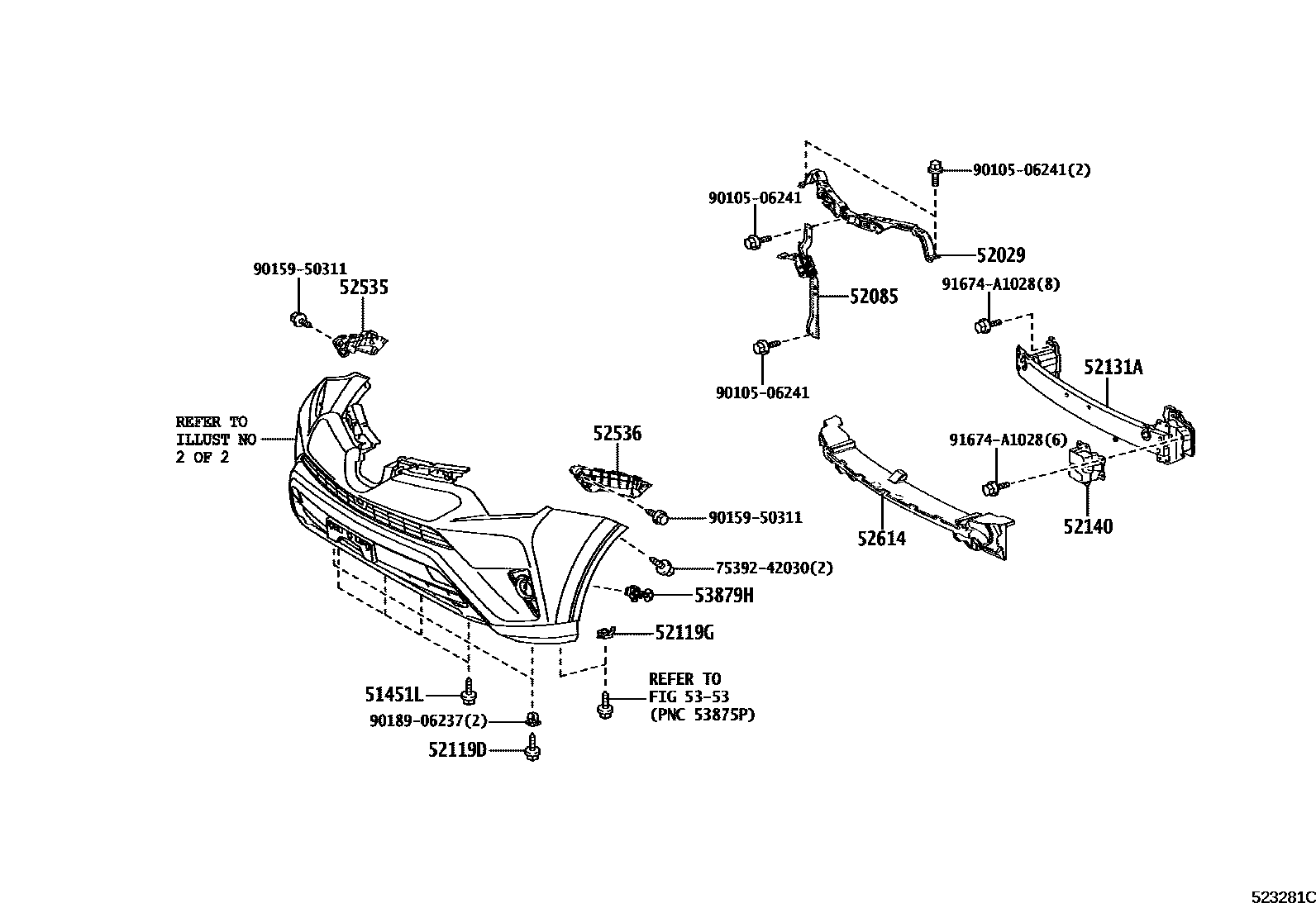

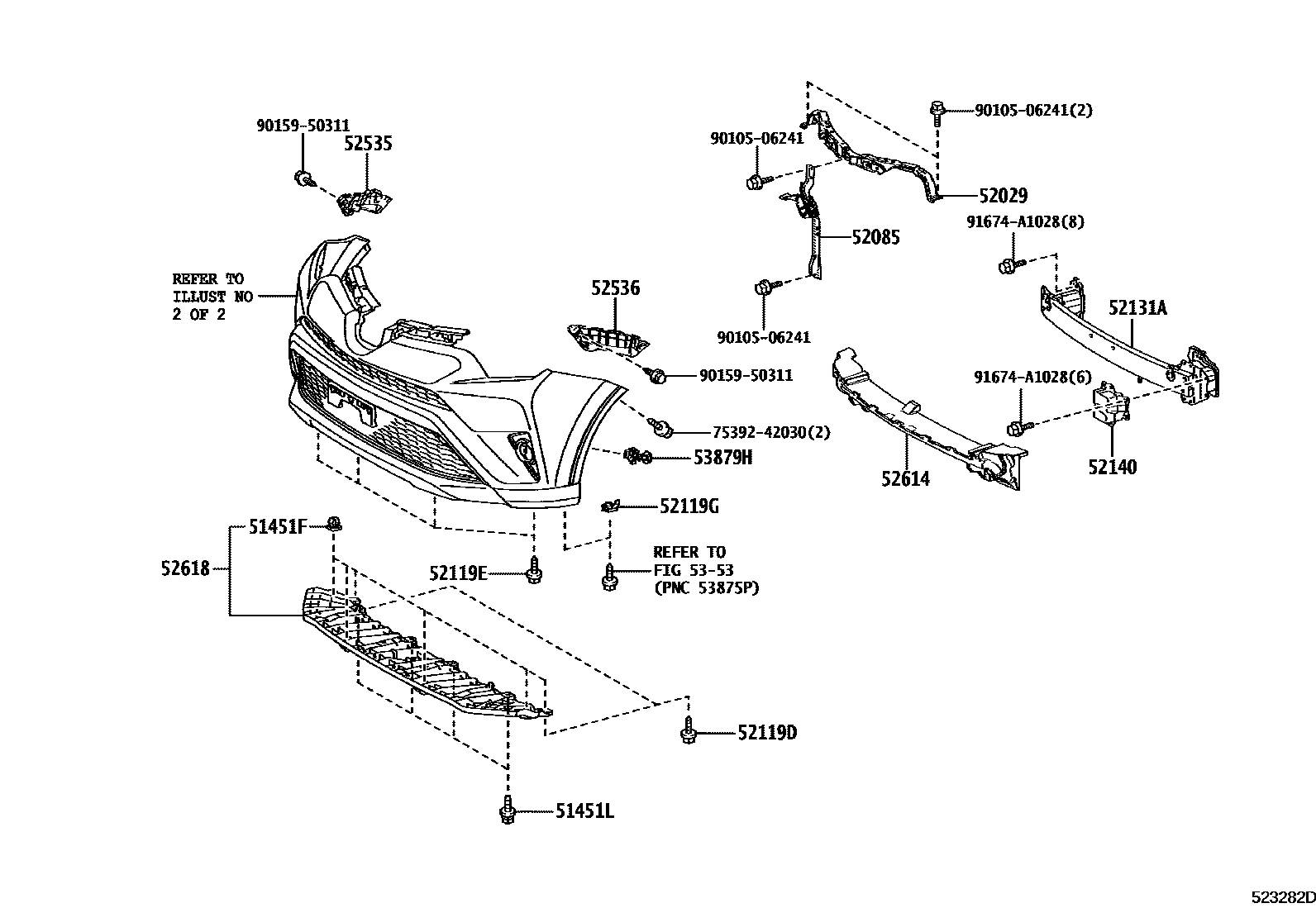

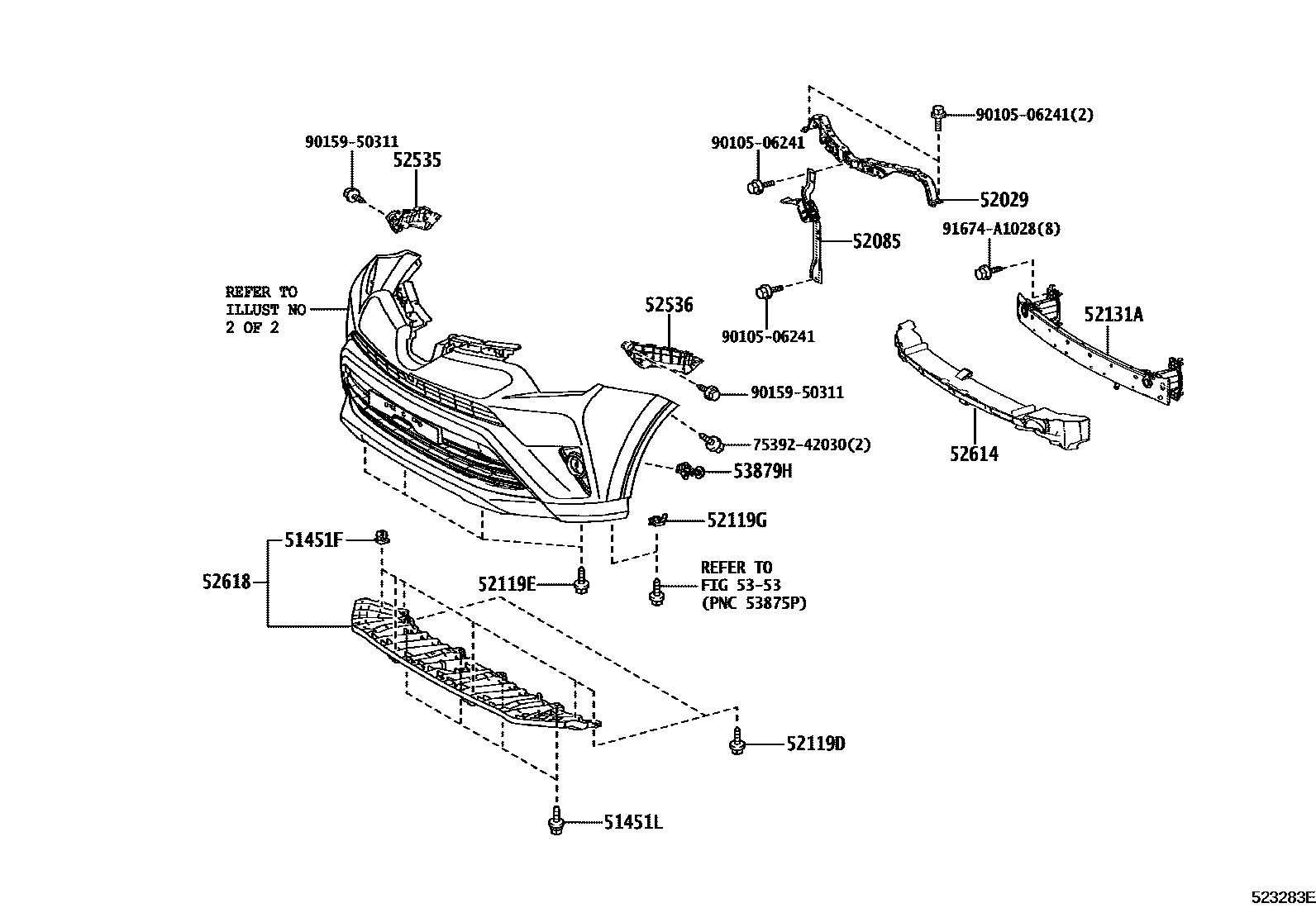

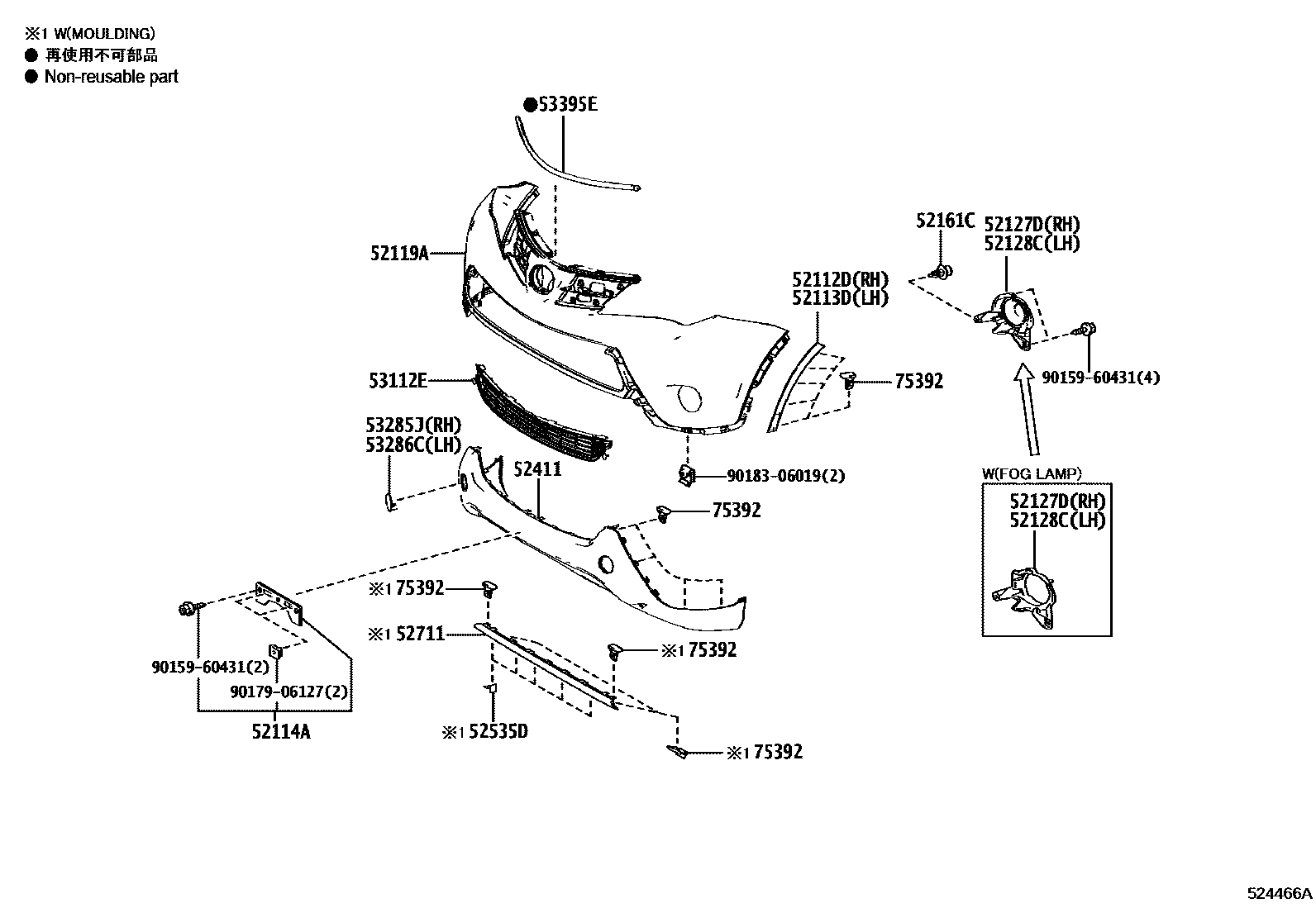

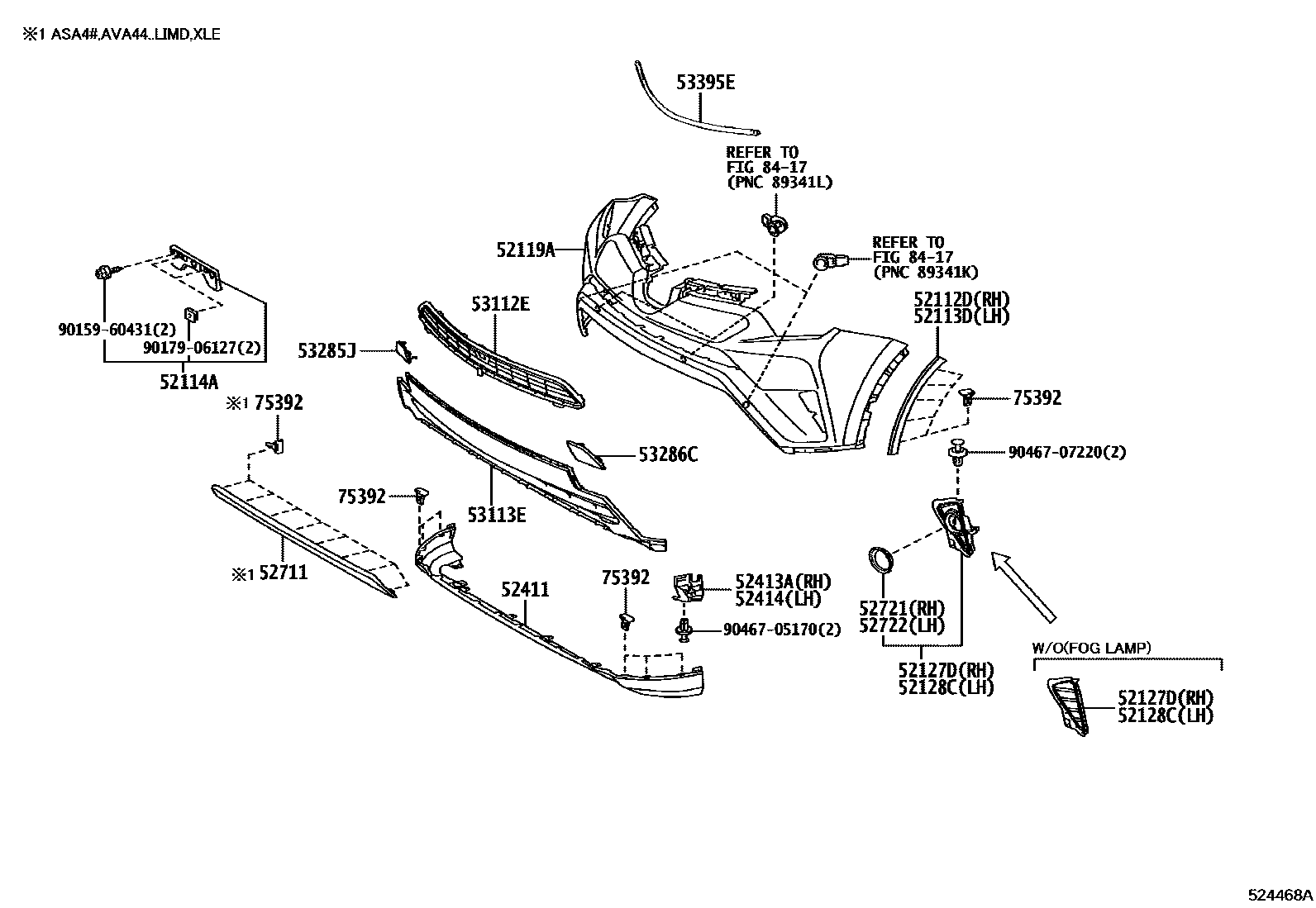

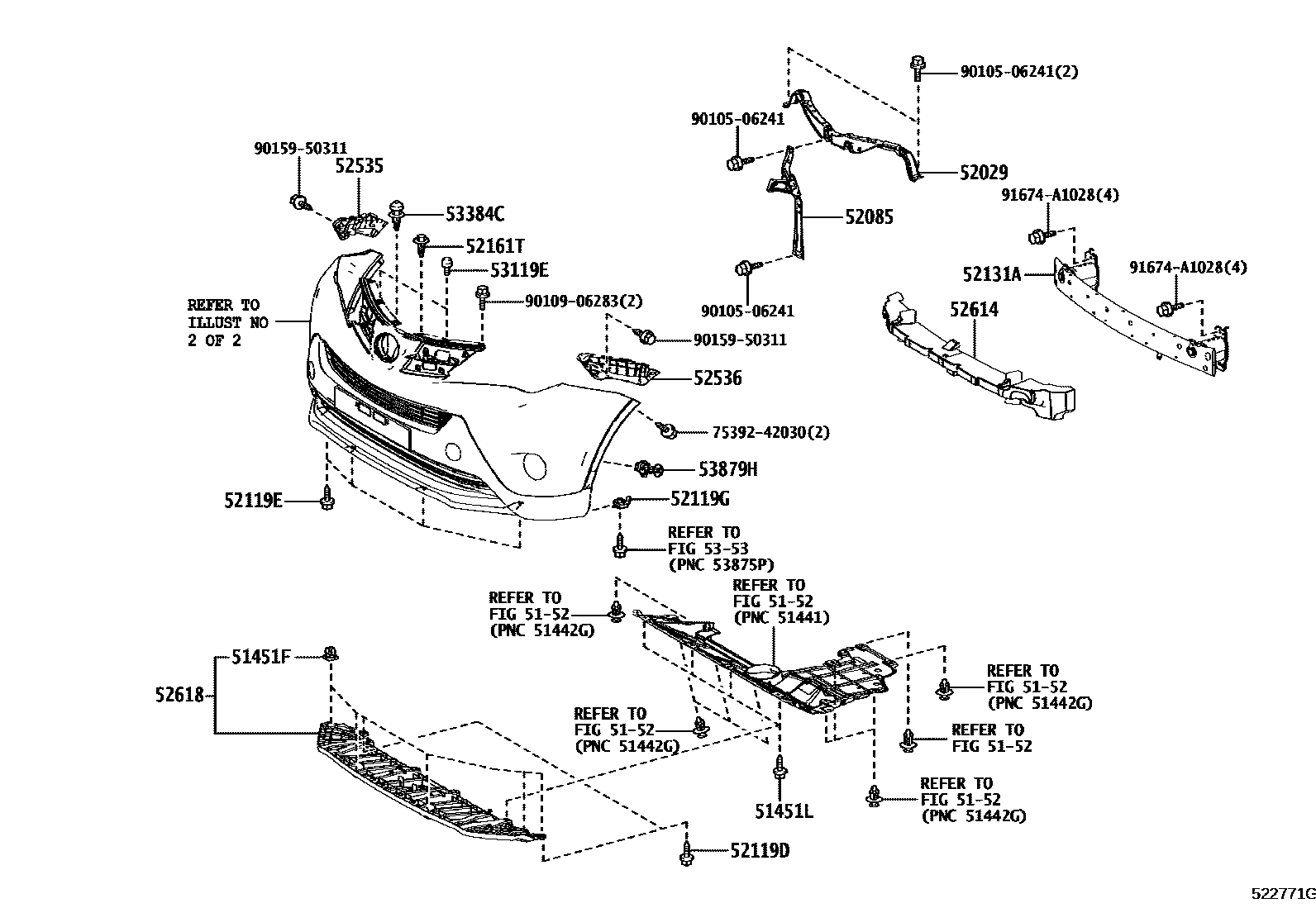

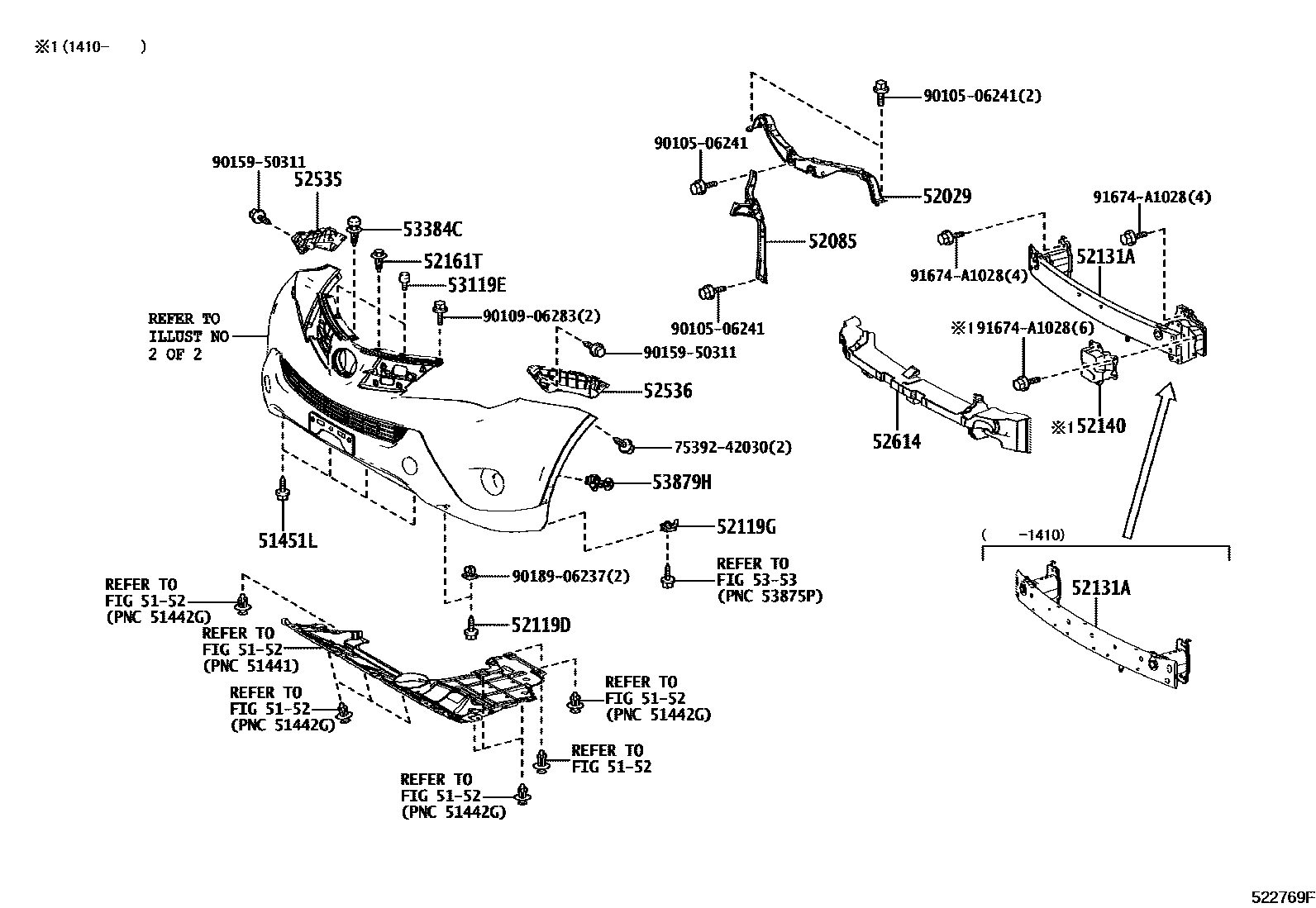

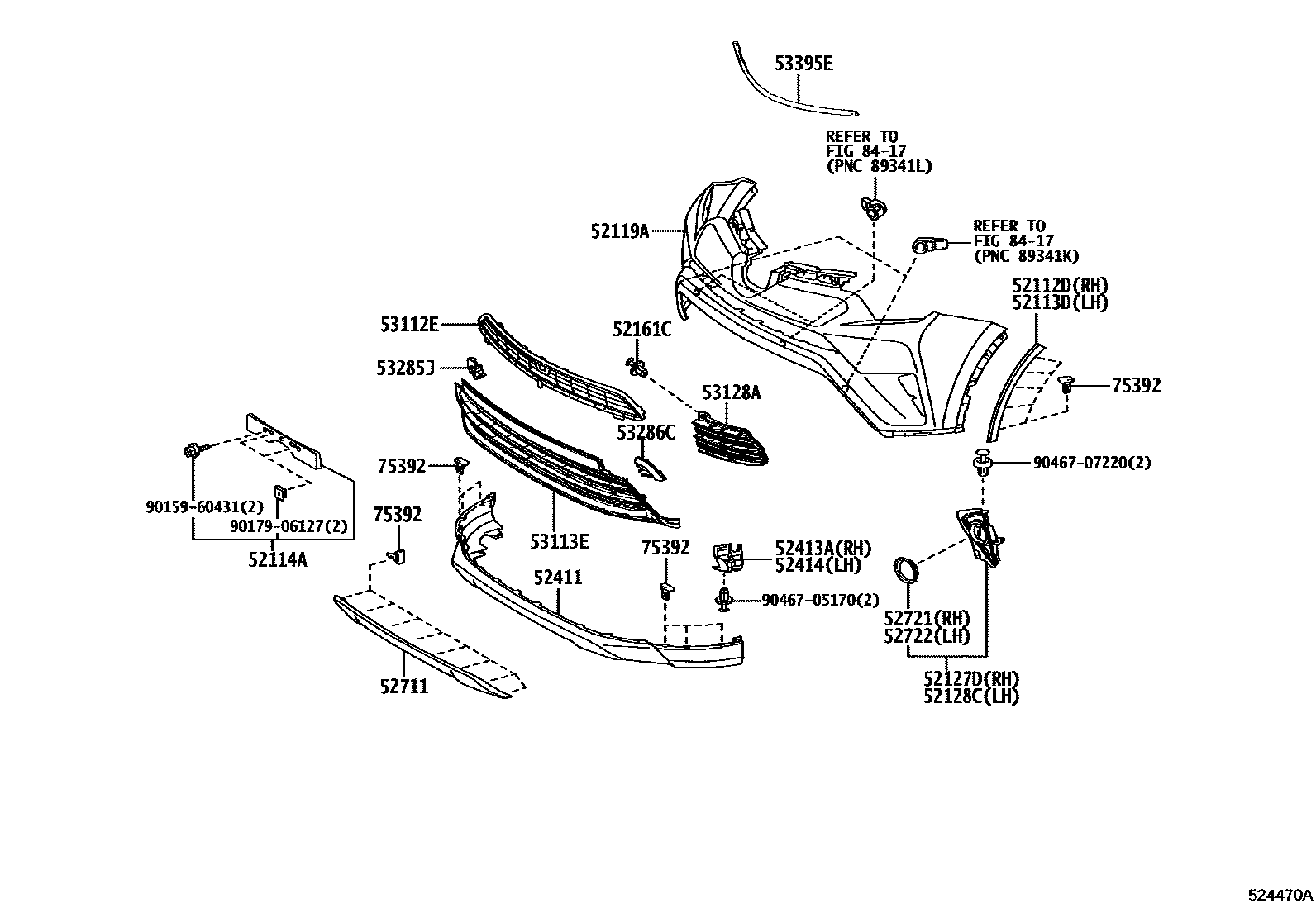

Toyota RAV4 EPC diagram 5252, 前保险杠及附件, with 10 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51451F | OEILLET, NO.1 | 90189-06193 · 90189-06237 |
| 51451L | BOULON, NO.1 | 90119-06767 |
| 52029 | Front bumper upper reinforcement sub-assembly | 52029-42100 · 52029-42110 |
| 52085 | Front bumper center stay sub-assembly | 52085-42040 · 52085-42050 |
| 52112D | Front bumper right extension | 52112-42100 · 52112-42110 · 52112-42904 |
| 52113D | Front bumper left extension | 52113-42100 · 52113-42120 · 52113-42903 |
| 52114A | Front bumper extension mounting bracket | 52114-42100 · 52114-42110 · 52114-42120 · 52114-42130 |
| 52119A | front bumper cover | 52119-4A904 · 52119-4A908 · 52119-4A909 · 52119-4A911 |
| 52119D | VIS, NO.1 | 90159-60431 |
| 52119E | VIS, NO.2 | 90159-60431 |
| 52119G | CLIP, NO.1 | 90467-05114 |
| 52127D | Front bumper right hole cover | 52030-42040 · 52030-42050 · 52030-42060 · 52127-42090 · 52127-42130 |
| 52128C | Front bumper left hole cover | 52040-42040 · 52040-42050 · 52040-42060 · 52128-42090 · 52128-42130 |
| 52131A | Front bumper reinforcement | 52021-42120 · 52021-42130 · 52021-42150 |
| 52140 | Front bumper left side mounting bracket assembly | 52140-42010 |
| 52161C | front bumper insert | 52161-16010 |
| 52161T | front bumper insert | 52161-16010 |
| 52411 | Front bumper anti-collision bar | 52411-42010 · 52411-42020 · 52411-42040 · 52411-42050 · 52411-42060 · 52411-42080 · 52411-42906 |
| 52413A | Front bumper right bumper pad | 52413-42010 |
| 52414 | Front bumper left bumper pad | 52414-42010 |
| 52535 | Front bumper right side fixing bracket | 52535-42070 · 52535-42080 |
| 52535D | Front bumper side fixing bracket | 52535-28020 |
| 52536 | Front bumper left fixed bracket | 52536-42050 · 52536-42070 |
| 52614 | No. 2 energy absorber for front bumper | 52614-42070 · 52614-42080 · 52614-42090 · 52614-42100 · 52614-42110 |
| 52618 | Front bumper lower shock absorber | 52618-42050 · 52618-42070 |
| 52711 | Front bumper protection strip | 52711-42030 · 52711-42040 |
| 52721 | Front bumper right extension protection strip | 52721-42010 · 52721-42030 |
| 52722 | Front bumper left extended section protective strip | 52722-42010 · 52722-42030 |
| 53112E | No. 1 radiator lower grille | 53112-42090 · 53112-42100 · 53112-42110 · 53112-42120 · 53112-42130 |
| 53113E | No. 2 radiator lower grille | 53113-42070 · 53113-42080 · 53113-42100 · 53113-42101 |
| 53119E | Radiator grille protector | 53119-12150 |
| 53127A | Lower right radiator grille | 53127-42040 |
| 53128A | Lower left radiator grille | 53128-42020 · 53128-42080 |
| 53285J | Front bumper arm right hole cover | 53285-42070 · 53285-42080 · 53285-42090 · 53285-42100 · 53285-42110 |
| 53286C | Front bumper arm left hole cover | 53286-42080 · 53286-42090 · 53286-42100 · 53286-42110 · 53286-42120 |
| 53384C | Engine cover center cushion | 53384-68010 |
| 53395E | Engine cover to front end plate seal | 53395-42060 · 53395-42070 |
| 53879H | Front fender lining fixing parts | 53879-28010 |
| 75392 | External protective strip fixings | 75392-35220 |
