Toyota RAV4 后盘式制动器卡钳和防尘罩 — Figure 4707

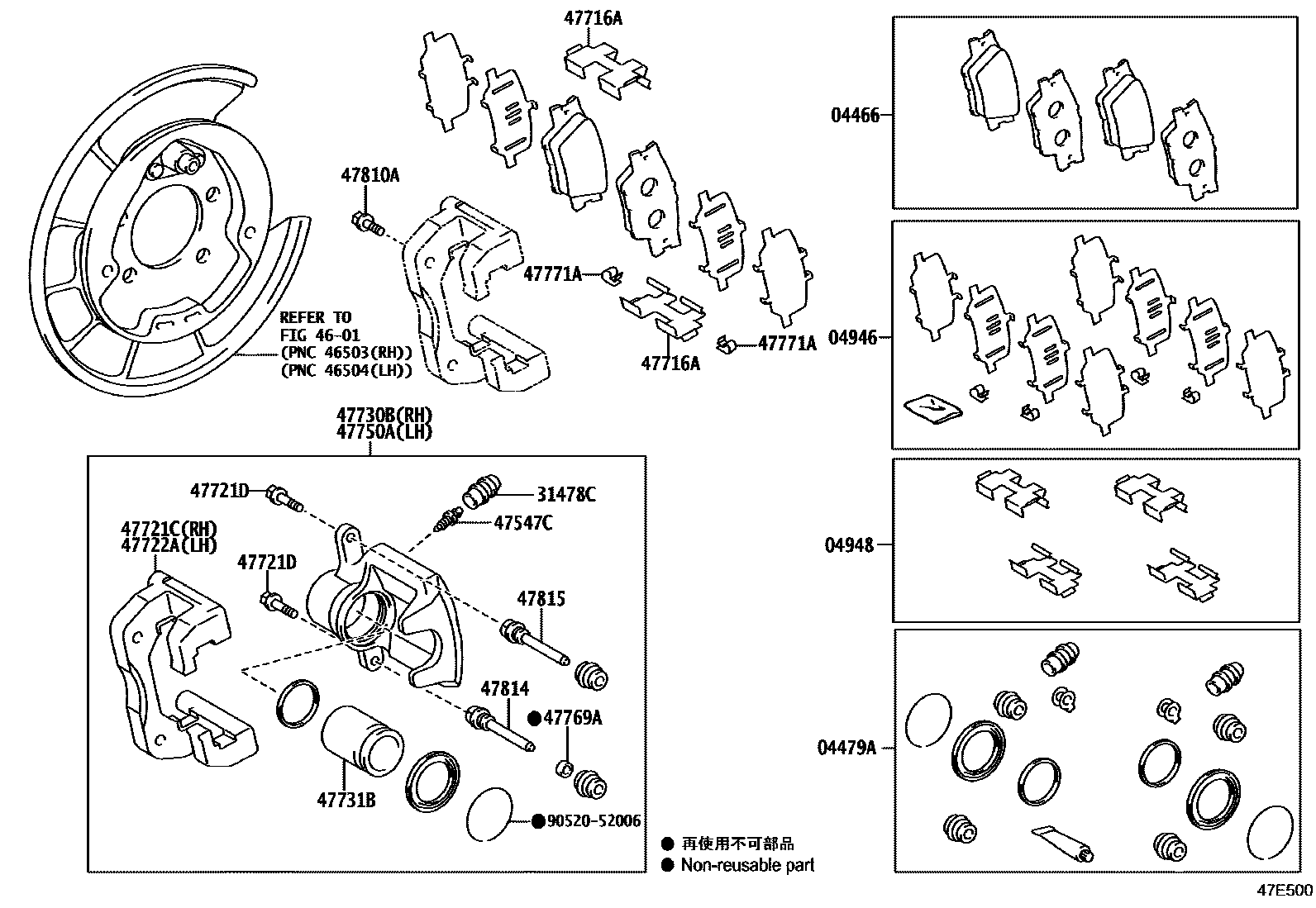

Toyota RAV4 EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04466 | Rear disc brake pad assembly | 04466-42060 |
| 04479A | Rear disc brake cylinder assembly | 04479-33350 |
| 04946 | Silencer spacer assembly (for rear disc brake) | 04946-33070 · 04946-42030 · 04946-42050 |
| 04948 | Rear disc brake mounting assembly | 04948-42030 · 04948-75010 |
| 31478C | Bleed plug cap (for rear disc brake) | 31478-50020 |
| 47547C | Bleed plug (for rear disc brake) | 47547-20010 |
| 47716A | Pad support plate No. 1 (for rear disc brake) | 47816-42080 · 47816-75010 |
| 47721C | Right rear disc brake cylinder retainer | 47821-42080 |
| 47721D | Bolt (for rear disc brake cylinder retainer) | 90105-08164 |
| 47722A | Left rear disc brake cylinder retainer | 47822-42070 |
| 47730B | Right rear disc brake cylinder assembly | 47830-42080 |
| 47731B | rear disc brake piston | 47831-33210 |
| 47750A | Left rear disc brake cylinder assembly | 47850-42070 |
| 47769A | No. 1 brake cylinder sliding sleeve (for rear disc brake) | 47879-33240 |
| 47771A | Pad wear indicator disc (for rear disc brakes) | 47771-32030 · 47771-72010 · 47871-47060 |
| 47810A | Hexagonal bolt (for rear brake caliper) | 90105-12314 |
| 47814 | No. 1 brake cylinder sliding pin (for rear disc brake) | 47814-33240 |
| 47815 | No. 2 rear brake cylinder sliding pin (for rear disc brake) | 47815-33240 |
