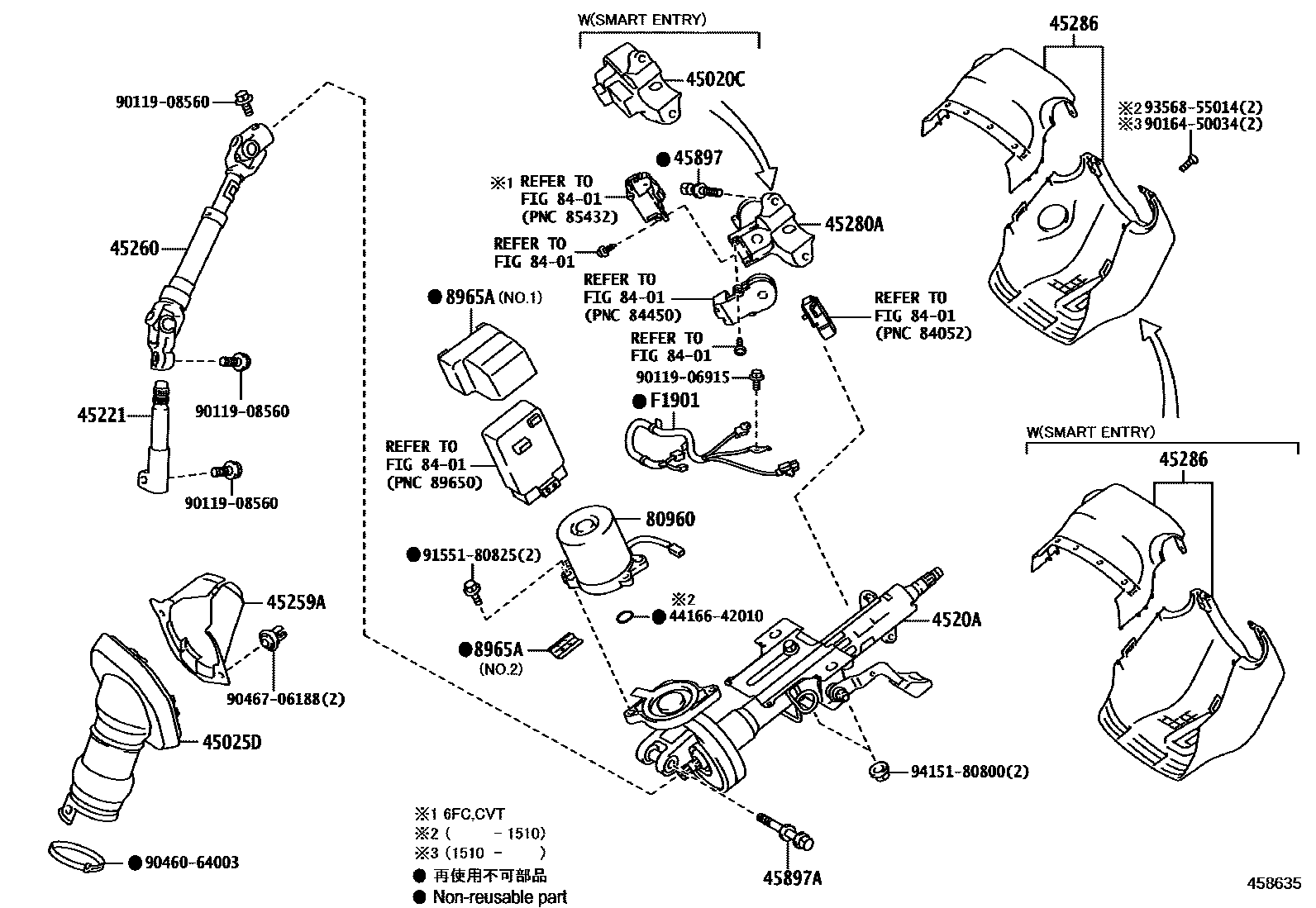

Toyota RAV4 Steering Column & Shaft — Figure 4501
Toyota RAV4 EPC diagram 4501, Steering Column & Shaft, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020C | ENS. ACTIONNEUR, ANTIVOL DIRECTION(AV/ECU) | 45020-33170 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-42080 |
| 4520A | Electric steering column sub-assembly | 4520A-42070 · 4520A-42090 · 4520A-42100 |
| 45221 | steering intermediate shaft | 45221-42090 |
| 45259A | Steering column hole cover silencer plate | 45259-42020 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-42110 |
| 45280A | Steering column upper bracket assembly | 45280-42190 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 90119-10981 |
| 80960 | Power steering motor assembly | 80960-42050 |
| 8965A | Power steering ECU protection device | 8965A-33030 · 8965A-33040 |
| F1901 | ECU wiring harness sub-assembly | F1901-42011 |
