Toyota RAV4 前桥壳和差速器 — Figure 4301

Toyota RAV4 EPC diagram 4301, 前桥壳和差速器, with 2 images and 22 PNC and OE references.

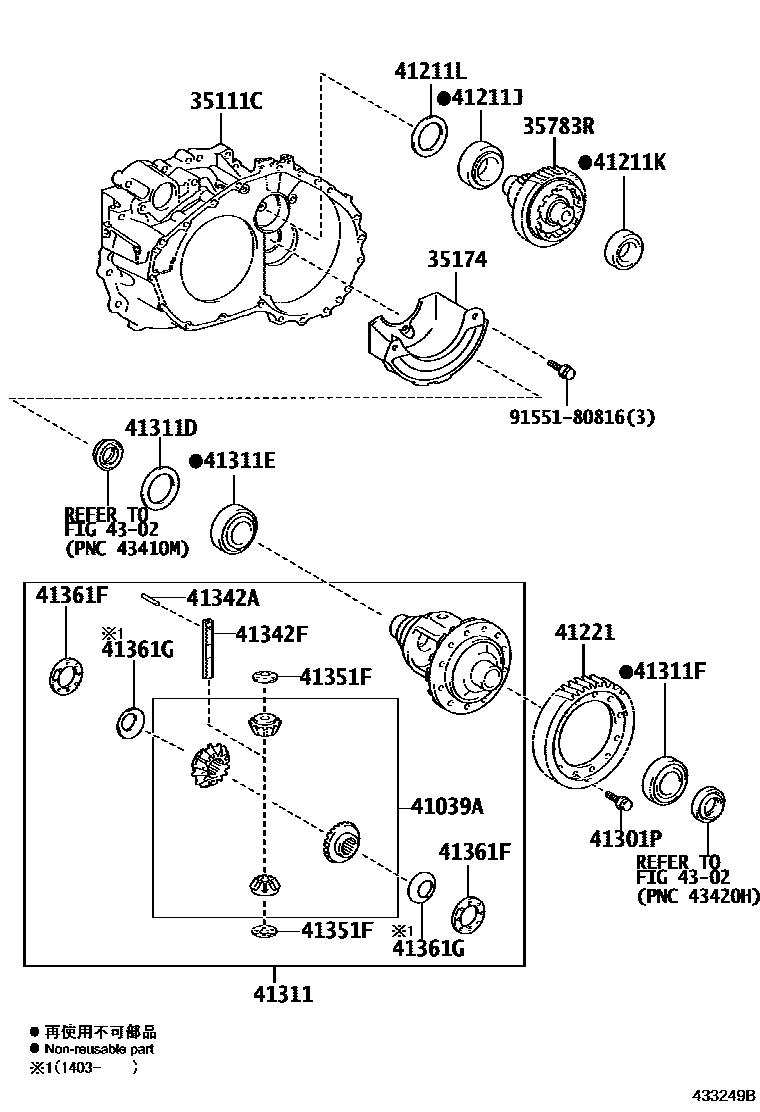

Toyota RAV4 前桥壳和差速器 EPC diagram — 433249B
前桥壳和差速器 — 433249B (201212 – 999999)

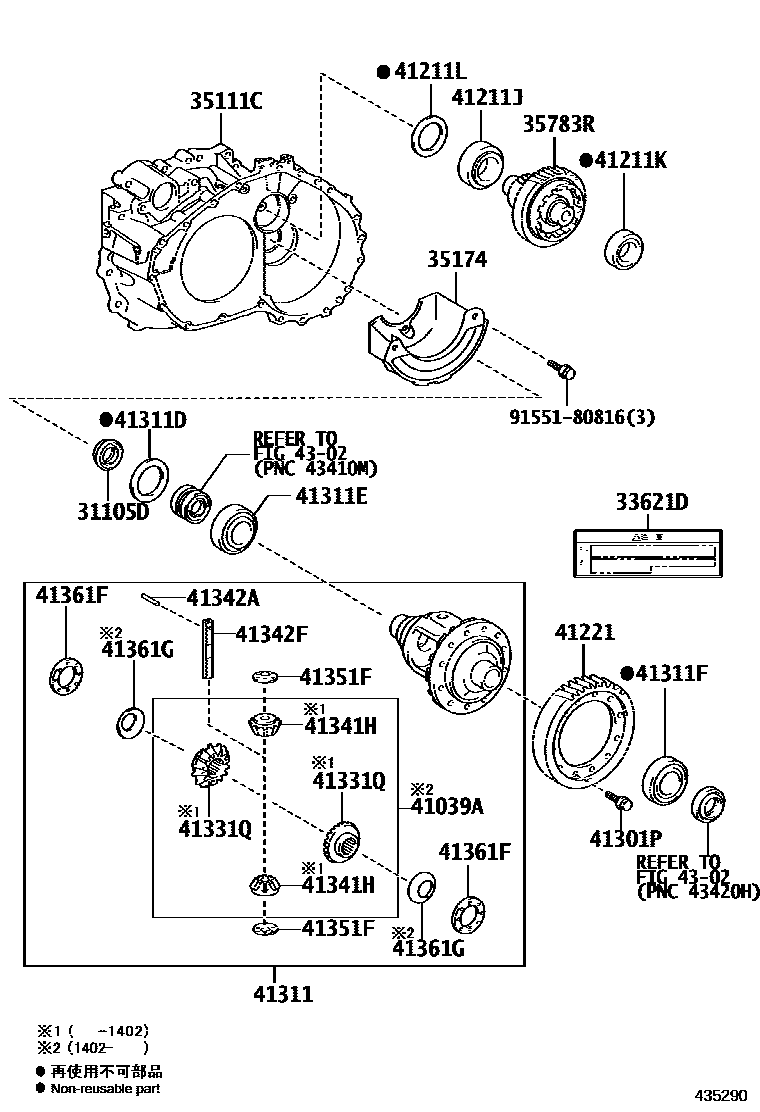

Toyota RAV4 前桥壳和差速器 EPC diagram — 435290
前桥壳和差速器 — 435290 (201212 – 999999)

PNC and OE references

PNCPart nameOE numbers
31105DNo. 1 oil seal (for front transmission axle housing)90311-55005
33621DTransaxle oil information label33621-28021
35111CTransmission axle housing35105-33022 · 35105-42050 · 35105-73030 · 35105-73031 · 35105-73040
35174Transmission axle housing oil separator35174-73010 · 35174-73020
35783Rcountershaft driven gear35705-33030 · 35705-33040 · 35705-33090 · 35705-33120 · 35705-42010 · 35705-42020 · 35705-42030
41039ADifferential gear assembly41039-28020 · 41039-28030 · 41039-33080 · 41039-48040
41211JRight-hand tapered bearing (for differential drive pinion)90366-35167
41211KLeft side roller bearing (for differential drive pinion)90366-32034
41211LSpacer (for differential drive pinion)90564-61022 · 90564-61023 · 90564-61024 · 90564-61025 · 90564-61026 · 90564-61027 · 90564-61028 · 90564-61029 · 90564-61030 · 90564-61031 · 90564-61032 · 90564-61033 · 90564-61034 · 90564-61035 · 90564-61036 · 90564-61037 · 90564-61038 · 90564-61039 · 90564-61040 · 90564-61041 · 90564-61042 · 90564-61043 · 90564-61044 · 90564-61045 · 90564-61046 · 90564-61047 · 90564-61048 · 90564-61049 · 90564-61050 · 90564-61051 · 90564-61052 · 90564-61053 · 90564-61054 · 90564-61055 · 90564-61056 · 90564-61057 · 90564-61058 · 90564-61059 · 90564-61060 · 90564-61061 · 90564-61062
41221Front differential ring gear41221-33180 · 41221-33190 · 41221-33260 · 41221-42140 · 41221-42180 · 41221-42210
41301PScrew (for front differential case)90105-12303
41311front differential case41301-33101 · 41301-42250 · 41301-48090 · 41301-48130 · 41301-73010 · 41301-73011
41311DFront gasket (for front differential case)90564-69001 · 90564-69002 · 90564-69003 · 90564-69004 · 90564-69005 · 90564-69006 · 90564-69007 · 90564-69008 · 90564-69009 · 90564-69010 · 90564-69011 · 90564-69012 · 90564-69013 · 90564-69014 · 90564-69015 · 90564-69016 · 90564-69017 · 90564-69020 · 90564-69021 · 90564-69022 · 90564-69023 · 90564-69024 · 90564-69025 · 90564-69026 · 90564-69027 · 90564-69028 · 90564-69029 · 90564-69030 · 90564-69031 · 90564-69032 · 90564-69033 · 90564-69034 · 90564-69035 · 90564-69036 · 90564-69037 · 90564-69038 · 90564-82009 · 90564-82010 · 90564-82011 · 90564-82012 · 90564-82013 · 90564-82014 · 90564-82015 · 90564-82016 · 90564-82017 · 90564-82018 · 90564-82019 · 90564-82020 · 90564-82021 · 90564-82022 · 90564-82023 · 90564-82024 · 90564-82025 · 90564-82026 · 90564-82027 · 90564-82028 · 90564-82029 · 90564-82030 · 90564-82031 · 90564-82032 · 90564-82033 · 90564-82034 · 90564-82035 · 90564-82036 · 90564-82037 · 90564-82038 · 90564-82039 · 90564-82040 · 90564-82041 · 90564-82042 · 90564-82043 · 90564-82044
41311EFront roller tapered bearing (for front differential housing)90366-50118 · 90366-62004
41311FRear tapered bearing (for front differential housing)90366-55071
41331QDifferential side gear41331-33040
41341Hdifferential planetary gear41341-35050
41342ADirect sales (for front differential planetary gear shaft)90250-06058
41342FNo. 1 front differential planetary gear shaft41342-33050 · 41342-33051 · 41342-33061 · 41342-42040 · 41342-73010 · 41342-73011
41351FFront differential planetary gear thrust washer41351-33030 · 41351-73010
41361FNo. 1 front differential side gear thrust washer41361-33020 · 41361-33030 · 41361-33040 · 41361-33050 · 41361-33060 · 41361-33070 · 41361-33080 · 41361-33090 · 41361-33100 · 41361-33110 · 41361-33120 · 41361-33130 · 41361-33140 · 41361-33150 · 41361-33160 · 41361-33170 · 41361-33180 · 41361-33190 · 41361-33300 · 41361-33310 · 41361-33320 · 41361-33330 · 41361-33340 · 41361-33350 · 41361-33360 · 41361-33370 · 41361-33380 · 41361-33390 · 41361-33400 · 41361-33410 · 41361-73010 · 41361-73020 · 41361-73030 · 41361-73050
41361GConical spring washer (for center differential side gears)90208-40003 · 90208-45001
