Toyota RAV4 车轮和车轮盖 — Figure 4103
Toyota RAV4 EPC diagram 4103, 车轮和车轮盖, with 4 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-33030 · 04423-33060 |
| 04423B | Tire pressure monitoring valve or balancer valve mounting assembly (spare) | 04423-33030 · 04423-33060 |

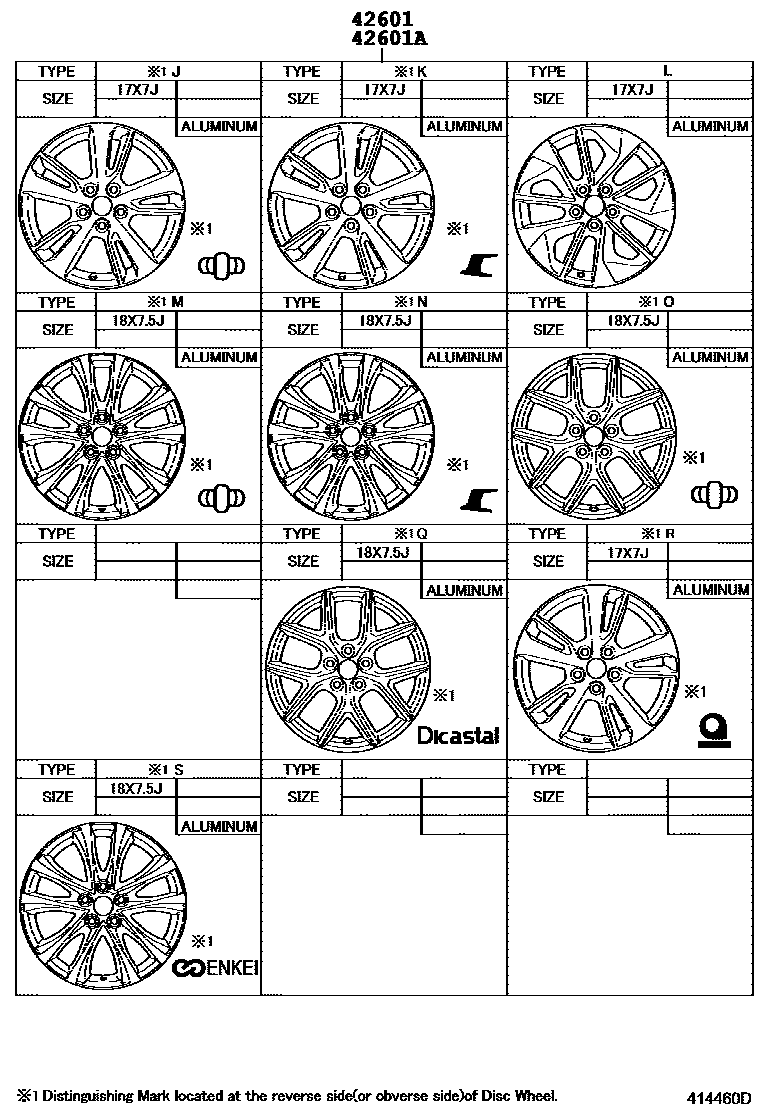

| 42601 | spoke wheel | 42611-0R200 · 42611-42250 · 42611-42410 · 42611-42420 · 42611-42430 · 42611-42450 · 42611-42460 · 42611-42510 · 42611-42550 · 42611-42560 · 42611-42561 · 42611-42660 · 42611-42680 · 42611-42700 · 42611-42710 · 4261A-42020 · 4261A-42070 · 4261A-42080 · 4261A-42090 · 4261A-42110 |
| 42601A | Spoke wheel (for spare tire) | 42611-42250 · 42611-42410 · 42611-42430 · 42611-42470 · 42611-42510 · 42611-42550 · 42611-42660 · 42611-42680 · 42611-42710 · 4261A-42020 · 4261A-42080 |

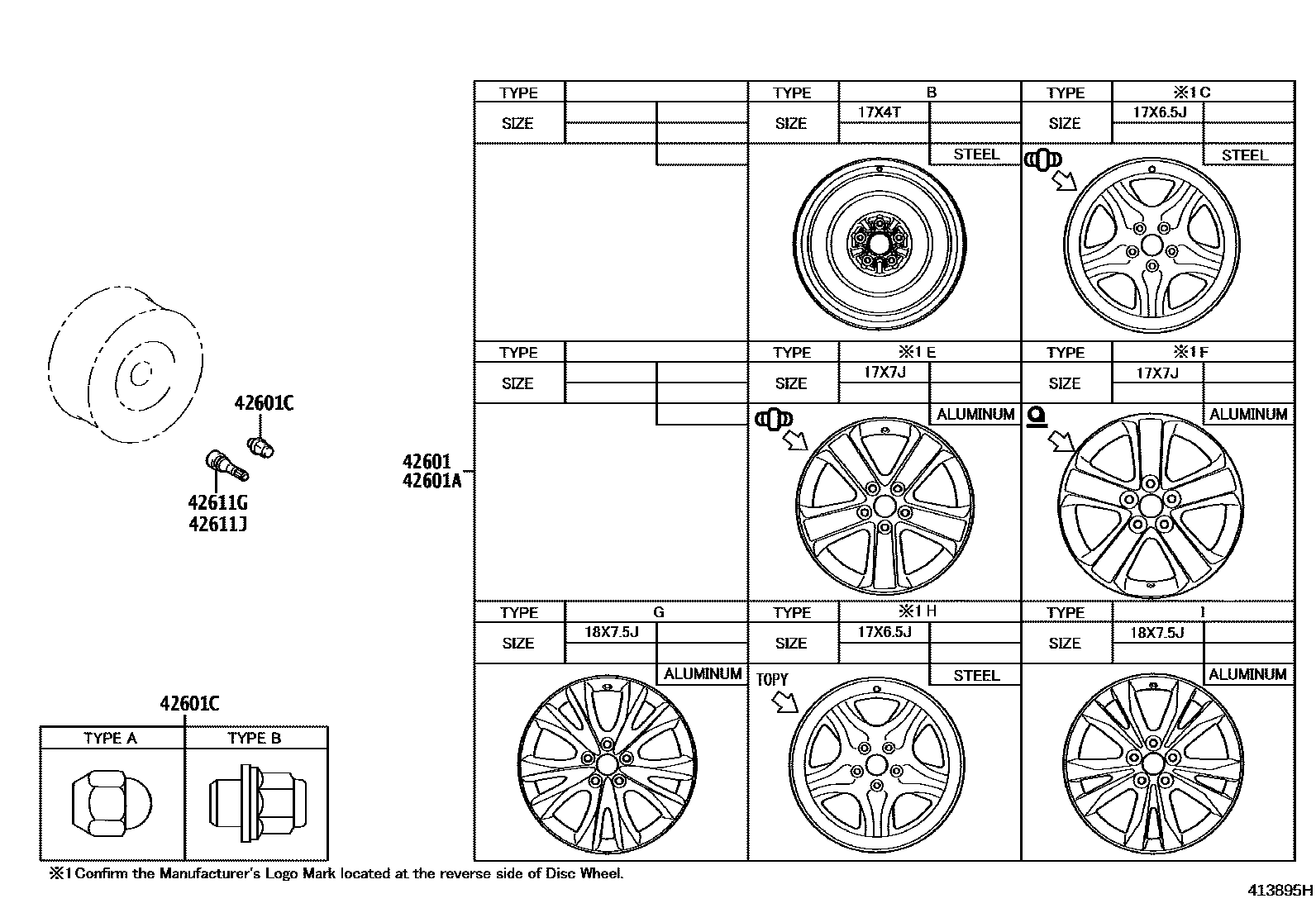

| 42601C | Hub nut (for axle) | 90942-01021 · 90942-01033 |

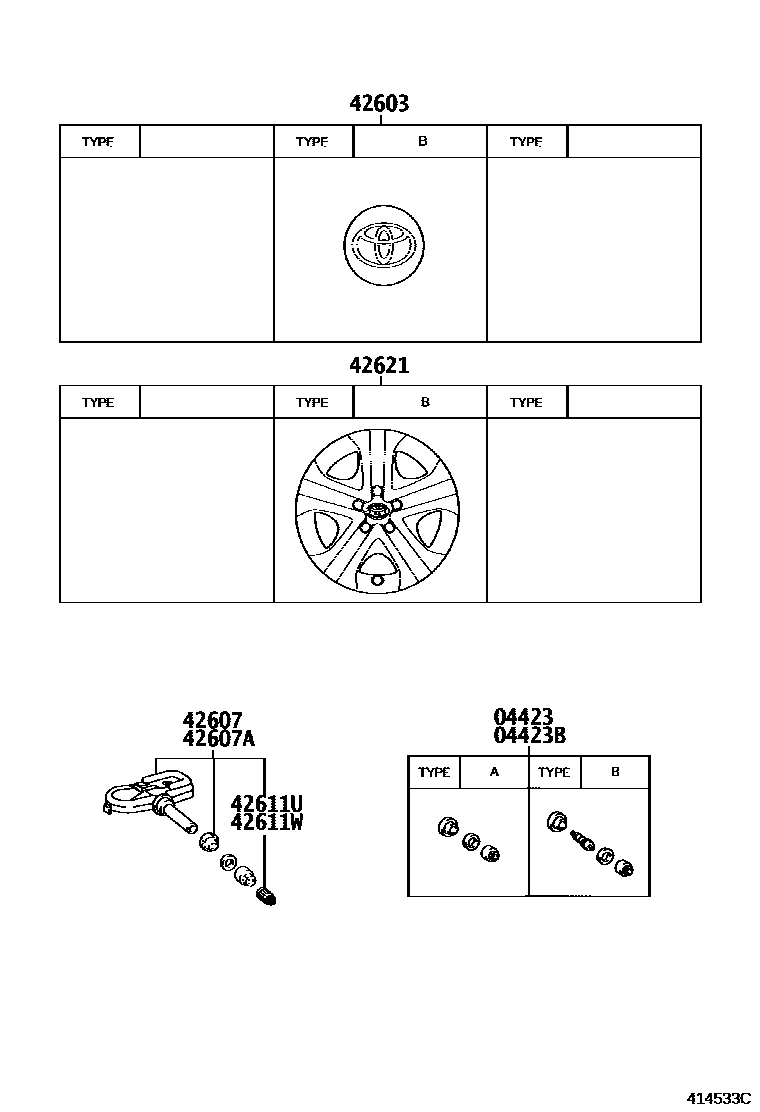

| 42603 | Wheel hub decorative parts sub-assembly | 42603-12760 · 42603-48140 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-42020 · 42607-42021 · 42607-52020 |
| 42607A | Tire pressure monitoring valve sub-assembly (for spare tire) | 42607-52020 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42611U | tire valve cover | 90942-05039 |
| 42611W | Tire valve cap (for spare tire) | 90942-05039 |
| 42621 | wheel cover | 42602-42020 · 42602-42030 |
