Toyota RAV4 Transfer Case & Extension Housing — Figure 3609

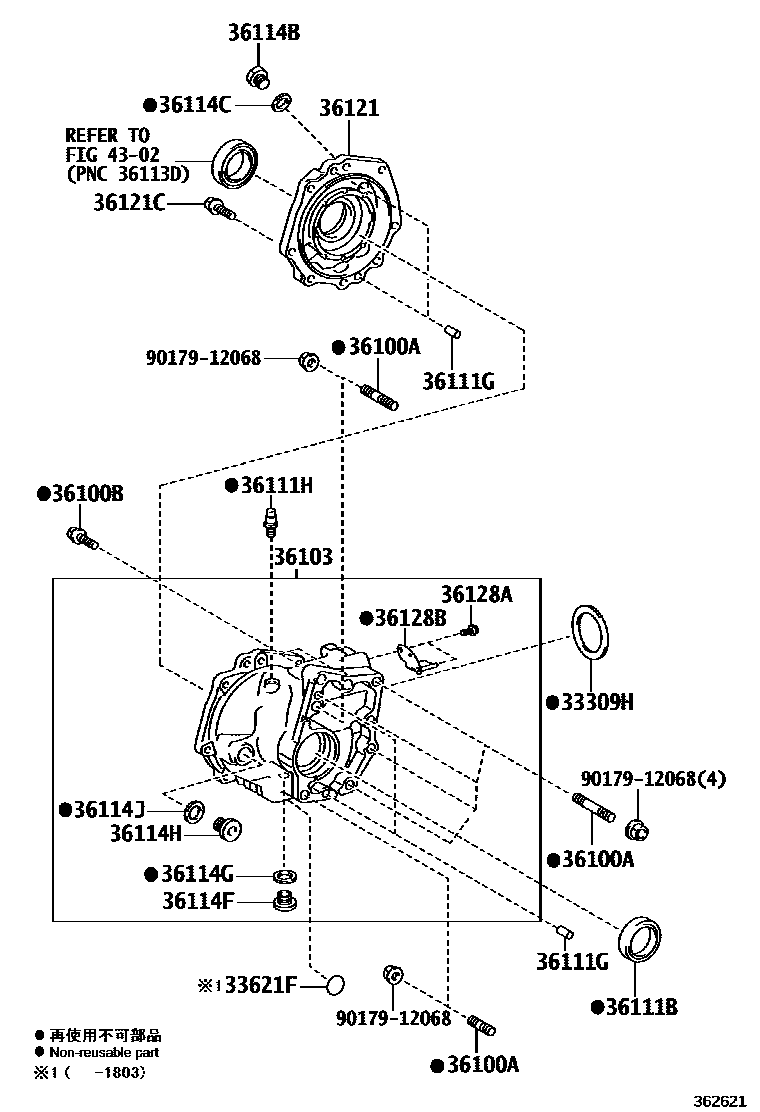

Toyota RAV4 EPC diagram 3609, Transfer Case & Extension Housing, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33309H | Transfer case output shaft washer | 36275-52010 · 36275-52020 · 36275-52030 · 36275-52040 · 36275-52050 · 36275-52060 · 36275-52070 · 36275-52080 · 36275-52090 · 36275-52100 · 36275-52110 · 36275-52120 · 36275-52130 · 36275-52140 · 36275-52150 · 36275-52160 · 36275-52170 · 36275-52180 · 36275-52190 · 36275-52200 · 36275-52210 · 36275-52220 · 36275-52230 · 36275-52240 · 36275-52250 · 36275-52260 · 36275-52270 · 36275-52280 |
| 33621F | Transaxle oil information label | 33621-42030 · 33621-48020 |
| 36100A | Stud bolts (for securing transfer case and transaxle) | 90116-12028 · 90116-12034 · 90116-12041 |
| 36100B | Bolts (for securing transfer case and transaxle) | 90105-12298 |
| 36103 | Transfer case sub-assembly | 36103-42040 · 36103-42041 · 36103-42070 |
| 36111B | Oil seal (for transfer case) | 90311-55002 |
| 36111G | Direct sales (for transfer case) | 90250-10017 |
| 36111H | Breather plug (for transfer case) | 90930-03133 |
| 36114B | No. 1 screw plug (for transfer case) | 90341-18006 |
| 36114C | No. 1 gasket (for transfer case) | 12157-10010 |
| 36114F | Screw plug (for transfer case oil drain) | 90341-18051 |
| 36114G | Gasket (for transfer case drain plug) | 12157-10010 |
| 36114H | No. 2 screw plug (for transfer case) | 90341-18023 |
| 36114J | No. 2 gasket (for transfer case) | 12157-10010 |
| 36121 | No. 1 transfer case cover | 36121-52020 |
| 36121C | Hexagon head bolt with washer base (for transfer case cover) | 91552-81030 |
| 36128A | Bolt (for vent oil deflector) | 91621-60614 |
| 36128B | Air vent oil baffle | 36128-42010 |
