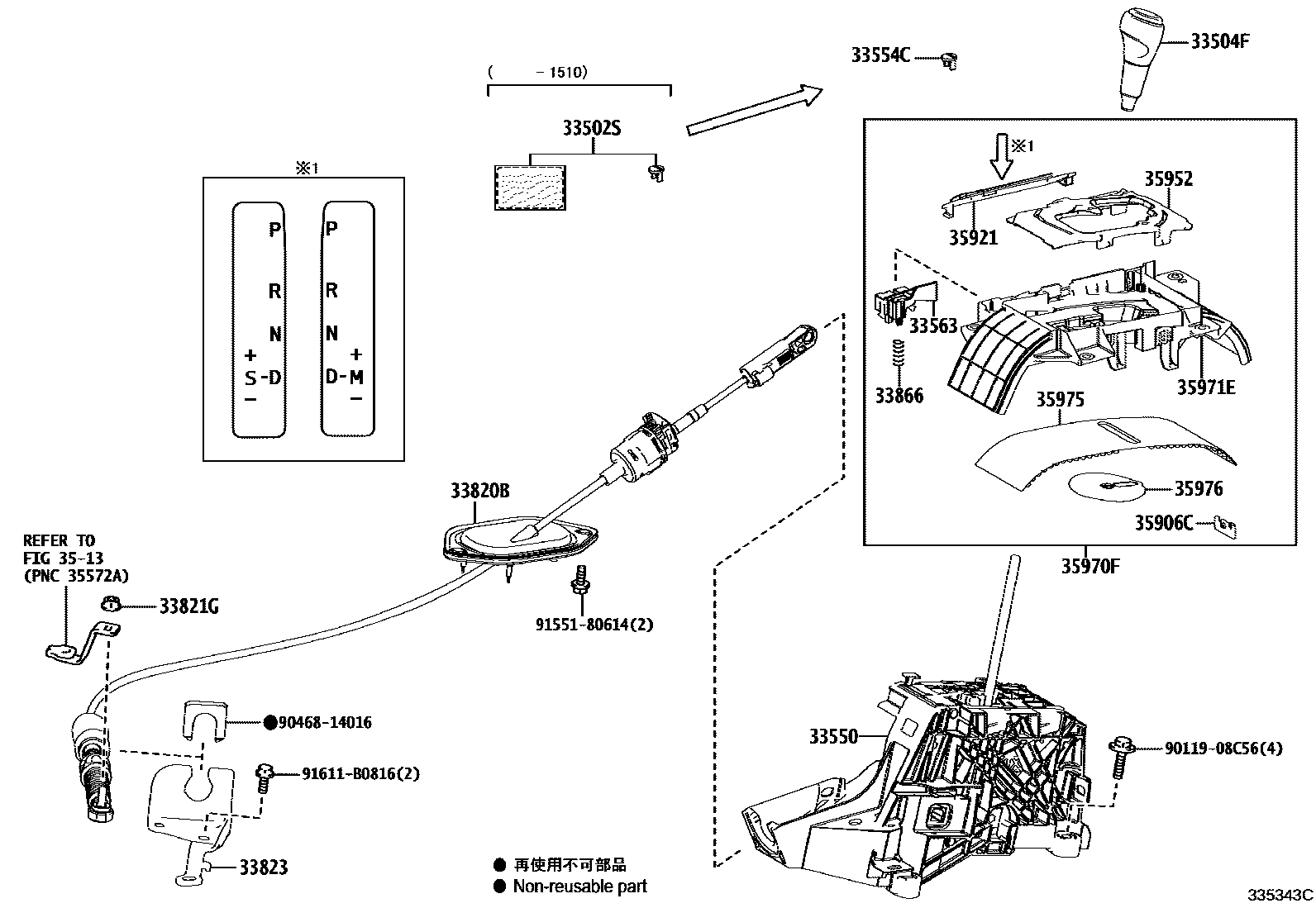

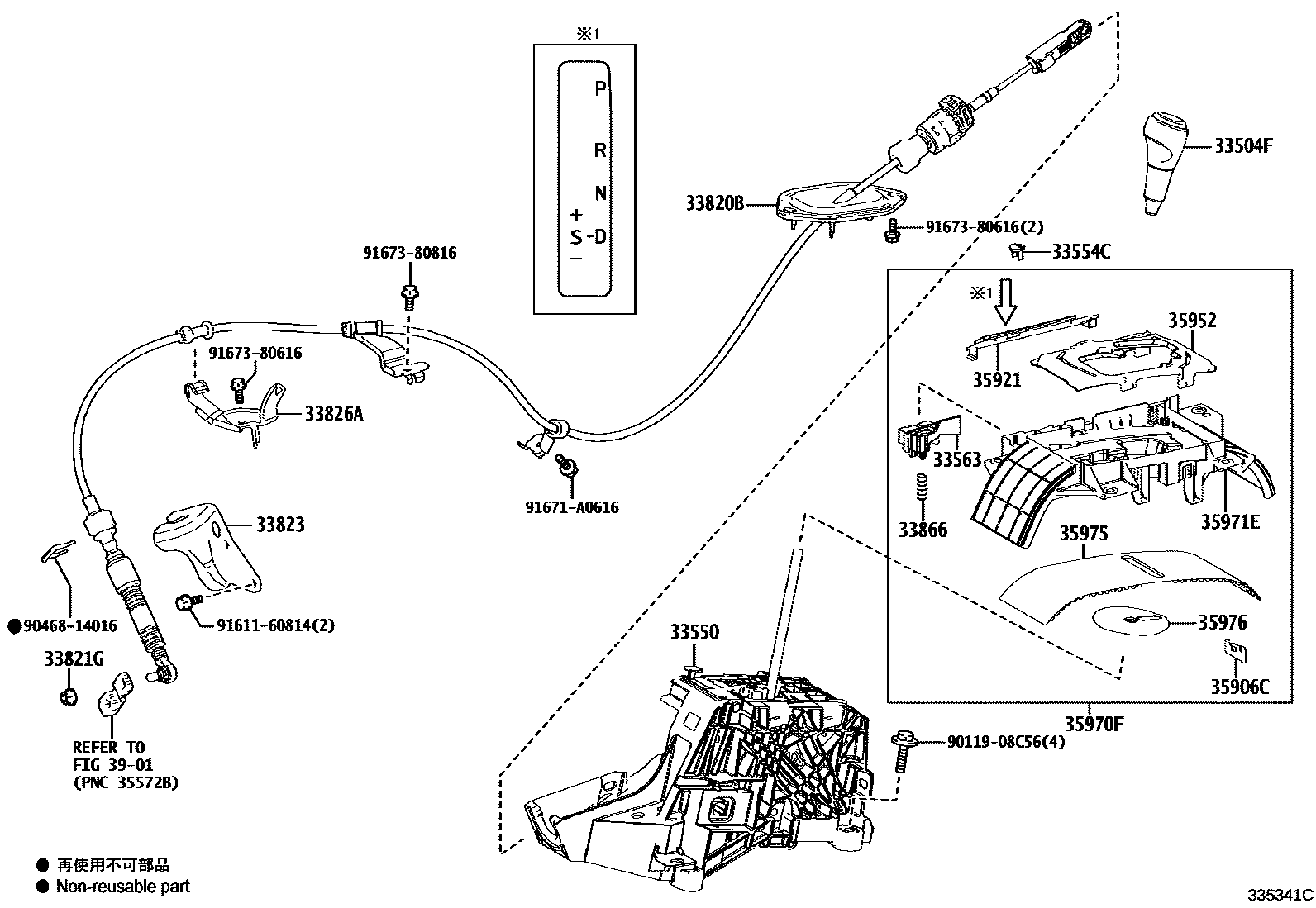

Toyota RAV4 Shift Lever & Retainer — Figure 3312
Toyota RAV4 EPC diagram 3312, Shift Lever & Retainer, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33502S | JEU DE COUVERCLE, VERROU A BASCULE AVEC ETIQUETTE | 33502-42060 |
| 33550 | Transmission floor shift assembly | 33550-42230 |
| 33554C | Shift lock release button cover | 33554-42050 |
| 33563 | Shift lock release button | 33563-42100 |
| 33820B | Transmission control cable assembly | 33820-42370 · 33820-42430 |
| 33821G | Nut (for transmission control cable) | 90179-08061 · 94151-80800 |
| 33823 | No. 1 transmission control cable bracket | 33823-28280 · 33823-42040 |
| 33826A | No. 2 transmission control cable bracket | 33826-48100 |
| 33866 | Shift lock release spring | 33866-33010 |
| 35906C | PUCE, TEMOIN LUMINEUX | 35906-49005 |
| 35921 | control position indicator board | 35921-42060 |
| 35952 | Position indicator lampshade | 35952-42020 |
| 35970F | Position indicator light housing assembly | 35970-42130 · 35970-42180 |
| 35971E | position indicator housing | 35971-42050 |
| 35975 | Slide cover (for position indicator light) | 35975-42040 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-42020 |
