Toyota RAV4 燃油喷射系统 — Figure 2211

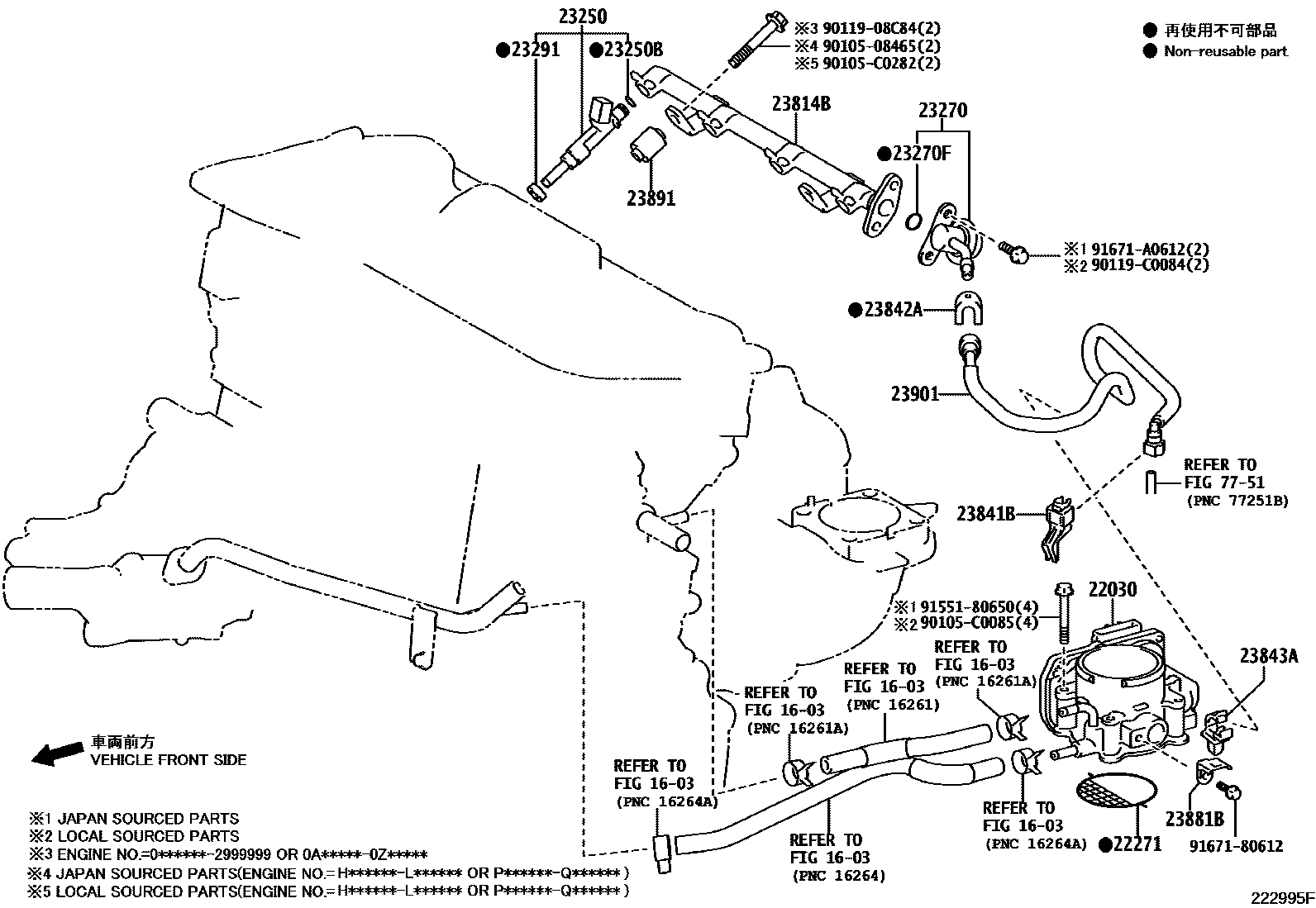

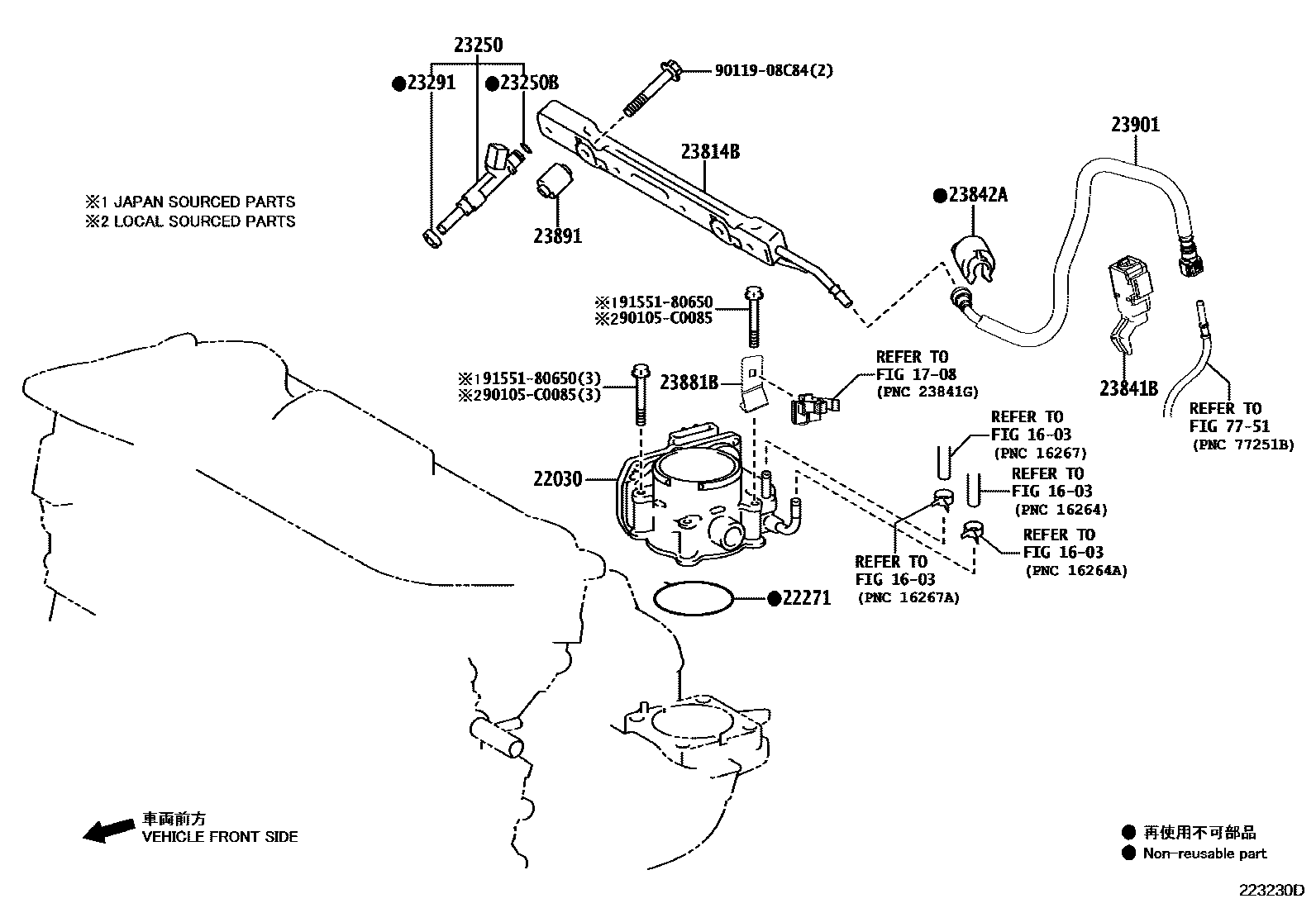

Toyota RAV4 EPC diagram 2211, 燃油喷射系统, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22030 | Electronic throttle body assembly | 22030-0V030 · 22030-0V040 · 22030-36010 · 22030-36020 |
| 22271 | Throttle body gasket | 22271-36010 · 22271-36020 |
| 23250 | Fuel injector assembly | 23209-09230 · 23209-39175 |
| 23250B | O-ring (for fuel injector) | 90301-07037 · 90301-C0072 |
| 23270 | Fuel pressure pulsation damper assembly | 23270-36031 |
| 23270F | O-ring (for pulsation damper) | 90301-07037 |
| 23291 | Injector vibration isolation pad | 23291-0V010 · 23291-28020 |
| 23814B | oil pipeline | 23814-0V050 · 23814-36040 · 23814-36050 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-36020 · 23841-37080 · 23841-37081 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23842-28010 |
| 23843A | No. 3 fuel pipe clamp (for EFI) | 23847-28010 |
| 23881B | fuel hose bracket | 23881-36010 · 23881-36040 |
| 23891 | oil pipe septum | 23891-36010 |
| 23901 | Fuel pipe sub-assembly | 23901-36070 · 23901-36140 |
