Toyota RAV4 Alternator — Figure 1903

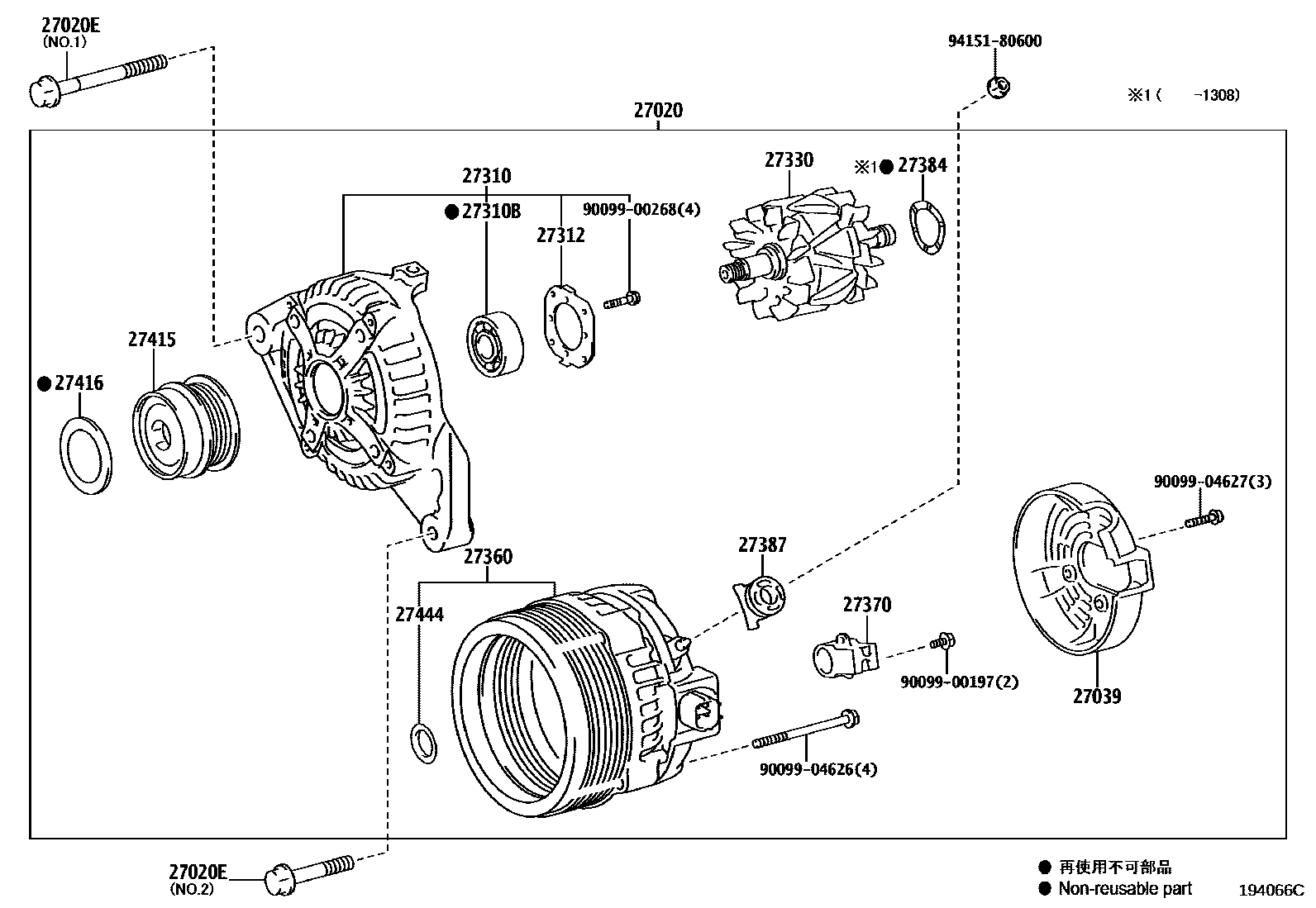

Toyota RAV4 EPC diagram 1903, Alternator, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-36080 · 27060-36090 |
| 27020E | Bolts (for generator) | 90105-10562 · 91552-81045 |
| 27039 | Alternator Rear End Cover | 27039-47330 |
| 27310 | Alternator Drive End Frame Assembly | 27310-36160 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90099-10223 |
| 27312 | Retainer Plate | 27312-72100 |
| 27330 | Alternator Rotor Assembly | 27330-47330 |
| 27360 | Alternator Stator Coil Assembly | 27360-36160 · 27360-36161 · 27360-36170 · 27360-36171 |
| 27370 | Alternator Brush Holder Assembly | 27370-31220 |
| 27384 | Washer | 27384-38130 |
| 27387 | Terminal Insulator | 27387-20130 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-0W020 · 27415-0W021 |
| 27416 | Generator pulley cover | 27416-0W050 |
| 27444 | Generator bearing cap seals | 27444-21190 |
