Toyota RAV4 点火线圈和火花塞 — Figure 1901

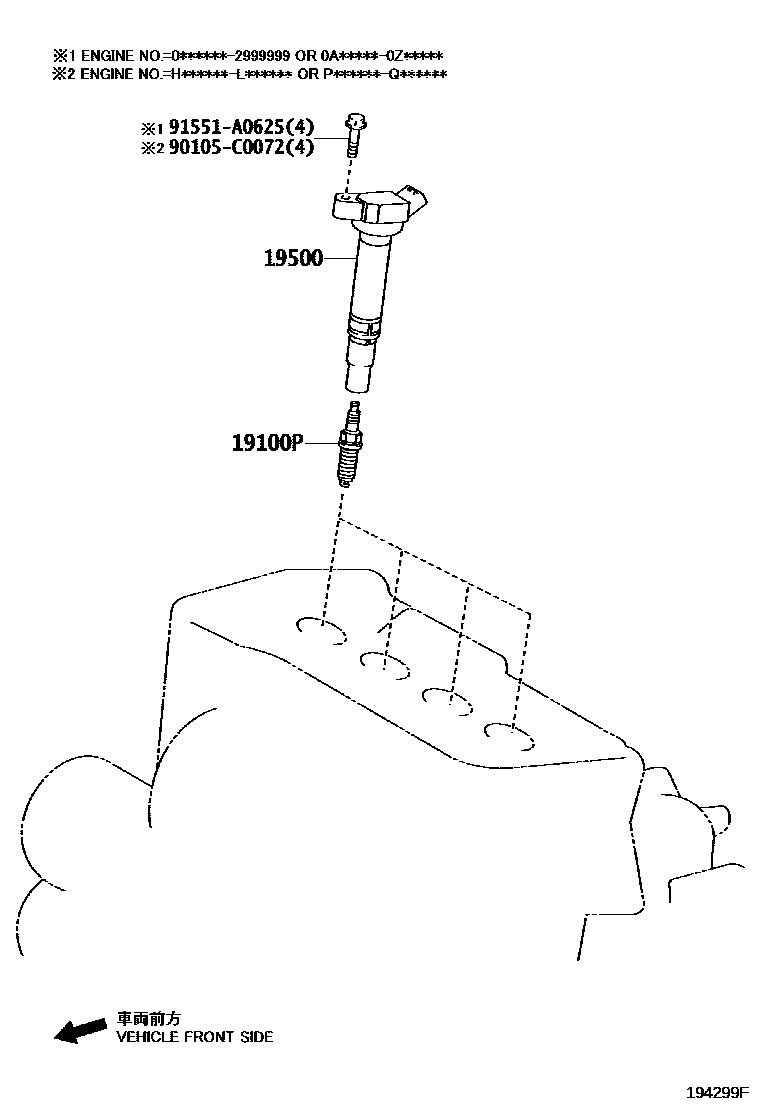

Toyota RAV4 EPC diagram 1901, 点火线圈和火花塞, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01233 · 90919-01259 · 90919-C1001 · 90919-C1008 |
| 19500 | Ignition coil assembly | 90919-02256 · 90919-C2004 |
