Toyota RAV4 vacuum tube — Figure 1708

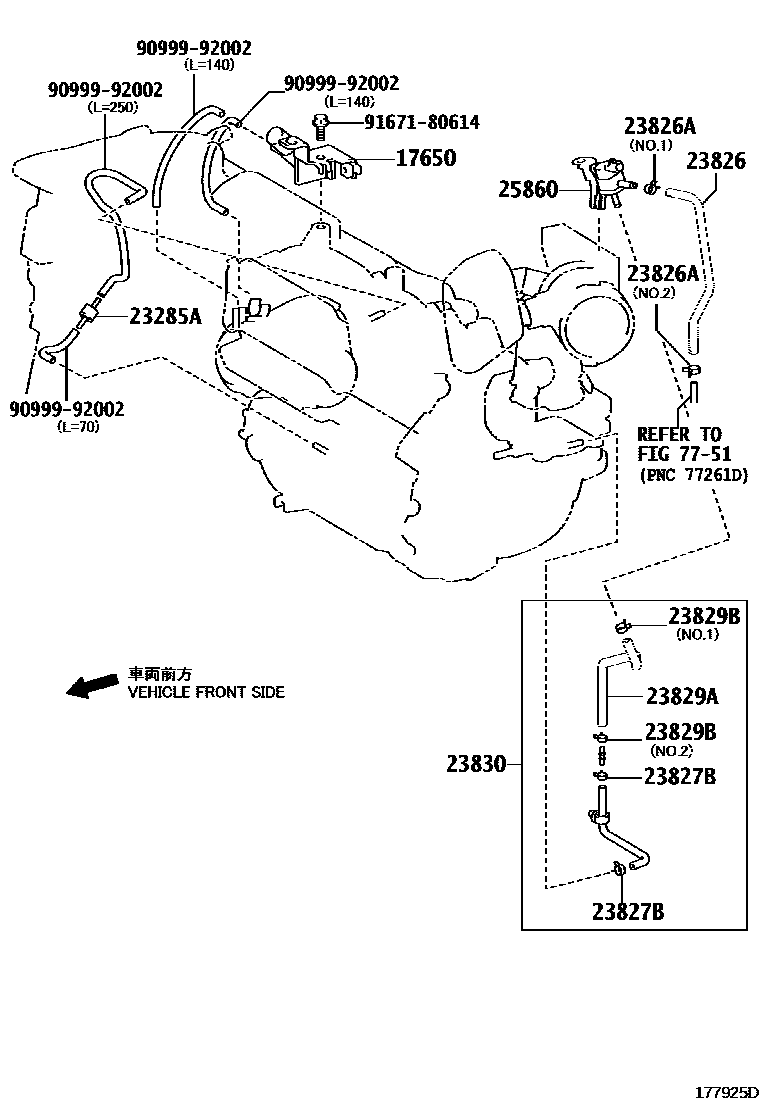

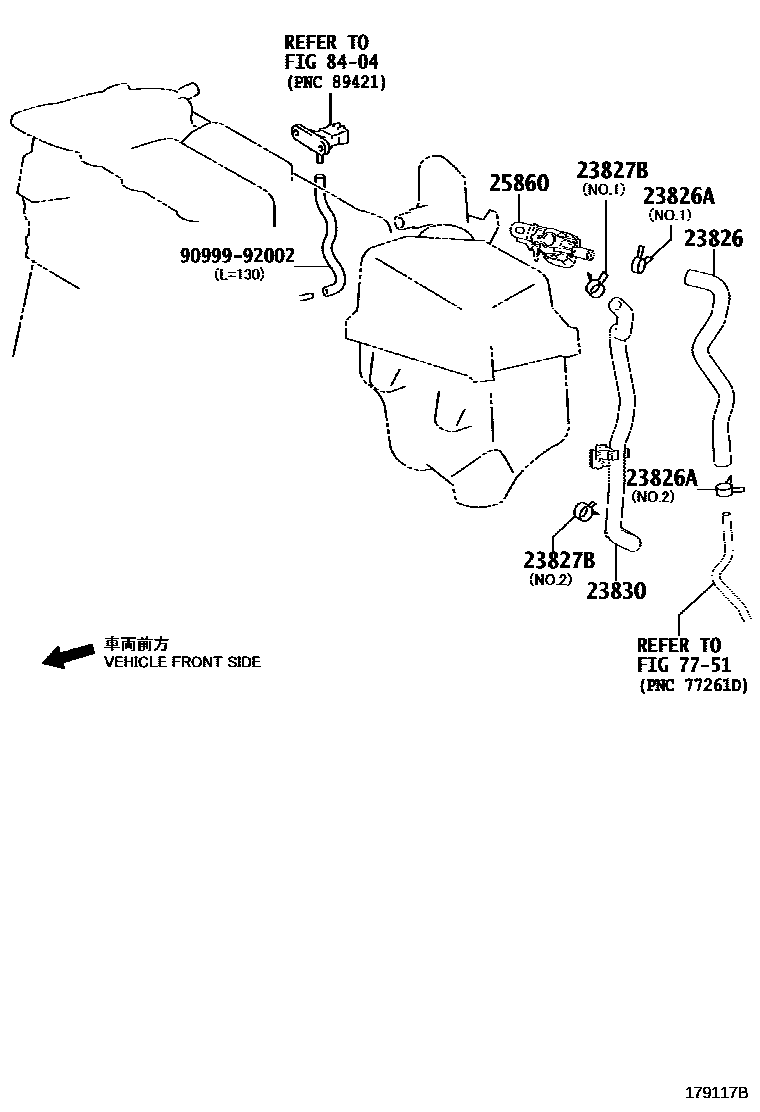

Toyota RAV4 EPC diagram 1708, vacuum tube, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17650 | Vacuum switch valve assembly | 25860-36010 |
| 23285A | No. 1 one-way valve | 90917-10065 |
| 23826 | No. 1 fuel vapor supply hose | 23826-36080 · 23826-36150 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 90466-11003 · 90467-19021 · 96132-51300 · 96136-41901 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 96132-51300 · 96136-41901 · 96136-51901 |
| 23829A | Fuel vapor supply hose | 23826-36100 |
| 23829B | Clamp (for fuel vapor supply hose) | 90466-13004 · 96132-51300 |
| 23830 | No. 2 fuel vapor supply hose assembly | 23830-36110 · 23830-36120 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-36090 · 25860-36100 |
