Toyota RAV4 Air Cleaner — Figure 1703

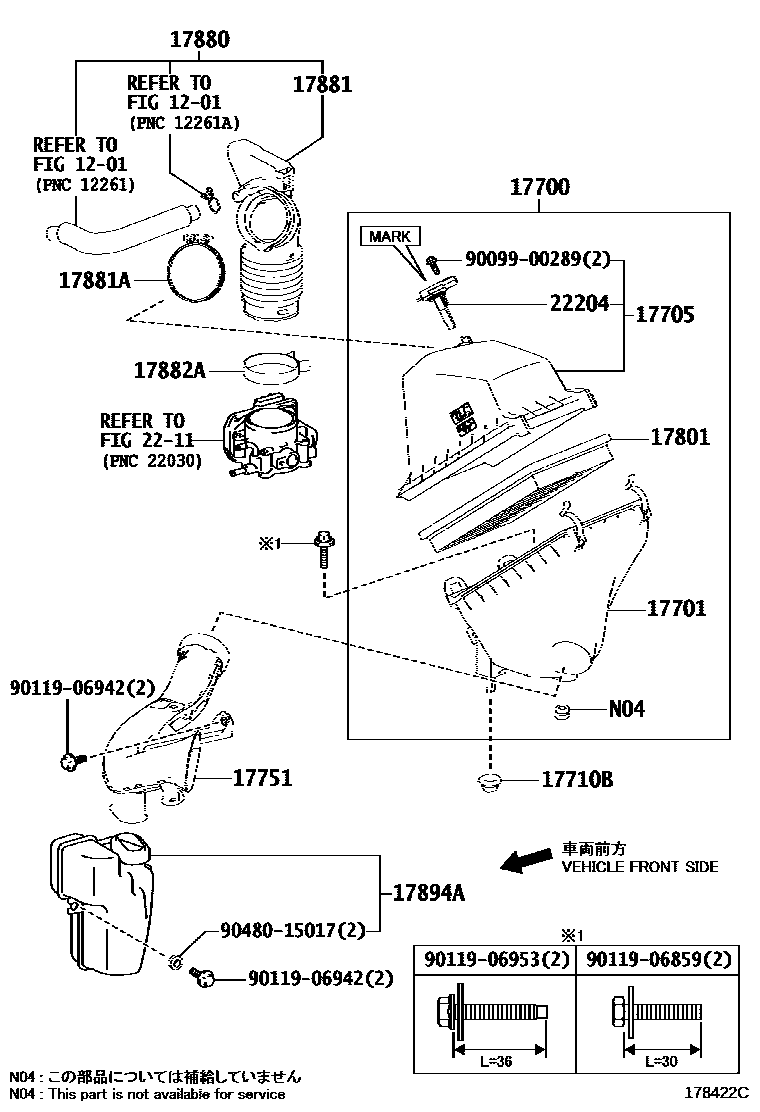

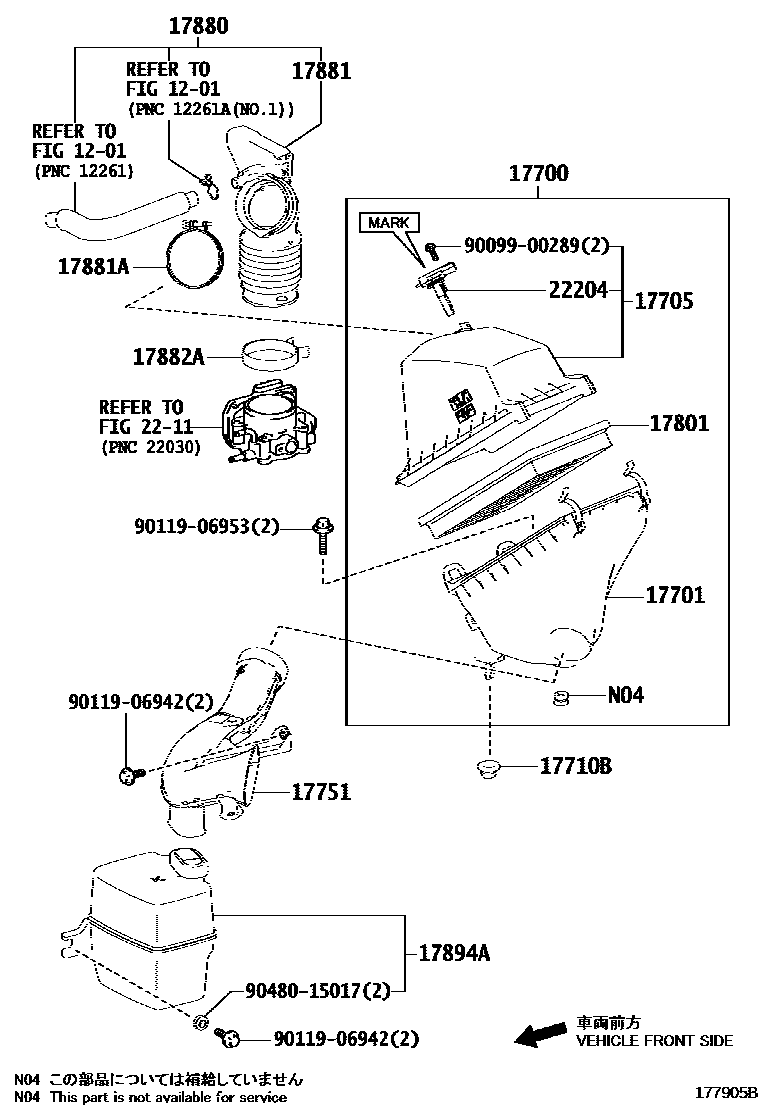

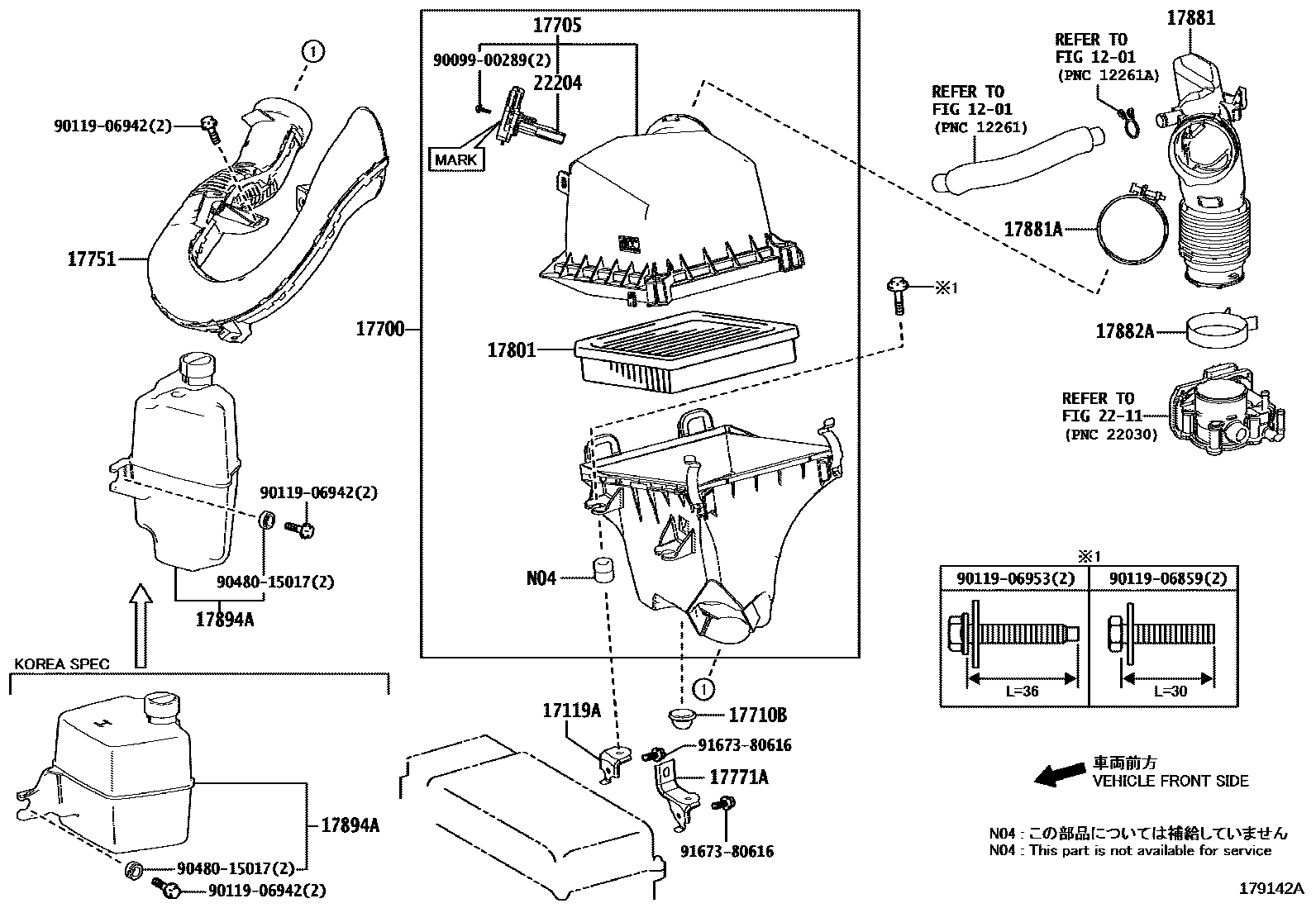

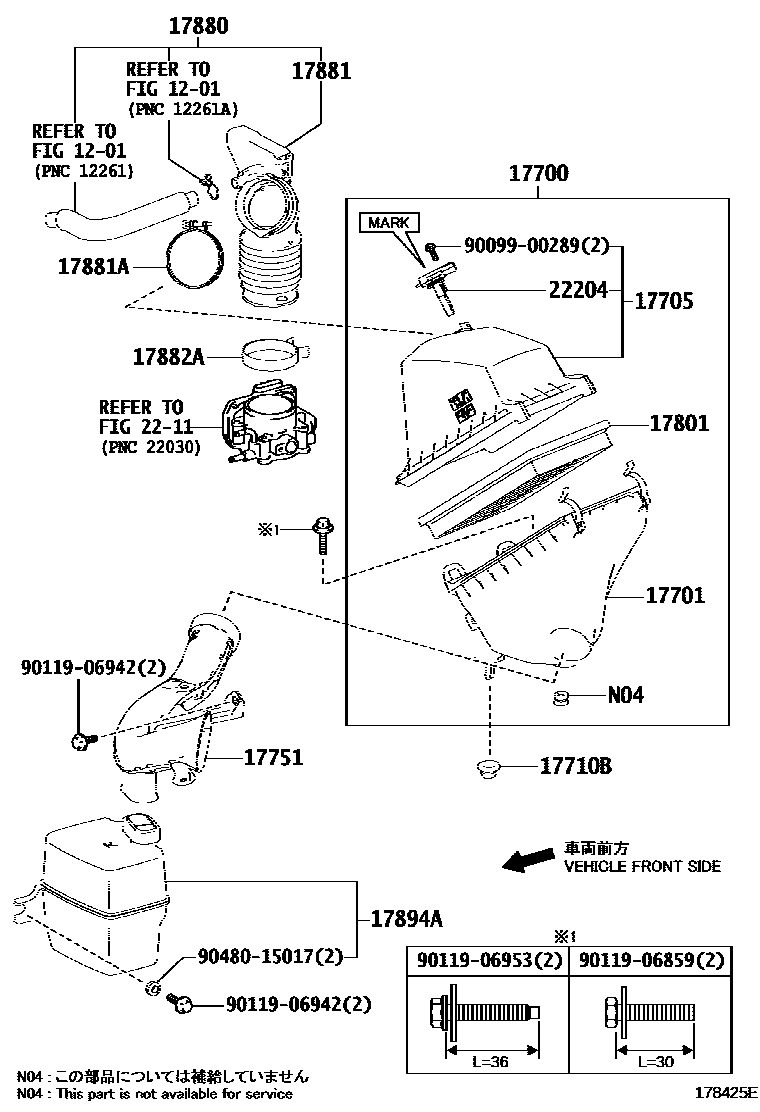

Toyota RAV4 EPC diagram 1703, Air Cleaner, with 4 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17119A | air filter bracket | 17119-36030 |
| 17700 | air filter assembly | 17700-36270 · 17700-36340 |
| 17701 | Air filter housing sub-assembly | 17701-36220 |
| 17705 | Air filter cover sub-assembly | 17705-36100 · 17705-36120 |
| 17710B | gasket | 90480-18006 |
| 17751 | No. 1 air filter air inlet | 17751-36051 · 17751-36080 |
| 17771A | air filter bracket | 17771-36060 |
| 17801 | Air filter element sub-assembly | 17801-0V020 · 17801-37021 · 17801-38011 |
| 17880 | Air cleaner hose assembly | 17880-36090 |
| 17881 | No. 1 air cleaner hose | 17881-36120 · 17881-36140 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10850 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90466-62002 · 90466-71001 |
| 17894A | No. 2 intake resonator | 17894-36031 · 17894-36040 · 17894-36050 · 17894-36080 |
| 22204 | Intake air flow meter assembly | 22204-0T040 · 22204-0V010 · 22204-0V020 · 22204-28010 |
