Toyota RAV4 Manifold — Figure 1701

Toyota RAV4 EPC diagram 1701, Manifold, with 2 images and 12 PNC and OE references.

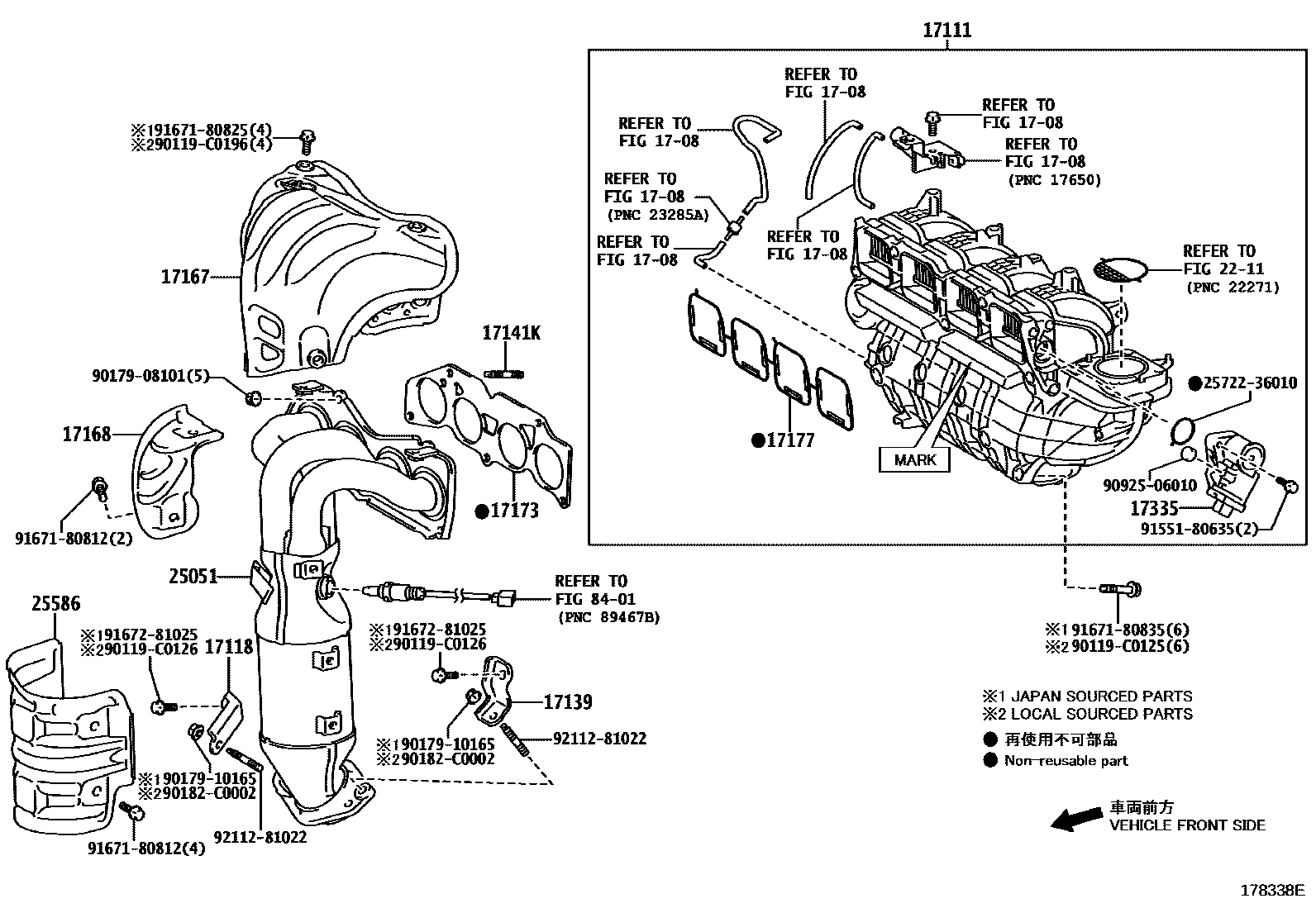

Toyota RAV4 Manifold EPC diagram — 178338E
Manifold — 178338E (201212 – 999999)

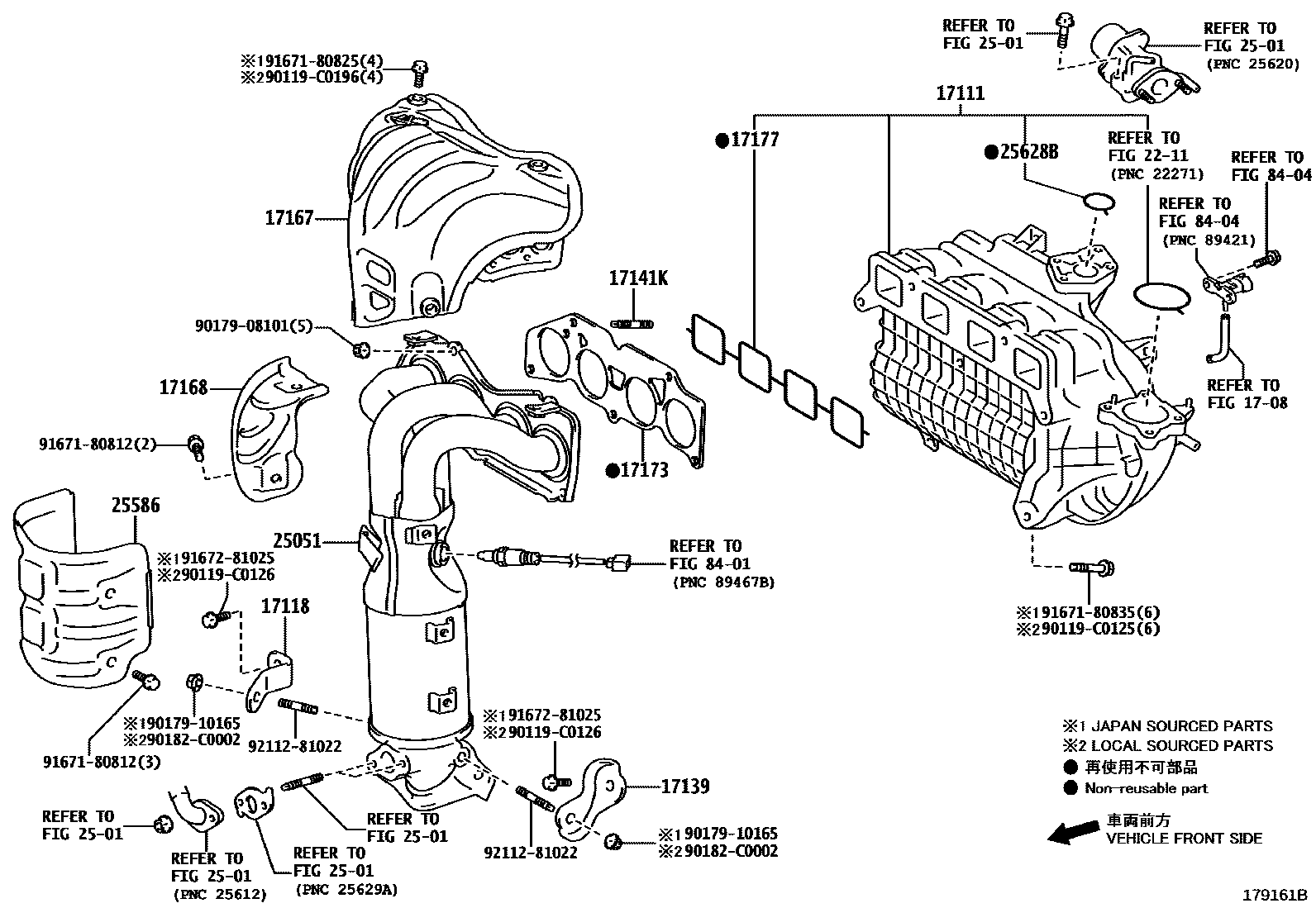

Toyota RAV4 Manifold EPC diagram — 179161B
Manifold — 179161B (201510 – 999999)

PNC and OE references

PNCPart nameOE numbers
17111Intake Manifold17120-36010 · 17120-36011 · 17120-36020 · 17120-36021 · 17120-36050
17118Manifold stays17118-0V020 · 17118-0V030 · 17118-36010 · 17118-36020
17139No. 2 manifold stay17139-0V030 · 17139-0V060 · 17139-36010 · 17139-36040
17141KStud bolts (for exhaust manifold to cylinder head)90126-08037 · 90126-08052 · 90126-C0010
17167Exhaust manifold No. 1 heat shield17167-0V020 · 17167-36011
17168Exhaust manifold No.2 insulation pad17168-36010
17173Gasket (exhaust manifold to cylinder head)17173-0V020 · 17173-36020
17177No. 1 gasket (intake manifold to cylinder head)17171-36010 · 17171-36011 · 17171-36020
17335Intake control valve actuator17335-36010
25051Exhaust manifold three-way catalytic converter sub-assembly25051-36080 · 25051-36150
25586No. 1 manifold three-way catalytic converter vibration isolation pad25586-36010 · 25586-36020
25628BEGR air intake gasket25628-36010
