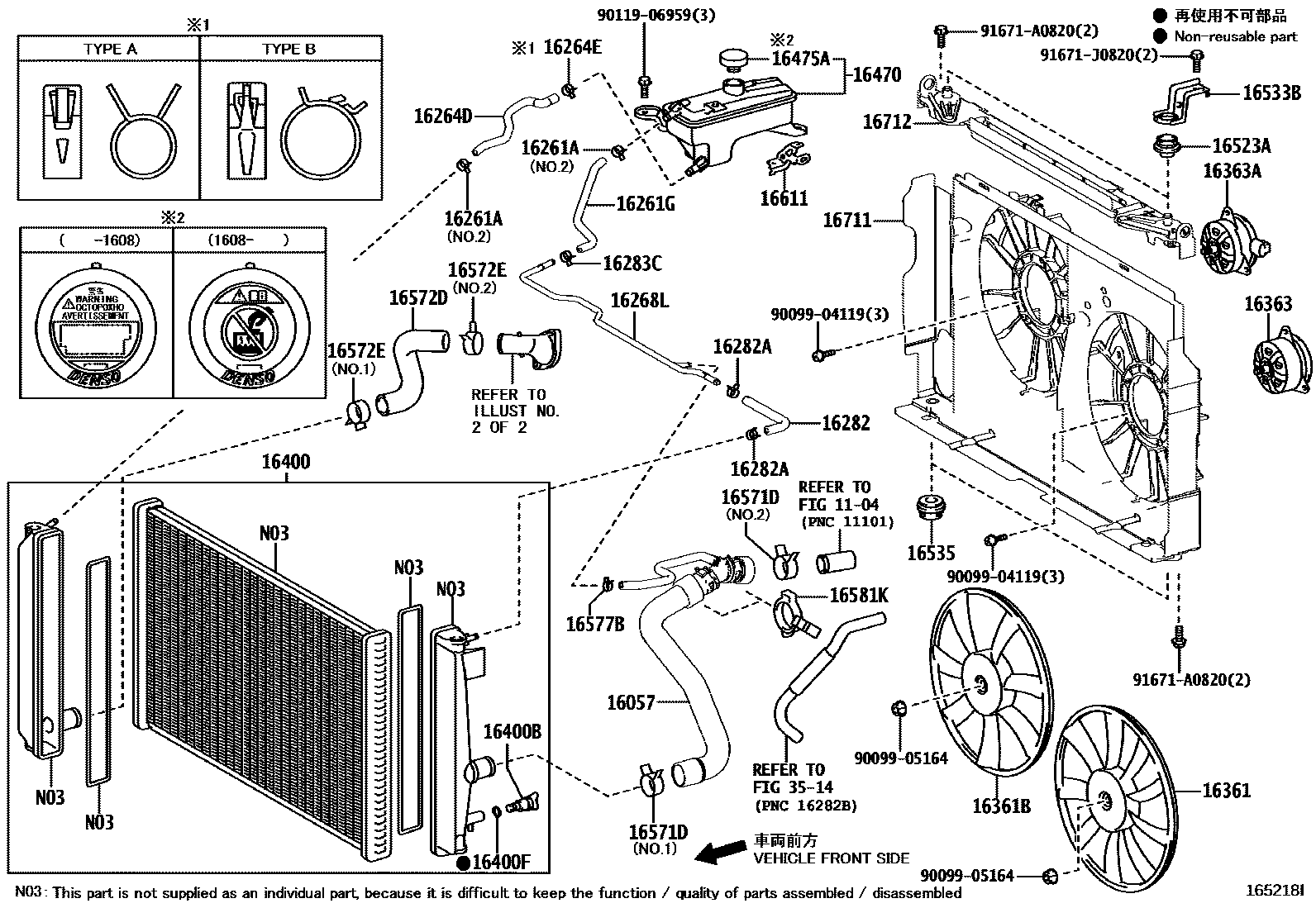

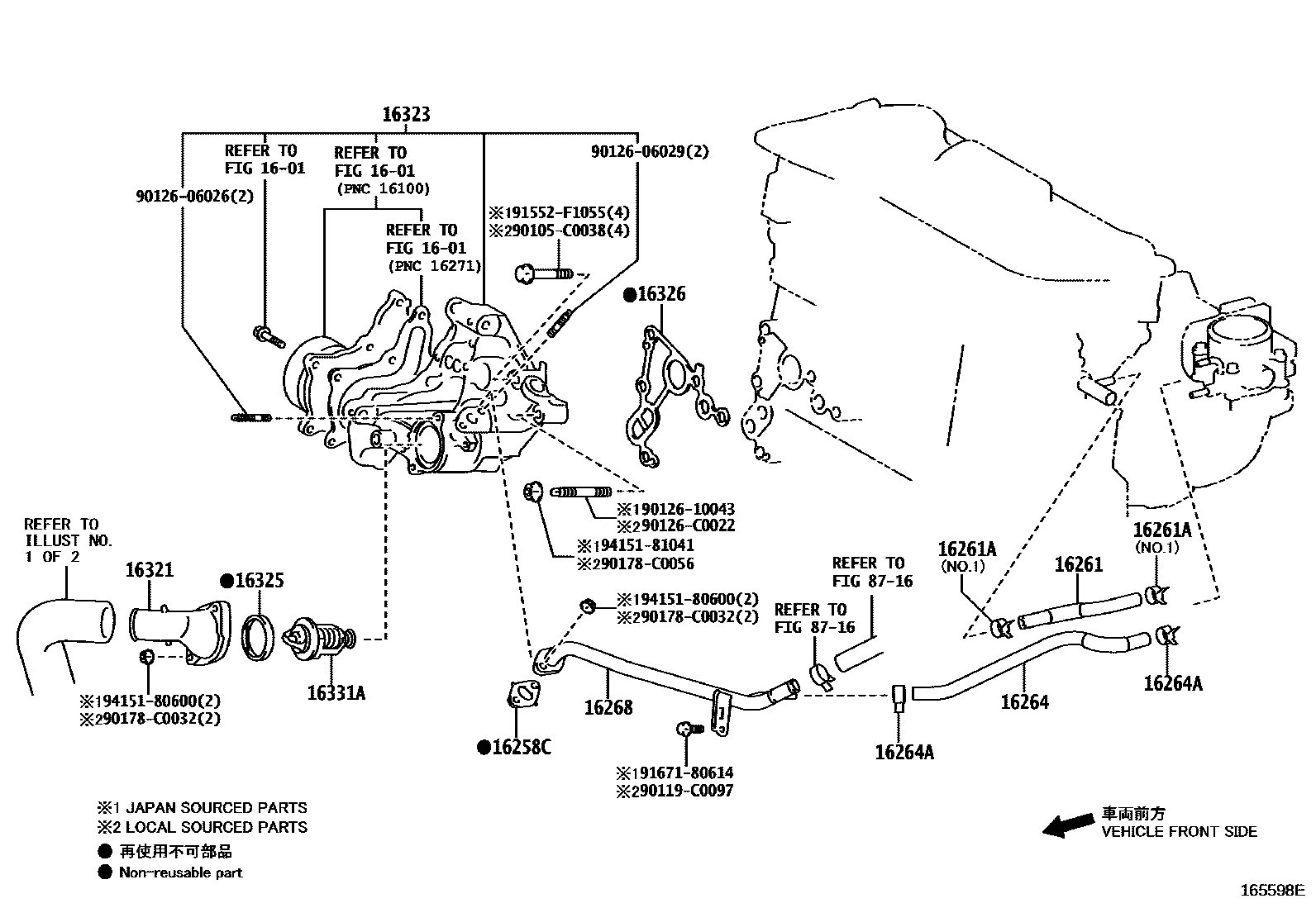

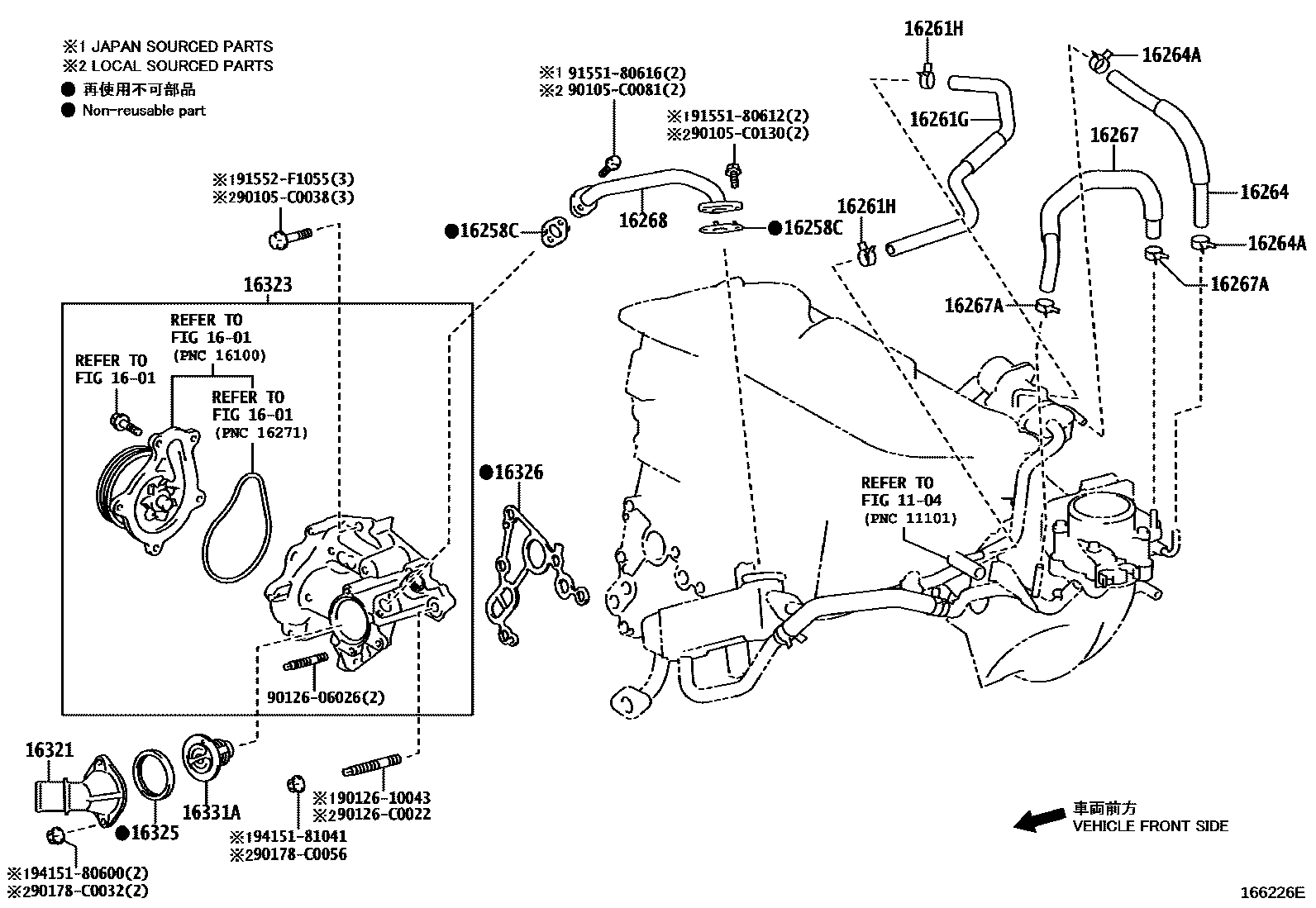

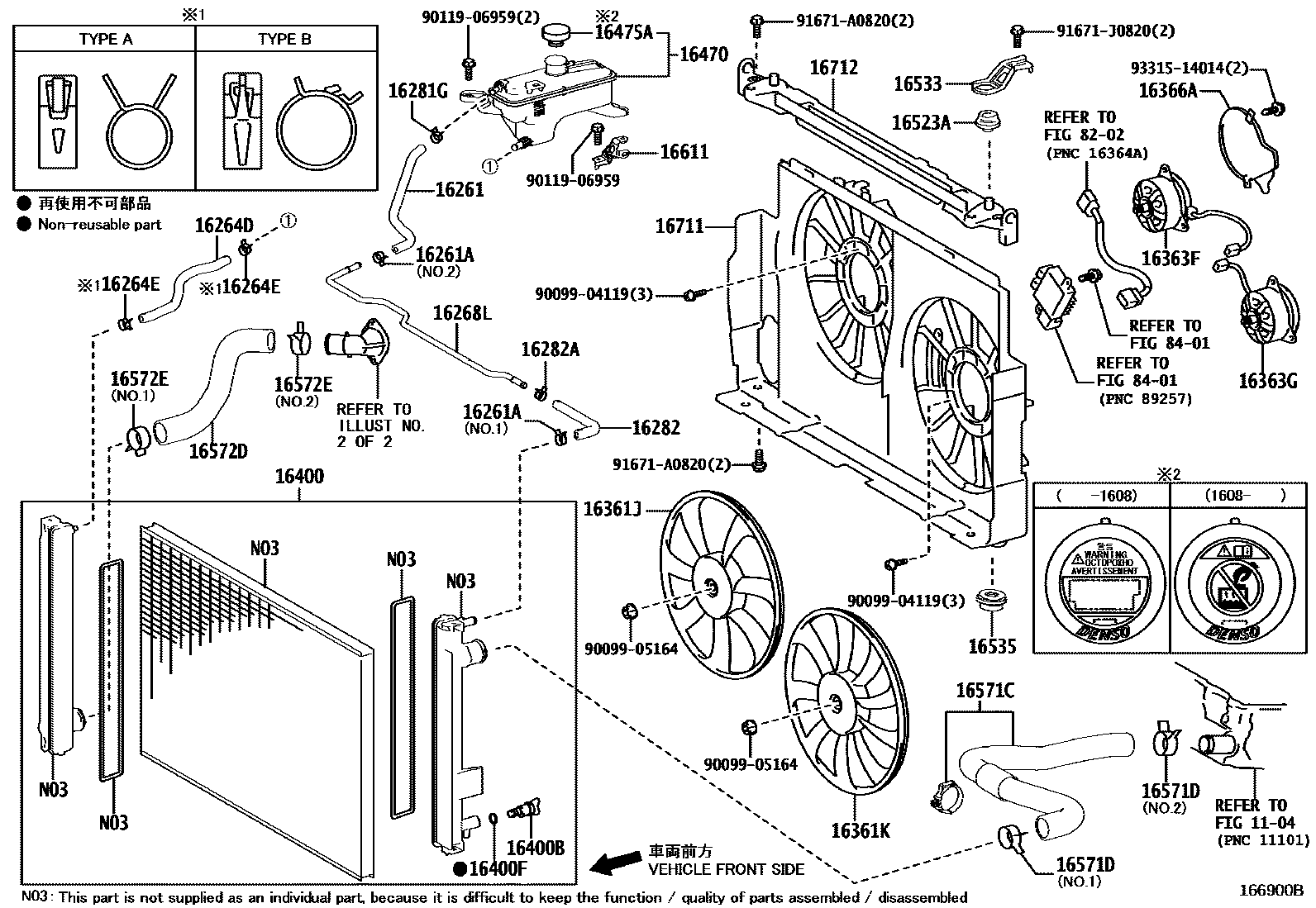

Toyota RAV4 RADIATOR & WATER OUTLET — Figure 1603
Toyota RAV4 EPC diagram 1603, RADIATOR & WATER OUTLET, with 4 images and 50 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16057 | Radiator hose sub-assembly | 16057-36021 |
| 16258C | Gasket (for water bypass pipe) | 16258-0V010 · 16258-36010 · 16258-36100 |
| 16261 | HOSE, WATER BY-PASS | 16261-0V030 · 16261-36010 · 16261-36050 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90466-C0026 · 90467-15022 · 96136-41901 · 96137-41501 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-36040 · 16261-36050 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 90466-C0026 · 96137-41501 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0V040 · 16264-36010 · 16264-36080 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90466-C0026 · 96137-41501 |
| 16264D | HOSE, WATER BY-PASS, NO.2 | 16264-36040 · 16264-36130 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 96134-51700 · 96136-41901 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-36080 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90466-C0026 · 96137-41501 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-0V090 · 16268-36010 · 16268-36190 |
| 16268L | PIPE, WATER BY-PASS | 16268-36070 · 16268-36120 |
| 16281G | CLIP, WATER BY-PASS HOSE NO.5 | 90467-15022 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-36030 · 16282-36060 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 90467-15022 |
| 16283C | Clip or clip (for water bypass hose) | 90467-15022 |
| 16321 | water inlet | 16321-0V020 · 16321-36010 · 16321-36060 |
| 16323 | HOUSING, WATER INLET | 16032-0V030 · 16032-36011 · 16032-36040 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-0H030 · 16325-28010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-36010 |
| 16331A | thermostat | 90916-03129 · 90916-03148 · 90916-C3001 |
| 16361 | Fan | 16361-36080 |
| 16361B | Fan No. 2 | 16361-36090 |
| 16361J | VENTILATEUR, MD | 16361-36150 |
| 16361K | VENTILATEUR, MG | 16361-36140 |
| 16363 | cooling fan motor | 16363-36100 |
| 16363A | Cooling fan motor No. 2 | 16363-36110 |
| 16363F | MOTEUR, VENTILATEUR REFROIDISSEMENT, MD | 16363-36190 |
| 16363G | MOTEUR, VENTILATEUR REFROIDISSEMENT, MG | 16363-36180 |
| 16366A | Cooling fan motor vibration isolation pad | 16366-36150 · 16366-36170 |
| 16400 | Radiator assembly | 16400-28570 · 16400-36090 |
| 16400B | Radiator drain switch screw plug | 16417-21280 · 16417-30170 |
| 16400F | Seal (for radiator drain switch) | 16418-15520 · 16492-21050 |
| 16470 | Radiator reservoir assembly | 16470-28111 · 16470-28112 · 16470-28113 |
| 16475A | Reservoir tank cover | 16475-28140 · 16475-37010 · 16475-37011 |
| 16523A | Radiator bracket cushion | 16523-28030 |
| 16533 | Radiator upper bracket | 16533-26070 |
| 16533B | Radiator bracket No. 1 | 16533-26070 |
| 16535 | Radiator lower support | 16535-28060 |
| 16571C | Radiator hose No. 1 | 16571-36240 |
| 16571D | No. 1 radiator hose clip | 96136-44301 · 96136-44801 |
| 16572D | Radiator hose No. 2 | 16572-36130 · 16572-36160 |
| 16572E | No. 2 radiator hose clip | 96136-44301 · 96136-44801 |
| 16577B | Hose clamps or clips (for radiator pipes) | 90467-13128 |
| 16581K | No. 1 auxiliary radiator hose clip | 16581-36010 |
| 16611 | Radiator reservoir bracket | 16611-28030 · 16611-36010 |
| 16711 | fan cover | 16711-36150 · 16711-36151 · 16711-36180 |
| 16712 | No. 2 fan cover | 16712-36030 · 16712-36080 |
