Toyota RAV4 Water Pump — Figure 1601

Toyota RAV4 EPC diagram 1601, Water Pump, with 3 images and 4 PNC and OE references.

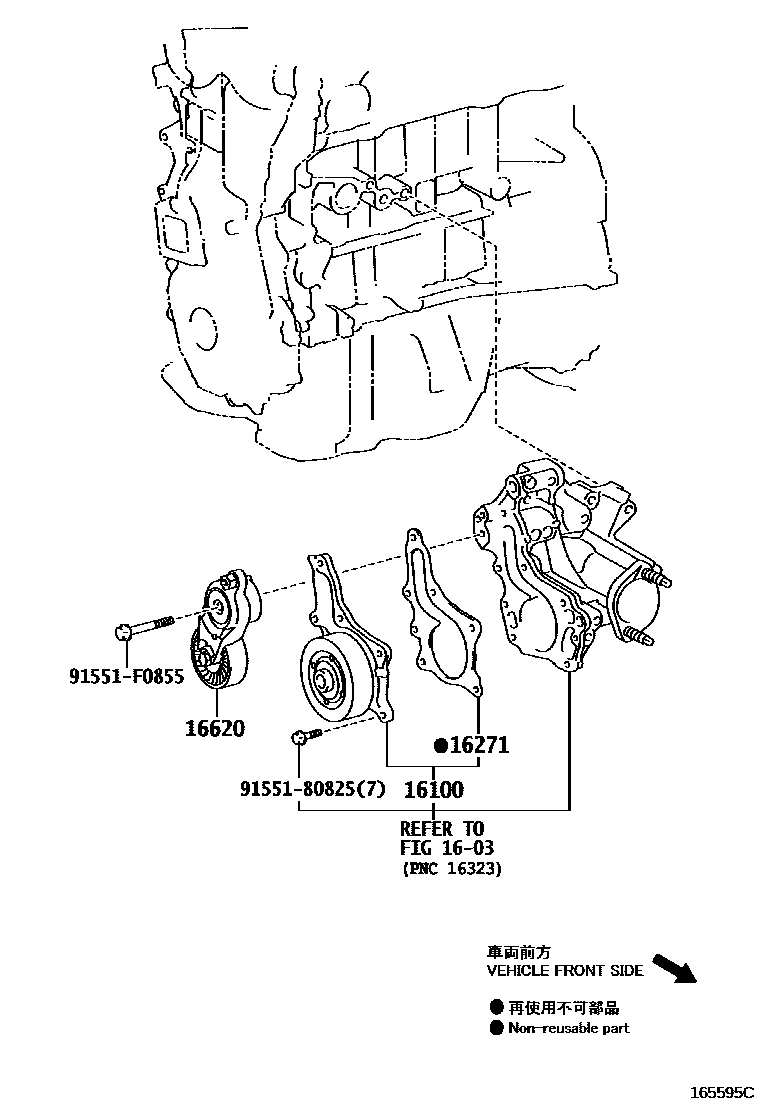

Toyota RAV4 Water Pump EPC diagram — 165595C
Water Pump — 165595C (201212 – 999999)

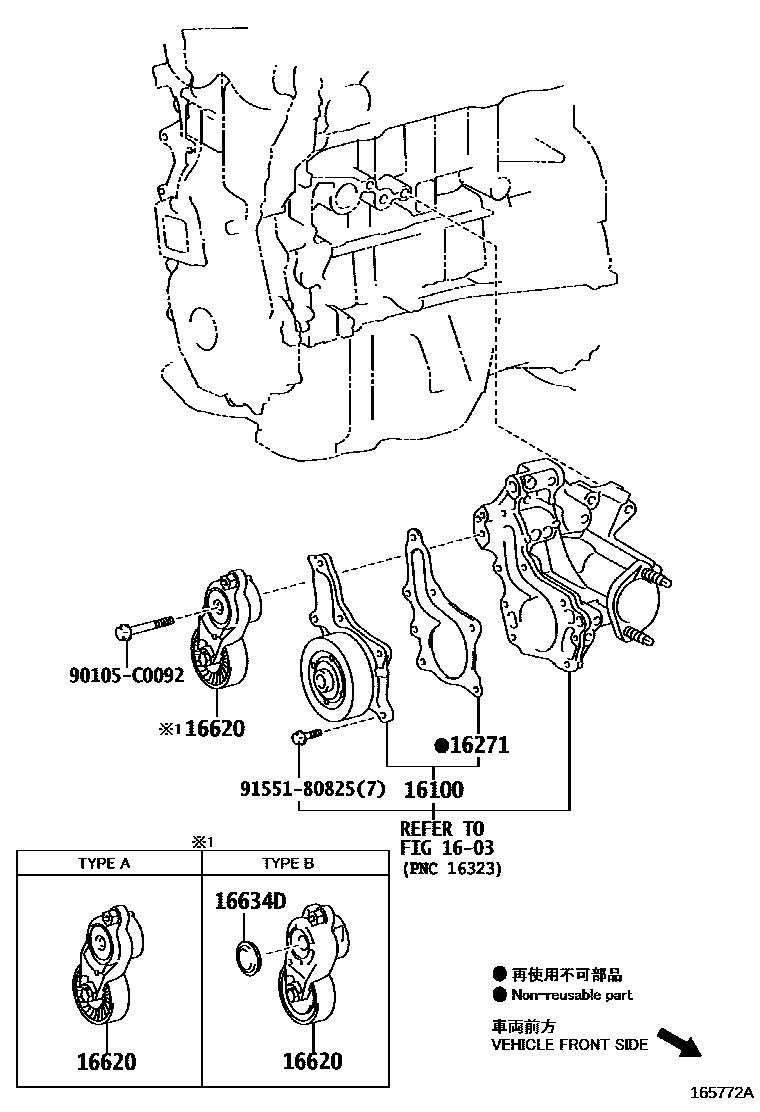

Toyota RAV4 Water Pump EPC diagram — 165772B
Water Pump — 165772B (201212 – 999999)

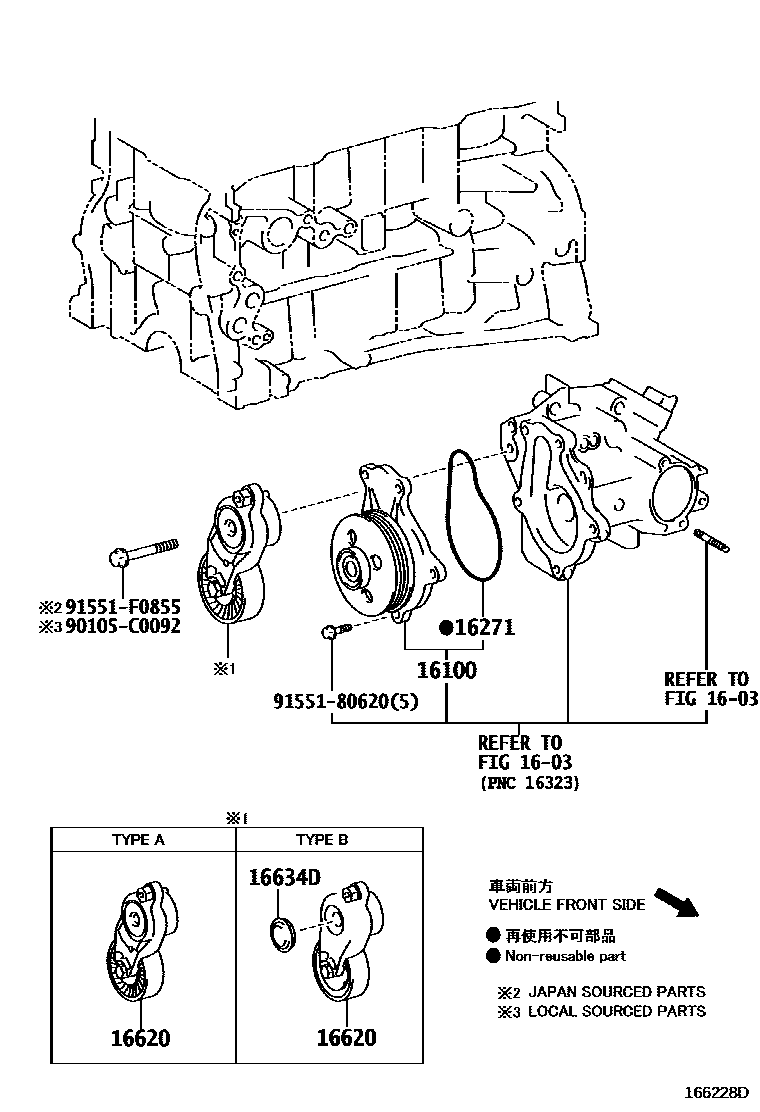

Toyota RAV4 Water Pump EPC diagram — 166228D
Water Pump — 166228D (201510 – 999999)

PNC and OE references

PNCPart nameOE numbers
16100Engine water pump assembly16100-09600 · 16100-39515 · 16100-39575
16271water pump gasket16271-36010 · 16271-36030
16620Poly V-belt tensioner assembly16620-0V041 · 16620-0V042 · 16620-0V050 · 16620-0V051 · 16620-36010 · 16620-36011 · 16620-36012 · 16620-36013
16634Ddust cover16628-0V010
