Toyota RAV4 Camshaft & Valve — Figure 1302

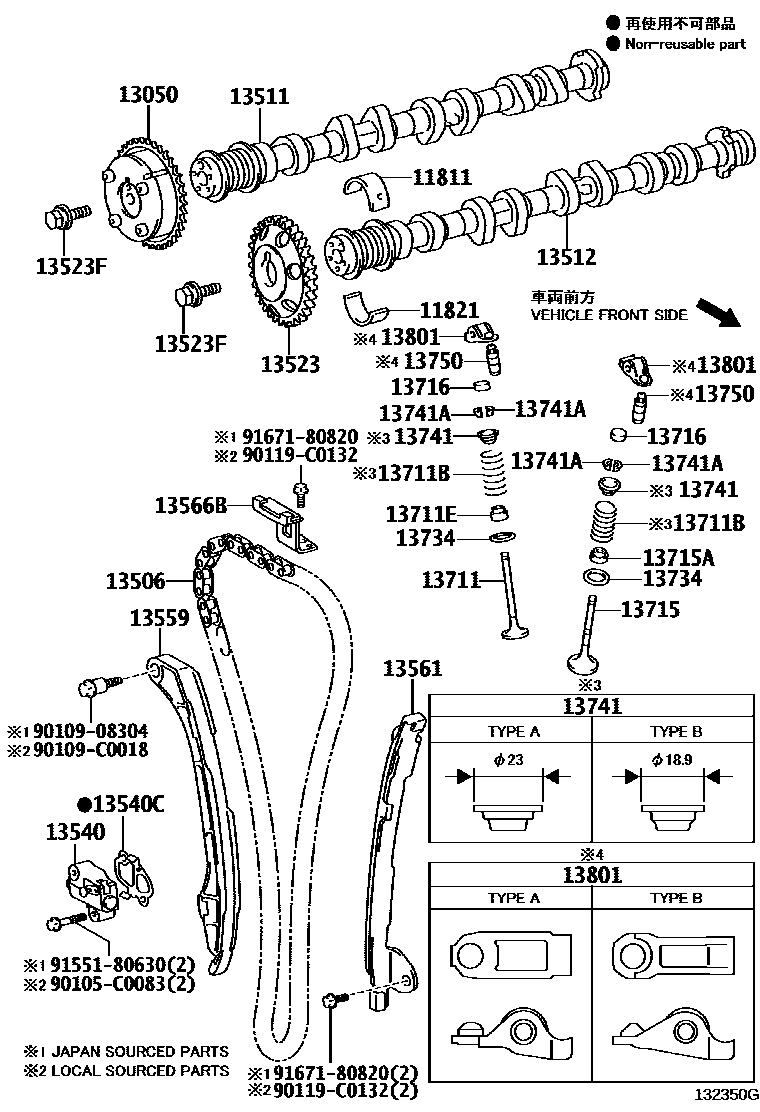

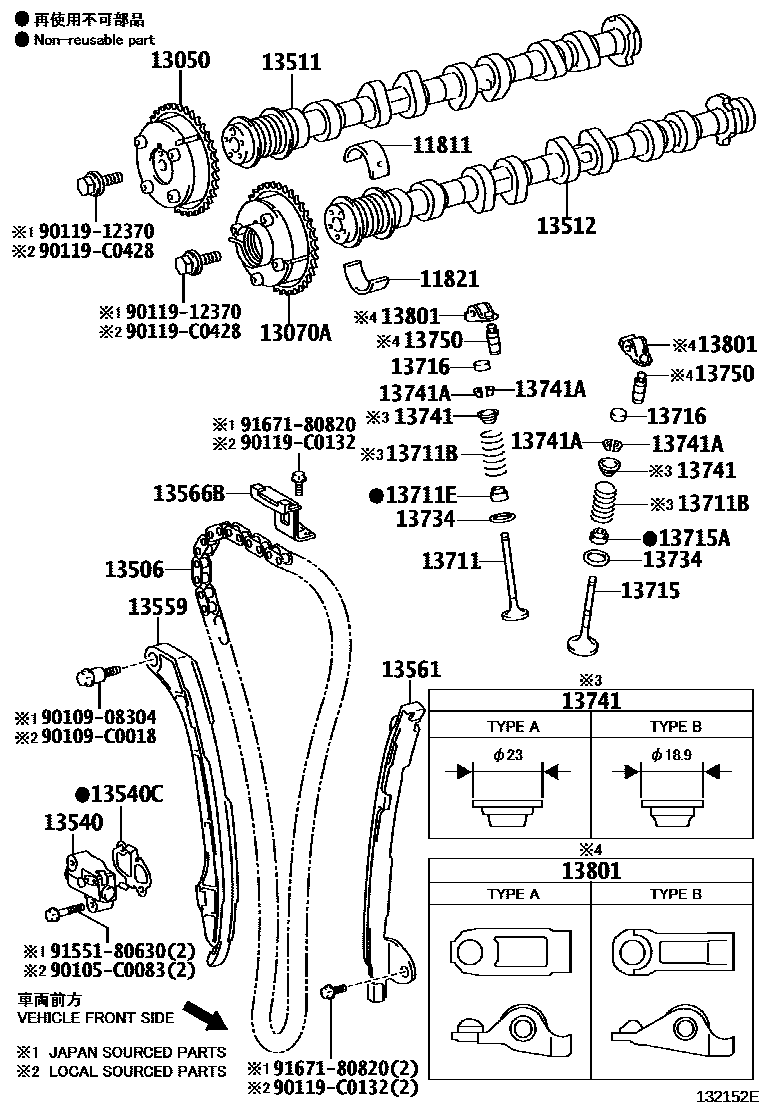

Toyota RAV4 EPC diagram 1302, Camshaft & Valve, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11811 | No. 1 camshaft bearing | 11811-0V010 · 11811-36010 |
| 11821 | No. 2 camshaft bearing | 11821-0V010 · 11821-36010 |
| 13050 | Camshaft timing gear assembly | 13050-0V070 · 13050-0V080 · 13050-36020 · 13050-36030 |
| 13070A | Exhaust camshaft timing gear assembly | 13070-0V030 · 13070-36030 |
| 13506 | Chain sub-assembly | 13506-0V020 · 13506-36010 · 13506-36030 |
| 13511 | camshaft | 13501-0V020 · 13501-0V030 · 13501-36030 · 13501-36050 |
| 13512 | Camshaft No. 2 | 13502-0V020 · 13502-0V030 · 13502-36020 · 13502-36030 |
| 13523 | Camshaft timing gear or sprocket | 13523-36020 |
| 13523F | Bolt (for camshaft timing gear) | 90119-12370 · 90119-C0428 |
| 13540 | No. 1 chain tensioner assembly | 13540-0V040 · 13540-36010 · 13540-36040 · 13540-36041 |
| 13540C | Pad (for chain tensioner) | 13552-0V020 · 13552-36010 |
| 13559 | chain tensioner guide plate | 13559-0V020 · 13559-36010 · 13559-36040 |
| 13561 | No. 1 chain shock absorber | 13561-0V020 · 13561-36010 · 13561-36030 |
| 13566B | Timing chain guide plate | 13566-0V021 · 13566-36011 |
| 13711 | intake valve | 13711-0V020 · 13711-36060 |
| 13711B | Compression spring (for inner side) | 90501-34016 · 90501-34022 · 90501-C0019 · 90501-C0053 |
| 13711E | Intake valve stem oil seal | 90913-02101 · 90913-T2001 |
| 13715 | exhaust valve | 13715-0V020 · 13715-36020 |
| 13715A | Exhaust valve stem oil seal | 90913-02112 · 90913-T2003 |
| 13716 | valve stem cover | 13716-0Y010 · 13716-75020 |
| 13734 | Valve spring seat | 13734-0P020 · 13734-62020 |
| 13741 | Valve spring seat ring | 13741-0Y020 · 13741-0Y050 · 13741-20021 · 13741-36010 |
| 13741A | Valve spring seat lock plate | 90913-03028 · 90913-C3002 |
| 13750 | Valve lash adjuster assembly | 13750-0V020 · 13750-0V030 · 13750-31030 · 13750-36020 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13801-0P020 · 13801-0V020 · 13801-23011 · 13801-36020 |
